Parts for 350 HP 2.6L L6 Pro Verado 4-Stroke Mercury Outboard Motor Gear Housing, Prop Shaft-Counter Rot, 5.44 Hd Sportmaster

Revise Search: Outboard > 4-Stroke Mercury Outboard > 350 HP 2.6L L6 Pro Verado > 2B141124 & Up - USA > Gear Housing, Prop Shaft-Counter Rot, 5.44 Hd Sportmaster

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

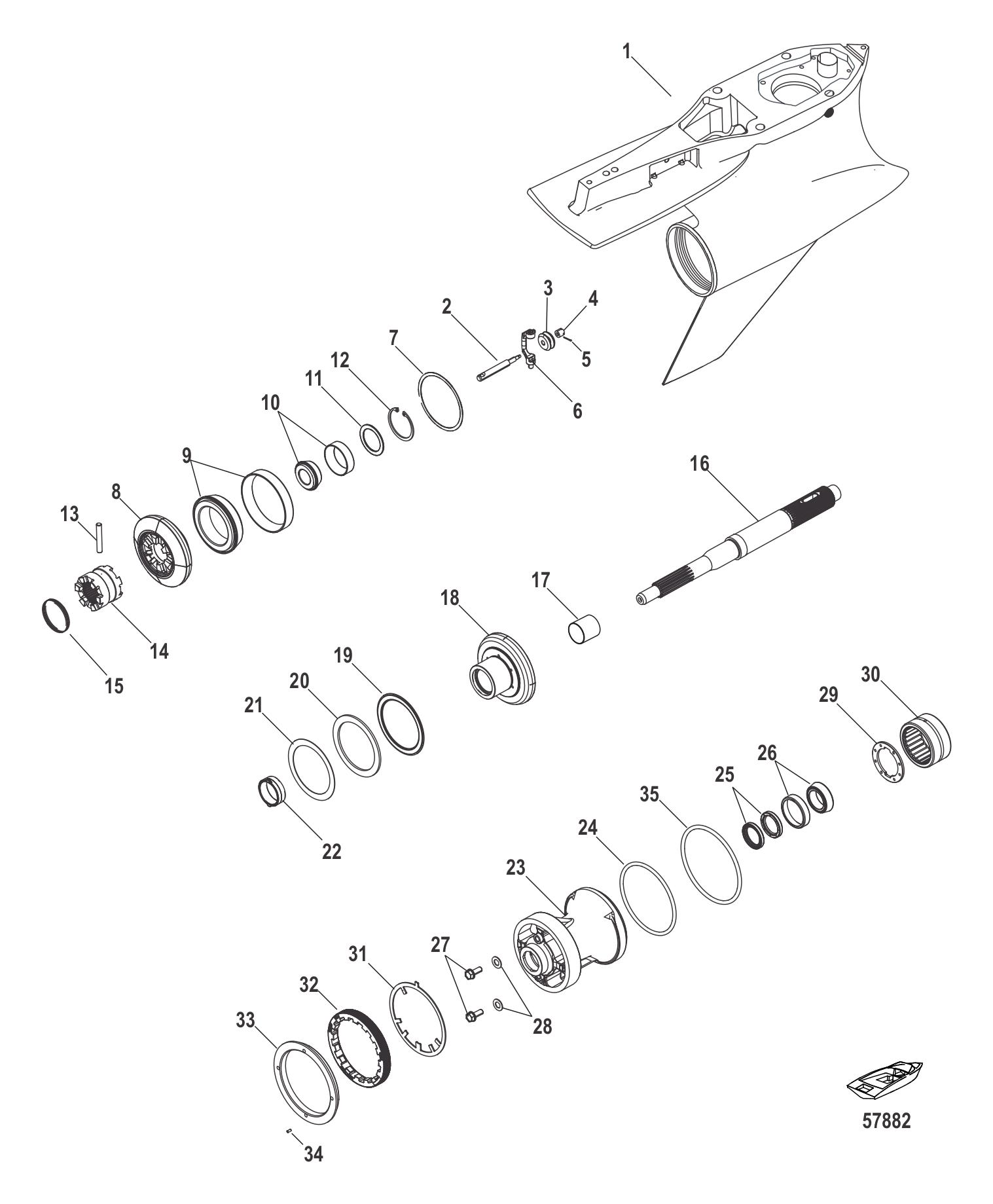

Gear Housing, Prop Shaft-Counter Rot, 5.44 Hd Sportmaster

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0102786	GEAR HOUSING ASSEMBLY COMPLETE (LONG) (1.75:1) STRAIGHT SKEG (1 required per assembly)
		16008M0102786 - GC 1.75 CL LH SM [ More info ] Unavailable
		1600-8M0236277 - GC SM 1.75 CL [ More info ] Unavailable
#-	8M0102787	GEAR HOUSING ASSEMBLY COMPLETE (X-LONG) (1.75:1) STRAIGHT SKEG (1 required per assembly)
		16008M0102787 - GC 1.75 CXL LH SM [ More info ] Unavailable
		1600-8M0236278 - GC SM 1.75 CXL [ More info ] Unavailable
#-	8M0102788	GEAR HOUSING ASSEMBLY COMPLETE (XX-LONG) (1.75:1) STRAIGHT SKEG (1 required per assembly)
		16008M0102788 - GC 1.75 CXXL LHSM [ More info ] Unavailable
		1600-8M0236280 - GC SM CXXL 1.75 [ More info ] Unavailable
#-	8M0137081	GC 1.75 CL LH CSM (LONG) (1.75:1) CAMBERED SKEG (1 required per assembly) — Replaces: 8M0102792
		16008M0137081 - GC 1.75 CL LH CSM [ More info ] Unavailable
		1600-8M0236298 - GC SM 1.75 CL [ More info ] Unavailable
#-	8M0137082	GC 1.75 CXL LHCSM (X-LONG) (1.75:1) CAMBERED SKEG (1 required per assembly) — Replaces: 8M0102793
		16008M0137082 - GC 1.75 CXL LHCSM [ More info ] Unavailable
		1600-8M0236299 - GC SM 1.75 CXL [ More info ] Unavailable
#-	8M0137083	GC 1.75CXXL LHCSM (XX-LONG) (1.75:1) CAMBERED SKEG (1 required per assembly) — Replaces: 8M0102794
		16008M0137083 - GC 1.75CXXL LHCSM [ More info ] Unavailable
#1	8M0137075	GEAR HOUSING BASC COUNTER CAMBERED SKEG (1 required per assembly) — Replaces: 8M0102797
		16008M0137075 - GEAR HOUSING BASC [ More info ] Unavailable
#2	8M0053114	SPOOL ASSEMBLY (1 required per assembly)
		8M0053114 - Shift Spool Assembly [ More info ] Unavailable
		8M0235941 - SPOOL ASSY SHIFT [ More info ] Unavailable
#3	NSS	NOT SOLD SEPARATE SPOOL (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	NSS	NOT SOLD SEPARATE SLEEVE (1 required per assembly)
#5	469501	COTTER PIN (1 required per assembly)
		18-46950 1 - Cotter Pin [ More info ] $4.49 7 In Stock.
#6	8M0046215	CRANK, SHIFTER 1/4 PIVOT PIN (1 required per assembly)
		8M0046215 - Crank- Shift Assembly [ More info ] Unavailable
		8M0220880 - CRANK-SHIFT ASSY [ More info ] Unavailable
#7	8M0063270	SHIM SET (1 required per assembly)
		158M0063270 - Shim Set [ More info ] $113.99 Available to Order: Shipping delay up to 10 days.
#8	8M0053121	GEAR KIT REVERSE 1.75:1 Ratio (1 required per assembly)
		43-8M0053121 - Reverse Gear Assembly [ More info ] $609.99 Available to Order: Shipping delay up to 10 days.
		438M0146676 - GEAR REVERSE 21 [ More info ] $401.49 Available to Order: Shipping delay up to 10 days.
#9	8M0142836	BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884323T01
		318M0142836 - Bearing ROLLER [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#10	8M0142835	BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884325T01
		318M0142835 - Bearing ROLLER [ More info ] $76.62 2 In Stock.
#11	8M0053823	THRUST WASHER (1 required per assembly)
		128M0053823 - Washer [ More info ] $18.59 1 In Stock.
#12	8M0051043	RETAINING RING (1 required per assembly)
		53-8M0051043 - Retainer Ring [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#13	8M0045493	PIN (1 required per assembly)
		17-8M0045493 - Pin-CROSS [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#14	8M0053113	CLUTCH [2B549490] & Below (1 required per assembly)
		528M0053113 - Clutch [ More info ] $181.49 Available to Order: Shipping delay up to 10 days.
#14	8M0142871	CLUTCH SLIDING 6 JAW [2B549491] & Up (1 required per assembly)
		528M0142871 - Clutch SLIDING 6 [ More info ] $188.99 Available to Order: Shipping delay up to 10 days.
#15	8M0050575	SPRING (1 required per assembly)
		24-8M0050575 - Spring-Pin RETAIN [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#16	8M0156191	SHAFT PROPELLER 1.75:1 Ratio (1 required per assembly)
		44-8M0156191 - SHAFT PROPELLER [ More info ] Unavailable
#17	8M0064306	SPACER (A/R required per assembly)
		238M0064306 - Spacer-Thrust [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#18	8M0053120	GEAR SET 12/21 (1.75:1) FORWARD (1 required per assembly)
		43-8M0053120 - Gear Set-Forward [ More info ] $589.99 Available to Order: Shipping delay up to 10 days.
#19	8M0050692	BEARING (1 required per assembly)
		31-8M0050692 - Thrust Bearing [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#20	8M0050688	WASHER (1 required per assembly)
		12-8M0050688 - Thrust Washer [ More info ] $21.79 Available to Order: Shipping delay up to 10 days.
#21	8M0053116	SHIM SET (A/R required per assembly)
		15-8M0053116 - Shim Set [ More info ] $114.49 Available to Order: Shipping delay up to 10 days.
#22	8M0053183	ADAPTER (1 required per assembly)
		8M0053183 - Adaptor [ More info ] $20.79 Available to Order: Shipping delay up to 10 days.
#23	8M0117237	CARRIER ASSEMBLY BEARING (1 required per assembly) — Replaces: 8M0103305
		8M0117237 - Bearing Carrier [ More info ] $850.79 Available to Order: Shipping delay up to 10 days.
#24	8M0000190	O-RING (4.475 X .210) (1 required per assembly)
		25-8M0000190 - O-ring, (4.475 X .210) [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#25	8M0204700	SEAL-OIL (2 required per assembly) — Replaces: 888483
		268M0204700 - SEAL-OIL [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#26	8M0148319	BEARING CUP/CONE (1 required per assembly) — Replaces: 884330T01
		318M0148319 - Bearing CUPCone [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#27	8M0071653	SCREW SPECIAL (2 required per assembly)
		108M0071653 - Screw [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#28	8M0204693	SEAL @6 (2 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 7 In Stock.
#29	8M0056639	RING RETAINER (1 required per assembly)
		538M0056639 - Retainer Ring [ More info ] $57.99 Available to Order: Shipping delay up to 10 days.
#30	8M0050704	BEARING NEEDLE (1 required per assembly)
		31-8M0050704 - Roller Bearing [ More info ] $141.05 1 In Stock.
#31	8M0108527	WASHER TAB (1 required per assembly) — Replaces: 8M0055058
		148M0108527 - Washer-TAB [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#32	8M0162798	RETAINER BEARING CARRIER (1 required per assembly) — Replaces: 8M0001491, 8M0111653
		8M0162798 - RETAINER BEARING [ More info ] Unavailable
#33	8M0180308	COVER TORPEDO (1 required per assembly) — Replaces: 8M0050726
		8M0180308 - COVER TORPEDO [ More info ] Unavailable
#35	8M0036819	SET SCREW (10-32) (1 required per assembly)
		10-8M0036819 - Set Screw [ More info ] $4.58 1 In Stock.
#36	8M0161546	THRUST RING (1 required per assembly) — Replaces: 8M0046569
		128M0161546 - RING THRUST [ More info ] $20.69 Available to Order: Shipping delay up to 10 days.
