Parts for 8.2L Mag Ec (Base Model) 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Engine Mounts

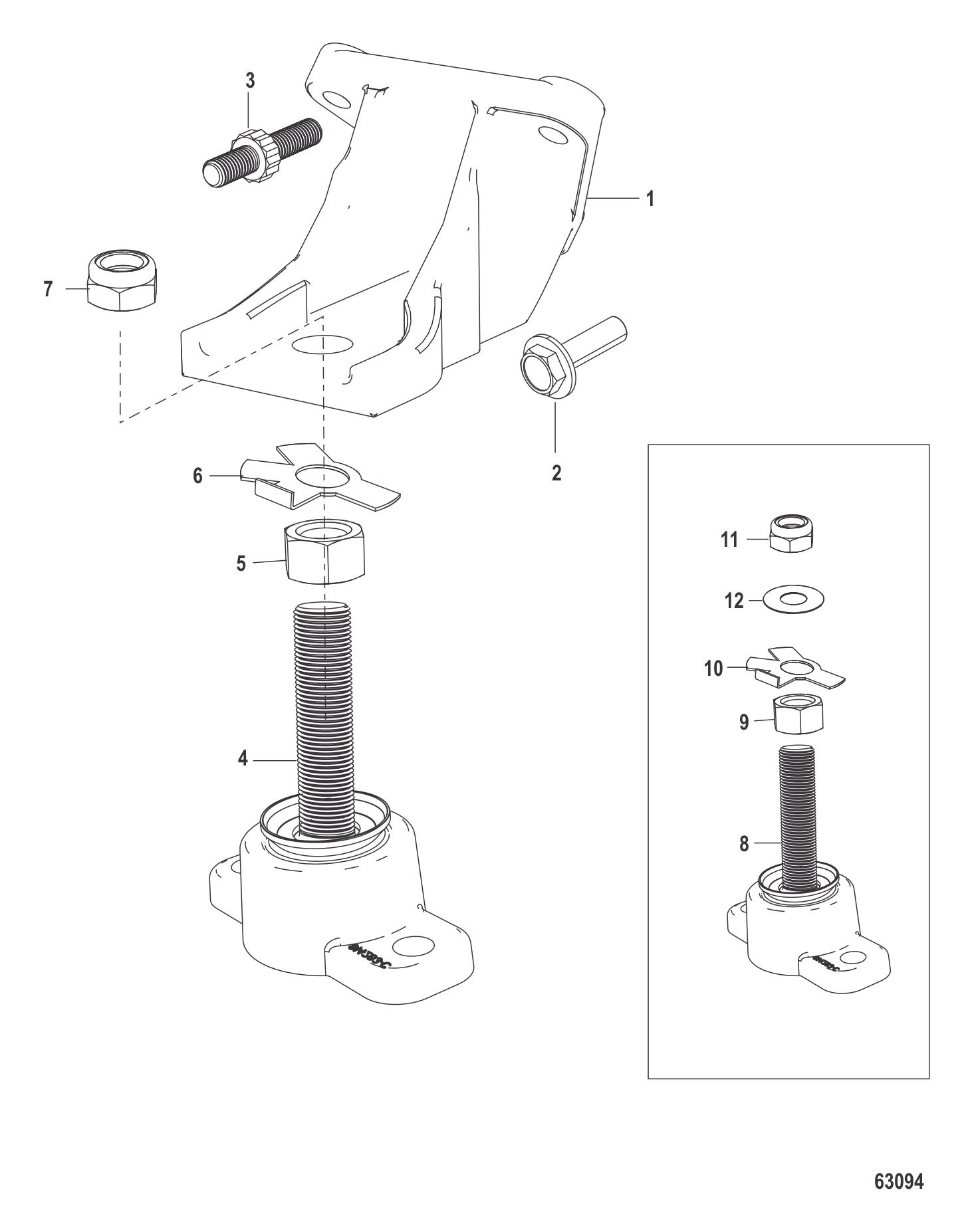

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 79550A1 | BRACKET ENGINE MOUNTING (2 required per assembly) |
  |
|
79550A 1 - Bracket Assembly [ More info ]
|
| #2 | 865982007 | SCREW- @2 Starboard (1 required per assembly) |
  |
|
10-865982007 - Screw - - Priced Individually [ More info ]
|
| #3 | 8M2004610 | STUD @5 Starboard (2 required per assembly) |
  |
|
16-8M2004610 - Stud [ More info ]
|
| #4 | 814263A1 | MOUNT BASE ASSY (2 required per assembly) |
  |
|
814263A 1 - Mount Base Assembly [ More info ]
|
| #5 | 816331 | NUT (.750-16) (2 required per assembly) |
  |
|
11-816331 - Nut, (.750-16) [ More info ]
|
| #6 | 12657 | TAB WASHER (2 required per assembly) |
  |
|
14-12657 - Tab Washer [ More info ]
|

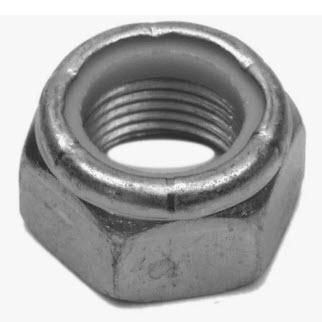

| #7 | 859126 | NUT (.750-16) JAM (2 required per assembly) |
  |
|
11-859126 - Nut, (.750-16) [ More info ]
|
| #8 | 866708T01 | MOUNT-ENGINE (SEACORE) (2 required per assembly) |
  |
|
866708T01 - Engine Mount [ More info ]
|
| #9 | 866710 | NUT @5 (SEACORE) (2 required per assembly) |
  |
|
11-866710 - Nut, (.750-16) Stainless Steel [ More info ]
|
| #10 | 12657 | WASHER-TAB (SEACORE) (2 required per assembly) |
| #11 | 8M0127767 | NUT (SEACORE) (2 required per assembly) |
  |
|
118M0127767 - NUT [ More info ]
|
| #12 | 44164 | WASHER @2 (SEACORE) (2 required per assembly) |
  |
|
12-44164 - Washer [ More info ]
|
