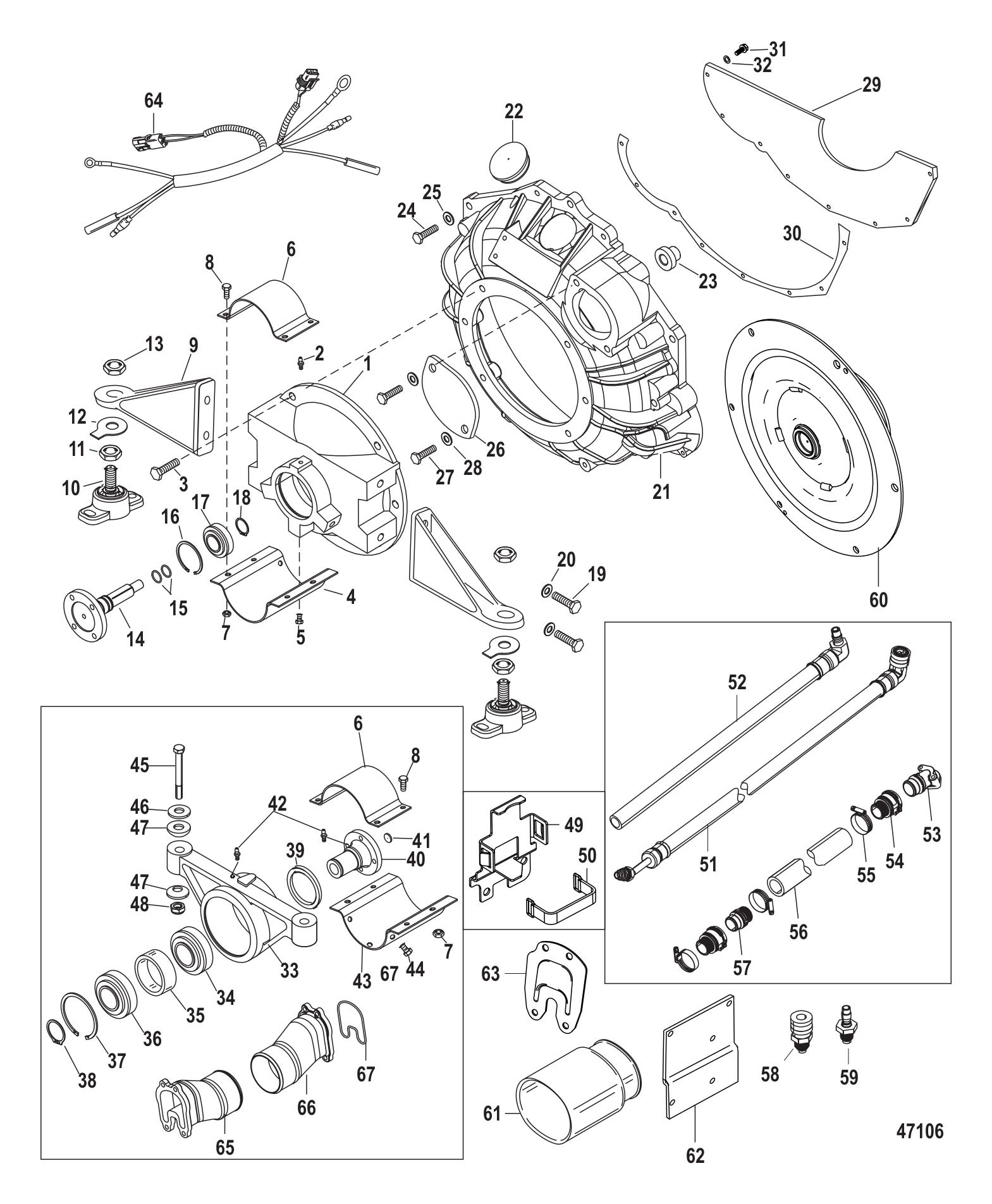

Jackshaft Main Kit (98634A20)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	98634A20	EXTENSION KIT JACKSHAFT KIT (1 required per assembly)
		98634A20 - Extension Kit [ More info ] Unavailable
#1	93911A4	HOUSING ASSEMBLY SHAFT EXTENSION SUPPORT (1 required per assembly)
		93911A 4 - Housing Assembly [ More info ] $985.99 Available to Order: Shipping delay up to 10 days.
#2	8M0169589	FITTING GREASE (Use with greased bearing) (1 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#2	8M0204738	SET SCREW (Use with non-greased bearing) (1 required per assembly) — Replaces: 8M2015913
		10-8M0204738 - SET SCREW [ More info ] Unavailable
#3	47651	SCREW (.437-14 X 1.50) (6 required per assembly)
		10-47651 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#4	93918A1	SHIELD LOWER (1 required per assembly)
		93918A 1 - Shield- Lower [ More info ] $260.99 Available to Order: Shipping delay up to 10 days.
#5	96995	SCREW (.375-16 X .880) (3 required per assembly)
		10-96995 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#6	93919A1	SHIELD UPPER (2 required per assembly)
		93919A 1 - Shield- Upper [ More info ] $325.49 Available to Order: Shipping delay up to 10 days.
#7	82670912	NUT (.375-16) STAINLESS STEEL (8 required per assembly)
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#8	96995	SCREW (.375-16 X .880) (8 required per assembly)
#9	93923A1	MOUNT ASSEMBLY FLYWHEEL HOUSING (2 required per assembly)
		93923A 1 - Mount Assembly [ More info ] $157.99 Available to Order: Shipping delay up to 10 days.
#10	814263A1	BASE ASSEMBLY MOUNT ASSEMBLY (2 required per assembly)
		814263A 1 - Mount Base Assembly [ More info ] $129.99 In Stock
#11	816331	NUT (.750-16) JAM (2 required per assembly)
		11-816331 - Nut, (.750-16) [ More info ] $7.59 10+ In Stock.
#12	12657	TAB WASHER (2 required per assembly)
		14-12657 - Tab Washer [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#13	859126	NUT (.750-16) (2 required per assembly)
		11-859126 - Nut, (.750-16) [ More info ] $17.49 5 In Stock.
#14	93906A2	SHAFT OUTPUT (1 required per assembly)
		93906A 2 - Shaft Assembly - Output [ More info ] $912.99 Available to Order: Shipping delay up to 10 days.
#15	8M0204650	O-RING (2 required per assembly) — Replaces: 29845
		25-8M0204650 - O RING @3 Q=T [ More info ] Unavailable
#16	94104	RING RETAINING (1 required per assembly)
		53-94104 - Ring - Retaining [ More info ] $10.79 Available to Order: Shipping delay up to 10 days.
#17	879194A03	GIMBAL BEARING KIT (1 required per assembly)
		30-879194A03 - Jackshaft Gimbal Bearing [ More info ] $167.49 Available to Order: Shipping delay up to 10 days.
#18	841897T	RING RETAINING (1 required per assembly)
		53-841897T - Ring - Retaining [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
		538M0141818 - RING-RETAINING [ More info ] $19.69 Available to Order: Shipping delay up to 10 days.
#19	47651	SCREW (.437-14 X 1.50) (4 required per assembly)
#20	32993	LOCKWASHER (.437) (4 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#21	814309A1	HOUSING ASSEMBLY (1 required per assembly)
		814309A 1 - Flywheel Housing Assembly [ More info ] $533.99 Available to Order: Shipping delay up to 10 days.
		MC-24-44187 - Bellhousing [ More info ] $473.00 $362.70 Available to Order: Shipping delay up to 10 days.
#22	12304	PLUG TIMING WINDOW (1 required per assembly)
		19-12304 - Plug [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#23	49126	BUSHING PILOT V8 (1 required per assembly)
		23-49126 - Bushing - Pilot - Crankshaft [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#23	863864	BEARING PILOT 496 (1 required per assembly)
		30-863864 - Bearing - Pilot [ More info ] $46.49 Available to Order: Shipping delay up to 10 days.
#24	68101	SCREW (.375-16 X 1.375) (1 required per assembly)
		10-68101 - Screw [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#24	34353	SCREW (.375-16 X 1.00) (1 required per assembly)
		10-34353 - Screw - Priced Individually [ More info ] $2.59 10+ In Stock.
#24	47688	SCREW (.375-16 X 2.750) (2 required per assembly)
		10-47688 - Screw [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#25	35048	LOCKWASHER (.375) (4 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#26	939201	PLATE COVER (1 required per assembly)
		93920 1 - Plate - Cover [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#27	92913	SCREW (.437-14 X .750) (2 required per assembly)
		10-92913 - Screw [ More info ] $15.49 $12.40 3 In Stock.
#28	32993	LOCKWASHER (.437) (2 required per assembly)
#29	818718A3	COVER KIT FLYWHEEL INSPECTION (1 required per assembly)
		818718A 3 - Cover Assembly [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
		MC-24-14043 - Flywheel Housing Dust Cover [ More info ] $52.00 $39.87 Available to Order: Shipping delay up to 10 days.
#30	86015	GASKET FLYWHEEL INSPECTION COVER (1 required per assembly)
		27-86015 - Flywheel Housing Cover Gasket [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#31	98253	SCREW (.250-20 X .500) (7 required per assembly)
		10-98253 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#32	26992	LOCKWASHER (.250) STAINLESS STEEL (7 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#33	817416A4	HOUSING ASSEMBLY BEARING (1 required per assembly)
		817416A 4 - Housing Assembly [ More info ] $1,735.99 Available to Order: Shipping delay up to 10 days.
#34	93944A2	BEARING SET BALL Includes Part Number 36 (1 required per assembly)
		30-93944A 2 - Jackshaft Gimbal Bearing [ More info ] $138.49 Available to Order: Shipping delay up to 10 days.
#35	817417T	SPACER (1 required per assembly)
		23-817417T - Spacer - Bearing [ More info ] $265.99 Available to Order: Shipping delay up to 10 days.
#36	93944A2	BEARING SET BALL Includes Part Number 34 (1 required per assembly)
#37	93914	RING RETAINING (1 required per assembly)
		53-93914 - Ring - Retaining [ More info ] $95.99 Available to Order: Shipping delay up to 10 days.
#38	93915	RING RETAINING (1 required per assembly)
		53-93915 - Ring - Retaining [ More info ] $57.95 10+ In Stock.
#39	93924	SEAL OIL (1 required per assembly)
		26-93924 - Seal [ More info ] $29.39 Available to Order: Shipping delay up to 10 days.
#40	NSS	NOT SOLD SEPARATE INPUT SHAFT (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#41	93921	EXPANSION PLUG (1 required per assembly)
		19-93921 - Plug [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#42	8M0169589	FITTING GREASE (2 required per assembly) — Replaces: 74036
#43	93918A1	SHIELD LOWER (1 required per assembly)
#44	76926	SCREW (.375-16 X .875) (3 required per assembly)
		10-76926 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#45	57053	SCREW (.500-20 X 4.500) (2 required per assembly)
		10-57053 - Screw [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#46	35777	WASHER (.5156 X 1.375 X .125) ALUMINUM (2 required per assembly)
		12-35777 - Washer, (.5156 X 1.375 X .125) Aluminum [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#47	42307	WASHER SPHERICAL (4 required per assembly)
		12-42307 - Washer, Spherical [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#48	898832	NUT (.500-20) (2 required per assembly)
		11-898832 - Nut, (.500-20) [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#49	860065A1	BRACKET KIT (1 required per assembly)
		860065A 1 - Bracket Kit [ More info ] $37.49 $36.72 In Stock
		806293T - Bracket [ More info ] $49.34 2 In Stock.
#50	808023T	STRAP (1 required per assembly)
		808023T - Retaining Strap [ More info ] $19.39 In Stock
#51	8M0063022	HOSE FEMALE QUICK CONNECT (FITTINGS ON BOTH ENDS) (1 required per assembly) — Replaces: 865389139, 866689
		328M0063022 - Hose - Power Steering [ More info ] $291.99 Available to Order: Shipping delay up to 10 days.
#52	865390134	HOSE MALE QUICK CONNECT (FITTINGS ON ONE END) (1 required per assembly)
		32-865390134 - Hydraulic Hose [ More info ] $179.49 Available to Order: Shipping delay up to 10 days.
#53	865470	HOUSING INLET (1 required per assembly)
		865470 - Inlet Housing [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#54	865324	QUICK CONNECT (2 required per assembly)
		22-865324 - Fitting -q/C [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#55	815504222	CLAMP WORM GEAR (1.98 DIAMETER) (3 required per assembly)
		54-815504222 - Clamp - See Note On Detail Page [ More info ] Unavailable
		54-8M0188622 - CLAMP [ More info ] Unavailable
#56	8M0062666	HOSE (96.00 INCHES BULK) (Cut to 13 Inches) (1 required per assembly)
		32-8M0062666 - Water Hose Bulk -96" [ More info ] $220.99 $218.15 Available to Order: Shipping delay up to 10 days.
#57	865362	QUICK CONNECT (1 required per assembly)
		22-865362 - Spigot-q/C [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#58	865415	FITTING PS RETURN (1 required per assembly)
		22-865415 - Fitting -q/C [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#59	865414001	FITTING PS PRESSURE (1 required per assembly)
		22-865414001 - Fitting -q/C [ More info ] $10.99 Available to Order: Shipping delay up to 10 days.
#60	8M0098797	COUPLER ASSEMBLY ENGINE - SHORT STEEL HUB (1 required per assembly) — Replaces: 861523A18
		8M0098797 - Coupler Assembly [ More info ] $1,455.99 Available to Order: Shipping delay up to 10 days.
#61	78458A1	TUBE (1 required per assembly)
		78458A 1 - Exhaust Tube Assembly [ More info ] $85.99 In Stock
		18-2760 - Exhaust Tube 78458A1 [ More info ] $60.99 $58.97 10+ In Stock.
		61-00519 - Exhaust Bellows, 78458A 1 [ More info ] $61.99 $51.84 1 In Stock.
#62	41063A1	BRACKET ASSEMBLY (1 required per assembly)
		41063A 1 - Bracket Assembly [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#63	861776A2	PLATE KIT (1 required per assembly)
		861776A 2 - Exhaust Plate Kit [ More info ] $119.49 $117.81 1 In Stock.
#64	41575A10	HARNESS ASSEMBLY Alpha (1 required per assembly)
		84-41575A10 - Harness Assembly [ More info ] $189.49 Available to Order: Shipping delay up to 10 days.
#64	41575A11	HARNESS ASSEMBLY Bravo (1 required per assembly)
		84-41575A11 - Harness Assembly [ More info ] $171.49 Available to Order: Shipping delay up to 10 days.
#65	862268T1	TUBE (1 required per assembly)
		862268T 1 - Exhaust Tube [ More info ] $277.49 $66.54 2 In Stock.
#66	862268T2	TUBE (1 required per assembly)
		862268T 2 - Exhaust Tube [ More info ] $287.99 Available to Order: Shipping delay up to 10 days.
#67	41802	SEAL RUBBER (1 required per assembly)
		41802 - Rubber Seal [ More info ] $15.99 5 In Stock.
