Parts for 350 HP 2.6L L6 Pro Verado 4-Stroke Mercury Outboard Motor Driveshaft Housing

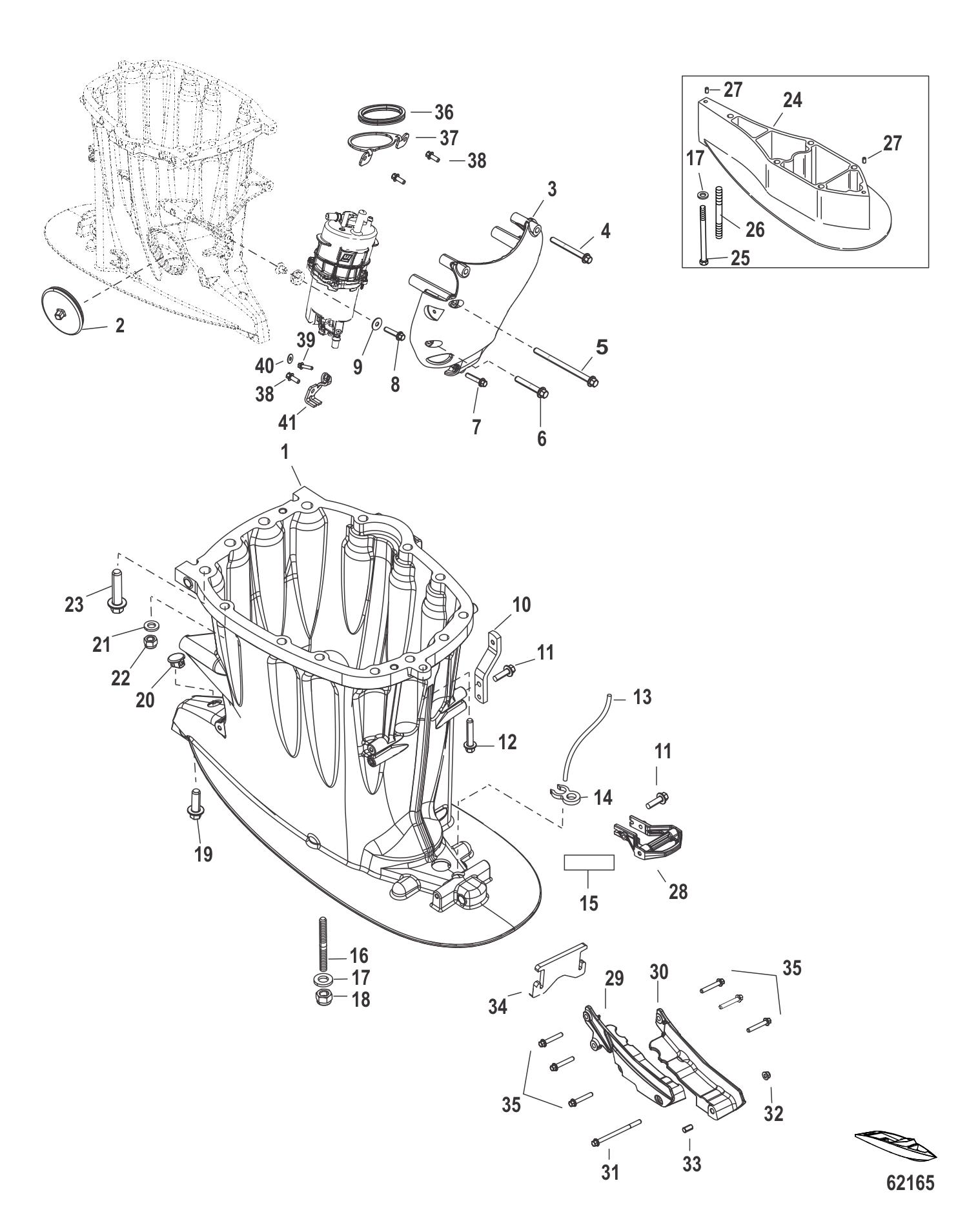

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0113286 | DSH BLACK L (1 required per assembly) — Replaces: 8M0103297, 8M0107177 |
  |
|
15008M0113286 - DSH BLACK L [ More info ]
|
| #1 | 8M0113287 | DSH BLACK XL (1 required per assembly) — Replaces: 8M0103298, 8M0107178 |
  |
|
15008M0113287 - DSH BLACK XL [ More info ]
|
| #1 | 8M0143473 | DRIVESHAFT HSG L (1 required per assembly) — Replaces: 8M0103294 |
  |
|
15008M0143473 - Drive Shaft Housing L [ More info ]
|
| #1 | 8M0146469 | DSH SILVER XL (1 required per assembly) — Replaces: 8M0103306 |
  |
|
15008M0146469 - DSH SILVER XL [ More info ]
|
| #2 | 889568001 | GROMMET (1 required per assembly) |
  |
|
25-889568001 - Grommet [ More info ]
|
| #3 | 889656T01 | SHROUD (1 required per assembly) |
  |
|
889656T01 - Shroud [ More info ]
|
| #4 | 8M0103818 | SCREW @2 (2 required per assembly) — Replaces: 88552675 |
  |
|
108M0103818 - Screw - Priced Individually [ More info ]
|
| #5 | 8M0103812 | SCREW (2 required per assembly) — Replaces: 885526120 |
  |
|
108M0103812 - Screw [ More info ]
|
| #6 | 8M0103816 | SCREW (2 required per assembly) — Replaces: 88552650 |
  |
|
108M0103816 - Screw [ More info ]
|
| #7 | 8M0103815 | SCREW @2 (1 required per assembly) — Replaces: 88552640 |
  |
|
108M0103815 - Screw - Priced Individually [ More info ]
|
| #8 | 8M0103814 | SCREW @2 (3 required per assembly) — Replaces: 88552635 |
  |
|
108M0103814 - Screw (M8 x 35 MM) [ More info ]
|
| #9 | 817274 | WASHER (3 required per assembly) |
  |
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #10 | 897784A01 | BRACKET KIT (2 required per assembly) |
  |
|
897784A01 - Bracket Kit [ More info ]
|
| #11 | 8M0103806 | SCREW (M6 X 20 MM) STAINLESS STEEL (2 required per assembly) — Replaces: 88552520 |
  |
|
108M0103806 - Screw - Priced Individually [ More info ]
|
| #12 | 8M0103813 | SCREW (1 required per assembly) — Replaces: 88552630 |
  |
|
108M0103813 - Screw [ More info ]
|
| #13 | 85944975 | TUBING (72.00 INCHES BULK) CUT TO 64 INCHES (1 required per assembly) |
  |
|
32-859449 75 - Tubing - 72 Inches [ More info ]
|
| #14 | 889831001 | RETAINER (1 required per assembly) |
  |
|
889831001 - Retainer [ More info ]
|
| #15 | NSS | NOT SOLD SEPARATE DECAL-OIL DRAIN (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #16 | 8M0008031 | STUD (Long/X-Long) (4 required per assembly) |
  |
|
16-8M0008031 - Stud [ More info ]
|
| #17 | 856982 | WASHER @4 (4 or 5 required per assembly) |
  |
|
12-856982 - Washer, (.500 X .810 X .090) Stainless Steel [ More info ]
|
| #18 | 897926 | NUT (4 required per assembly) |
  |
|
11-897926 - Nut, (M12), Nylon Insert [ More info ]
|
| #19 | 8M0102995 | SCREW (Long/X-Long) (1 required per assembly) |
  |
|
108M0102995 - Screw [ More info ]
|
| #20 | 824928001 | PLUG (1 required per assembly) |
  |
|
19-824928001 - Plug [ More info ]
|
| #21 | 856774 | WASHER @5 (10 required per assembly) |
  |
12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable |
|
  |
|
128M0214963 - WASHER Note: Priced Individually [ More info ]
|
| #22 | 884412 | NUT @2 (10 required per assembly) |
  |
|
11-884412 - Nut - Priced Individually [ More info ]
|
| #23 | 8M0103825 | SCREW @2 (4 required per assembly) — Replaces: 88552845 |
  |
|
108M0103825 - Screw - Priced Individually [ More info ]
|
| #24 | 8M0105088 | SPACER DRIVESHAFT HOUSING X-LONG BLACK (XX-Long) (1 required per assembly) — Replaces: 8M0071622 |
  |
|
8M0105088 - Spacer-DSH XL [ More info ]
|
  |
|
823979T 5 - Ord 823979T 1, NLA [ More info ]
|
| #24 | 8M0146468 | SPACER-DSH SILVER (XX-Long) (1 required per assembly) — Replaces: 8M0100196, 8M0105091 |
  |
|
8M0146468 - Spacer-DSH [ More info ]
|
| #25 | 857137 | SCREW (XX-Long) (1 required per assembly) |
  |
|
10-857137 - Screw [ More info ]
|
| #26 | 8M0008047 | STUD (XX-Long) (4 required per assembly) |
  |
|
16-8M0008047 - Stud [ More info ]
|
| #27 | 43044 | PIN-DOWEL-SOLID (XX-Long) (2 required per assembly) |
  |
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #28 | 891966006 | BRACKET (X-Long/XX-Long) (1 required per assembly) |
  |
|
891966006 - Bracket [ More info ]
|
| #29 | 8M0103332 | THRUST PLATES L (1 required per assembly) |
  |
|
8M0103332 - Thrust Plates L [ More info ]
|
| #29 | 8M0103333 | THRUST PLATES XL (1 required per assembly) |
  |
|
8M0103333 - Thrust Plates XL [ More info ]
|
| #30 | NSS | NOT SOLD SEPARATE THRUST PLATE - X-LONG (1 required per assembly) |
| #31 | 8M0090182 | SCREW (1 required per assembly) |
  |
|
108M0090182 - Screw [ More info ]
|
| #32 | 8M0088686 | NUT (1 required per assembly) |
  |
|
118M0088686 - NUT [ More info ]
|
| #33 | 8M0095755 | PIN-DOWEL (1 required per assembly) |
  |
|
178M0095755 - PIN-DOWEL [ More info ]
|
| #34 | 8M0080471 | BUMPER-TRIM (1 required per assembly) |
  |
|
8M0080471 - BUMPER-TRIM [ More info ]
|
| #35 | 8M0103816 | SCREW (6 required per assembly) — Replaces: 88552650 |
| #36 | 8M0037209 | GROMMET (1 required per assembly) |
  |
|
8M0037209 - Grommet [ More info ]
|
| #37 | 8M0085120 | BRACKET FSM UPPER (1 required per assembly) |
  |
|
8M0085120 - Bracket FSM UPPER [ More info ]
|
| #38 | 88552620 | SCREW @3 (3 required per assembly) |
  |
|
10-885526 20 - Screw - Priced Individually [ More info ]
|
| #39 | 8M0103807 | SCREW @2 (1 required per assembly) — Replaces: 88552525 |
  |
|
108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ]
|
| #40 | 65567 | WASHER @2 (1 required per assembly) |
  |
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #41 | 8M0090092 | BRACKET-FSM LOWER (1 required per assembly) |
  |
|
8M0090092 - Bracket-FSM LOWER [ More info ]
|
