Parts for 700 Sci 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Fuel Pump & Fuel Cooler
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 843073A05 | GASKET/SEAL SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly) |
  |
|
27-843073A05 - Engine Overhaul Gasket Set [ More info ]
|
| #1 | 849526 | FITTING (1 required per assembly) |
  |
|
22-849526 - Fitting [ More info ]
|
| #2 | 842959T02 | COOLER-FUEL (1 required per assembly) |
  |
|
842959T02 - Fuel Cooler [ More info ]
|
| #3 | 842493 | FITTING (1 required per assembly) |
  |
|
22-842493 - Fitting [ More info ]
|
| #4 | 8M0119211 | DRAIN PLUG @5 (1 required per assembly) — Replaces: 806608A02 |
  |
|
22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ]
|
| #5 | 26802 | O-RING (.424 X .103) (1 required per assembly) |
  |
|
25-26802 - O-ring, (.424 X .103) [ More info ]
|
| #6 | 817505 | SCREW (2 required per assembly) |
  |
|
10-817505 - Screw [ More info ]
|
| #7 | 8M0161635 | BRACKET-COOLER (1 required per assembly) — Replaces: 63820F3 |
  |
|
8M0161635 - Bracket-Cooler [ More info ]
|
| #8 | 563281 | BRACKET (1 required per assembly) |
  |
|
56328 1 - Bracket [ More info ]
|
| #9 | 897345T56 | LINE ASSEMBLY FUEL COOLER TO FUEL PUMP (1 required per assembly) |
  |
|
32-897345T56 - Fuel Line [ More info ]
|
| #10 | 849089 | FITTING ASSY (1 required per assembly) |
  |
|
22-849089 - Fitting Assembly [ More info ]
|
| #11 | 849088 | O-RING (.755 X .097) - NOTE: Also Included With 842243A02 Fuel Pump Assembly (1 required per assembly) |
  |
|
25-849088 - O-ring, (.755 X .097) [ More info ]
|
| #12 | 842243A02 | PUMP ASSY-FUEL (1 required per assembly) |
  |
|
842243A02 - Fuel Pump Assembly [ More info ]
|
| #13 | 849088 | O-RING (.755 X .097) (1 required per assembly) |
| #14 | 68219 | NUT (#10-32) STAINLESS STEEL (2 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #15 | 26996 | LOCKWASHER (#10) STAINLESS STEEL (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #16 | 842245A03 | HARNESS ASSEMBLY FUEL PUMP (1 required per assembly) |
  |
|
84-842245A03 - Harness Assembly [ More info ]
|
| #17 | 842482 | FITTING (1 required per assembly) |
  |
|
22-842482 - Fitting [ More info ]
|
| #18 | 897345T57 | LINE ASSEMBLY FUEL FUEL PUMP TO FUEL FILTER (1 required per assembly) |
  |
|
32-897345T57 - Fuel Line [ More info ]
|
| #19 | 8267098 | NUT @2 (4 required per assembly) |
  |
|
11-826709 8 - Nut - Priced Individually [ More info ]
|
| #20 | 846673 | WASHER (8 required per assembly) |
  |
|
12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ]
|
| #21 | 28668 | SCREW @5 (4 required per assembly) |
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|

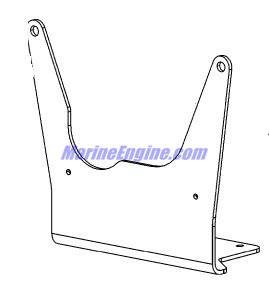

| #22 | 842507 | BRACKET (1 required per assembly) |
  |
|
842507 - Bracket [ More info ]
|
| #23 | 859376 | CLIP WIRE HARNESS SUPPORT (2 required per assembly) |
  |
|
54-859376 - Clip [ More info ]
|
