Parts for 700 Sci 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Engine Comp. (Crankshaft / Piston / Conn. Rods) NXT1

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 700 Sci > 0M962886 & Up > Engine Comp. (Crankshaft / Piston / Conn. Rods) NXT1

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine Comp. (Crankshaft / Piston / Conn. Rods) NXT1

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	843073A05	GASKET/SEAL SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly)
		27-843073A05 - Engine Overhaul Gasket Set [ More info ] $1,506.15 Available to Order: Shipping delay up to 10 days.
#1	843231T01	PISTON ASSY-STD (8 required per assembly)
		798-843231T01 - Piston Assembly - Std [ More info ] $475.16 Available to Order: Shipping delay up to 10 days.
#2	843006T	PIN PISTON (8 required per assembly)
		41-843006T - Piston Pin [ More info ] $39.85 Available to Order: Shipping delay up to 10 days.
#3	843007	CIRCLIP (16 required per assembly)
		40-843007 - Circlip - Priced Individually [ More info ] $19.90 Available to Order: Shipping delay up to 10 days.
#4	843008A01	RING SET-STD (8 required per assembly)
		39-843008A01 - Rings - Standard [ More info ] $122.50 Available to Order: Shipping delay up to 10 days.
#5	8M8020322	CONN ROD ASSY (8 required per assembly)
		614-8M8020322 - Connecting Rod Assembly [ More info ] $356.51 Available to Order: Shipping delay up to 10 days.
#6	8M0000838	SCREW SPECIAL (16 required per assembly)
		10-8M0000838 - Screw [ More info ] $36.88 Available to Order: Shipping delay up to 10 days.
#7	8M0030217	BEARING SET-STD (8 required per assembly)
		23-8M0030217 - Bearing Set - Std [ More info ] $50.99 Available to Order: Shipping delay up to 10 days.
#7	8M0030218	BRG SET-.001 OS (AR required per assembly)
		23-8M0030218 - Bearing Set - .001 Os [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#7	8M0030216	BRG SET-.001 US (AR required per assembly)
		23-8M0030216 - Bearing Set - .001 Us [ More info ] $42.99 Available to Order: Shipping delay up to 10 days.
#7	8M0030982	BRG SET -.010 (AR required per assembly)
		238M0030982 - Bearing Set-.010 , Priced Individually [ More info ] $49.49 Available to Order: Shipping delay up to 10 days.
#8	8M0051198	BEARING KIT-STD (1 required per assembly) — Replaces: 842400
		23-8M0051198 - Bearing Kit-STD [ More info ] $406.06 Available to Order: Shipping delay up to 10 days.
#8	8M0053743	BRG KIT-.001 OS (AR required per assembly) — Replaces: 842401
		23-8M0053743 - Bearing Kit-.001 OS [ More info ] $336.29 Available to Order: Shipping delay up to 10 days.
#8	842402	BRG KIT-.001 US (AR required per assembly)
		23-842402 - Bearing Set - Main - .001 Undersize [ More info ] $382.99 Available to Order: Shipping delay up to 10 days.

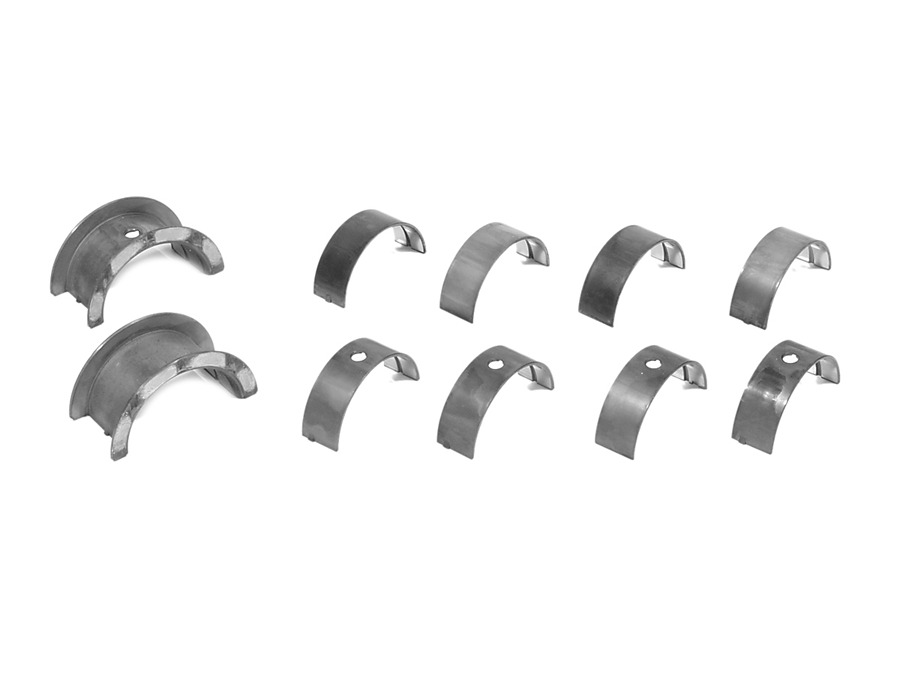

#8	8M0053549	BRG KIT-.010 US (AR required per assembly) — Replaces: 842403
		23-8M0053549 - Bearing Kit-.010 US [ More info ] $257.12 Available to Order: Shipping delay up to 10 days.
#9	845607	KEY CRANKSHAFT (1 required per assembly)
		28-845607 - Key [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#10	842478T04	C SHAFT/F WHEEL - NOTE: Includes Damper 8M8021041 (1 required per assembly)
		400-842478T04 - CrankShaft/F Wheel [ More info ] Unavailable
#11	899735T	FLYWHEEL (1 required per assembly)
		230-899735T - Flywheel [ More info ] $986.65 Available to Order: Shipping delay up to 10 days.
#12	43504	PIN-DOWEL (1 required per assembly)
		17-43504 - Pin, Dowel (.25 Inch) [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#13	69756	O-RING (.549 X .103) FOR #5 BEARING CAP OIL HOLE (1 required per assembly)
		25-69756 - O-ring, (.549 X .103) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#14	811554	SEAL OIL (1 required per assembly)
		26-811554 - Seal [ More info ] $118.26 3 In Stock.
#15	8M0000965	BUSHING (1 required per assembly)
		23-8M0000965 - Bushing [ More info ] $69.38 Available to Order: Shipping delay up to 10 days.
#16	845757	SCREW (6 required per assembly)
		10-845757 - Screw [ More info ] $5.60 4 In Stock.
		10-8M0214958 - Flywheel MOUNTING SCREW ZZ [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#17	899736T	COUPLING ASSY (1 required per assembly)
		899736T - Coupling Assembly [ More info ] $1,898.37 Available to Order: Shipping delay up to 10 days.
#18	8M0005491	SCREW (8 required per assembly)
		10-8M0005491 - Screw [ More info ] $24.41 Available to Order: Shipping delay up to 10 days.
