Parts for 600 Sci 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Flywheel Housing (Driveline) (Bravo)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 600 Sci > 0M962886 & Up > Flywheel Housing (Driveline) (Bravo)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

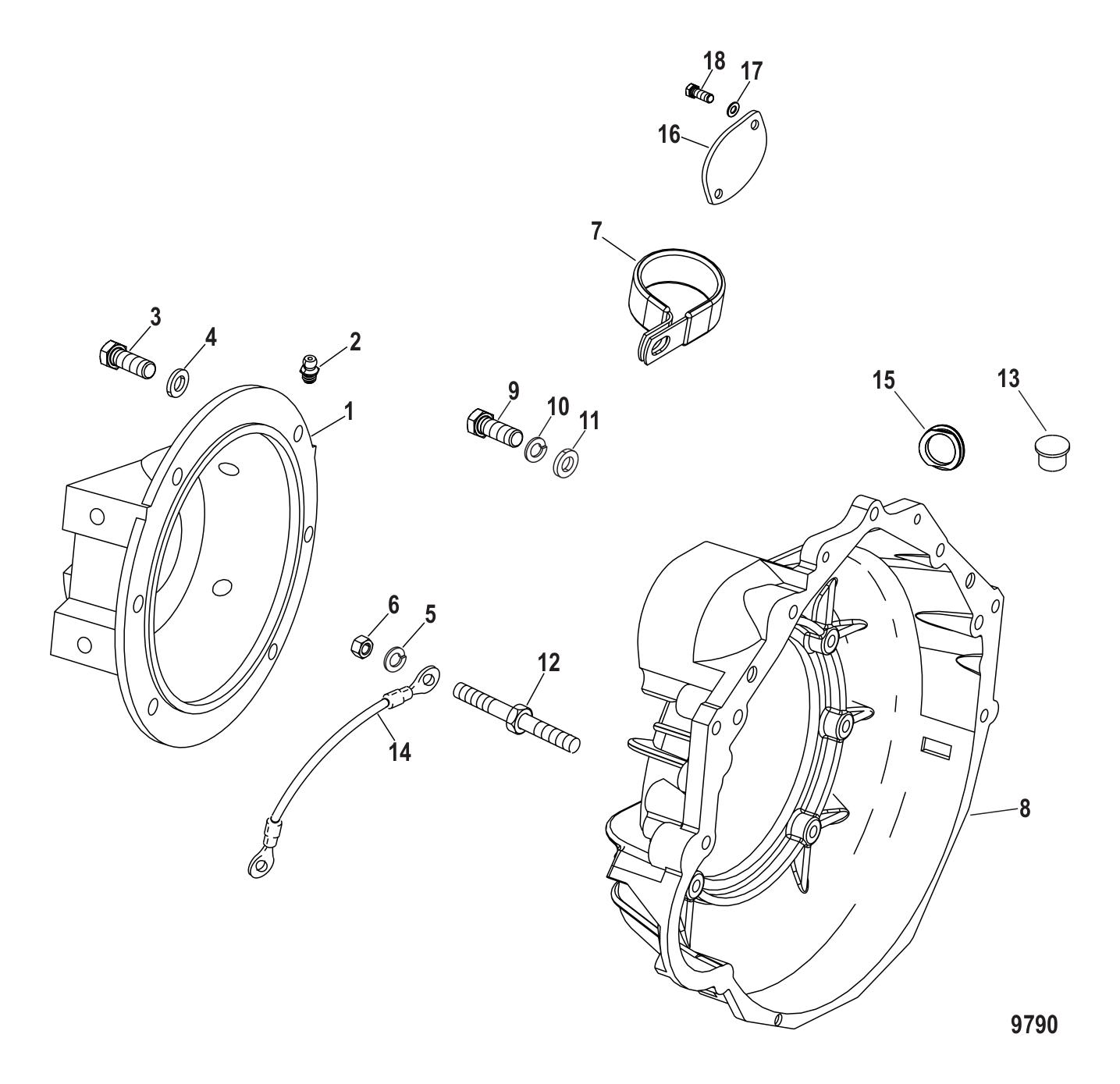

Flywheel Housing (Driveline) (Bravo)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	93911A4	HOUSING ASSY (1 required per assembly)
		93911A 4 - Housing Assembly [ More info ] $985.99 Available to Order: Shipping delay up to 10 days.
#2	8M0169589	FITTING GREASE (1 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#3	825427	SCREW (6 required per assembly)
		10-825427 - Screw [ More info ] $6.99 3 In Stock.
#4	45176	WASHER @5 (6 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#5	35048	LOCKWASHER @5 (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#6	32219	NUT @5 (2 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#7	62494	CLIP (1 required per assembly)
		54-62494 - Clip [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#8	44187T	HOUSING-FLYWHEEL (1 required per assembly)
		44187T - Flywheel Housing [ More info ] $1,512.99 Available to Order: Shipping delay up to 10 days.
		MC-24-44187 - Bellhousing [ More info ] $473.00 $362.70 Available to Order: Shipping delay up to 10 days.
#9	35047	SCREW @2 (1 required per assembly)
		10-35047 - Screw - Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#9	846294	SCREW (1 required per assembly)
		10-846294 - Screw [ More info ] $5.96 Available to Order: Shipping delay up to 10 days.
#9	68299	SCREW @2 (2 required per assembly)
		10-68299 - Screw - Priced Individually [ More info ] $6.99 $1.41 10+ In Stock.
#10	35048	LOCKWASHER @5 (2 required per assembly)
#11	856774	WASHER @5 (5 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#11	29629	WASHER (1 required per assembly)
		12-29629 - Washer, (.390 X .687 X .030) Stainless Steel [ More info ] $0.90 $0.72 10+ In Stock.
#12	861316	STUD (2 required per assembly) — Replaces: 64066
		16-861316 - Stud [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#13	840370	CAPLUG @5 (1 required per assembly)
		19-840370 - Caplug - Priced Individually [ More info ] $0.12 Available to Order: Shipping delay up to 10 days.
#14	62826T06	CABLE ASSY (1 required per assembly) — Replaces: 62826A6
		84-62826T06 - Cable Assembly [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#15	12304	PLUG TIMING WINDOW (1 required per assembly)
		19-12304 - Plug [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#16	939201	PLATE COVER (1 required per assembly)
		93920 1 - Plate - Cover [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#17	45176	WASHER @5 (2 required per assembly)
#18	99204	SCREW (2 required per assembly)
		10-99204 - Screw [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
