Parts for 600 Sci 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Intake Components (Supercharger Assembly)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 600 Sci > 0M952908 - 0M962885 - USA > Intake Components (Supercharger Assembly)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

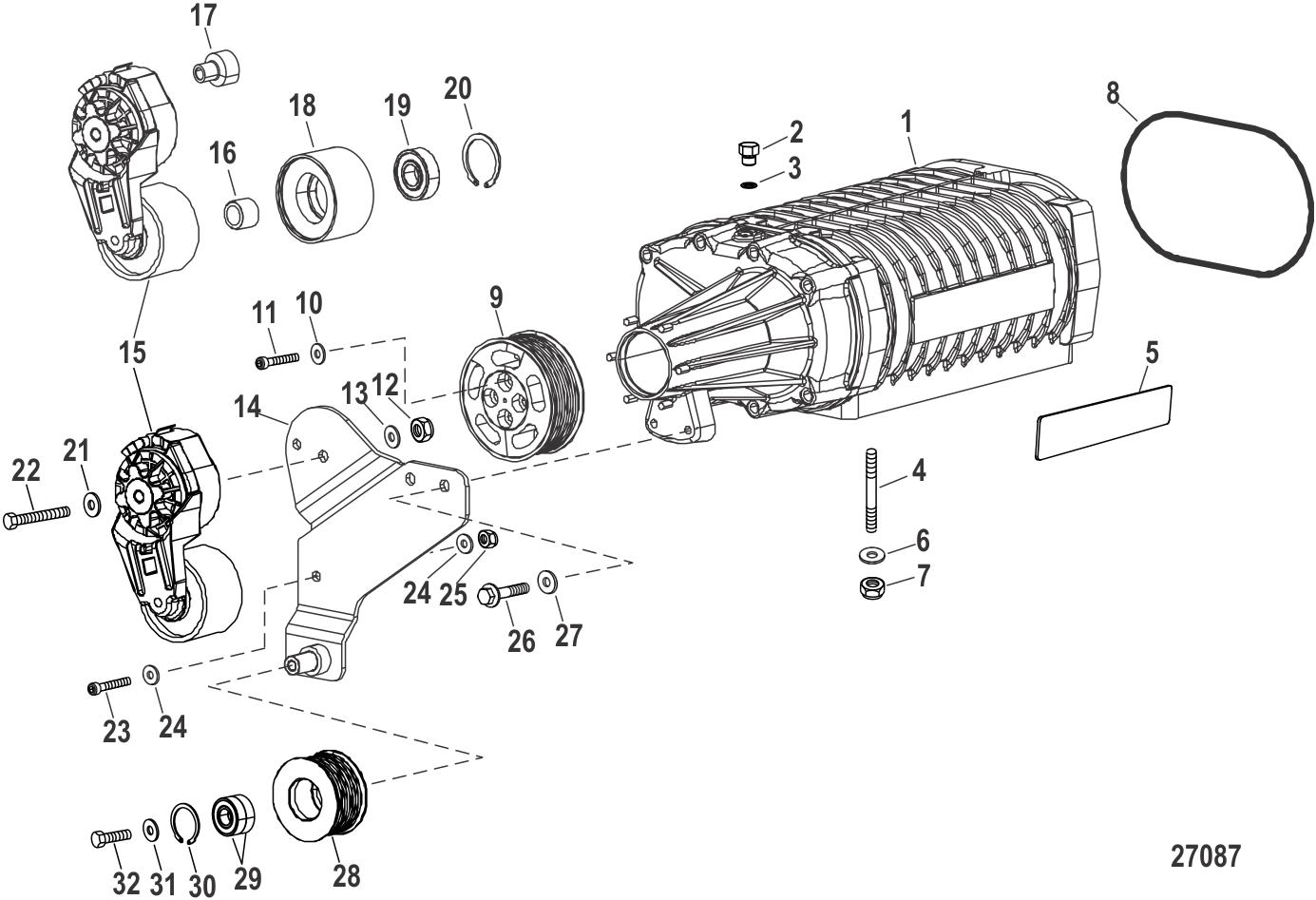

Intake Components (Supercharger Assembly)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	843073A05	GASKET/SEAL SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly)
		27-843073A05 - Engine Overhaul Gasket Set [ More info ] $1,506.15 Available to Order: Shipping delay up to 10 days.
#1	8M0153699	SUPER CHARGER - NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number (1 required per assembly) — Replaces: 843082A09
		8M0153699 - SUPER CHARGER [ More info ] Unavailable
#2	842487A01	PLUG ASSEMBLY (2 required per assembly)
		22-842487A01 - Plug Assembly [ More info ] $17.51 Available to Order: Shipping delay up to 10 days.
#3	842487A01	PLUG ASSEMBLY (2 required per assembly) — Replaces: 841913
#4	8M0034449	STUD (.312 X 1.69) (6 required per assembly) — Replaces: 69058
		16-8M0034449 - Stud [ More info ] $12.79 Available to Order: Shipping delay up to 10 days.
#5	843018	NAMEPLATE-600SCI - Blue Base (2 required per assembly)
		38-843018 - Name Plate -600SCI [ More info ] $109.14 Available to Order: Shipping delay up to 10 days.
#5	8M0163808	NAMEPLATE-600SCI - Silver Base (2 required per assembly) — Replaces: 8M0033727
		38-8M0163808 - NAMEPLATE-600SCI [ More info ] Unavailable
#6	8M0042642	WASHER @5 (6 required per assembly) — Replaces: 70132
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#7	82670911	NUT @5 (6 required per assembly)
		11-826709 11 - Nut (5/16-24) [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#8	843920	O-RING (7.052 X .103) SUPERCHARGER TO THROTTLE BODY (1 required per assembly)
		25-843920 - O-ring, (7.052 X .103) [ More info ] $24.90 Available to Order: Shipping delay up to 10 days.
#9	879270T97	PULLEY-CLEAR (1 required per assembly) — Replaces: 842499, 8M0050951
		879270T97 - Pulley - Clear [ More info ] $411.59 Available to Order: Shipping delay up to 10 days.
#10	8M0042642	WASHER @5 (4 required per assembly) — Replaces: 70132
#11	849377	SCREW (4 required per assembly)
		10-849377 - Screw [ More info ] $15.13 Available to Order: Shipping delay up to 10 days.
#12	82670912	NUT @5 (1 required per assembly)
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#13	856774	WASHER @5 (1 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#14	842508	BRACKET (1 required per assembly)
		842508 - Bracket [ More info ] $350.56 Available to Order: Shipping delay up to 10 days.
#15	8M0183909	TENSIONER ASSY - NOTE: For Non Standard Paint Color - See Paint Color Chart For PPG Number (1 required per assembly) — Replaces: 899898T81, 8M0050917, 8M0006950
		8M0183909 - TENSIONER ASSY [ More info ] $969.01 Available to Order: Shipping delay up to 10 days.
#16	8M8020335	SPACER DESIGN 1 (1 required per assembly)
		8M8020335 - Spacer [ More info ] $13.79 Available to Order: Shipping delay up to 10 days.
#17	8M0183929	SPACER DESIGN 2 (1 required per assembly)
		23-8M0183929 - SPACER [ More info ] Unavailable
#18	8M0050125	PULLEY (1 required per assembly) — Replaces: 842514, 8M0009161
		8M0050125 - Pulley [ More info ] $239.06 Available to Order: Shipping delay up to 10 days.
#19	33451	BEARING BALL (1 required per assembly)
		30-33451 - Ball Bearing [ More info ] $63.99 $61.04 6 In Stock.
#20	18917	RING RETAINING (1 required per assembly)
		53-18917 - Ring - Retaining [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#21	856774	WASHER @5 (1 required per assembly)
#22	840244	SCREW (1 required per assembly)
		10-840244 - Screw [ More info ] $14.82 Available to Order: Shipping delay up to 10 days.
#23	843144	SCREW (1 required per assembly)
		10-843144 - Screw [ More info ] $35.27 Available to Order: Shipping delay up to 10 days.
#24	8M0042642	WASHER @5 (2 required per assembly) — Replaces: 70132
#25	82670911	NUT @5 (1 required per assembly)
#26	40011149	SCREW (2 required per assembly)
		10-40011149 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#27	8M0204690	WASHER (2 required per assembly) — Replaces: 814806
		12-8M0204690 - WASHER [ More info ] Unavailable
#28	8M0050741	PULLEY ASSY-CLEAR (1 required per assembly) — Replaces: 843093A01, 843093A02
		8M0050741 - Pulley Assembly -Clear [ More info ] $364.67 Available to Order: Shipping delay up to 10 days.
#29	33451	BEARING BALL (2 required per assembly)
#30	18917	RING RETAINING (1 required per assembly)
#31	74759	WASHER (1 required per assembly)
		12-74759 - Washer, (.391 X .880 X .125) Stainless Steel [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#32	94247	SCREW @2 (1 required per assembly)
		10-94247 - Screw - Priced Individually [ More info ] $1.50 $0.30 6 In Stock.
