Parts for 600 Sci 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Engine Components (Water Pump & Front Cover)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 600 Sci > 0M952908 - 0M962885 - USA > Engine Components (Water Pump & Front Cover)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine Components (Water Pump & Front Cover)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	843073A05	GASKET/SEAL SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly)
		27-843073A05 - Engine Overhaul Gasket Set [ More info ] $1,506.15 Available to Order: Shipping delay up to 10 days.
#-	844200A08	PARTIAL-600 SCI (1 required per assembly)
		844200A08 - Partial Engine Assembly [ More info ] Unavailable

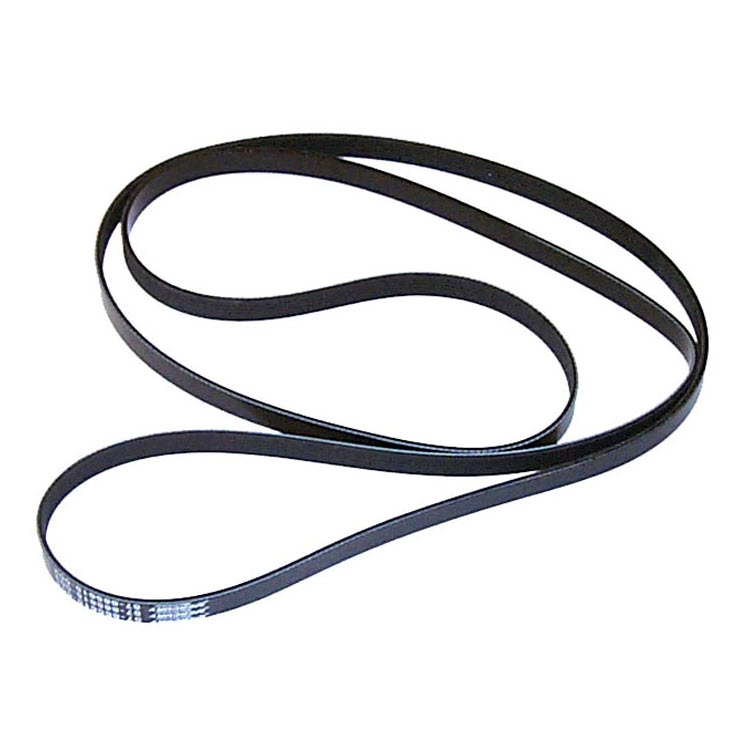

#1	843096	BELT SERPENTINE (1724 MM) (1 required per assembly)
		57-843096 - Serpentine Belt [ More info ] $171.05 Available to Order: Shipping delay up to 10 days.
#2	865615Q12	BELT SERPENTINE (2266 MM) (2266 MM) (1 required per assembly) — Replaces: 865615012
		57-865615Q12 - Serpentine Belt [ More info ] $121.42 Available to Order: Shipping delay up to 10 days.
#3	849377	SCREW (4 required per assembly)
		10-849377 - Screw [ More info ] $15.13 Available to Order: Shipping delay up to 10 days.
#4	8M0042642	WASHER @5 (4 required per assembly) — Replaces: 70132
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#5	899737T	PULLEY-CLEAR (1 required per assembly) — Replaces: 842444T
		899737T - Pulley - Clear [ More info ] $339.60 Available to Order: Shipping delay up to 10 days.
#6	811573A04	PUMP ASSY-WATER (1 required per assembly) — Replaces: 811573A03
		811573A04 - Water Pump Assembly [ More info ] $614.49 In Stock
#7	47530	HUB (1 required per assembly)
		47530 - Hub [ More info ] $65.49 Available to Order: Shipping delay up to 10 days.
#8	806242	CONNECTOR HOSE (1 required per assembly)
		22-806242 - Connector [ More info ] $73.49 $70.40 2 In Stock.
#9	845174	PLUG (.500-14 X .610) BRASS (1 required per assembly)
		22-845174 - Plug [ More info ] $13.09 Available to Order: Shipping delay up to 10 days.
#10	49110	GASKET CIRCULATING WATER PUMP MOUNT (2 required per assembly)
		27-49110 - Water Pump Mounting Gasket [ More info ] $3.80 1 In Stock.
		27-8M0237307 - GASKET-CIRC PMP [ More info ] Unavailable
#11	822168	SCREW (1 required per assembly)
		10-822168 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#11	842787	SCREW (2 required per assembly)
		10-842787 - Screw [ More info ] $7.72 Available to Order: Shipping delay up to 10 days.
#12	856774	WASHER @5 (3 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#13	78945	J CLAMP HARNESS SUPPORT (1 required per assembly)
		54-78945 - J Clamp [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#14	842250T02	COVER ASSY-TIMING (1 required per assembly)
		842250T02 - Timing Cover Assembly [ More info ] $422.99 Available to Order: Shipping delay up to 10 days.
#15	850456	GASKET FRONT COVER MOUNT (1 required per assembly)
		27-850456 - Front Cover Gasket [ More info ] $25.79 Available to Order: Shipping delay up to 10 days.
#16	8219471	SEAL OIL (1 required per assembly)
		26-821947 1 - Seal [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#17	F2030	SCREW-SS (6 required per assembly)
		10-F2030 - Screw -ss [ More info ] $3.39 10+ In Stock.
#18	8M8021041	DAMPER - NOTE: Included With Crankshaft/Flywheel Assembly 400-842478T02 - Reference Engine Components Section - Crankshaft / Piston / Connecting Rods (1 required per assembly)
		8M8021041 - Damper [ More info ] Unavailable
		8M0140187 - Harmonic Balancer [ More info ] $374.49 Available to Order: Shipping delay up to 10 days.
#19	842475	PULLEY (BLUE) (1 required per assembly)
		842475 - Pulley (Blue) [ More info ] $480.94 Available to Order: Shipping delay up to 10 days.
#19	899738T	PULLEY-CLEAR (1 required per assembly)
		899738T - Pulley - Clear [ More info ] $779.75 Available to Order: Shipping delay up to 10 days.
#20	856774	WASHER @5 (3 required per assembly)
#21	8431471	SCREW (3 required per assembly)
		10-843147 1 - Screw [ More info ] $13.53 Available to Order: Shipping delay up to 10 days.
#22	8M0001417	BOLT (1 required per assembly)
		10-8M0001417 - Bolt [ More info ] $78.90 Available to Order: Shipping delay up to 10 days.
#23	818780	WASHER (1 required per assembly)
		12-818780 - Washer [ More info ] $22.29 Available to Order: Shipping delay up to 10 days.
#24	864297T01	SENSOR ASSEMBLY CRANKSHAFT POSITION (1 required per assembly) — Replaces: 864297001
		864297T01 - Crank Position Sensor [ More info ] $313.49 In Stock
		18-7556 - CrankShaft Sensor 864297001 [ More info ] $180.50 In Stock
#25	885192	O-RING (1 required per assembly)
		25-885192 - O-ring, Crankshaft Position Sensor [ More info ] $43.99 Available to Order: Shipping delay up to 10 days.
#26	41508	SCREW (1 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#27	8M0007824	SHIM CRANKSHAFT POSITION SENSOR - NOTE: Use Only As Required (1 required per assembly)
		15-8M0007824 - Shim [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#28	901921	SCREW (1 required per assembly)
		10-90192 1 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#29	8M0011986	SENSOR ASSEMBLY CAM POSITION (1 required per assembly) — Replaces: 880609001
		8M0011986 - Sensor Assembly [ More info ] Unavailable
		8M0233299 - SENSOR ASSY [ More info ] Unavailable
#30	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#31	843349	SHIM - NOTE: Use Only As Required (1 required per assembly)
		843349 - Shim [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
