Parts for 525 EFI 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Oil Cooler & Oil Filter (Engine)

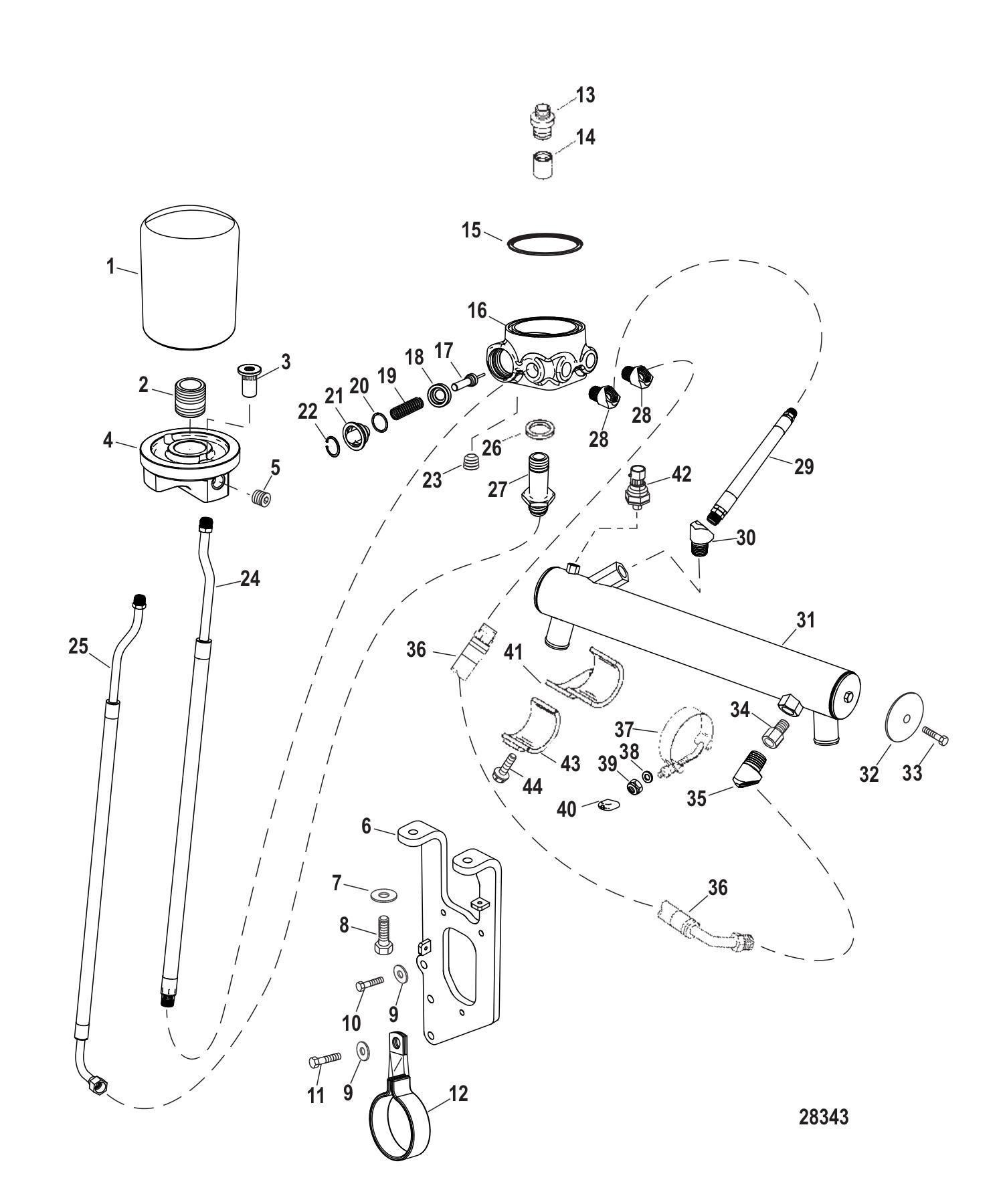

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 843073A05 | GASKET/SEAL SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly) |
  |
|
27-843073A05 - Engine Overhaul Gasket Set [ More info ]
|
| #- | 841178A05 | PARTIAL-525 EFI (1 required per assembly) |
  |
|
841178A05 - Partial Engine Assembly [ More info ] Unavailable |
| #1 | 881126K01 | FILTER-OIL (1 required per assembly) |
  |
|
35-881126K01 - Oil Filter [ More info ]
|
  |
|
18-7876-1 - Oil Filter - GM/Chevy Long [ More info ]
|
  |
|
35-16595Q - Oil Filter [ More info ]
|
| #2 | 805632 | CONNECTOR OIL FITLER BASE (1 required per assembly) |
  |
|
22-805632 - Connector [ More info ]
|
| #3 | 807211 | VALVE RELIEF OIL BY PASS - 30 PSI (1 required per assembly) |
  |
|
807211 - Relief Valve [ More info ]
|
| #4 | 8M0021768 | BASE-OIL FILTER (1 required per assembly) |
  |
|
8M0021768 - Oil Filter Base [ More info ]
|
| #5 | 8M0087451 | PLUG-18MM (1 required per assembly) — Replaces: 8M0047995 |
  |
|
198M0087451 - PLUG-18MM [ More info ]
|
| #6 | 8M8020302 | BRACKET (1 required per assembly) |
  |
|
8M8020302 - Bracket [ More info ]
|
| #7 | 856774 | WASHER @5 (2 required per assembly) |
  |
12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable |
|
  |
|
128M0214963 - WASHER Note: Priced Individually [ More info ]
|
| #8 | 65210 | SCREW @3 (2 required per assembly) |
  |
|
10-65210 - Screw - Priced Individually [ More info ]
|
| #9 | 856774 | WASHER @5 (3 required per assembly) |
| #10 | 35047 | SCREW @2 (2 required per assembly) |
  |
|
10-35047 - Screw - Priced Individually [ More info ]
|
| #11 | 846294 | SCREW (1 required per assembly) |
  |
|
10-846294 - Screw [ More info ]
|
| #12 | 8M0011102 | CLIP-SPECIAL (1 required per assembly) |
  |
|
54-8M0011102 - Clip-Special [ More info ]
|
| #13 | 805632 | CONNECTOR OIL FILTER (1 required per assembly) |
| #14 | 841870 | CONNECTOR OIL THERMOSTAT HOUSING (1 required per assembly) |
  |
|
22-841870 - Connector [ More info ]
|
| #15 | 32507 | O RING @2 (1 required per assembly) |
  |
|
25-32507 - O-ring, (3.359 X .139) [ More info ]
|
  |
|
18-7127 - O-Ring 313446 [ More info ]
|

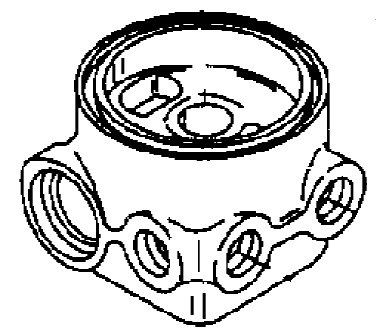

| #16 | 849885A04 | HOUSING ASSY (1 required per assembly) |
  |
|
849885A04 - Housing Assembly [ More info ]
|
| #16 | 849885T2 | HOUSING OIL THERMOSTAT (1 required per assembly) |
  |
|
849885T 2 - Housing - Oil Therm [ More info ]
|
| #17 | 8161631 | THERMOSTAT (1 required per assembly) |
  |
816163 1 - Thermostat - Oil [ More info ] Unavailable |
|
  |
|
8M0231826 - THERMOSTAT [ More info ] Unavailable |
| #18 | 849983 | PISTON OIL THERMOSTAT (1 required per assembly) |
  |
849983 - Oil Thermostat Piston [ More info ] Unavailable |
|
| #19 | 816162 | SPRING (1 required per assembly) |
  |
|
24-816162 - Spring [ More info ]
|
| #20 | 864701 | O-RING (1.112 X .103) (1 required per assembly) |
  |
|
25-864701 - O-ring, (1.112 X .103) [ More info ]
|
| #21 | 8M0096522 | COVER OIL THERMOSTAT (1 required per assembly) — Replaces: 8161651 |
  |
|
8M0096522 - Cover [ More info ]
|
| #22 | 848571 | RING RETAINING (1 required per assembly) |
  |
|
53-848571 - Ring - Retaining [ More info ]
|
| #23 | 8M0204652 | PLUG @2 (1 required per assembly) — Replaces: 32561 |
  |
|
22-8M0204652 - PLUG @2 [ More info ] Unavailable |
| #24 | 8M0007770 | HOSE ASSEMBLY OIL (35.50 INCHES) FILTER BASE TO FILTER (1 required per assembly) |
  |
|
32-8M0007770 - Hose - Oil - 35.5 Inch [ More info ]
|
| #25 | 8M0007771 | HOSE ASSEMBLY OIL (39.26 INCHES) FILTER TO BASE (1 required per assembly) |
  |
|
32-8M0007771 - Hose - Oil - 39.26 Inch [ More info ]
|
| #26 | 42077 | SEAL (1 required per assembly) |
  |
|
|
| #27 | 8M0007144 | FITTING OIL FILTER BASE (1 required per assembly) |
  |
|
22-8M0007144 - Fitting [ More info ]
|
| #28 | 48872 | ELBOW (2 required per assembly) |
  |
|
22-48872 - Elbow [ More info ]
|
| #29 | 8M0024516 | HOSE ASSEMBLY OIL (29.25 INCHES) COOLER TO FILTER BASE (1 required per assembly) |
  |
|
32-8M0024516 - Hose - Oil - 29.25 Inch [ More info ]
|
| #30 | 48872 | ELBOW (1 required per assembly) |
| #31 | 879330T34 | COOLER ASSY-OIL (1 required per assembly) — Replaces: 899898T49 |
  |
|
879330T34 - Oil Cooler Assembly [ More info ]
|
| #32 | 8M0036570 | GASKET (2 required per assembly) — Replaces: 842785 |
  |
|
27-8M0036570 - Gasket - Priced Individually [ More info ]
|
| #33 | 39349 | SCREW (.312-18 X .750) STAINLESS STEEL (2 required per assembly) |
  |
|
10-39349 - Screw - Priced Individually [ More info ]
|
| #34 | 8M0026386 | FITTING Bravo Driveline (1 required per assembly) |
  |
|
22-8M0026386 - Fitting [ More info ]
|
| #35 | 48872 | ELBOW (1 required per assembly) |
| #36 | 8M0024537 | HOSE ASSEMBLY OIL FILTER BASE TO COOLER (1 required per assembly) |
  |
|
32-8M0024537 - Hose - Oil - Filter To Cooler [ More info ]
|
| #37 | 844664 | CLAMP (2 required per assembly) |
  |
|
54-844664 - Clamp [ More info ]
|
| #38 | 846673 | WASHER (2 required per assembly) |
  |
|
12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ]
|
| #39 | 35888 | NUT @5 (2 required per assembly) |
  |
|
11-35888 - Nut (1/4-28) [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #40 | 8M0074364 | CAP HOSE CLAMP END - CLAMP STUD (.375) (2 required per assembly) — Replaces: 8079923, 8M6500037 |
  |
|
198M0074364 - Cover-Clamp - Priced Individually [ More info ]
|
| #41 | 849908T | BRACKET (2 required per assembly) |
  |
|
849908T - Bracket [ More info ]
|
| #42 | 881879T11 | SENSOR-PRESSURE (1 required per assembly) — Replaces: 881879011 |
  |
|
881879T11 - Pressure Sensor [ More info ]
|
| #43 | 845459T | BRACKET (2 required per assembly) |
  |
|
845459T - Bracket [ More info ]
|
| #44 | 805559 | SCREW (2 required per assembly) |
  |
|
10-805559 - Screw [ More info ]
|
