Parts for 525 EFI 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Flywheel Housing (Bravo)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 525 EFI > 0M956327 - 0M962885 - USA > Flywheel Housing (Bravo)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

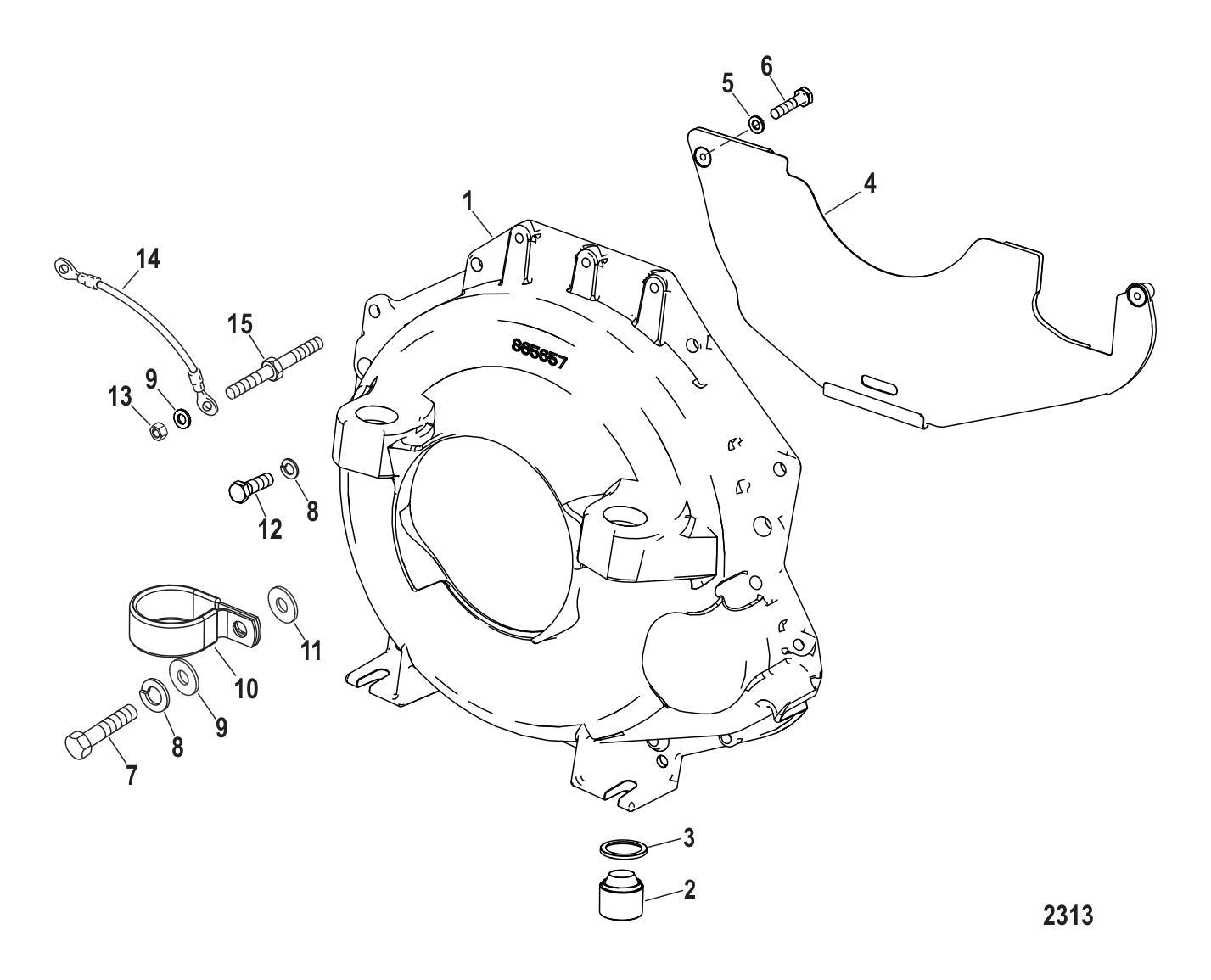

Flywheel Housing (Bravo)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	865657A04	HSG ASSY-FLYWHEEL (1 required per assembly) — Replaces: 899898T56
		865657A04 - Flywheel Housing Assembly [ More info ] $1,095.99 Available to Order: Shipping delay up to 10 days.
#2	865330A02	MOUNT KIT RUBBER (2 required per assembly)
		865330A02 - Mount Kit [ More info ] $169.99 In Stock
#3	99322	SPACER RUBBER MOUNT (2 required per assembly)
		23-99322 - Spacer - Ruber Mount [ More info ] $6.69 10+ In Stock.
#4	807260A2	COVER ASSY (1 required per assembly)
		807260A 2 - Cover Assembly [ More info ] $96.49 In Stock
#5	846673	WASHER (2 required per assembly)
		12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#6	455611	SCREW (2 required per assembly)
		10-45561 1 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#7	58642	SCREW (1 required per assembly)
		10-58642 - Screw [ More info ] $4.29 $2.42 10+ In Stock.
#8	35048	LOCKWASHER @5 (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#9	856774	WASHER @5 (6 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#10	62494	CLIP WATER HOSE (1 required per assembly)
		54-62494 - Clip [ More info ] $7.49 Available to Order: Shipping delay up to 10 days.
#11	74759	WASHER (1 required per assembly)
		12-74759 - Washer, (.391 X .880 X .125) Stainless Steel [ More info ] $11.09 Available to Order: Shipping delay up to 10 days.
#12	35047	SCREW @2 (1 required per assembly)
		10-35047 - Screw - Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#12	58642	SCREW (2 required per assembly)
#13	32219	NUT @5 (2 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#14	62826T06	CABLE ASSY (1 required per assembly) — Replaces: 62826A6
		84-62826T06 - Cable Assembly [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#15	861316	STUD (2 required per assembly) — Replaces: 64066
		16-861316 - Stud [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
