Parts for 525 EFI 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Engine Components (Cylinder Block & Camshaft)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 525 EFI > 0M956327 - 0M962885 - USA > Engine Components (Cylinder Block & Camshaft)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

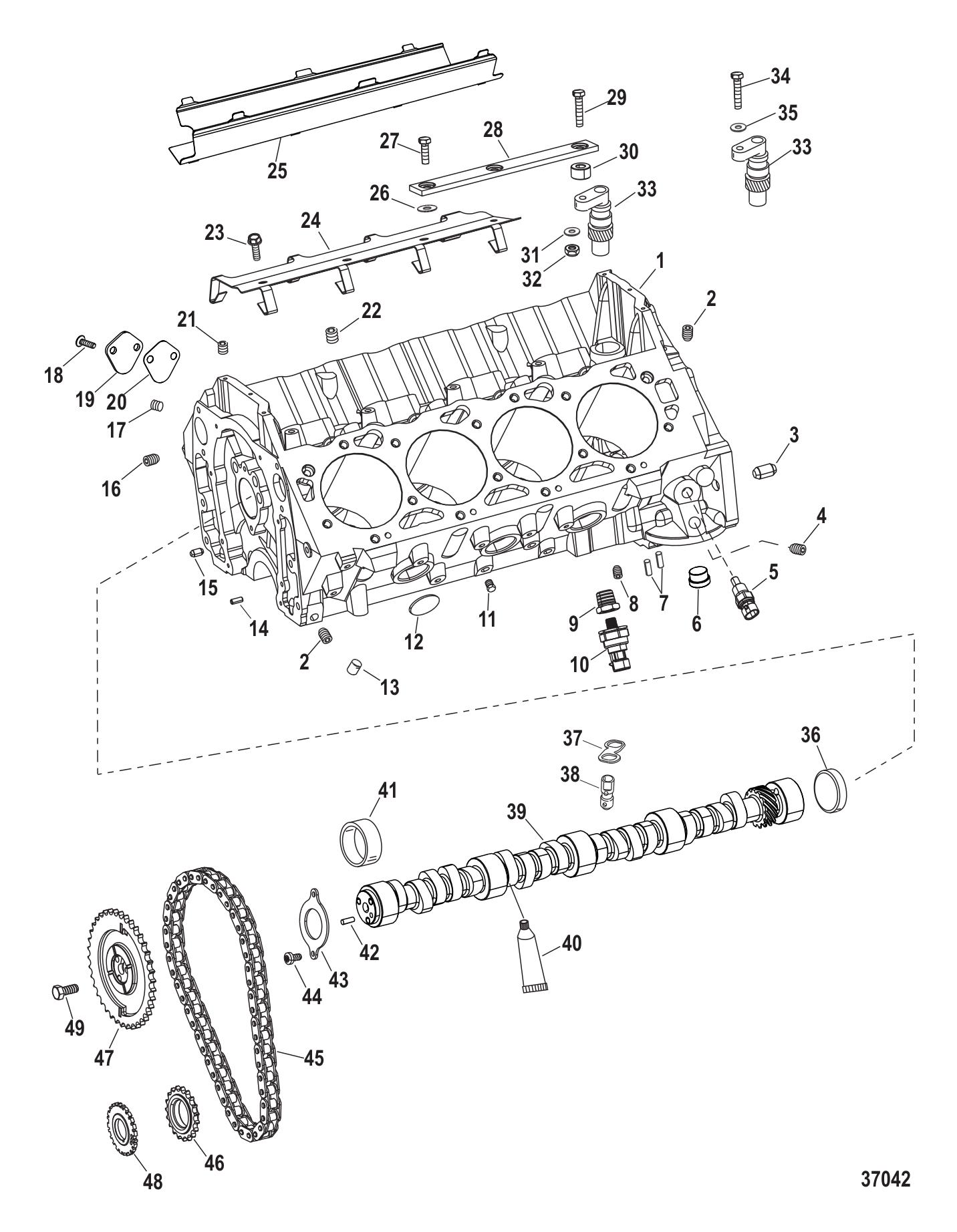

Engine Components (Cylinder Block & Camshaft)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	843073A06	GASKET/SEAL SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly)
		27-843073A06 - Engine Overhaul Gasket Set [ More info ] $1,787.87 Available to Order: Shipping delay up to 10 days.
#1	841178A05	PARTIAL-525 EFI - NOTE: Bravo Models With Driveline Also Require Pilot Bushing Part Number 23-823108 (1 required per assembly)
		841178A05 - Partial Engine Assembly [ More info ] Unavailable
#2	8M0204652	PLUG @2 OIL GALLERY REAR CAM PLUGS (3 required per assembly) — Replaces: 32561
		22-8M0204652 - PLUG @2 [ More info ] Unavailable
#3	8M0092110	PIN DOWEL FLYWHEEL HOUSING (2 required per assembly) — Replaces: 843379
		178M0092110 - DOWEL [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#4	328022	PLUG-(BRASS)@2 [0M959863] & Up (1 required per assembly)
		22-32802 2 - Brass Pipe Plug, Priced Individually [ More info ] $7.59 1 In Stock.
		18-4263 - Pipe Plug, 1/8-27 NPT, Brass [ More info ] $5.30 10+ In Stock.
#5	805218T	SENSOR COOLANT TEMPERATURE (1 required per assembly)
		805218T - Temperature Sensor [ More info ] $80.99 $69.49 In Stock
		18-7600 - Sensor 805218T [ More info ] $57.49 $56.90 1 In Stock.
		75-03752 - Temperature Sensor [ More info ] $58.99 $45.11 2 In Stock.
#6	8M0007929	PLUG-BLOCK OFF (1 required per assembly)
		19-8M0007929 - Plug -Block Off [ More info ] $15.65 Available to Order: Shipping delay up to 10 days.
#7	843378	PIN DOWEL (.250) BOTTOM OF BLOCK (2 required per assembly)
		17-843378 - Pin, Dowel (.250) [ More info ] $15.99 1 In Stock.
#8	8M0204657	PLUG - NOTE: Rear Of Block Oil Plugs (2 required per assembly) — Replaces: 36373
		228M0204657 - PLUG [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#9	64013	REDUCER (1 required per assembly)
		22-64013 - Reducer [ More info ] $14.69 1 In Stock.
#10	881879T11	SENSOR PRESSURE (0 - 100 PSI) OIL PRESSURE (1 required per assembly) — Replaces: 881879011
		881879T11 - Pressure Sensor [ More info ] $196.99 $189.49 In Stock
#11	36382	FITTING (.250-18 X .62) BRASS LOWER SIDE OF BLOCK (2 required per assembly)
		22-36382 - Plug [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
		18-8111-9 - Pipe Plug, 1/4 Inch, (Pack of 3) [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
		18-4256 - Plug, 1/4 Inch Brass, Sold Individually [ More info ] $2.46 2 In Stock.
#12	34270	PLUG-1.625 (6 required per assembly)
		19-34270 - Freeze Plug, 1-5/8 Inch [ More info ] $9.79 10+ In Stock.
#13	52190	PIN .660 RELAXED OUTSIDE DIAMETER X .500 (4 required per assembly) — Replaces: 845758
		17-52190 - Pin -Dowel [ More info ] $10.89 $8.72 5 In Stock.
#14	843143	PIN SPRING PORT SIDE - TIMING COVER (1 required per assembly)
		17-843143 - Pin, Spring, Port Side - Timing Cover [ More info ] $2.17 Available to Order: Shipping delay up to 10 days.
#15	843378	PIN DOWEL (.250) TIMING COVER (1 required per assembly)
#16	8M0044324	PLUG (1/4 INCH) OIL GALLERY (2 required per assembly) — Replaces: 845606
		22-8M0044324 - Plug [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#17	8M0204657	PLUG [0M959863] & Up (1 required per assembly) — Replaces: 36373
#18	16498	SCREW [0M959863] & Up (2 required per assembly)
		10-16498 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#19	8M0001406	PLATE-BLOCK OFF [0M959863] & Up (1 required per assembly)
		8M0001406 - Block Off Plate [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#20	34213	GASKET BLOCK OFF PLATE [0M959863] & Up (1 required per assembly)
		27-34213 - Gasket, Priced Individually [ More info ] $7.09 3 In Stock.
		18-0889-9 - Gasket 27-34213 2-Pack [ More info ] $5.99 $5.02 2 In Stock.
#21	390721	PLUG @3 [0M959863] & Up (1 required per assembly)
		22-39072 1 - Plug - Priced Individually [ More info ] $9.29 1 In Stock.
#22	328022	PLUG PIPE (.125-27) BRASS OIL GALLERY (3 required per assembly)
#23	841389	SCREW - Design II - Without Support (4 required per assembly)
		10-841389 - Screw [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
#24	8M0050807	RETAINER LIFTER GUIDE (1 required per assembly) — Replaces: 845755
		8M0050807 - Lifter Retainer [ More info ] $54.99 Available to Order: Shipping delay up to 10 days.
#25	845756T	SHIELD (1 required per assembly) — Replaces: 816073, 845756
		845756T - Shield [ More info ] $121.99 Available to Order: Shipping delay up to 10 days.
#26	63032	WASHER - Design I - With Support (2 required per assembly)
		12-63032 - Washer, (.320 X 1.00 X .120) Stainless Steel [ More info ] $0.99 $0.83 10+ In Stock.
#27	35386	SCREW @5 - Design I - With Support (2 required per assembly)
		10-35386 - Screw - Priced Individually [ More info ] $1.10 7 In Stock.
#28	842956	SUPPORT - Design I [0M956327] THRU [0M959862] (1 required per assembly)
		842956 - Support [ More info ] $42.46 Available to Order: Shipping delay up to 10 days.
#29	73657	SCREW @2 - Design I - With Support (1 required per assembly)
		10-73657 - Screw - Priced Individually [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#30	842963	SPACER - Design I - With Support (1 required per assembly)
		23-842963 - Spacer [ More info ] $35.54 Available to Order: Shipping delay up to 10 days.
#31	56720	WASHER - Design I - With Support (1 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#32	82670910	NUT @2 - Design I - With Support (1 required per assembly)
		11-826709 10 - Nut, (.312-18) Stainless Steel [ More info ] $7.19 1 In Stock.
#33	8M0099549	DRIVE-OIL PUMP (1 required per assembly) — Replaces: 881669, 8M0045287
		8M0099549 - 8M0099549 - DRIVER Oil Pump [ More info ] Unavailable Replaced by -8M0114791
		8M0114791 - Oil Pump Drive [ More info ] $110.49 Available to Order: Shipping delay up to 10 days.
#34	35386	SCREW @5 - Design II - Without Support (1 required per assembly)
#35	56720	WASHER - Design II - Without Support (1 required per assembly)
#36	94140	PLUG (1 required per assembly)
		19-94140 - Plug [ More info ] $4.99 $1.01 1 In Stock.
#37	845754	GUIDE LIFTER (8 required per assembly)
		845754 - Guide - Lifter [ More info ] $8.09 1 In Stock.
#38	849947T01	LIFTER (16 required per assembly) — Replaces: 849947T
		849947T01 - Lifter [ More info ] $183.49 Available to Order: Shipping delay up to 10 days.
#39	8M0043065	CAMSHAFT (1 required per assembly) — Replaces: 840919T
		4008M0043065 - CamShaft [ More info ] $1,627.43 Available to Order: Shipping delay up to 10 days.
		400-8M0237465 - CAMSHAFT [ More info ] Unavailable
#40	15875	LUBE CAMSHAFT (8 OUNCES) (AR required per assembly)
		92-15875 - Lube - CamShaft [ More info ] Unavailable
#41	85684	BEARING SET (1 required per assembly)
		23-85684 - Bearing Unit - Camshaft [ More info ] $127.49 1 In Stock.
#42	843378	PIN DOWEL (.250) (1 required per assembly)
#43	845941	RETAINER GEAR THRUST (1 required per assembly)
		845941 - Retainer [ More info ] $27.59 Available to Order: Shipping delay up to 10 days.
#44	845943	SCREW (2 required per assembly)
		10-845943 - Screw [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#45	8M8023355	TIMING SET KIT (1 required per assembly)
		8M8023355 - Timing Set Kit [ More info ] $325.58 Available to Order: Shipping delay up to 10 days.
#46	NSS	NOT SOLD SEPARATE CRANKSHAFT SPROCKET (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#47	NSS	NOT SOLD SEPARATE CAMSHAFT SPROCKET (1 required per assembly)
#48	8M0050760	WHEEL-TARGET (1 required per assembly) — Replaces: 8M0000102
		8M0050760 - Wheel-TARGET [ More info ] $35.99 Available to Order: Shipping delay up to 10 days.
#49	8M0043993	SCREW (3 required per assembly) — Replaces: 845942
		10-8M0043993 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
