Parts for 525 EFI 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Sea Water Pump Assembly

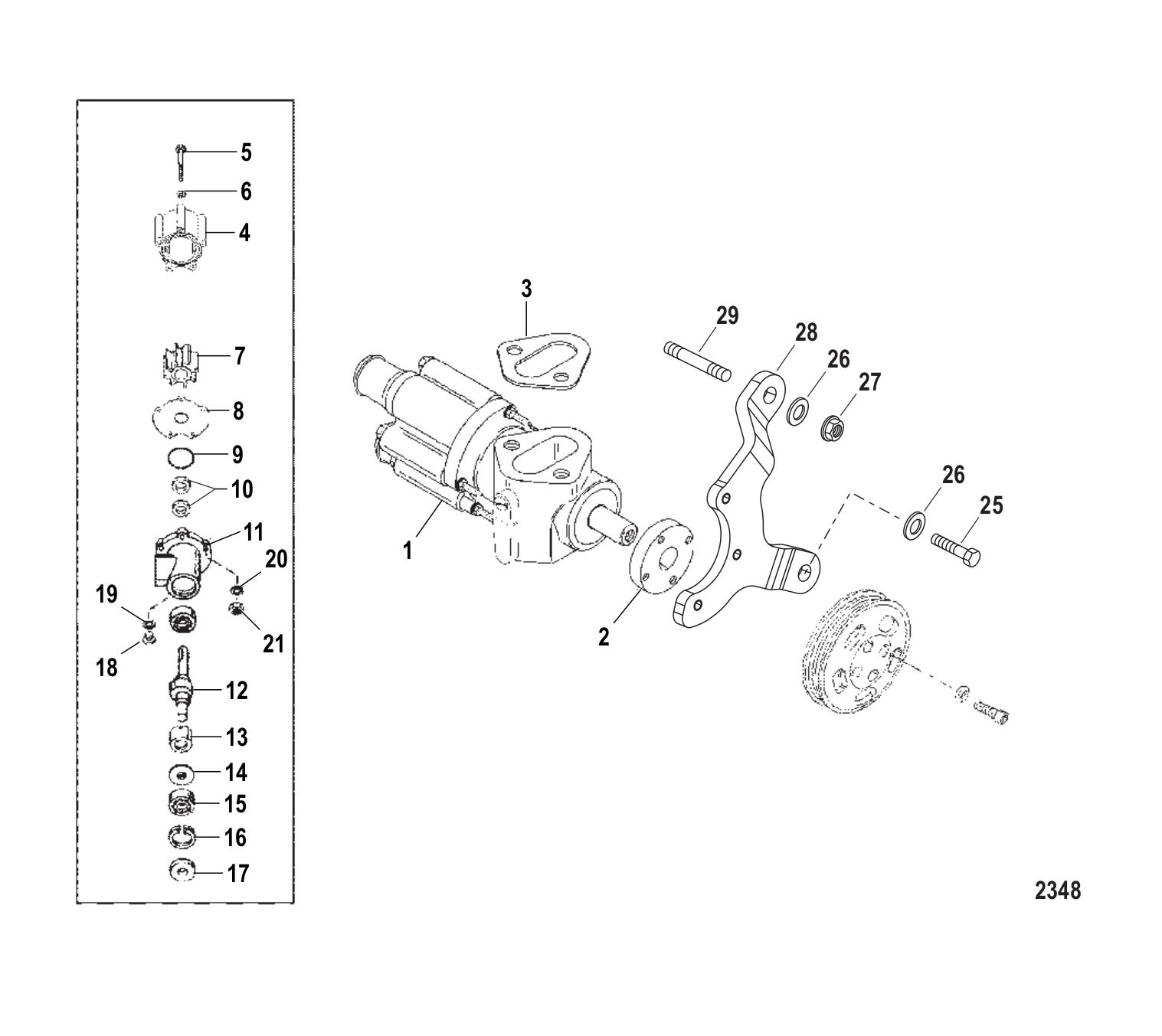

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 843073A06 | GASKET/SEAL SET - NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing (1 required per assembly) |
  |
|
27-843073A06 - Engine Overhaul Gasket Set [ More info ]
|
| #1 | 8M0084270 | PUMP ASY-SEAWATER (1 required per assembly) — Replaces: 807151A31 |
  |
|
46-8M0084270 - SeaWater Pump Assembly [ More info ]
|
| #2 | 47530 | HUB PUMP PULLEY (1 required per assembly) |
  |
|
47530 - Hub [ More info ]
|
| #3 | 34213 | GASKET SEA WATER PUMP TO FUEL PUMP (1 required per assembly) |
  |
|
27-34213 - Gasket, Priced Individually [ More info ]
|
  |
|
18-0889-9 - Gasket 27-34213 2-Pack [ More info ]
|
| #4 | 807151A14 | BODY/IMPELLER KIT (1 required per assembly) |
  |
|
46-807151A14 - Sea Water Pump Kit with Housing [ More info ]
|
  |
|
18-3150 - Sea Water Pump Kit with Housing [ More info ]
|
  |
|
46-13159 - Sea Water Pump Kit with Housing 46-807151A 14 [ More info ]
|
| #5 | 8M0204669 | SCREW (5 required per assembly) — Replaces: 74191 |
  |
|
108M0204669 - SCREW [ More info ]
|
| #5 | 74822 | SCREW (.312-18 X 3.500) (OPT required per assembly) |
  |
|
10-74822 - Screw [ More info ]
|
| #6 | 8M0204690 | WASHER (.344 X .688 X .065) STAINLESS STEEL (5 required per assembly) — Replaces: 814806 |
  |
|
12-8M0204690 - WASHER [ More info ] Unavailable |
| #7 | 59362T1 | IMPELLER (1 required per assembly) |
  |
|
47-59362T 1 - Impeller [ More info ]
|
  |
|
18-3087 - Impeller, 47-59362 [ More info ]
|
  |
|
47-59362Q01 - Impeller [ More info ]
|
  |
|
47-03908 - Impeller, Mercury 59362T1 Bravo [ More info ]
|
| #8 | 8M0204674 | WEARPLATE (1 required per assembly) — Replaces: 94576 |
  |
|
8M0204674 - Wearplate [ More info ]
|
| #9 | 94288 | QUAD RING (1 required per assembly) |
  |
25-94288 - Ring - Quad [ More info ] Unavailable |
|
  |
|
25-8M0215007 - Quad Ring [ More info ]
|
| #10 | 90562 | SEAL (1.254 X .312) (2 required per assembly) |
  |
|
26-90562 - Seal - Priced Individually [ More info ]
|
  |
|
18-2011 - Seal 26-90562 [ More info ]
|
  |
|
26-00236 - Seal, 26-90562 [ More info ]
|
| #11 | NSS | NOT SOLD SEPARATE SEA WATER PUMP HOUSING (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #12 | 818366A1 | SHAFT KIT (1 required per assembly) |
  |
|
818366A 1 - Shaft Kit - Water Pump [ More info ]
|
| #13 | 818745A1 | RING KIT SLIP (1 required per assembly) |
  |
|
818745A 1 - Ring/Washer Kit [ More info ]
|
| #14 | 89664 | WASHER (.920 X 1.750 X .060) (1 required per assembly) |
  |
|
12-89664 - Washer, (.920 X 1.750 X .060) [ More info ]
|
| #15 | 72961 | BEARING BALL (2 required per assembly) |
  |
|
30-72961 - Ball Bearing [ More info ]
|
  |
|
31-02112 - Ball Bearing 30-72961 [ More info ]
|
| #16 | 23720 | RING RETAINING (1 required per assembly) |
  |
|
53-23720 - Ring - Retaining [ More info ]
|
| #17 | 806930 | SEAL (1 required per assembly) |
  |
|
26-806930 - Seal [ More info ]
|
| #18 | 79953A04 | PLUG ASSEMBLY (.375-16 X .250) (1 required per assembly) |
  |
|
10-79953A04 - Drain Screw Kit [ More info ]
|
  |
|
10-02699 - Drain Plug [ More info ]
|
| #19 | 8M0204693 | SEAL @6 DRAIN PLUG (1 required per assembly) — Replaces: 830749 |
  |
|
26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ]
|
  |
|
10-10100-1 - Drain Screw Washer 830749 [ More info ]
|
| #20 | 400247 | LOCKWASHER (M8) - NOTE: Used Only With 11-21908 Standard Nut (5 required per assembly) |
  |
|
13-40024 7 - LockWasher Note: - Priced Individually [ More info ]
|
| #21 | 21908 | NUT (.312-18) CAD PLATED - Standard (5 required per assembly) |
  |
|
11-21908 - Nut (5/16x18) [ More info ]
|
| #21 | 82670910 | NUT (.312-18) STAINLESS STEEL - Nylon Insert (5 required per assembly) |
  |
|
11-826709 10 - Nut, (.312-18) Stainless Steel [ More info ]
|
| #22 | 899743T | PULLEY-(CLEAR) (1 required per assembly) — Replaces: 849046T01 |
  |
|
899743T - Pulley - Clear [ More info ]
|
| #23 | 8M0042642 | WASHER @5 (4 required per assembly) — Replaces: 70132 |
  |
|
12-8M0042642 - Washer - Priced Individually [ More info ]
|
| #24 | 849377 | SCREW (4 required per assembly) |
  |
|
10-849377 - Screw [ More info ]
|
| #25 | 825427 | SCREW (1 required per assembly) |
  |
|
10-825427 - Screw [ More info ]
|
| #26 | 45176 | WASHER @5 (2 required per assembly) |
  |
|
12-45176 - Washer, (.453 X .812 X .105) [ More info ]
|
| #27 | 859135 | NUT @5 (1 required per assembly) |
  |
|
11-859135 - Nut (7/16-20), Priced Individually [ More info ]
|
| #28 | 841049T | BRACKET SEA WATER PUMP (1 required per assembly) |
  |
|
841049T - Bracket [ More info ]
|
| #29 | 8M0133358 | STUD (1 required per assembly) — Replaces: 579203 |
  |
|
168M0133358 - Stud [ More info ]
|
