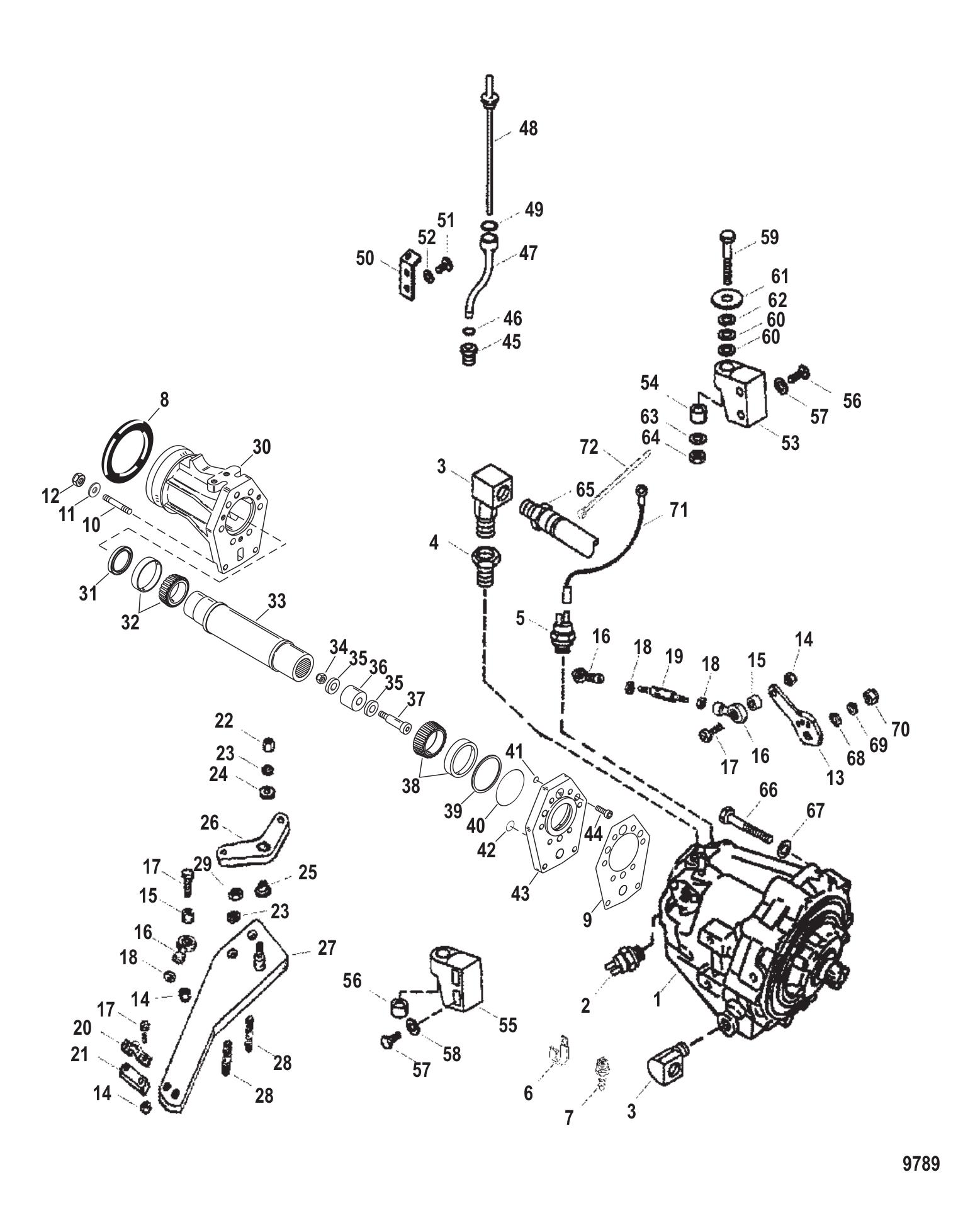

Transmission & Components (Six Drive / Bravo)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	847145T1	SUPPORT AND LEVER KIT UNIVERSAL JOINT (1 required per assembly)
		847145T 1 - Support/Lever Kit [ More info ] Unavailable
#-	8M0050742	SUPPORT ASSY (1 required per assembly) — Replaces: 847123A1
		8M0050742 - Support Assembly [ More info ] Unavailable
#1	841919A06	TRANSMISSION ASSEMBLY COMPLETE (1 required per assembly) — Replaces: 14746A5
		841919A06 - Tramsmission [ More info ] Unavailable
#1	841919A07	TRANSMISSION ASSEMBLY (1 required per assembly) — Replaces: 14746A4
		841919A07 - TRANSMISSION ASSE [ More info ] Unavailable
#2	47613	SWITCH (1 required per assembly)
		47613 - Switch [ More info ] $374.49 In Stock
#3	47629	ELBOW 90 DEGREE TRANSMISSION TO OIL HOSE (2 required per assembly)
		22-47629 - Elbow [ More info ] $19.37 4 In Stock.
#4	88517	FITTING REDUCING TRANSMISSION ELBOW (1 required per assembly)
		22-88517 - Fitting [ More info ] $19.29 $3.86 10 In Stock.
#5	88031	SWITCH ASSEMBLY (1 required per assembly)
		87-88031 - Switch Assembly [ More info ] $117.49 $113.35 In Stock
#6	47483	J CLIP (1 required per assembly)
		54-47483 - J Clip [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
#7	63186	FITTING (.125-27) TO HOSE ON REMOTE BOTTLE (1 required per assembly)
		22-63186 - Connector - Priced Individually [ More info ] $5.82 4 In Stock.
#8	8M0192230	SEAL HOUSING (1 required per assembly) — Replaces: 846693
		8M0192230 - SEAL [ More info ] Unavailable
#9	47903	GASKET TRANSMISSION TO SUPPORT HOUSING (1 required per assembly)
		27-47903 - Tailstock Gasket [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#10	847031	STUD (.437-14/.437-20 X 2.750) (2 required per assembly)
		16-847031 - Stud [ More info ] $39.53 Available to Order: Shipping delay up to 10 days.
#10	847030	STUD (.437-14/.437-20 X 3.00) (6 required per assembly)
		16-847030 - Stud [ More info ] $46.07 Available to Order: Shipping delay up to 10 days.
#11	842922	WASHER (.450 X .750 X .060) STAINLESS STEEL (8 required per assembly)
		12-842922 - Washer, (.450 X .750 X .060) Stainless Steel [ More info ] $1.00 1 In Stock.
#12	8M0204653	NUT @10 (8 required per assembly) — Replaces: 82671015, 34933
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.29 9 In Stock.
		11-00118 - Nut, Sold Individually [ More info ] $3.59 $2.95 7 In Stock.
#13	847052	LEVER SHIFT (1 required per assembly)
		847052 - Shift Lever [ More info ] $24.17 Available to Order: Shipping delay up to 10 days.
#14	8267096	NUT (#10-32) STAINLESS STEEL (5 required per assembly)
		11-826709 6 - Nut [ More info ] $3.69 1 In Stock.
#15	846787	SPACER ROD END (3 required per assembly)
		23-846787 - Spacer - Rod End [ More info ] $23.80 Available to Order: Shipping delay up to 10 days.
#16	846786	ROD END ROD (3 required per assembly)
		846786 - Rod End [ More info ] $82.35 Available to Order: Shipping delay up to 10 days.
#17	34994	SCREW (#10-32 X 1.00) STAINLESS STEEL (5 required per assembly)
		10-34994 - Screw [ More info ] $1.10 2 In Stock.
#18	68219	NUT (#10-32) STAINLESS STEEL (3 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#19	846964	STUD (#10-32 X 2.09) SHIFT ROD (1 required per assembly)
		16-846964 - Stud [ More info ] $73.02 1 In Stock.
#20	846341	BRACKET SHIFT CABLE (1 required per assembly)
		54-846341 - Bracket - Cable [ More info ] $12.59 10+ In Stock.
#21	846344	SPACER CABLE BRACKET (1 required per assembly)
		846344 - Spacer - Cable Bracket [ More info ] $67.54 Available to Order: Shipping delay up to 10 days.
#22	8M0204726	NUT-BRASS @3 (1 required per assembly) — Replaces: 826709113, 8M0042636
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#23	841388	WASHER (.410 X .810 X .050) STAINLESS STEEL (3 required per assembly)
		12-841388 - Washer, (.410 X .810 X .050) Stainless Steel [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
#24	846783	WASHER (.562 X 1.250 X .062) NYLON (1 required per assembly)
		12-846783 - Washer, (.562 X 1.250 X .062) Nylon [ More info ] $12.55 Available to Order: Shipping delay up to 10 days.
#25	812707	BUSHING (1 required per assembly)
		23-812707 - Bushing [ More info ] $8.29 2 In Stock.
#26	847025	ARM SHIFT CABLE (1 required per assembly)
		847025 - Arm - Shift Cable [ More info ] $63.81 1 In Stock.
#27	8M0053746	PLATE ASSEMBLY (1 required per assembly) — Replaces: 847175
		8M0053746 - Plate Assembly [ More info ] $394.33 Available to Order: Shipping delay up to 10 days.
#28	846453	STUD (.375-16 X 1.250) MOUNTING PLATE (2 required per assembly)
		16-846453 - Stud [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#29	826709112	NUT (.375-16) STAINLESS STEEL (2 required per assembly) — Replaces: 846869
		11-826709112 - Nut, (.375-16) Stainless Steel [ More info ] $3.02 10+ In Stock.
#30	8M0054154	HSG U-JOIN (IRR) (1 required per assembly) — Replaces: 8469611
		8M0054154 - Housing U-JOIN (IRR) [ More info ] Unavailable
#31	846497	SEAL INNER COUPLER (1 required per assembly)
		26-846497 - Seal [ More info ] $89.80 Available to Order: Shipping delay up to 10 days.
#32	846477A1	BEARING SET CUP AND CONE REAR COUPLER (1 required per assembly)
		31-846477A 1 - Bearing Set - Cup And Cone [ More info ] $65.18 Available to Order: Shipping delay up to 10 days.
#33	8M0050930	SHAFT-COUPLING COUPLING (1 required per assembly) — Replaces: 846960
		8M0050930 - Shaft-Coupling [ More info ] $1,430.18 Available to Order: Shipping delay up to 10 days.
#34	82670910	NUT (.312-18) STAINLESS STEEL (1 required per assembly)
		11-826709 10 - Nut, (.312-18) Stainless Steel [ More info ] $7.19 1 In Stock.
#35	846967	WASHER (.376 X 1.430 X .250) (2 required per assembly)
		12-846967 - Washer, (.376 X 1.430 X .250) [ More info ] $34.91 Available to Order: Shipping delay up to 10 days.
#36	847027	SEAL COUPLER (1 required per assembly)
		23-847027 - Seal - Inner [ More info ] $98.42 Available to Order: Shipping delay up to 10 days.
#37	847209	SHOULDER SCREW (.375-16) (1 required per assembly)
		10-847209 - Screw [ More info ] $6.24 Available to Order: Shipping delay up to 10 days.
#38	846695A1	BEARING SET CUP AND CONE FRONT COUPLER (1 required per assembly)
		31-846695A 1 - Bearing Set - Cup And Cone [ More info ] $94.36 Available to Order: Shipping delay up to 10 days.
#39	847029A1	SHIM SET BEARING (2 required per assembly)
		15-847029A 1 - Shim Set [ More info ] $43.22 Available to Order: Shipping delay up to 10 days.
#40	841807	O-RING (3.500 X .103) (1 required per assembly)
		25-841807 - O-ring, (3.500 X .103) [ More info ] $5.79 5 In Stock.
#41	847033	O-RING (.620 X .09) (1 required per assembly)
		25-847033 - O-Ring [ More info ] $2.87 Available to Order: Shipping delay up to 10 days.
#42	847034	O-RING (1.310 X .09) (1 required per assembly)
		25-847034 - O-Ring [ More info ] $5.71 Available to Order: Shipping delay up to 10 days.
#43	8470121	SPACER UNIVERSAL JOINT (1 required per assembly)
		847012 1 - Spacer -Universal Joint [ More info ] Unavailable
#44	30206	SCREW (.375-16 X 1.00) STAINLESS STEEL (3 required per assembly)
		10-30206 - Screw - Priced Individually [ More info ] $4.19 $0.85 10+ In Stock.
		18-2361-9 - Screw, 10-30206, 2PK [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#45	48461	ADAPTER OIL LEVEL GAUGE TUBE (1 required per assembly)
		48461 - Adaptor, NLA [ More info ] Unavailable
#46	48462	O RING (1 required per assembly)
		25-48462 - O-ring, (.614 X .070) [ More info ] $1.80 4 In Stock.
#47	48463	TUBE DIPSTICK OIL LEVEL GAUGE (1 required per assembly)
		48463 - Tube, NLA [ More info ] $17.99 $15.23 5 In Stock.
#48	48464	DIPSTICK OIL LEVEL (1 required per assembly)
		48464 - Dipstick, NLA [ More info ] Unavailable
#49	35276	O RING (1 required per assembly)
		25-35276 - O-ring, (.734 X .139) [ More info ] $2.39 2 In Stock.
		18-7135 - O-Ring 25-35276 [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#50	48466	BRACKET MOUNTING (1 required per assembly)
		48466 - Bracket, NLA [ More info ] Unavailable
#51	34290	SCREW (2 required per assembly)
		10-34290 - Screw [ More info ] $0.78 $0.66 10+ In Stock.
#52	26992	LOCKWASHER @5 (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#53	47340A1	BRACKET ASSEMBLY TRANSMISSION MOUNT - PORT (1 required per assembly)
		47340A 1 - Bracket Assembly [ More info ] Unavailable
#54	35852	MOUNT TRANSMISSION BRACKET (1 required per assembly)
		35852 - Mount [ More info ] $75.44 8 In Stock.
#55	47334A2	BRACKET ASSEMBLY TRANSMISSION MOUNT - STARBOARD (1 required per assembly)
		47334A 2 - Bracket [ More info ] Unavailable
#56	35852	MOUNT TRANSMISSION BRACKET (1 required per assembly)
#57	47462	SCREW @5 (4 required per assembly)
		10-47462 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#58	32993	LOCKWASHER @5 (4 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#59	47467	SCREW (2 required per assembly)
		10-47467 - Screw [ More info ] $16.89 Available to Order: Shipping delay up to 10 days.
#60	47466	WASHER (4 required per assembly)
		12-47466 - Washer, (1.125 X 1.750 X .16) [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#61	47475	WASHER (2 required per assembly)
		12-47475 - Washer, (1.120 X 2.250 X .19) [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#62	34846	LOCKWASHER @2 (2 required per assembly)
		13-34846 - LockWasher - Priced Individually [ More info ] $1.40 2 In Stock.
#63	33171	WASHER (2 required per assembly)
		12-33171 - Washer, (.6406 X 1.750 X .125) [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#64	22339	NUT @5 (2 required per assembly)
		11-22339 - Nut (5/8x18) [ More info ] Unavailable
		18-3713 - Nut, 11-22339 [ More info ] $5.98 5 In Stock.
		11-8M0214915 - NUT Note: Priced Individually [ More info ] $11.69 9 In Stock.
		11-01817 - Nut 11-22339 [ More info ] $5.99 $4.59 Available to Order: Shipping delay up to 10 days.
#65	475166	HOSE ASSEMBLY (30.00 INCHES) TRANSMISSION TO OIL COOLER (2 required per assembly)
		32-47516 6 - Hose Assembly -30 In [ More info ] $137.99 Available to Order: Shipping delay up to 10 days.
#66	60179	SCREW (6 required per assembly)
		10-60179 - Screw [ More info ] $4.49 $0.90 5 In Stock.
#67	45176	WASHER @5 (6 required per assembly)
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#68	20722	WASHER (1 required per assembly)
		12-20722 - Washer, (.328 X .625 X .060) [ More info ] $2.22 $1.88 10+ In Stock.
#69	39107	LOCKWASHER @5 (1 required per assembly)
		13-39107 - LockWasher - Priced Individually [ More info ] $1.50 10+ In Stock.
#70	22053	NUT @5 (1 required per assembly)
		11-22053 - Nut (5/16x24) [ More info ] $0.20 10+ In Stock.
#71	88032A5	CABLE ASSY (1 required per assembly)
		84-88032A 5 - Cable Assembly [ More info ] $3.64 Available to Order: Shipping delay up to 10 days.
#71	86322A29	CABLE ASSY (1 required per assembly)
		84-86322A29 - Cable Assembly [ More info ] $4.04 Available to Order: Shipping delay up to 10 days.
#72	77054	TIE STRAP (1 required per assembly)
		77054 - Tie Strap [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
