Parts for 500 EFI 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Fuel Rails & Injectors

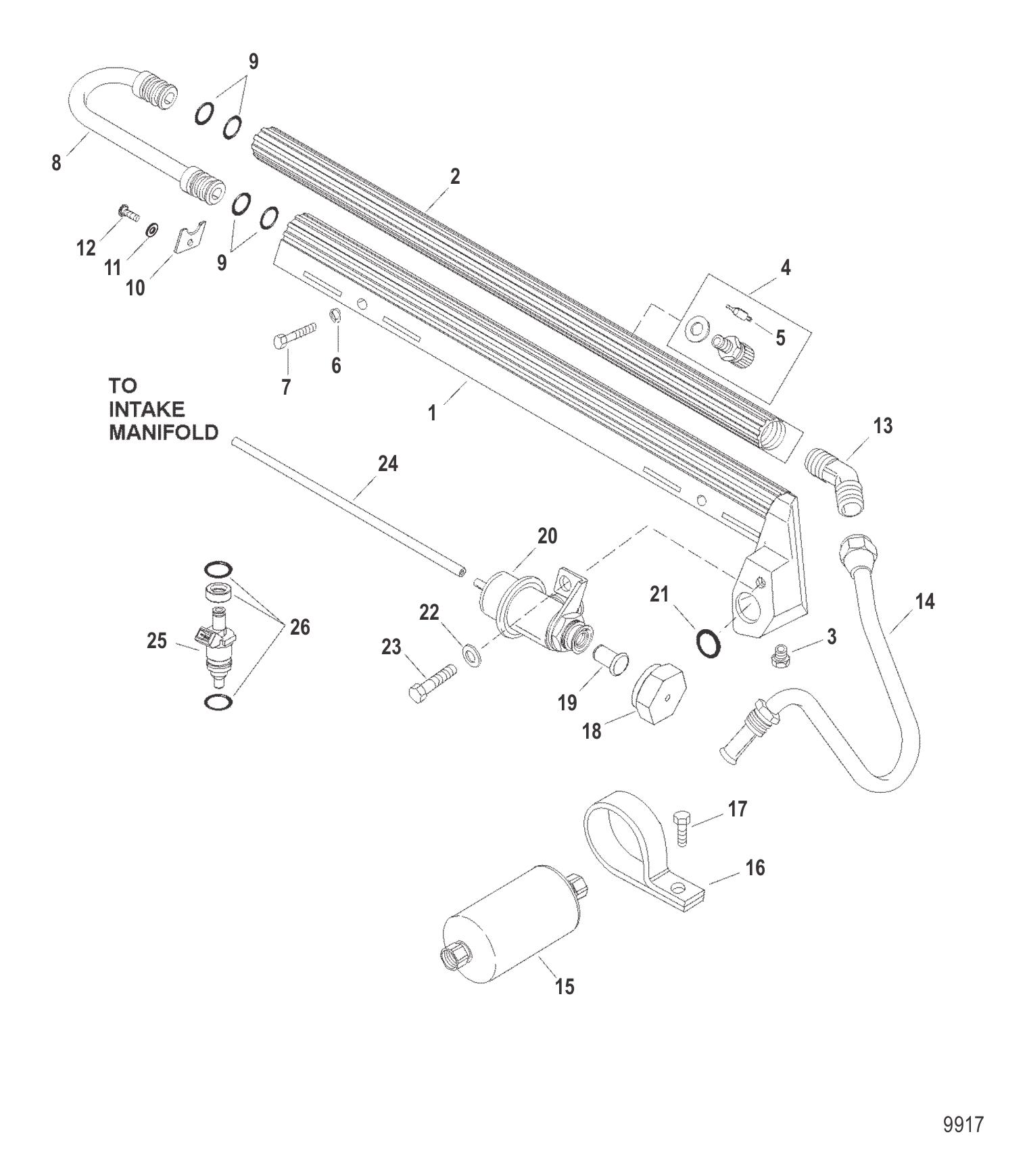

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 842129A1 | GASKET/SEAL SET - NOTE: See Gasket/Seal Set Parts Section For Complete Parts Listing (1 required per assembly) |
  |
|
27-842129A 1 - Engine Overhaul Gasket Set [ More info ] Unavailable |
| #1 | 849897 | RAIL-FUEL-PORT (1 required per assembly) — Replaces: 849897T |
  |
|
849897 - Fuel Rail - Port [ More info ] Unavailable |
| #2 | 849898T1 | RAIL ASSY-STBD (1 required per assembly) |
  |
|
849898T 1 - Rail Assembly - Stbd [ More info ]
|
| #3 | 36382 | FITTING (.250-18 X .62) BRASS (1 required per assembly) |
  |
|
|
  |
|
18-8111-9 - Pipe Plug, 1/4 Inch, (Pack of 3) [ More info ]
|
  |
|
18-4256 - Plug, 1/4 Inch Brass, Sold Individually [ More info ]
|
| #4 | 845260A1 | VALVE KIT SCHRADER (1 required per assembly) |
  |
|
22-845260A 1 - Schrader Valve Kit [ More info ] Unavailable |
| #5 | 802631 | VALVE AND CAP KIT (1 required per assembly) |
  |
|
22-802631 - Valve And Cap [ More info ]
|
| #6 | 846673 | WASHER (4 required per assembly) |
  |
|
12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ]
|
| #7 | 86885 | SCREW (4 required per assembly) |
  |
|
10-86885 - Screw [ More info ]
|
| #8 | 849971A02 | LINE KIT FUEL - BLUE RAIL TO RAIL (1 required per assembly) — Replaces: 849971A1 |
  |
|
32-849971A02 - Fuel Line Kit -Blue [ More info ] Unavailable |
| #9 | 849922 | O-RING SPECIAL (4 required per assembly) |
  |
|
25-849922 - O-ring, Special, Fuel Line Rail To Rail, Sold Individually [ More info ]
|
| #10 | 849923 | RETAINER FUEL LINE (2 required per assembly) |
  |
|
849923 - Retainer [ More info ] Unavailable |
| #11 | 30164 | WASHER @3 (2 required per assembly) |
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #12 | 847401 | SCREW (2 required per assembly) |
  |
|
10-847401 - Screw [ More info ]
|
| #13 | 843297 | FITTING (1 required per assembly) |
  |
|
22-843297 - Fitting [ More info ] Unavailable |
| #14 | 849931T | LINE FUEL FITLER TO RAIL (1 required per assembly) |
  |
|
32-849931T - Fuel Line [ More info ] Unavailable |
| #15 | 807174T | FILTER-FUEL (1 required per assembly) |
  |
|
35-807174T - Fuel Filter [ More info ]
|
| #16 | 18904 | CLIP FUEL FILTER (1 required per assembly) |
  |
|
|
| #17 | 817505 | SCREW (1 required per assembly) |
  |
|
10-817505 - Screw [ More info ]
|

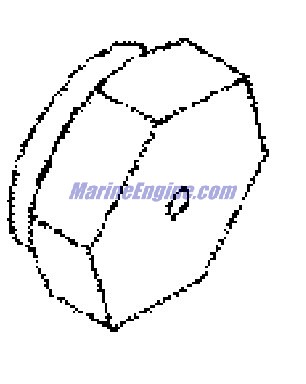

| #18 | 849926 | REGULATOR CAP (1 required per assembly) |
  |
|
849926 - Regulator CAP [ More info ] Unavailable |
| #19 | 849925 | PLUG (1 required per assembly) |
  |
|
19-849925 - Plug [ More info ] Unavailable |
| #20 | 849899 | REGULATOR ASSY (1 required per assembly) |
  |
|
849899 - Regulator Assembly [ More info ]
|
| #21 | 841445 | O-RING (1 required per assembly) |
  |
|
25-841445 - O-Ring [ More info ] Unavailable |
| #22 | 846673 | WASHER (1 required per assembly) |
| #23 | 73286 | SCREW (1 required per assembly) |
  |
|
10-73286 - Screw [ More info ]
|
| #24 | 8M0063567 | HOSE 58.00 INCH BULK CUT 11.00 INCHES (1 required per assembly) — Replaces: 80617379, 80617382 |
  |
|
32-8M0063567 - Hose -58 Inch [ More info ]
|
| #25 | 8M0051200 | INJECTOR-ASY-FUEL (8 required per assembly) — Replaces: 849896 |
  |
|
8M0051200 - Fuel Injector Assembly [ More info ] Unavailable |
| #26 | 8M0070081 | O-RING KIT (AR required per assembly) — Replaces: 842130A1 |
  |
|
258M0070081 - O-Ring Kit [ More info ]
|
