Parts for 500 EFI 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Intake Manifold & Intake Plenum

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 500 EFI > 0L001496 - 0L306499 - USA > Intake Manifold & Intake Plenum

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Intake Manifold & Intake Plenum

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	842129A1	GASKET/SEAL SET (1 required per assembly)
		27-842129A 1 - Engine Overhaul Gasket Set [ More info ] Unavailable
#1	849900T3	M FOLD ASY-INTAKE (1 required per assembly)
		849900T 3 - Intake Manifold [ More info ] Unavailable
#2	805732	O-RING (2.612 X .103) (8 required per assembly)
		25-805732 - O-ring, (2.612 X .103) [ More info ] $21.49 Available to Order: Shipping delay up to 10 days.
#3	811553	GROMMET INTAKE MANIFOLD (1 required per assembly)
		25-811553 - Grommet [ More info ] $85.25 2 In Stock.

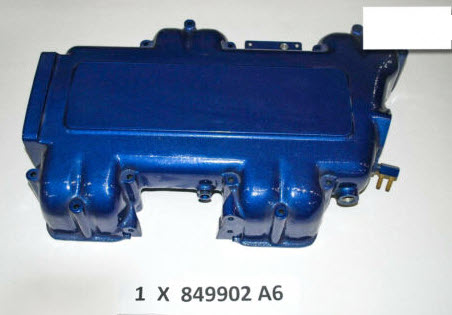

#4	849902A6	PLENUM ASY (BLUE) (1 required per assembly) — Replaces: 849902T5
		849902A 6 - Plenum Assembly (Blue) [ More info ] Unavailable
#5	687271	FITTING (.250-18) 90 DEGREE - BRASS TO PVC VALVE (1 required per assembly)
		22-68727 1 - Fitting [ More info ] $32.68 1 In Stock.
#6	841435A1	FITTING KIT 90 DEGREE - WITH HOSE - Design I - NOTE: This Kit Replaces The Single Barb Fitting Part Number 22-73817 (1 required per assembly)
		22-841435A 1 - Fitting Kit [ More info ] $28.01 Available to Order: Shipping delay up to 10 days.
#6	841435	FITTING 90 DEGREE - DOUBLE FITTING - Design II (1 required per assembly)
		22-841435 - Fitting [ More info ] $57.44 1 In Stock.
#7	F1077	SCREW (#10-24 X .500) (1 required per assembly)
		10-F1077 - Screw, NLA [ More info ] $1.77 $1.49 10+ In Stock.
#8	849948T	NAMEPLATE PLENUM (1 required per assembly)
		849948T - NAMEPLATE,NLA [ More info ] Unavailable
#9	57413	O-RING (3.987 X .103) THROTTLE BODY (1 required per assembly)
		25-57413 - O-ring, (3.987 X .103) [ More info ] $8.69 $3.82 10 In Stock.
#10	841251T3	THROTTLE BODY ASY (1 required per assembly)
		841251T 3 - Throttle Body Assembly [ More info ] Unavailable
#11	840184	PLUG (1 required per assembly)
		19-840184 - PLUG [ More info ] Unavailable
#12	68219	NUT @5 - Design I (1 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#12	27160	SPRING @3 - Design II (1 required per assembly)
		24-27160 - Spring, Idle Adjusting Screw [ More info ] $4.09 10+ In Stock.
#13	690201	SCREW - Design I (1 required per assembly) — Replaces: 69020
		10-69020 1 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#13	842127	SCREW - Design II (1 required per assembly)
		10-842127 - Screw [ More info ] $0.57 Available to Order: Shipping delay up to 10 days.
#14	849889	SHAFT THROTTLE (1 required per assembly)
		849889 - Throttle Shaft [ More info ] Unavailable
#15	92170	RING-SNAP (2 required per assembly)
		53-92170 - Ring -snap [ More info ] $3.30 $2.64 4 In Stock.
#16	849887	PLATE THROTTLE (2 required per assembly)
		849887 - Throttle Plate [ More info ] $87.99 $74.52 10+ In Stock.
#17	840118	SCREW (#8-32 X .380) THROTTLE PLATE (4 required per assembly)
		10-840118 - Screw [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#18	840122	SCREW (#8-32 X .380) SPRING ANCHOR (1 required per assembly)
		10-840122 - SCREW,NLA [ More info ] Unavailable
#19	844226	SPRING THROTTLE RETURN (1 required per assembly)
		24-844226 - Spring, Throttle Return [ More info ] Unavailable
#20	849992	SPACER THROTTLE BODY (1 required per assembly)
		23-849992 - Spacer - Throttle Body [ More info ] $7.99 $6.76 1 In Stock.
#21	845577	ARM THROTTLE (1 required per assembly)
		845577 - Throttle Arm [ More info ] Unavailable
#22	856774	WASHER @5 (1 required per assembly)
		12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable
		128M0214963 - WASHER Note: Priced Individually [ More info ] $2.59 10+ In Stock.
#23	8M0042636	NUT-BRASS @3 (1 required per assembly) — Replaces: 34863, 826709113
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#24	805526	STUD (1 required per assembly)
		16-805526 - Stud [ More info ] $6.79 2 In Stock.
#25	35950	WASHER @2 (1 required per assembly)
		12-35950 - Washer, (.273 X .437 X .031) Stainless Steel [ More info ] $1.80 5 In Stock.
#26	846673	WASHER (2 required per assembly)
		12-846673 - Washer, (.265 X .500 X .060) Stainless Steel [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#27	826709109	NUT @5 (1 required per assembly) — Replaces: 35045
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#28	805224A1	MOTOR KIT-IAC (1 required per assembly)
		805224A 1 - Idle Air Control Motor Kit [ More info ] Unavailable
		8M0239245 - IAC Valve Idle Air Control 305, 350, 454, 502 [ More info ] $163.99 $161.92 In Stock
#29	805400	SCREW (#8-32 X .500) STAINLESS STEEL (2 required per assembly)
		10-805400 - Screw [ More info ] $1.70 2 In Stock.
#30	808547	O-RING (1 required per assembly)
		25-808547 - O-Ring [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#31	844997	SCREW (4 required per assembly)
		10-844997 - Screw [ More info ] $4.17 Available to Order: Shipping delay up to 10 days.
#32	840210T1	ARRESTOR KT-FLAME (1 required per assembly) — Replaces: 840210T
		840210T 1 - Arrestor Kit -flame [ More info ] Unavailable
#33	1807613	CLAMP (1 required per assembly)
		54-18076 13 - Worm Gear Clamp [ More info ] $8.00 Available to Order: Shipping delay up to 10 days.
#34	849888T	BRACKET THROTTLE ANCHOR (1 required per assembly)
		849888T - Bracket [ More info ] $49.99 $42.33 4 In Stock.
#35	8M0204690	WASHER (3 required per assembly) — Replaces: 814806
		12-8M0204690 - WASHER [ More info ] Unavailable
#36	90285	SCREW (3 required per assembly)
		10-90285 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#37	8M0113178	STUD (.250-28 X 2.00) THROTTLE CABLE ANCHOR (1 required per assembly) — Replaces: 96112
		16-8M0113178 - Stud [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#38	846673	WASHER (1 required per assembly)
#39	35888	NUT @5 (1 required per assembly)
		11-35888 - Nut (1/4-28) [ More info ] $6.89 $3.04 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#40	31866	SPACER @3 (1 required per assembly)
		23-31866 - Spacer - .26 X .31 X .64 [ More info ] $5.69 10+ In Stock.
#41	69056	WASHER (2 required per assembly) — Replaces: 21631
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#42	826709109	NUT @5 (1 required per assembly) — Replaces: 35045
#43	8M0099429	VALVE ASSY-VENT (1 required per assembly) — Replaces: 848578
		8M0099429 - Valve Assembly - Vent [ More info ] $31.09 Available to Order: Shipping delay up to 10 days.
#44	8M0042521	HOSE (1 required per assembly) — Replaces: 844172019
		32-8M0042521 - Hose - PCV Valve To Plenum [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#45	56762	TIE STRAP @5 (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#46	846673	WASHER (12 required per assembly)
#47	71319	SCREW (12 required per assembly)
		10-71319 - Screw [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#48	8499981	LIFTING EYE (2 required per assembly)
		54-849998 1 - Lifting Eye [ More info ] $197.88 Available to Order: Shipping delay up to 10 days.
#49	856774	WASHER @5 (16 required per assembly)
#50	822168	SCREW (8 required per assembly)
		10-822168 - Screw [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#50	842787	SCREW (2 required per assembly) — Replaces: 47432
		10-842787 - Screw [ More info ] $7.72 Available to Order: Shipping delay up to 10 days.
#50	847919	SCREW (2 required per assembly)
		10-847919 - Screw [ More info ] $6.41 Available to Order: Shipping delay up to 10 days.
#50	849994	SCREW (4 required per assembly)
		10-849994 - Screw [ More info ] $29.57 Available to Order: Shipping delay up to 10 days.
