Parts for 500 (Gen. VI) GM 502 V-8 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Shift Bracket

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 500 (Gen. VI) GM 502 V-8 > 1997-1998 0L000768 - 0L001772 - Australia > Shift Bracket

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

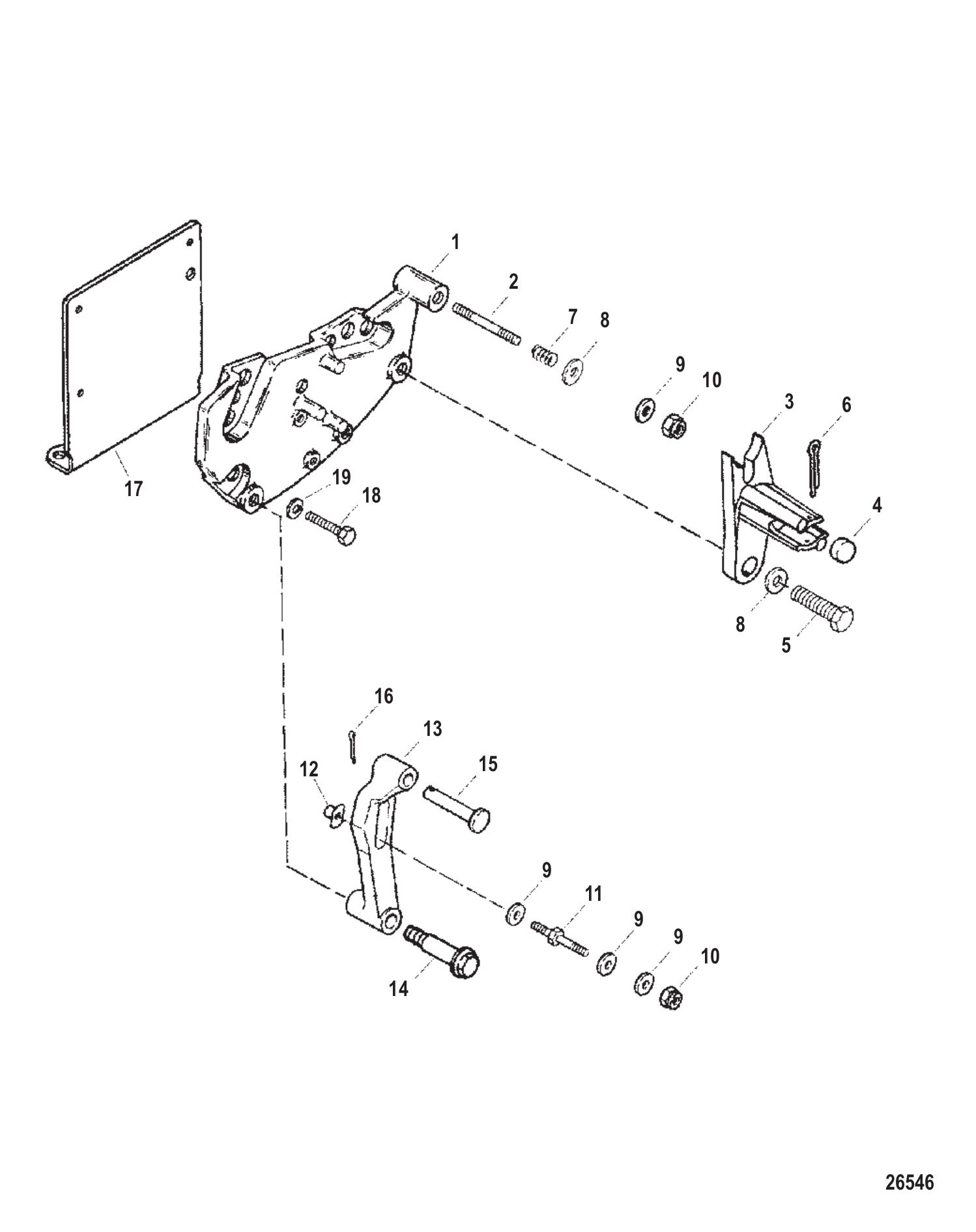

Shift Bracket

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	807962A14	BRACKET ASSEMBLY SHIFT (1 required per assembly) — Replaces: 807962A3, 807962A10
		807962A14 - PLATE KIT-SHIFT [ More info ] Unavailable
		807962A15 - Shift Plate Kit [ More info ] $166.99 In Stock
#2	865154A02	STUD KIT (.250-20/.250-28 X 2.120) SHIFT CABLE (1 required per assembly) — Replaces: 987981, 865154A01
		16-865154A02 - Stud Kit [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#3	865434A01	RETAINER SHIFT CABLE (1 required per assembly) — Replaces: 123811, 12381F1
		865434A01 - Retainer Kit [ More info ] Unavailable
		865434A02 - Retainer Kit [ More info ] $56.49 Available to Order: Shipping delay up to 10 days.
#4	8M0207783	SPACER (1 required per assembly) — Replaces: 98828
		238M0207783 - SPACER [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#5	53167T	SCREW @16 (1 required per assembly) — Replaces: 53167
		10-53167T - Screw - Priced Individually [ More info ] $1.50 $0.85 10+ In Stock.
#6	328571	COTTER PIN SHIFT CABLE RETAINING (1 required per assembly) — Replaces: 32857
		[ More info ] Unavailable
#7	8M0207784	SPRING SHIFT CABLE STUD (1 required per assembly) — Replaces: 98880
		248M0207784 - SPRING [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#8	56720	WASHER (.330 X .750 X .060) STAINLESS STEEL SHIFT BRACKET STUD (2 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#9	35462	WASHER (.2656 X .625 X .0625) STAINLESS STEEL SHIFT CABLE STUD (4 required per assembly)
		12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ] $1.80 10+ In Stock.
#10	8267119	NUT (.250-28) SHIFT CABLE STUD (2 required per assembly) — Replaces: 13438
		11-826711 9 - Nut [ More info ] $2.59 10+ In Stock.
#11	8M0113178	STUD (.250-28 X 2.00) THROTTLE CABLE ANCHOR-SHIFT CABLE (1 required per assembly) — Replaces: 96112
		16-8M0113178 - Stud [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#12	63341	TEE NUT SHIFT CABLE STUD (1 required per assembly)
		11-63341 - Nut -tee [ More info ] $2.79 10+ In Stock.
#13	863911A12	LEVER ASSEMBLY SHIFT (1 required per assembly) — Replaces: 138981
		863911A12 - Shift Lever Assembly [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#14	8M0207774	SCREW SHOULDER (1 required per assembly) — Replaces: 13743, 865148
		108M0207774 - SCREW [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#15	68402	PIN (.250 X 1.13) SHOULDER-SHIFT LEVER (1 required per assembly)
		17-68402 - Pin, (.250 X 1.13) [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#16	210711	COTTER PIN SHIFT LEVER (1 required per assembly) — Replaces: 21071
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#17	8M0052632	PLATE-ADAPTER ADAPTER (1 required per assembly) — Replaces: 816283
		8M0052632 - Adapter Plate [ More info ] Unavailable
#18	98256	SCREW (3 required per assembly)
		10-98256 - Screw [ More info ] $1.10 $0.48 8 In Stock.
#19	26992	LOCKWASHER @5 (3 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#NS	12427T	TOOL-SHIFT ADJUST (1 required per assembly) — Replaces: 12427
		91-12427T - Tool - Shift Adjust [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
		18-9807 - Tool, 91-12427 [ More info ] $11.80 Available to Order: Shipping delay up to 10 days.
