Parts for 500 (Gen. VI) GM 502 V-8 8.2L (502 Cu In) V8 GM MerCruiser Engines - Gas Mount Plates-engine

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.2L (502 Cu In) V8 GM > 500 (Gen. VI) GM 502 V-8 > 1997-1998 0F745195 - 0F877722 - Belgium > Mount Plates-engine

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

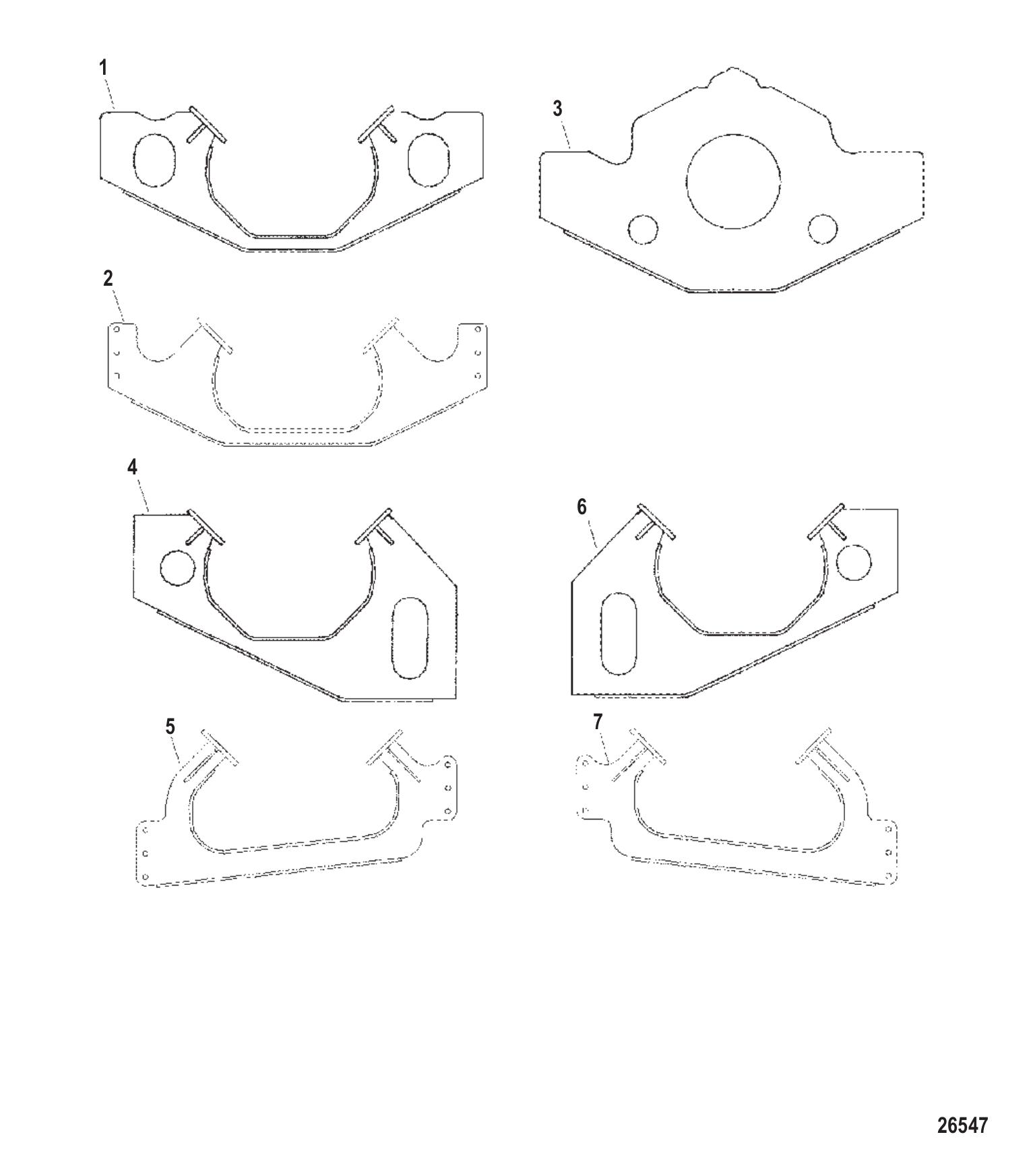

Mount Plates-engine

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	849143T	MOUNT ENGINE (FRONT SINGLE) [0F745195] THRU [0L000737] (AR required per assembly) — Replaces: 817370, 849143
		849143T - Engine Mount [ More info ] $667.76 Available to Order: Shipping delay up to 10 days.
#2	849143T	MOUNT ENGINE (FRONT SINGLE) [0L000768] THRU [0L001772] (AR required per assembly) — Replaces: 849143
#3	844843T	MOUNT ENGINE (REAR SINGLE) (AR required per assembly) — Replaces: 847806, 847806T
		844843T - Ord 844346T [ More info ] Unavailable
		844346T - Engine Mount [ More info ] $420.12 Available to Order: Shipping delay up to 10 days.
#4	849299T	MOUNT ENGINE (FRONT STARBOARD SIDE BY SIDE) [0F745195] THRU [0L000737] (AR required per assembly) — Replaces: 817368, 817368T
		849299T - Engine Mount [ More info ] Unavailable
#5	849299T	MOUNT ENGINE (FRONT STARBOARD SIDE BY SIDE) [0L000768] THRU [0L001772] (AR required per assembly) — Replaces: 849299
#6	849339T	MOUNT ENGINE (FRONT PORT SIDE BY SIDE) [0F745195] THRU [0L000737] (AR required per assembly) — Replaces: 817367, 817367T
		849339T - Engine Mount [ More info ] $528.36 Available to Order: Shipping delay up to 10 days.
#7	849339T	MOUNT ENGINE (FRONT PORT SIDE BY SIDE) [0L000768] THRU [0L001772] (AR required per assembly) — Replaces: 849339
#NS	86518	SCREW (6 required per assembly)
		10-86518 - Screw [ More info ] $6.82 Available to Order: Shipping delay up to 10 days.
#NS	20553	WASHER @5 (6 required per assembly)
		12-20553 - Washer - Priced Individually [ More info ] $1.50 6 In Stock.
