Parts for 496 Mag (H.o. Model) 8.1L (496 Cu In) V8 GM MerCruiser Engines - Gas Cooling System Raw Water Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.1L (496 Cu In) V8 GM > 496 Mag (H.o. Model) > 0W650000 - 1A066165 > Cooling System Raw Water Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

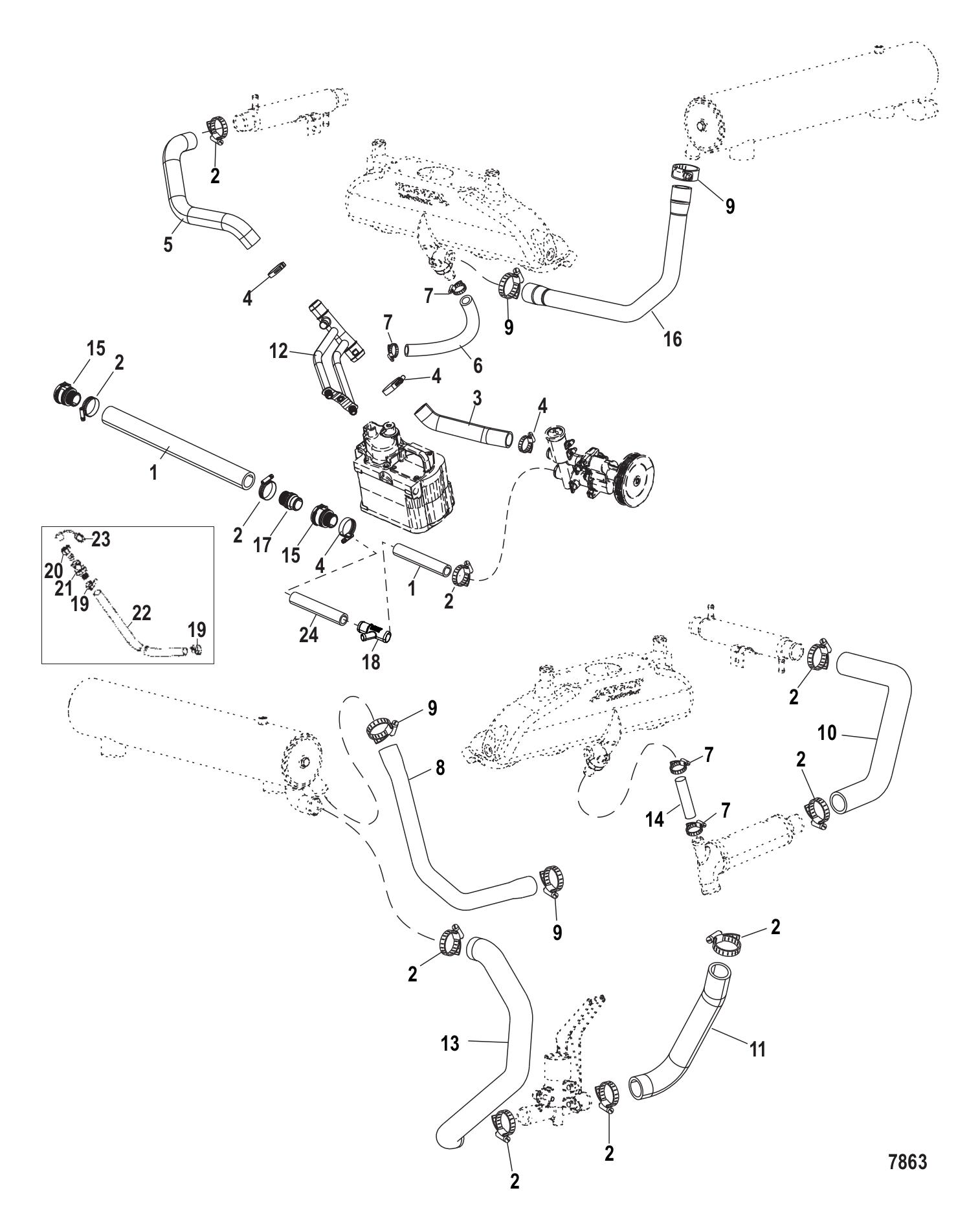

Cooling System Raw Water Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0074364	CAP HOSE CLAMP END (AR required per assembly) — Replaces: 8079923, 8M6500037
		198M0074364 - Cover-Clamp - Priced Individually [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#1	8M0062666	HOSE (96.00 INCHES BULK) CUT TO 19 INCHES (1 required per assembly) — Replaces: 865672079
		32-8M0062666 - Water Hose Bulk -96" [ More info ] $220.99 $218.15 Available to Order: Shipping delay up to 10 days.
#2	815504222	CLAMP @5 (12 required per assembly)
		54-815504222 - Clamp - See Note On Detail Page [ More info ] Unavailable
		54-8M0188622 - CLAMP [ More info ] Unavailable
#3	865865	HOSE SEA WATER PUMP TO WATER ORIFICE (1 required per assembly)
		32-865865 - Hose - Sea Water Pump To Water Orfice [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#4	815504224	CLAMP (4 required per assembly)
		54-815504224 - Clamp [ More info ] $5.19 1 In Stock.
#5	8M2021655	HOSE WATER ORIFICE TO POWER STEERING COOLER (1 required per assembly) — Replaces: 865235
		32-8M2021655 - Hose [ More info ] $81.49 Available to Order: Shipping delay up to 10 days.
#6	8M0203898	HOSE EXHAUST MANIFOLD DRAIN TO WATER ORIFICE (1 required per assembly) — Replaces: 865713
		32-8M0203898 - HOSE [ More info ] Unavailable
#7	815504212	CLAMP WORM GEAR HOSE (4 required per assembly)
		54-815504212 - Clamp [ More info ] Unavailable
#8	864488	HOSE HEAT EXCHANGER TO PORT EXHAUST MANIFOLD DRAIN (1 required per assembly)
		32-864488 - Hose - Heat Exchanger [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#9	815504216	CLAMP (4 required per assembly)
		54-815504216 - Clamp [ More info ] Unavailable
#10	863894	HOSE POWER STEERING COOLER TO OIL COOLER (1 required per assembly)
		32-863894 - Molded Hose [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#11	865265	HOSE OIL COOLER TO PORT DRAIN HOUSING (1 required per assembly)
		32-865265 - Hose - Oil Cooler To Port Drain Housing [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#12	865208T01	HOSE FITTING ASSY (1 required per assembly)
		22-865208T01 - Hose Fitting Assembly [ More info ] $136.99 In Stock
#13	863051	HOSE WATER DRAIN TO HEAT EXCHANGER (1 required per assembly)
		32-863051 - Hose - Water Drain To Heat Exchanger [ More info ] $48.49 Available to Order: Shipping delay up to 10 days.
#14	8M0062634	HOSE 44.00 INCH BULK WATER RAIL TO &QUOT;Y&QUOT; FITTING Port, Cut to 3.00 Inch Length (1 required per assembly) — Replaces: 4285069
		32-8M0062634 - Transom to Thermostat Housing Hose -44I [ More info ] $40.99 In Stock
#15	865324	QUICK CONNECT FEMALE (2 required per assembly)
		22-865324 - Fitting -q/C [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#16	865294	HOSE HEAT EXCHANGER TO STARBOARD EXHAUST MANIFOLD DRAIN (1 required per assembly)
		32-865294 - Hose - Heat Exchanger To Starboard Exhaust Manifold Drain [ More info ] $30.49 Available to Order: Shipping delay up to 10 days.
#17	865362	QUICK CONNECT MALE (1 required per assembly)
		22-865362 - Spigot-q/C [ More info ] $9.69 Available to Order: Shipping delay up to 10 days.
#18	862993	FITTING-WATER (1 required per assembly)
		22-862993 - Fitting - Water [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#19	815504212	CLAMP (2 required per assembly)
#20	857175	COUPLING (1 required per assembly) — Replaces: 861405
		22-857175 - Coupling [ More info ] $58.49 In Stock
#21	861406	SOCKET-QUICK CONN (1 required per assembly)
		22-861406 - Socket-quick Connector, NLA [ More info ] $109.49 Available to Order: Shipping delay up to 10 days.
#22	8M0062635	HOSE 42.00 INCH BULK WATER (1 required per assembly) — Replaces: 86438765, 8M2019902
		32-8M0062635 - Water Hose 42 IN [ More info ] $23.89 Available to Order: Shipping delay up to 10 days.
#23	858240	CAP (1 required per assembly) — Replaces: 861427
		19-858240 - Cap [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#24	8M0062657	HOSE 13 IN CUT TO 8 INCHES (1 required per assembly) — Replaces: 86567231
		328M0062657 - Hose 13 IN [ More info ] $24.19 Available to Order: Shipping delay up to 10 days.
