Parts for 496 Mag (H.o. Model) 8.1L (496 Cu In) V8 GM MerCruiser Engines - Gas Cool Fuel System

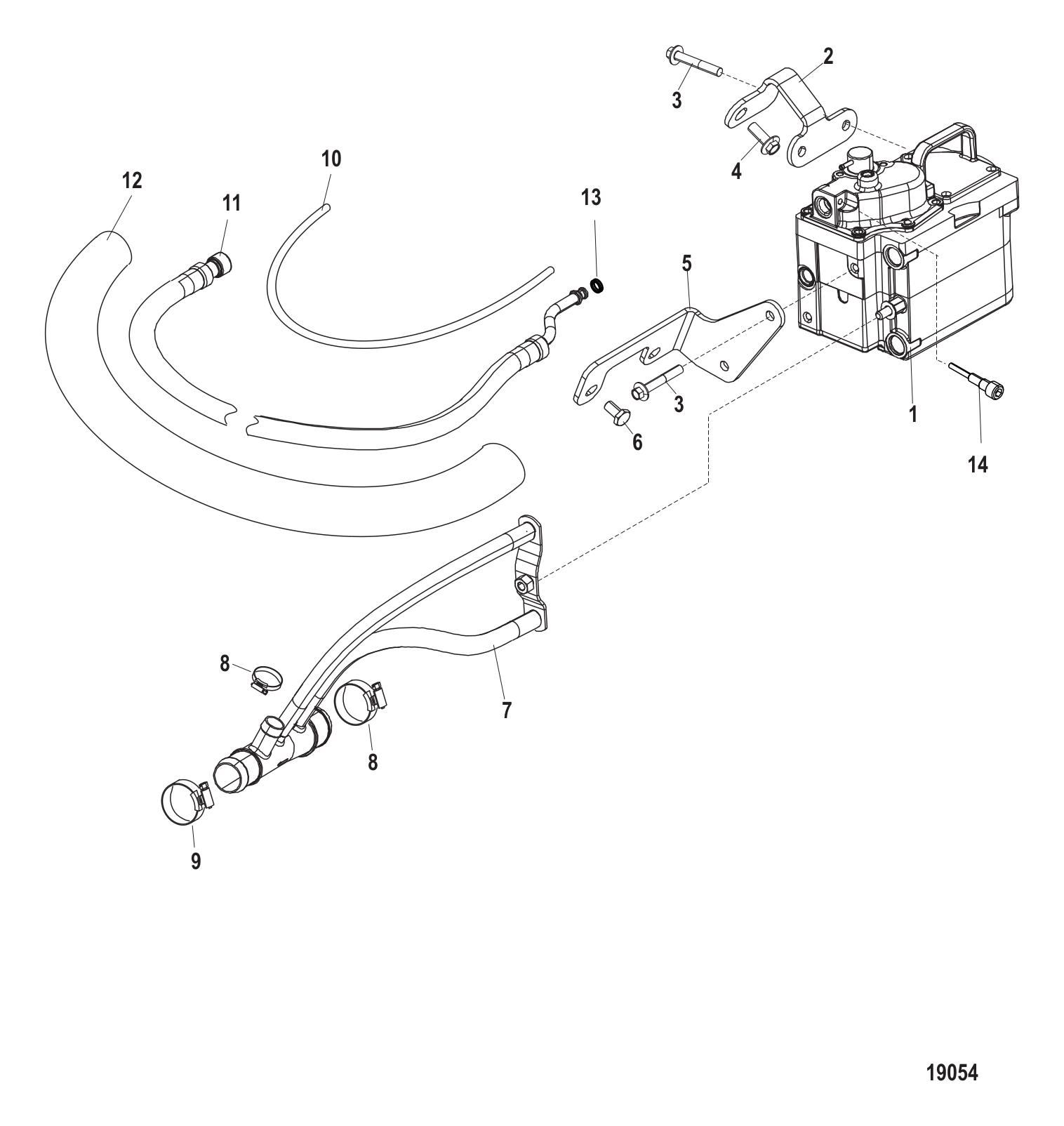

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 864650A05 | REF SMC 09-01 (1 required per assembly) |
  |
|
864650A05 - REF SB 09-01,CALL FOR HELP [ More info ] Unavailable |
| #2 | 864597T | BRACKET (1 required per assembly) |
  |
|
864597T - Bracket [ More info ]
|
| #3 | 4010720 | SCREW (4 required per assembly) |
  |
|
10-40107 20 - Screw [ More info ]
|
| #4 | 4010820 | SCREW @5 (1 required per assembly) |
  |
|
10-40108 20 - Screw - Priced Individually [ More info ]
|
| #5 | 864468T | BRACKET (1 required per assembly) |
  |
|
864468T - Bracket [ More info ]
|
| #6 | 40001195 | SCREW @2 (2 required per assembly) |
  |
|
10-40001195 - Screw [ More info ]
|
| #7 | 865208T01 | HOSE FITTING ASSY (1 required per assembly) |
  |
|
22-865208T01 - Hose Fitting Assembly [ More info ]
|
| #8 | 815504212 | CLAMP WORM GEAR HOSE (2 required per assembly) |
  |
|
54-815504212 - Clamp [ More info ] Unavailable |
| #9 | 815504224 | CLAMP (1 required per assembly) |
  |
|
54-815504224 - Clamp [ More info ]
|
| #10 | 8M0063567 | HOSE-58 INCH (1 required per assembly) — Replaces: 80617382 |
  |
|
32-8M0063567 - Hose -58 Inch [ More info ]
|
| #11 | 899857A01 | HOSE ASSEMBLY FUEL MODULE TO FUEL RAIL (1 required per assembly) — Replaces: 865257 |
  |
|
32-899857A01 - Fuel Line Kit [ More info ]
|
| #12 | NSS | NOT SOLD SEPARATE INSULATOR SLEEVE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #13 | 863151 | SEAL QUAD RING (1 required per assembly) |
  |
26-863151 - Seal [ More info ] Unavailable |
|
  |
|
26-8M0214975 - Cool Fuel Quad Ring Seal, Priced Individually [ More info ]
|
| #14 | 866114 | SCREW (1 required per assembly) — Replaces: 861303 |
  |
|
10-866114 - Screw [ More info ]
|
