Parts for 496 Mag (H.o. Model) 8.1L (496 Cu In) V8 GM MerCruiser Engines - Gas Smartcraft Sensors & Harnesses

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.1L (496 Cu In) V8 GM > 496 Mag (H.o. Model) > 0M025000 - 0M687143 > Smartcraft Sensors & Harnesses

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

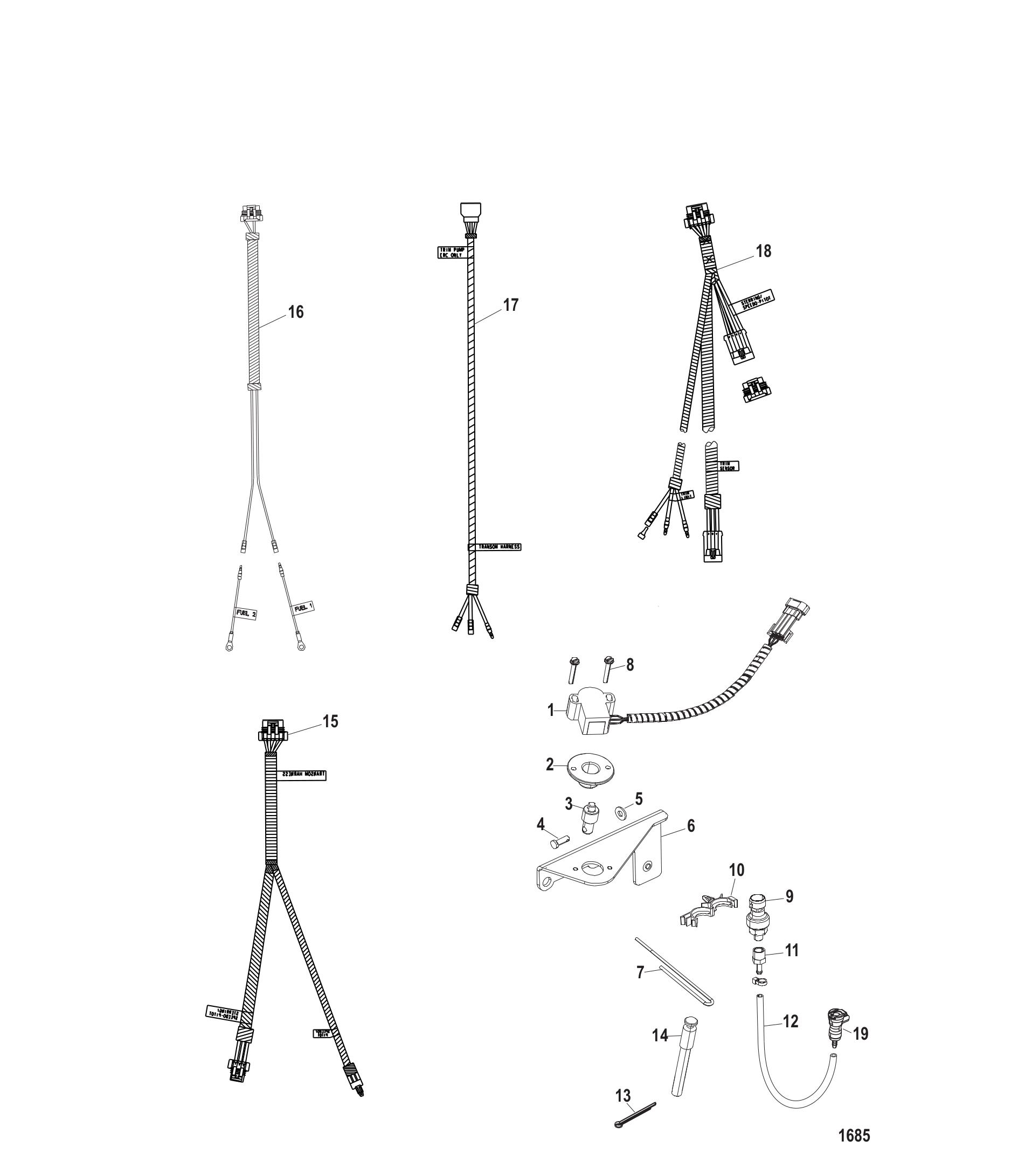

Smartcraft Sensors & Harnesses

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	863188A3	SENSOR KIT STEERING STEERING- PITOT (1 required per assembly) — Replaces: 863188A1
		863188A 3 - Steer Sensor Assembly [ More info ] $527.85 Available to Order: Shipping delay up to 10 days.
#1	863188T	SENSOR STEERING (1 required per assembly)
		863188T - Sender [ More info ] $195.49 Available to Order: Shipping delay up to 10 days.
#2	863175	ADAPTER SENSOR (1 required per assembly)
		863175 - Adaptor [ More info ] $23.39 Available to Order: Shipping delay up to 10 days.
#3	863174	DRIVER (1 required per assembly)
		863174 - Driver [ More info ] $79.49 Available to Order: Shipping delay up to 10 days.
#4	863176	PIN (1 required per assembly)
		17-863176 - Pin [ More info ] $24.29 Available to Order: Shipping delay up to 10 days.
#5	35044	WASHER (.281 X .625 X .065) STAINLESS STEEL (1 required per assembly)
		12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ] $2.49 10+ In Stock.
#6	863178	BRACKET (1 required per assembly)
		863178 - Bracket [ More info ] $34.21 1 In Stock.
#7	863177	GUIDE (1 required per assembly)
		863177 - Guide [ More info ] $63.99 Available to Order: Shipping delay up to 10 days.
#8	812987	SCREW (#10-24 X 1.250) (2 required per assembly)
		10-812987 - Screw [ More info ] $1.00 $0.21 10+ In Stock.
#9	881879T11	SENSOR PRESSURE (0 - 100 PSI) PRESSURE (PITOT) (1 required per assembly) — Replaces: 881879A6, 881879011
		881879T11 - Pressure Sensor [ More info ] $196.99 $189.49 In Stock
#10	883066	CLIP (.865) (1 required per assembly)
		54-883066 - Clip [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#11	856594	FITTING BARBED (1 required per assembly)
		22-856594 - Connector [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#12	5495053	TUBING (53.00 FEET BULK) (1 required per assembly) — Replaces: 549507, 5495025
		32-54950 53 - Tubing - 53 Feet [ More info ] $72.99 Available to Order: Shipping delay up to 10 days.
#13	46950	COTTER PIN (1 required per assembly)
		18-46950 - Cotter Pin [ More info ] $4.19 2 In Stock.
#14	8M0138029	PIN CLEVIS (1 required per assembly) — Replaces: 863179
		178M0138029 - Clevis Pin [ More info ] $21.19 Available to Order: Shipping delay up to 10 days.
#15	863736T	HARNESS ASSEMBLY (STEERING SENSOR AND SPEED PITOT) (1 required per assembly)
		84-863736T - Harness Assembly [ More info ] $91.14 Available to Order: Shipping delay up to 10 days.
#16	864218	HARNESS ASSEMBLY (FUEL TANK) (1 required per assembly)
		84-864218 - Harness Assembly [ More info ] $94.39 $92.71 1 In Stock.
#17	863735	HARNESS ASSEMBLY (TRIM PUMP) (1 required per assembly)
		84-863735 - Harness [ More info ] Unavailable
#18	863739T1	HARNESS ASSEMBLY (10 PIN TRANSOM HARNESS) (1 required per assembly)
		84-863739T 1 - Harness Assembly [ More info ] $147.62 Available to Order: Shipping delay up to 10 days.
#19	865417	FITTING FEMALE QUICK CONNECT [0M660000] & Up (1 required per assembly)
		22-865417 - Fitting, Female Quick Connect [ More info ] $15.59 2 In Stock.
