Parts for 496 Mag (Base Model) 8.1L (496 Cu In) V8 GM MerCruiser Engines - Gas Remote Oil System

Revise Search: Sterndrive > MerCruiser Engines - Gas > 8.1L (496 Cu In) V8 GM > 496 Mag (Base Model) > 1A350679 & Up > Remote Oil System

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

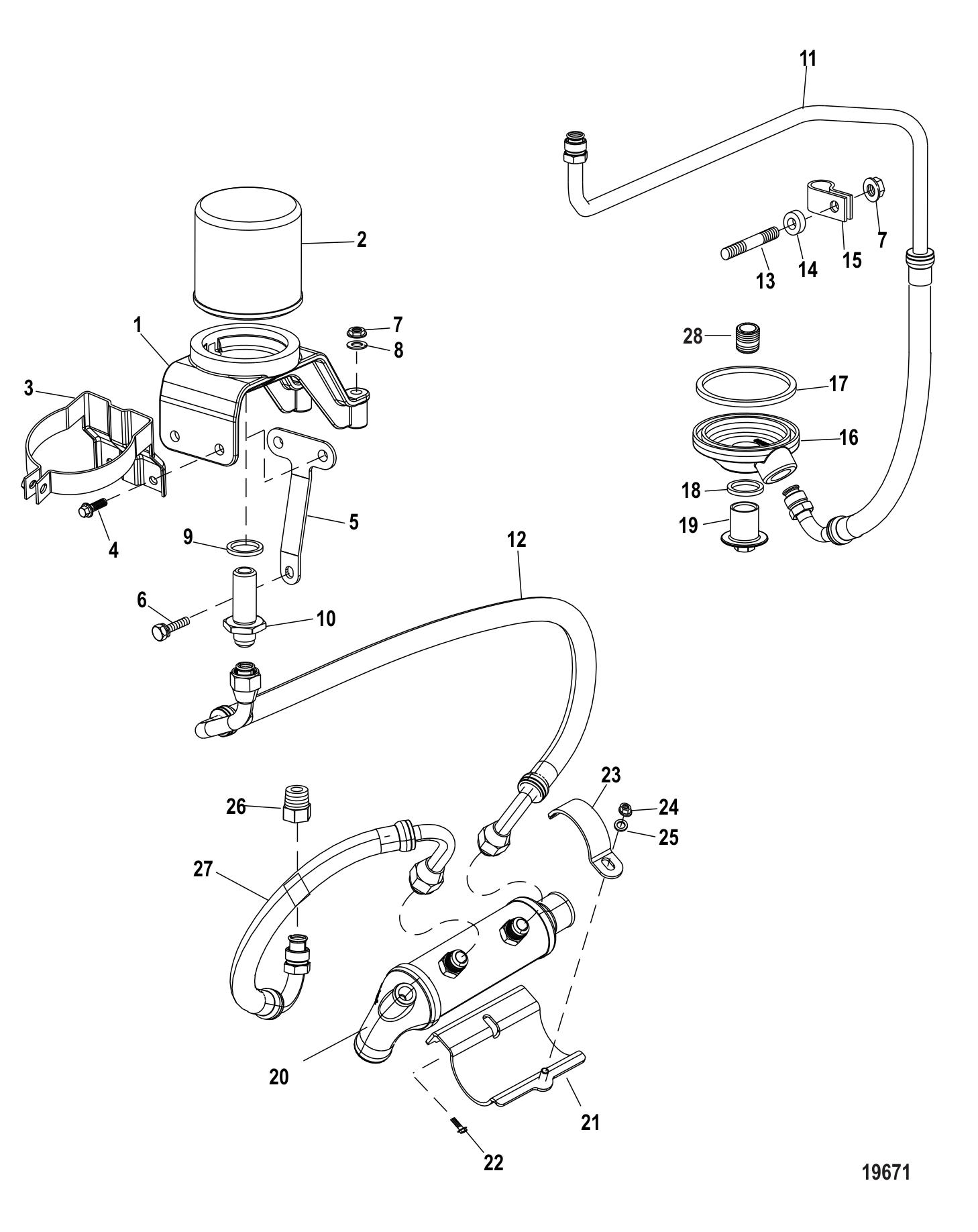

Remote Oil System

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	862342T	BRACKET REMOTE OIL FILTER (1 required per assembly)
		862342T - Bracket -rem Oil [ More info ] $207.49 Available to Order: Shipping delay up to 10 days.
#2	866340Q03	FILTER-OIL @6 (1 required per assembly)
		35-866340Q03 - Oil Filter - Priced Individually [ More info ] $14.19 9 In Stock.
		18-7876-1 - Oil Filter - GM/Chevy Long [ More info ] $10.99 $10.62 10+ In Stock.
		35-866340K01 - Oil Filter [ More info ] $15.69 7 In Stock.
		35-57811 - Oil Filter, Long [ More info ] $11.99 $9.17 Available to Order: Shipping delay up to 10 days.
		35-57801 - Oil Filter, Standard Length Canister [ More info ] $10.69 $8.88 10+ In Stock.
#3	865262A02	BRACKET ASSY (1 required per assembly)
		865262A02 - Bracket Assembly [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#4	4010720	SCREW (2 required per assembly)
		10-40107 20 - Screw [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#5	8629102	BRACKET SUPPORT (1 required per assembly)
		862910 2 - Bracket [ More info ] $29.19 $28.00 2 In Stock.
#6	4010716	SCREW (M8 X 16) FLANGE (1 required per assembly)
		10-40107 16 - Screw [ More info ] $4.49 1 In Stock.
#7	4002030	NUT (3 required per assembly)
		11-40020 30 - Nut, (M8) [ More info ] $7.59 10+ In Stock.
#7	400213	NUT @2 (SEACORE) (3 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 1 In Stock.
#8	8M0207778	WASHER @5 (3 required per assembly) — Replaces: 12038
		12-8M0207778 - WASHER Note: Priced Individually [ More info ] $11.89 5 In Stock.
#9	42077	SEAL (1 required per assembly)
		26-42077 - Seal [ More info ] $12.49 4 In Stock.
#10	806328	FITTING OIL ADAPTER (1 required per assembly)
		22-806328 - Fitting [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#11	863899	HOSE OIL, FILTER TO ADAPTER (1 required per assembly)
		32-863899 - Oil Hose [ More info ] $126.99 Available to Order: Shipping delay up to 10 days.
#12	863900	HOSE OIL, FILTER TO COOLER (1 required per assembly)
		32-863900 - Oil Hose [ More info ] $122.99 Available to Order: Shipping delay up to 10 days.
#13	424632	STUD (1 required per assembly)
		16-42463 2 - Stud [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#14	34948	SPACER (1 required per assembly)
		23-34948 - Spacer [ More info ] $12.29 10+ In Stock.
#15	475451	CLIP (2 required per assembly)
		54-47545 1 - Clip [ More info ] $7.59 $6.08 6 In Stock.
#16	862870T	ADAPTER OIL FILTER (1 required per assembly)
		862870T - Adaptor - Oil Filter [ More info ] $80.99 Available to Order: Shipping delay up to 10 days.
#17	862957	SEAL OIL FILTER ADAPTER (1 required per assembly)
		26-862957 - Seal [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#18	42077	SEAL SWIVEL TUBE (1 required per assembly)
#19	862958	FITTING OIL FILTER ADAPTER (1 required per assembly)
		22-862958 - Fitting [ More info ] $49.49 Available to Order: Shipping delay up to 10 days.
#20	863904T	COOLER OIL (1 required per assembly)
		863904T - Oil Cooler [ More info ] $640.49 Available to Order: Shipping delay up to 10 days.
#21	863905T	BRACKET OIL COOLER (1 required per assembly)
		863905T - Bracket [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#22	4000327	SCREW (2 required per assembly)
		10-40003 27 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#23	807445T	CLAMP COOLER BRACKET (1 required per assembly)
		807445T - Clamp [ More info ] $22.36 1 In Stock.
#24	401366	NUT @5 (1 required per assembly)
		11-40136 6 - Nut - Priced Individually [ More info ] $3.59 2 In Stock.
#25	22937	WASHER @5 (1 required per assembly)
		12-22937 - Washer - Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#25	35044	WASHER (SEACORE) (1 required per assembly)
		12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ] $2.49 10+ In Stock.
#26	805563	FITTING (1 required per assembly)
		22-805563 - Fitting [ More info ] $17.89 1 In Stock.
#27	863915	HOSE OIL, COOLER TO ADAPTER (1 required per assembly)
		32-863915 - Oil Hose [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#28	805632	CONNECTOR FILTER ADAPTOR (1 required per assembly)
		22-805632 - Connector [ More info ] $47.99 Available to Order: Shipping delay up to 10 days.
