Parts for 496 Mag (Base Model) 8.1L (496 Cu In) V8 GM MerCruiser Engines - Gas Fuel Filter & Boost Pump

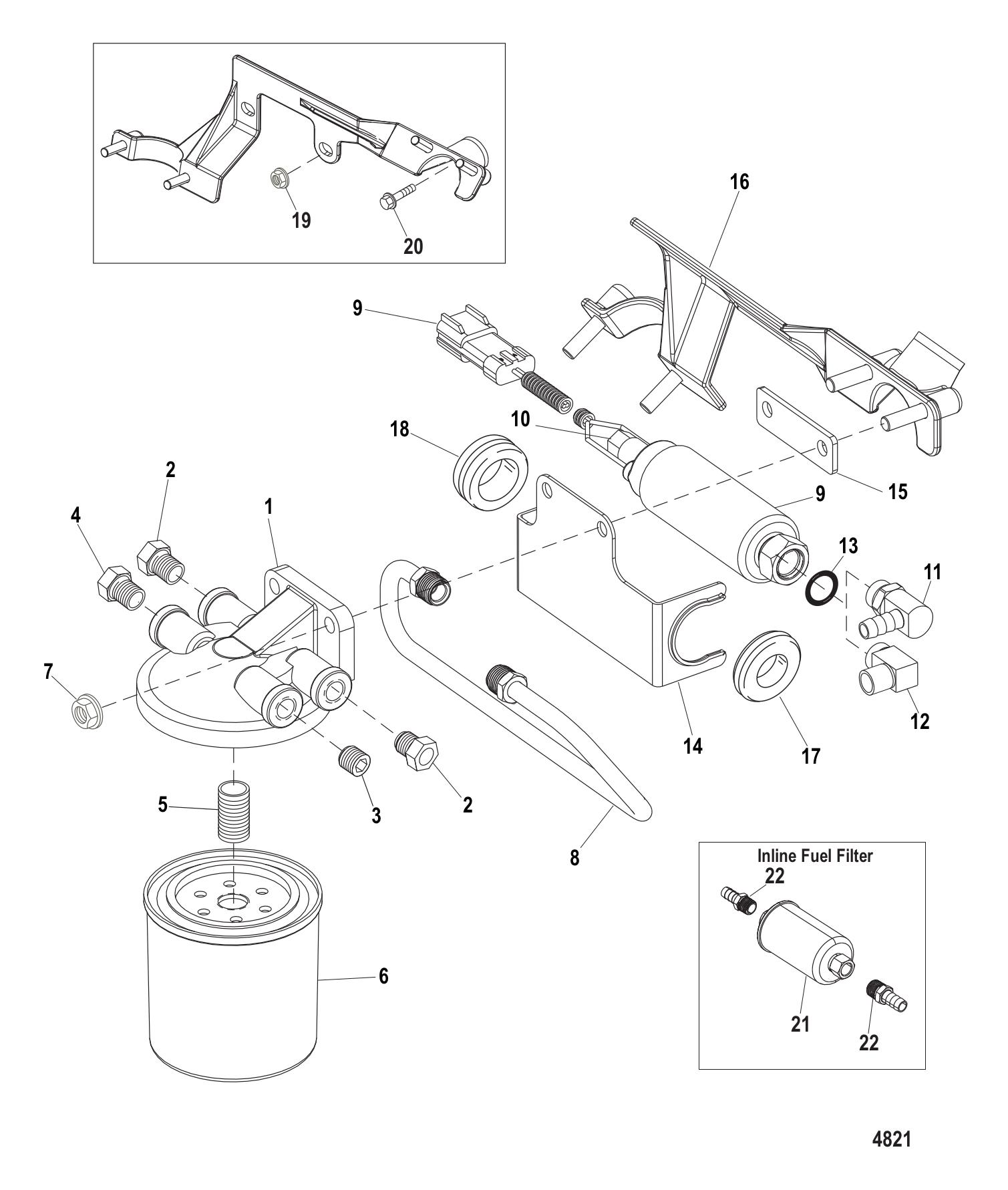

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 807172A1 | BASE ASSEMBLY FUEL FILTER (1 required per assembly) |
  |
|
35-807172A 1 - Fuel Filter Kit [ More info ]
|
| #2 | 816133 | FITTING THREADED (1 required per assembly) |
  |
|
22-816133 - Fitting [ More info ]
|
| #3 | 8M0204652 | PLUG @2 (1 required per assembly) — Replaces: 32561 |
  |
|
22-8M0204652 - PLUG @2 [ More info ] Unavailable |
| #4 | 33821 | CONNECTOR INVERTED FLARE (2 required per assembly) |
  |
|
22-33821 - Connector [ More info ]
|
| #5 | 808003 | CONNECTOR (1 required per assembly) |
  |
|
22-808003 - Connector [ More info ]
|
| #6 | 802893Q01 | FILTER-FUEL @6 (Quicksilver) (1 required per assembly) — Replaces: 802893Q |
  |
|
35-802893Q01 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7945 - Filter, Long Version [ More info ]
|
  |
|
18-7944 - Filter, 35-802893Q [ More info ]
|
  |
|
18-7845 - Filter, 35-60494-1 [ More info ]
|
  |
|
18-7844 - Filter, 35-802893Q [ More info ]
|
  |
|
35-802893T - Fuel Filter [ More info ]
|
  |
|
35-37800 - Fuel Water Separator Filter, Mercury Mercruiser 802893Q01, 10 Micron [ More info ]
|
| #6 | 802893T | FILTER-FUEL (Mercury Precision Parts) (1 required per assembly) |
| #7 | 826365 | NUT (2 required per assembly) |
  |
|
11-826365 - Nut (M8) [ More info ]
|
| #8 | 863198 | LINE-FUEL (1 required per assembly) |
  |
|
32-863198 - Fuel Line [ More info ] Unavailable |
| #9 | 861155A3 | PUMP ASSY-FUEL (1 required per assembly) |
  |
|
861155A 3 - Fuel Pump Assembly [ More info ]
|
  |
|
1397-97000 - Electric Fuel Pump, 861155A3 [ More info ]
|
| #10 | 805027 | FITTING (1 required per assembly) |
  |
|
22-805027 - Fitting [ More info ]
|
| #11 | 863199 | FITTING BARBED (90 DEGREE) FUEL INLET (1 required per assembly) |
  |
|
22-863199 - Fitting [ More info ]
|
| #12 | 863703 | FITTING (.625 X .250) FUEL INLET (1 required per assembly) |
  |
|
22-863703 - Fuel Fitting [ More info ]
|
| #13 | 805062 | O-RING (.530 X .082) (1 required per assembly) |
  |
|
25-805062 - O-ring, (.530 X .082) [ More info ]
|
| #14 | 863197 | BRACKET FUEL PUMP (1 required per assembly) |
  |
|
863197 - Bracket [ More info ]
|
| #15 | 88641 | INSULATOR FUEL FILTER BASE (1 required per assembly) |
  |
|
88641 - Insulator [ More info ]
|
| #16 | 863862T | BRACKET (1 required per assembly) — Replaces: 863035T |
  |
|
863862T - Bracket [ More info ] Unavailable |
| #17 | 817491 | GROMMET (.56 INSIDE DIAMETER) (LARGE) (1 required per assembly) |
  |
|
25-817491 - Grommet, (.56 Inside Diameter) [ More info ]
|
| #18 | 13467 | GROMMET (.88 INSIDE DIAMETER) (SMALL) (1 required per assembly) |
  |
|
25-13467 - Grommet, (.88 Inside Diameter) [ More info ]
|
| #19 | 826292 | NUT (M10) BRASS/NICKEL PLATED (W/ NYLON LOCK) (2 required per assembly) |
  |
|
11-826292 - Nut (M10) [ More info ]
|
| #20 | 4010816 | SCREW (1 required per assembly) |
  |
|
10-40108 16 - Screw [ More info ]
|
| #21 | 864572 | FILTER (1 required per assembly) — Replaces: 864572T |
  |
|
35-864572 - Fuel Filter [ More info ]
|
  |
|
18-7721 - Fuel Filter, 35-864572 [ More info ]
|
| #22 | 47841 | FITTING (.375-18 X .500 ) (2 required per assembly) |
  |
22-47841 - Connector [ More info ] Unavailable |
|
  |
|
22-8M0214935 - CONNECTOR [ More info ] Unavailable |
| #NS | 864572A1 | FILTER KIT FUEL INLINE FILTER (1 required per assembly) — Replaces: 864572A2 |
  |
|
35-864572A 1 - Filter Kit -inline [ More info ]
|
| #NS | 70834 | CONNECTOR (.375-18) STRAIGHT - BRASS (2 required per assembly) |
  |
|
22-70834 - Connector [ More info ]
|
| #NS | 807272 | FITTING (.50) INCH FLARE TO (.375) INCH NPT (2 required per assembly) |
  |
|
22-807272 - Adaptor [ More info ]
|
| #NS | 815504105 | CLAMP WORM GEAR (11-18 MM) HOSE (2 required per assembly) |
  |
54-815504105 - Clamp [ More info ] Unavailable |
|
  |
|
54-8M0188618 - CLAMP [ More info ] Unavailable |
| #NS | 815504210 | CLAMP WORM GEAR HOSE (2 required per assembly) |
  |
|
54-815504210 - Clamp [ More info ]
|
