Parts for 454 Mag MPI Bravo (Gen VI) GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Vapor Separator Tank
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 806787A3 | TANK ASSEMBLY VAPOR SEPARATOR (1 required per assembly) |
  |
|
806787A 3 - Separator Assembly [ More info ] Unavailable |
| #2 | 808502 | L-JOINT KIT (1 required per assembly) |
  |
|
808502 - L Joint Kit, NLA [ More info ]
|
| #3 | 808506 | FLOAT KIT (1 required per assembly) |
  |
|
808506 - Float Kit [ More info ]
|

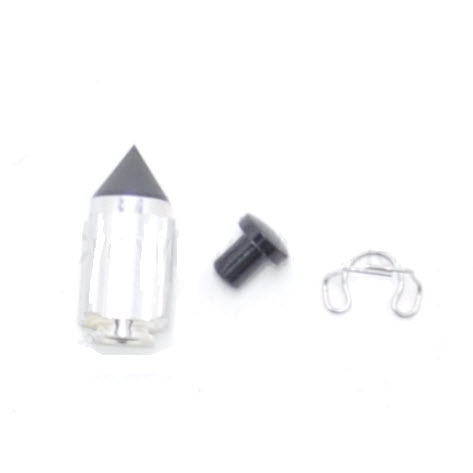

| #4 | 808507 | FLOAT VALVE KIT (1 required per assembly) |
  |
|
808507 - Float Valve Kit [ More info ]
|
| #5 | 827655T | COVER KIT-TOP (1 required per assembly) — Replaces: 827655 |
  |
|
827655T - Cover Kit - Top [ More info ]
|
| #6 | 808509 | DIAPHRAGM KIT (1 required per assembly) |
  |
|
808509 - Diaphragm Kit [ More info ]
|
| #7 | 808501 | PLUG KIT (1 required per assembly) |
  |
|
808501 - Plug Kit, NLA [ More info ] Unavailable |
| #8 | 808505T01 | PUMP KIT-FUEL FUEL (1 required per assembly) — Replaces: 808505, 808505T |
  |
|
808505T01 - Fuel Pump Kit [ More info ]
|
| #9 | 808504T1 | STRAINER KIT (1 required per assembly) — Replaces: 8085041 |
  |
|
808504T 1 - Strainer Kit-SEE NOTE [ More info ] Unavailable |
| #10 | 808503 | CONNECTOR KIT ELECTRICAL (1 required per assembly) |
  |
|
808503 - Connect Kit -elec [ More info ]
|
| #11 | 808500 | O-RING KIT (1 required per assembly) |
  |
|
808500 - Seal Kit [ More info ]
|
| #12 | 808510 | HARNESS KIT WIRING (1 required per assembly) |
  |
|
808510 - Harness KIT,NLA [ More info ] Unavailable |
