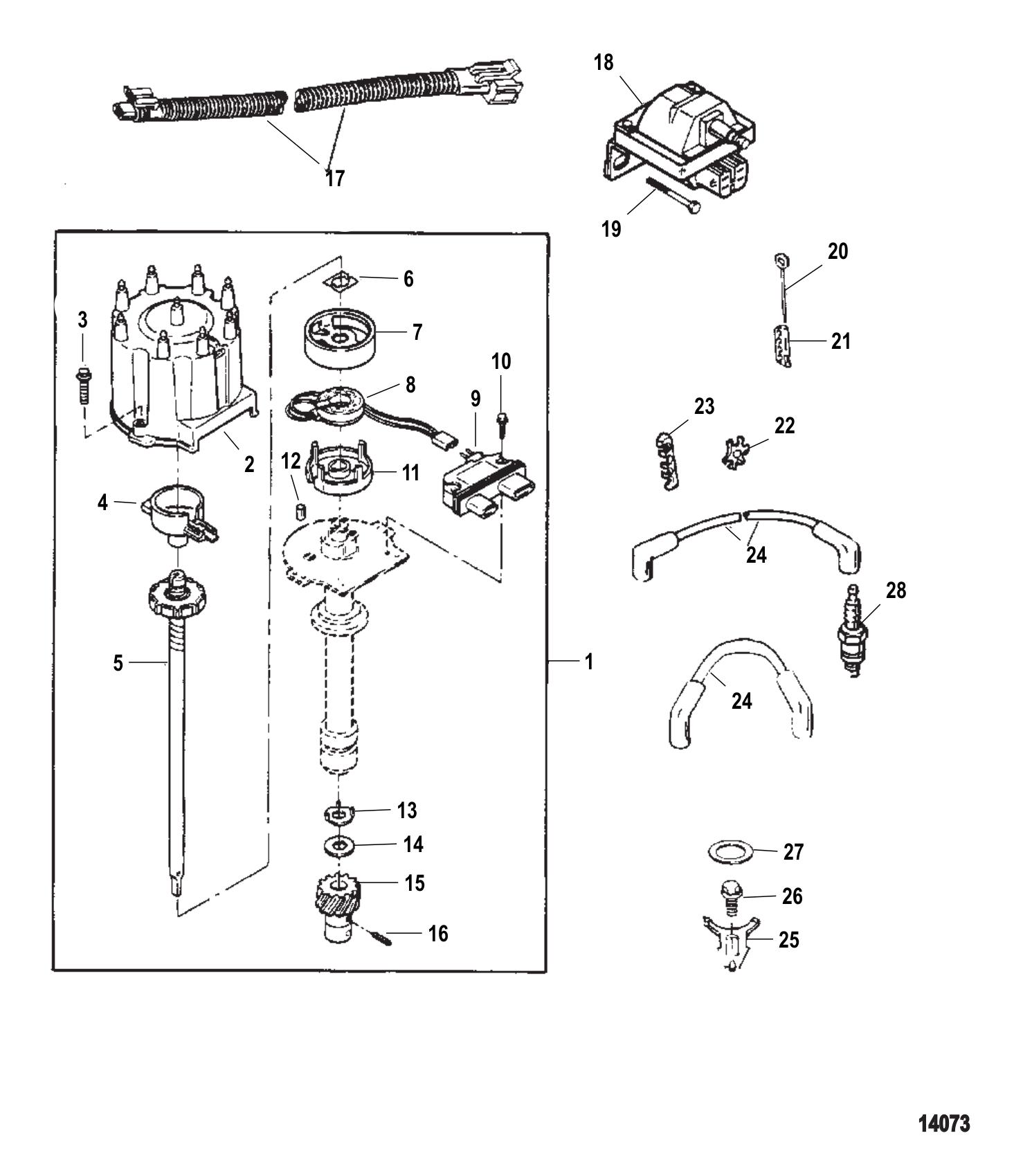

Parts for 454 Mag MPI Bravo (Gen VI) GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Distributor & Ignition Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 811572A94 | GASKET SET (454) (1 required per assembly) |
  |
|
27-811572A94 - Engine Overhaul Gasket Set [ More info ] Unavailable |
| #- | 805396A92 | GASKET SET (502) (1 required per assembly) |
  |
|
27-805396A92 - Engine Overhaul Gasket Set [ More info ] Unavailable |
| #1 | 805222A1 | DISTRIBUTOR ASSY (1 required per assembly) |
  |
|
805222A 1 - Distributor Assembly [ More info ]
|
  |
|
18-5484-1 - Electronic Distributor GM V8 [ More info ]
|
| #2 | 808483T3 | CAP DISTRIBUTOR (1 required per assembly) — Replaces: 808483, 808483T |
  |
|
808483T 3 - Distributor Cap [ More info ]
|
  |
|
18-5354 - Distributor Cap, 808483, 3854548 [ More info ]
|
| #3 | 808491 | SCREW (2 required per assembly) |
  |
|
10-808491 - Screw [ More info ]
|
| #4 | 898253010 | ROTOR (1 required per assembly) — Replaces: 808484, 8084841 |
  |
898253010 - Rotor [ More info ] Unavailable |
|
  |
|
808483Q 1 - Cap & Rotor Kit [ More info ]
|
  |
|
8M6001253 - Rotor -Delco HEI Ignition [ More info ]
|
  |
|
18-5405 - Rotor, 3854549, 808484 1 [ More info ]
|
  |
|
300-03064 - Rotor, 808484 [ More info ]
|
| #5 | 808485T | SHAFT ASSEMBLY MAIN (1 required per assembly) — Replaces: 808485 |
  |
|
808485T - MAIN SHAFT ASSY,NLA [ More info ] Unavailable |
| #6 | 808487 | RETAINER (1 required per assembly) |
  |
|
808487 - Retainer,NLA [ More info ]
|
| #7 | 808486 | SHIELD (1 required per assembly) |
  |
|
808486 - SHIELD,NLA [ More info ] Unavailable |
| #8 | 811639T | COIL (1 required per assembly) — Replaces: 811639 |
  |
|
|
  |
|
18-5108 - Sensor, 3854001 [ More info ]
|
| #9 | 811637001 | MODULE (1 required per assembly) — Replaces: 811637, 811637T |
  |
811637001 - Distributor Module [ More info ] Unavailable |
|
  |
|
18-5107-1 - Module, 3854003, 811637T [ More info ]
|
  |
8M0123099 - Module-Distributor [ More info ] Unavailable |
|
  |
|
300-13348 - Ignition Module for MerCruiser V8 GM & MIE, Volvo Penta, OMC [ More info ]
|
  |
|
77-8M6008208 - Distributor Module [ More info ]
|
| #10 | 811638 | SCREW (2 required per assembly) |
  |
|
10-811638 - Screw, NLA [ More info ] Unavailable |
| #11 | 811641 | POLE PIECE (1 required per assembly) |
  |
|
811641 - Pole Piece [ More info ]
|
| #12 | 808488 | PIN (1 required per assembly) |
  |
|
17-808488 - Pin, NLA [ More info ]
|
| #13 | 46350 | WASHER (1 required per assembly) |
  |
|
12-46350 - Washer, NLA [ More info ]
|
| #14 | 808489 | WASHER (1 required per assembly) |
  |
|
12-808489 - Washer [ More info ]
|
| #15 | 808490 | GEAR (1 required per assembly) |
  |
|
43-808490 - Drive Gear [ More info ] Unavailable |
| #16 | 34109 | PIN (1 required per assembly) |
  |
|
17-34109 - Pin, Drive Gear To Main Shaft, NLA [ More info ]
|
| #17 | 817376T01 | HARNESS ASSEMBLY DISTRIBUTOR MODULE TO IGNITION COIL (1 required per assembly) — Replaces: 817376T |
  |
|
84-817376T01 - Ignition Harness Coil [ More info ]
|
| #18 | 898253T27 | COIL IGNITION (1 required per assembly) — Replaces: 817378T, 817378 |
  |
|
898253T27 - Ignition Coil [ More info ]
|
  |
|
18-5443 - Ignition Coil, 817378T, 3854002 [ More info ]
|
  |
|
300-03756 - Ignition Coil [ More info ]
|
| #19 | 805189 | SCREW (2 required per assembly) |
  |
|
10-805189 - Screw [ More info ] Unavailable |
| #20 | 90096A1 | STUD KIT-SPECIAL (2 required per assembly) |
  |
|
16-90096A 1 - Stud Kit -Special [ More info ]
|
| #21 | 72821 | RETAINER (2 required per assembly) |
  |
|
54-72821 - Cable Retainer [ More info ] Unavailable |
| #22 | 54676 | RETAINER (2 required per assembly) |
  |
|
54676 - Retainer [ More info ]
|
| #23 | 32783 | RETAINER (2 required per assembly) |
  |
|
32783 - Retainer [ More info ]
|
| #24 | 816608Q68 | WIRE KIT-IGNITION (SPARK PLUGS & COIL) (1 required per assembly) — Replaces: 816608A68 |
  |
|
84-816608Q68 - Ignition Wire Kit [ More info ]
|
| #25 | 88731 | CLAMP (1 required per assembly) — Replaces: 52185 |
  |
|
54-88731 - Clamp [ More info ]
|
| #26 | 805559 | SCREW (1 required per assembly) |
  |
|
10-805559 - Screw [ More info ]
|
| #27 | 344863 | GASKET DISTRIBUTOR (1 required per assembly) |
  |
|
0344863 - Cylinder Hd175Ffi 20 Inch (344863) [ More info ]
|
| #28 | 898264001 | AC SPRK PLUG@8 (8 required per assembly) — Replaces: 59571, 898264 |
  |
33-898264001 - AC Spark Plug - BR6FS - Priced Individually [ More info ] Unavailable |
|
  |
|
BR6FS - NGK Spark Plug, 4323 [ More info ]
|
  |
|
RV9YC - Champion Spark Plug ( #400) [ More info ]
|
  |
|
33-8M0204752 - AC SPRK PLUG @8 [ More info ] Unavailable |
