Parts for 370 Trs GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Transmission Assembly (S/N 5670316 & Below)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 7.4L (454 Cu In) V8 GM > 370 Trs GM 454 V-8 > 1978-1985 4179554 - 6721527 > Transmission Assembly (S/N 5670316 & Below)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

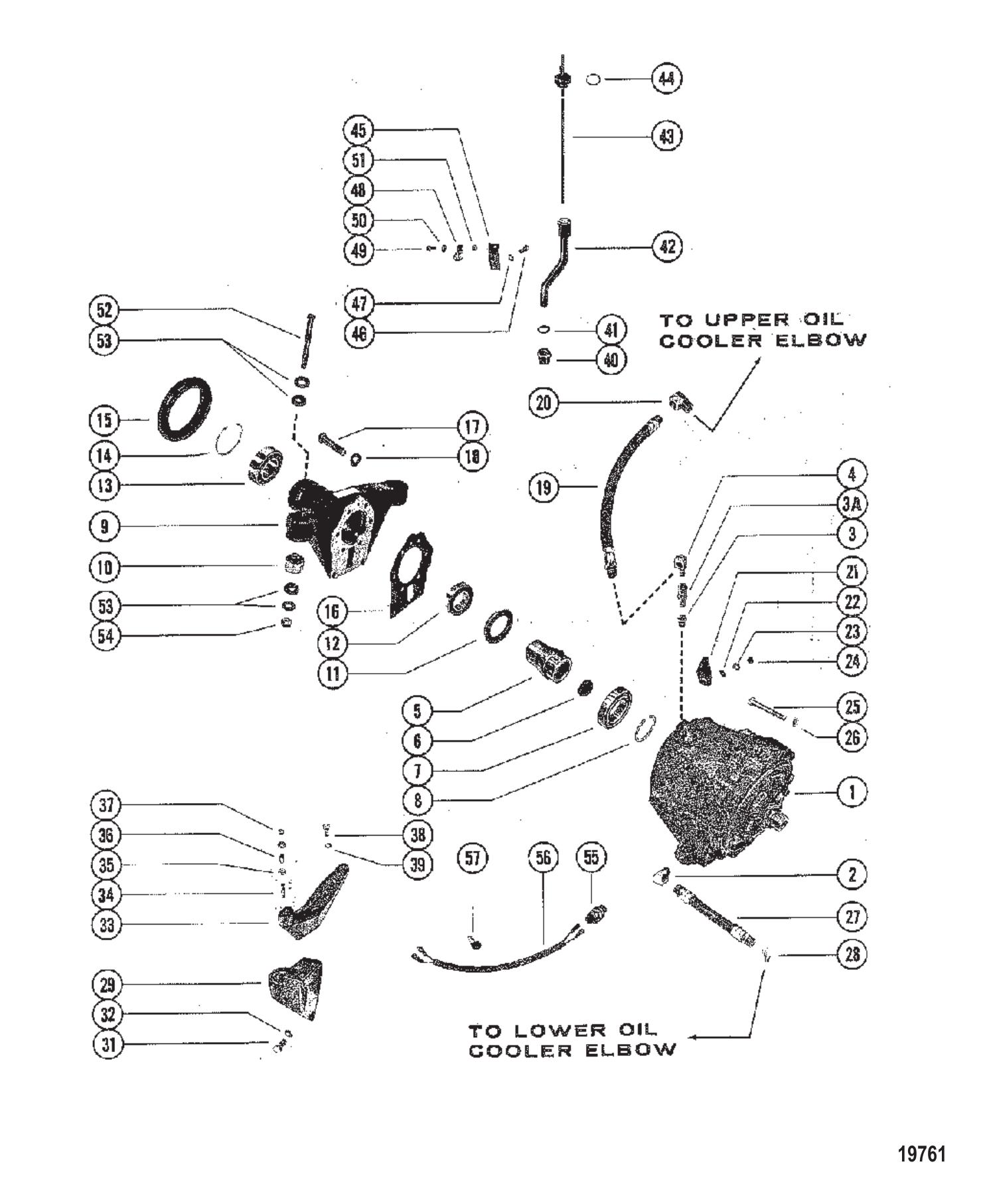

Transmission Assembly (S/N 5670316 & Below)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	47754A9	TRANSMISSION (1 required per assembly)
		47754A 9 - Transmission, NLA [ More info ] Unavailable
#2	47629	ELBOW 90 DEGREE TRANSMISSION TO OIL HOSE (1 required per assembly)
		22-47629 - Elbow [ More info ] $19.37 4 In Stock.
#3	36159	BUSHING REDUCER - TRANSMISSION ELBOW (1 required per assembly)
		23-36159 - Bushing, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#3	88517A1	FITTING KIT EXTENSION (1 required per assembly) — Replaces: 64970
		22-88517A 1 - Fitting Kit, NLA [ More info ] Unavailable
#4	47631	ELBOW TRANSMISSION TO OIL BASE (1 required per assembly)
		22-47631 - Elbow, NLA [ More info ] Unavailable
#5	57758A2	COUPLING ASSEMBLY TRANSMISSION (1 required per assembly)
		57758A 2 - COUPLING ASSY,NLA [ More info ] Unavailable
#6	47463	EXPANSION PLUG EXPANSION - ENGINE COUPLING (1 required per assembly)
		19-47463 - Plug [ More info ] $12.39 $2.48 5 In Stock.
#7	47470	BEARING BALL ENGINE COUPLING (1 required per assembly)
		30-47470 - Ball Bearing [ More info ] $155.99 $149.68 10 In Stock.
#8	47469	RING SNAP - BALL BEARING TO ENGINE COUPLING (1 required per assembly)
		53-47469 - Ring -snap [ More info ] Unavailable
#9	98322A2	TAILSTOCK ASSEMBLY BEARING SUPPORT (1 required per assembly)
		98322A 2 - Tailstock Assembly, NLA [ More info ] Unavailable
#10	35852	MOUNT RUBBER - TAILSTOCK (2 required per assembly)
		35852 - Mount [ More info ] $75.44 8 In Stock.
#11	47465	SEAL OIL TAILSTOCK (1 required per assembly)
		26-47465 - Seal [ More info ] $30.89 9 In Stock.
#12	57762T	BEARING -BALL TAILSTOCK (3-5/32&QUOT; O.D.) (1 required per assembly) — Replaces: 57762
		30-57762T - Ball Bearing [ More info ] $125.99 Available to Order: Shipping delay up to 10 days.
#13	32537T	BEARING-BALL TAILSTOCK (2-27/32&QUOT; O.D.) (1 required per assembly) — Replaces: 32537
		30-32537T - Ball Bearing [ More info ] $102.99 Available to Order: Shipping delay up to 10 days.
#14	54481	RING SNAP - BALL BEARING TO TAILSTOCK (1 required per assembly)
		53-54481 - Snap Ring, NLA [ More info ] $20.17 $17.08 1 In Stock.
#15	54067	SEAL TAILSTOCK (1 required per assembly)
		25-54067 - O-Ring, Transom To Gimbal Housing [ More info ] $18.39 2 In Stock.
#16	47903	GASKET TAILSTOCK (1 required per assembly)
		27-47903 - Tailstock Gasket [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#17	29081	SCREW (.437-14 X 1.250) TAILSTOCK TO TRANSMISSION (4 required per assembly)
		10-29081 - Screw [ More info ] $5.19 $1.04 10+ In Stock.
#17	54847	SCRW TAILSTOCK TO TRANSMISSION (2&QUOT;) (2 required per assembly)
		10-54847 - Screw, NLA [ More info ] Unavailable
#17	47462	SCREW (.437-14 X 1.250) TAILSTOCK TO TRANSMISSION (2 required per assembly)
		10-47462 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#18	30381	LOCKWASHER HI COLLAR (.437) TAILSTOCK SCREW (6 required per assembly)
		13-30381 - LockWasher, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#18	32993	LOCKWASHER (.437) TAILSTOCK SCREW (2 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#19	4751612	HOSE TRANSMISSION TO OIL COOLER (15&QUOT;) (1 required per assembly) — Replaces: 475162
		32-47516 12 - Hose Assembly-20 IN, NLA [ More info ] Unavailable
#20	47630	ELBOW 90 DEGREE TRANSMISSION HOSE (1 required per assembly)
		22-47630 - Elbow [ More info ] $73.49 Available to Order: Shipping delay up to 10 days.
#21	8M0192188	LEVER SHIFT - TRANSMISSION (1 required per assembly) — Replaces: 47472, 12128
		8M0192188 - LEVER [ More info ] Unavailable
#22	20722	WASHER (.328 X .625 X .060) SHIFT LEVER TO TRANSMISSION (1 required per assembly)
		12-20722 - Washer, (.328 X .625 X .060) [ More info ] $2.22 $1.88 10+ In Stock.
#23	8M0204647	LOCKWASHER @5 SHIFT LEVER TO TRANSMISSION (1 required per assembly) — Replaces: 26993
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#24	22053	NUT (.312-24) SHIFT LEVER TO TRANSMISSION (1 required per assembly) — Replaces: 20083
		11-22053 - Nut (5/16x24) [ More info ] $0.20 10+ In Stock.
#25	60179	SCREW (.437-14 X 3.500) TRANSMISSION TO ENGINE (6 required per assembly)
		10-60179 - Screw [ More info ] $4.49 $0.90 5 In Stock.
#26	32993	LOCKWASHER (.437) TRANSMISSION SCREW (6 required per assembly)
#27	475163	HOSE TRANSMISSION TO OIL COOLER (7-7/8&QUOT;) (1 required per assembly)
		32-47516 3 - Hose Assembly -7.88 In, NLA [ More info ] $23.44 10+ In Stock.
#28	47630	ELBOW 90 DEGREE HOSE TO OIL COOLER (1 required per assembly)
#29	93662	BRACKET ASSEMBLY TRANSMISSION MOUNT (STARBOARD) (1 required per assembly)
		93662 - Bracket, NLA [ More info ] Unavailable
#29	93664	BRACKET ASSEMBLY TRANSMISSION MOUNT (PORT) (1 required per assembly)
		93664 - Bracket, NLA [ More info ] Unavailable
#31	47462	SCREW (.437-14 X 1.250) MOUNT BRACKET TO TRANSMISSION (4 required per assembly)
#32	32993	LOCKWASHER (.437) MOUNT BRACKET SCREW (4 required per assembly)
#33	47335A1	BRACKET ASSEMBLY SHIFT SUPPORT (1 required per assembly)
		47335A 1 - Bracket, NLA [ More info ] Unavailable
#34	728091	STUD (.250 X 1.620) (1 required per assembly) — Replaces: 72809
		16-72809 1 - Stud [ More info ] $9.49 Available to Order: Shipping delay up to 10 days.
#35	69056	WASHER (.255 X .620 X .030) STAINLESS STEEL SHIFT SUPPORT BRACKET STUD (2 required per assembly) — Replaces: 21631
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#36	31866	SPACER (.256 X .313 X .625) SHIFT SUPPORT BRACKET STUD (1 required per assembly)
		23-31866 - Spacer - .26 X .31 X .64 [ More info ] $5.69 10+ In Stock.
#37	826709109	NUT (.250-28) STAINLESS STEEL SHIFT SUPPORT BRACKET STUD (1 required per assembly) — Replaces: 20586, 35045
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#38	35386	SCREW (.312-18 X 1.00) SHIFT SUPPORT BRACKET (3 required per assembly)
		10-35386 - Screw - Priced Individually [ More info ] $1.10 7 In Stock.
#39	8M0204647	LOCKWASHER @5 SHIFT SUPPORT BRACKET SCREW (3 required per assembly) — Replaces: 26993
#40	48461	ADAPTER OIL LEVEL GAUGE TUBE TO TRANSMISSION (1 required per assembly)
		48461 - Adaptor, NLA [ More info ] Unavailable
#41	48462	O-RING (.614 X .070) OIL LEVEL TUBE ADAPTOR (1 required per assembly)
		25-48462 - O-ring, (.614 X .070) [ More info ] $1.80 4 In Stock.
#42	48463	TUBE (1 required per assembly)
		48463 - Tube, NLA [ More info ] $17.99 $15.23 5 In Stock.
#43	48464	DIPSTICK OIL LEVEL (1 required per assembly)
		48464 - Dipstick, NLA [ More info ] Unavailable
#44	35276	O-RING (.734 X .139) OIL LEVEL GAUGE (1 required per assembly)
		25-35276 - O-ring, (.734 X .139) [ More info ] $2.39 2 In Stock.
		18-7135 - O-Ring 25-35276 [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#46	32417	SCREW (.250-28 X .625) MOUNT, BRACKET (2 required per assembly)
		10-32417 - Screw - Priced Individually [ More info ] $1.10 $0.62 2 In Stock.
#47	26992	LOCKWASHER (.250) STAINLESS STEEL OIL LEVEL GAUGE TUBE CLAMP (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#48	859172	CLAMP OIL LEVEL GAUGE TUBE TO MOUNTING BRACKET (1 required per assembly) — Replaces: 67015
		54-859172 - Clamp [ More info ] $5.19 1 In Stock.
#49	69028	SCREW (.250-28 X .750) STAINLESS STEEL OIL LEVEL GAUGE TUBE CLAMP (1 required per assembly)
		10-69028 - Screw [ More info ] $2.89 $1.63 10+ In Stock.
#50	8M0204649	WASHER @10 OIL LEVEL GAUGE TUBE CLAMP SCREW (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#51	8267089	NUT (.250-28) OIL LEVEL GAUGE TUBE CLAMP SCREW (1 required per assembly) — Replaces: 20361
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#52	47467	SCREW (.625-18 X 5.500) TAILSTOCK TO INNER TRANSOM PLATE (2 required per assembly)
		10-47467 - Screw [ More info ] $16.89 Available to Order: Shipping delay up to 10 days.
#53	47475	WASHER (2 required per assembly)
		12-47475 - Washer, (1.120 X 2.250 X .19) [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#53	47466	WASHER (NEOPRENE) (4 required per assembly)
		12-47466 - Washer, (1.125 X 1.750 X .16) [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#53	33171	WASHER (2 required per assembly)
		12-33171 - Washer, (.6406 X 1.750 X .125) [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#53	34846	LOCKWASHER @2 (2 required per assembly)
		13-34846 - LockWasher - Priced Individually [ More info ] $1.40 2 In Stock.
#54	22339	NUT @5 (2 required per assembly)
		11-22339 - Nut (5/8x18) [ More info ] Unavailable
		18-3713 - Nut, 11-22339 [ More info ] $5.98 5 In Stock.
		11-8M0214915 - NUT Note: Priced Individually [ More info ] $11.69 9 In Stock.
		11-01817 - Nut 11-22339 [ More info ] $5.99 $4.59 Available to Order: Shipping delay up to 10 days.
#55	47613	SWITCH NEUTRAL SAFETY (1 required per assembly)
		47613 - Switch [ More info ] $374.49 In Stock
#56	73125A1	WIRE ASSEMBLY NEUTRAL SAFETY (1 required per assembly)
		84-73125A 1 - Harness Assembly, NLA [ More info ] Unavailable
#57	47483	J CLIP NEUTRAL SAFETY HARNESS (1 required per assembly)
		54-47483 - J Clip [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
