Parts for 370 Trs GM 454 V-8 7.4L (454 Cu In) V8 GM MerCruiser Engines - Gas Transm. & Related Parts (Left Hand Staggered-new Style)

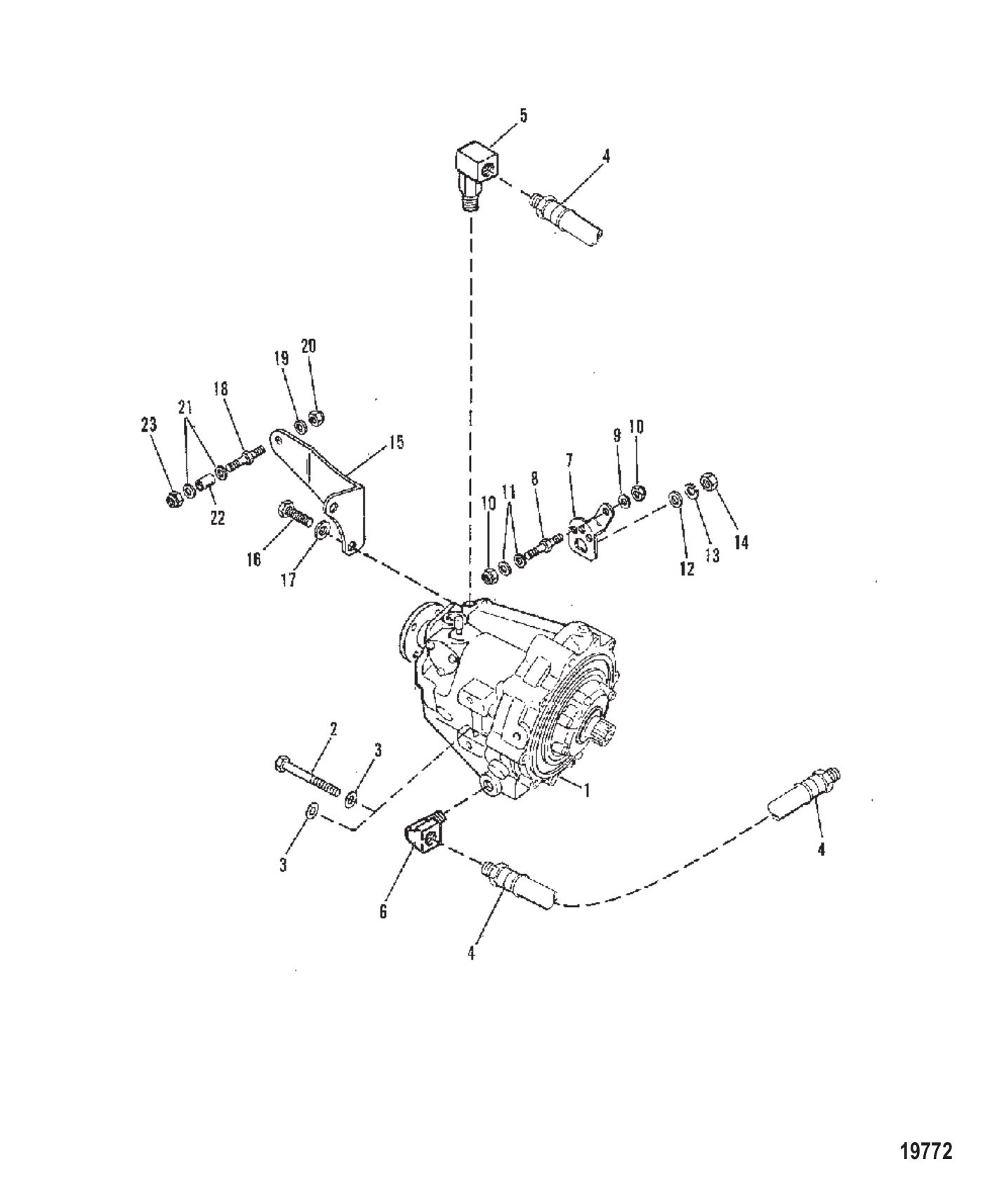

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 47810A19 | TRANSMISSION (DIRECT DRIVE) (1 required per assembly) |
  |
|
47810A19 - Trans 72C 1.1:1 [ More info ] Unavailable |
| #2 | 60179 | SCREW (.437-14 X 3.500) TRANSMISSION (6 required per assembly) |
  |
|
10-60179 - Screw [ More info ]
|
| #3 | 32993 | LOCKWASHER (.437) SCREW AND STUD (6 required per assembly) |
  |
|
13-32993 - LockWasher - Priced Individually [ More info ]
|
| #4 | 4751612 | HOSE TRANSMISSION/COOLER (16-3/4") (1 required per assembly) — Replaces: 475162 |
  |
|
32-47516 12 - Hose Assembly-20 IN, NLA [ More info ] Unavailable |
| #4 | 475163 | HOSE TRANSMISSION/COOLER (7-7/8") (1 required per assembly) |
  |
|
32-47516 3 - Hose Assembly -7.88 In, NLA [ More info ]
|
| #5 | 63824 | ELBOW HOSE (90 DEGREES- EXTENDED) (1 required per assembly) |
  |
|
22-63824 - Elbow, NLA [ More info ]
|
| #6 | 47629 | ELBOW 90 DEGREE HOSE (1 required per assembly) |
  |
|
22-47629 - Elbow [ More info ]
|
| #7 | 8M0192188 | LEVER (1 required per assembly) — Replaces: 12128 |
  |
|
8M0192188 - LEVER [ More info ] Unavailable |
| #8 | 63335 | STUD (.250-28 X 2.00) SHIFT LEVER (1 required per assembly) |
  |
|
16-63335 - Stud, NLA [ More info ]
|
| #9 | 39143 | WASHER (.253 X .625 X .0937) SHIFT LEVER STUD (1 required per assembly) |
  |
|
12-39143 - Washer, (.253 X .625 X .0937) [ More info ]
|
| #10 | 8267089 | NUT (.250-28) SHIFT LEVER STUD (2 required per assembly) — Replaces: 20361 |
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #11 | 8M0204649 | WASHER @10 SHIFT (2 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #12 | 20722 | WASHER (.328 X .625 X .060) TRANSMISSION LEVER STUD (1 required per assembly) |
  |
|
12-20722 - Washer, (.328 X .625 X .060) [ More info ]
|
| #13 | 8M0204647 | LOCKWASHER @5 TRANSMISSION LEVER STUD (1 required per assembly) — Replaces: 26993 |
  |
|
138M0204647 - LOCKWASHER, Priced Individually [ More info ]
|
| #14 | 22053 | NUT (.312-24) TRANSMISSION LEVER STUD (1 required per assembly) — Replaces: 20083 |
  |
|
11-22053 - Nut (5/16x24) [ More info ]
|
| #15 | 41603 | BRACKET SHIFT (1 required per assembly) |
  |
|
41603 - Bracket, NLA [ More info ] Unavailable |
| #16 | 34350 | SCREW (.437-14 X 1.250) SHIFT BRACKET TO TRANSMISSION (2 required per assembly) |
  |
|
10-34350 - Screw [ More info ] Unavailable |
| #17 | 45176 | WASHER (.453 X .812 X .105) STAINLESS STEEL SHIFT BRACKET SCREW (2 required per assembly) |
  |
|
12-45176 - Washer, (.453 X .812 X .105) [ More info ]
|
| #18 | 63335 | STUD (.250-28 X 2.00) SHIFT BRACKET (1 required per assembly) |
| #19 | 39143 | WASHER (.253 X .625 X .0937) SHIFT BRACKET STUD (1 required per assembly) |
| #20 | 8267089 | NUT (.250-28) SHIFT BRACKET STUD (1 required per assembly) — Replaces: 20361 |
| #21 | 69056 | WASHER (.255 X .620 X .030) STAINLESS STEEL SHIFT BRACKET STUD (2 required per assembly) — Replaces: 21631 |
  |
|
12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
| #22 | 31866 | SPACER (.256 X .313 X .625) SHIFT BRACKET STUD (1 required per assembly) |
  |
|
23-31866 - Spacer - .26 X .31 X .64 [ More info ]
|
| #23 | 826709109 | NUT (.250-28) STAINLESS STEEL SHIFT BRACKET STUD (1 required per assembly) — Replaces: 20586, 35045 |
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
