Parts for 377 Mag MPI Bravo Ec 6.2L (377 Cu In) V8 GM MerCruiser Engines - Gas Shift Bracket Bravo

Revise Search: Sterndrive > MerCruiser Engines - Gas > 6.2L (377 Cu In) V8 GM > 377 Mag MPI Bravo Ec > 1A623185 & Up > Shift Bracket Bravo

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

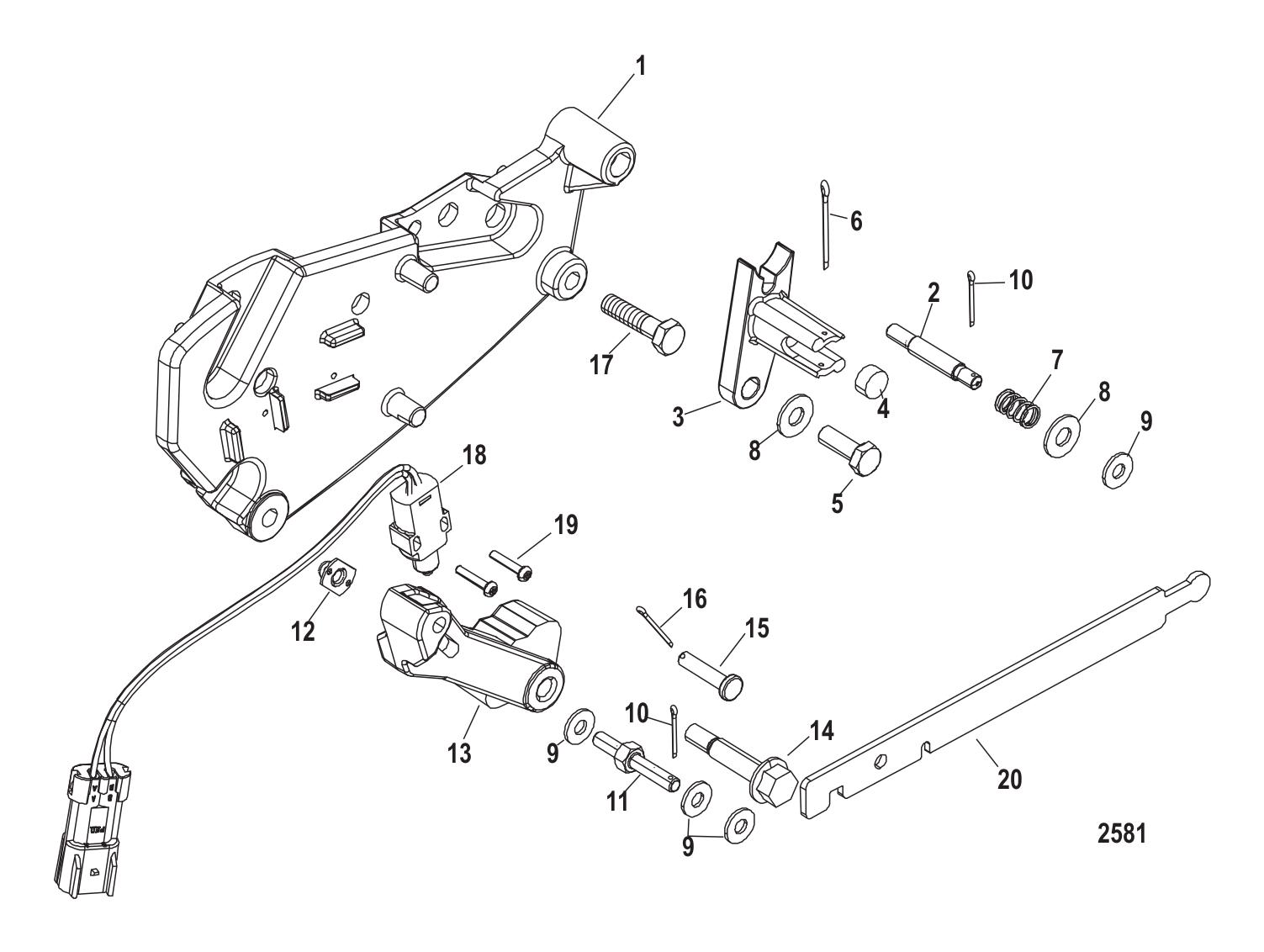

Shift Bracket Bravo

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	807962A15	BRACKET ASSEMBLY SHIFT (1 required per assembly)
		807962A15 - Shift Plate Kit [ More info ] $166.99 In Stock
#2	865154A02	STUD KIT (.250-20/.250-28 X 2.120) WITH COTTER PIN (1 required per assembly)
		16-865154A02 - Stud Kit [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#3	865434A02	RETAINER KIT SHIFT CABLE, WITH COTTER PIN (1 required per assembly)
		865434A02 - Retainer Kit [ More info ] $56.49 Available to Order: Shipping delay up to 10 days.
#4	8M0207783	SPACER (1 required per assembly) — Replaces: 98828
		238M0207783 - SPACER [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#5	53167T	SCREW @16 (1 required per assembly) — Replaces: 53167
		10-53167T - Screw - Priced Individually [ More info ] $1.50 $0.85 10+ In Stock.
#6	328571	PIN-COTTER (1 required per assembly)
		[ More info ] Unavailable
#7	8M0207784	SPRING (1 required per assembly) — Replaces: 98880
		248M0207784 - SPRING [ More info ] $8.29 Available to Order: Shipping delay up to 10 days.
#8	56720	WASHER (1 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#9	35462	WASHER @2 (3 required per assembly)
		12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ] $1.80 10+ In Stock.
#10	210711	COTTER PIN @2 (2 required per assembly)
		0210711 [ More info ] Unavailable Replaced by 0210710
		[ More info ] Unavailable
#11	865393A02	STUD KIT (.250-28 X 1.90) WITH COTTER PIN (1 required per assembly)
		16-865393A02 - Stud Kit [ More info ] $8.39 Available to Order: Shipping delay up to 10 days.
#12	63341	NUT-TEE (1 required per assembly)
		11-63341 - Nut -tee [ More info ] $2.79 10+ In Stock.
#13	863911A12	LEVER ASSEMBLY SHIFT (1 required per assembly)
		863911A12 - Shift Lever Assembly [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#14	8M0207774	SCREW (1 required per assembly) — Replaces: 865148
		108M0207774 - SCREW [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#15	68402	PIN (.250 X 1.13) CLEVIS (1 required per assembly)
		17-68402 - Pin, (.250 X 1.13) [ More info ] $10.69 Available to Order: Shipping delay up to 10 days.
#16	210711	COTTER PIN @2 (1 required per assembly)
#17	657461	SCREW @5 (3 required per assembly)
		10-65746 1 - Screw [ More info ] $1.70 5 In Stock.
#17	69035	SCREW/LOCKWASHER (SEACORE) (3 required per assembly)
		10-69035 - Screw/LockWasher [ More info ] $1.90 $1.52 10+ In Stock.
#18	808009T11	SWITCH ASSEMBLY GEAR INDICATOR (1 required per assembly)
		87-808009T11 - Switch Assembly [ More info ] $69.49 In Stock
#19	865147T01	SCREW @2 (2 required per assembly) — Replaces: 865147
		10-865147T01 - Screw - Priced Individually [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#20	12427T	TOOL-SHIFT ADJUST (1 required per assembly) — Replaces: 12427
		91-12427T - Tool - Shift Adjust [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
		18-9807 - Tool, 91-12427 [ More info ] $11.80 Available to Order: Shipping delay up to 10 days.
