Parts for 300 HP 4.6L V8 Pro XS 4-Stroke Mercury Outboard Motor Gear Housing, Prop Shaft - Standard Rotation, 5.44 Torpedo

Revise Search: Outboard > 4-Stroke Mercury Outboard > 300 HP 4.6L V8 Pro XS > 2B529482 & Up - USA > Gear Housing, Prop Shaft - Standard Rotation, 5.44 Torpedo

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

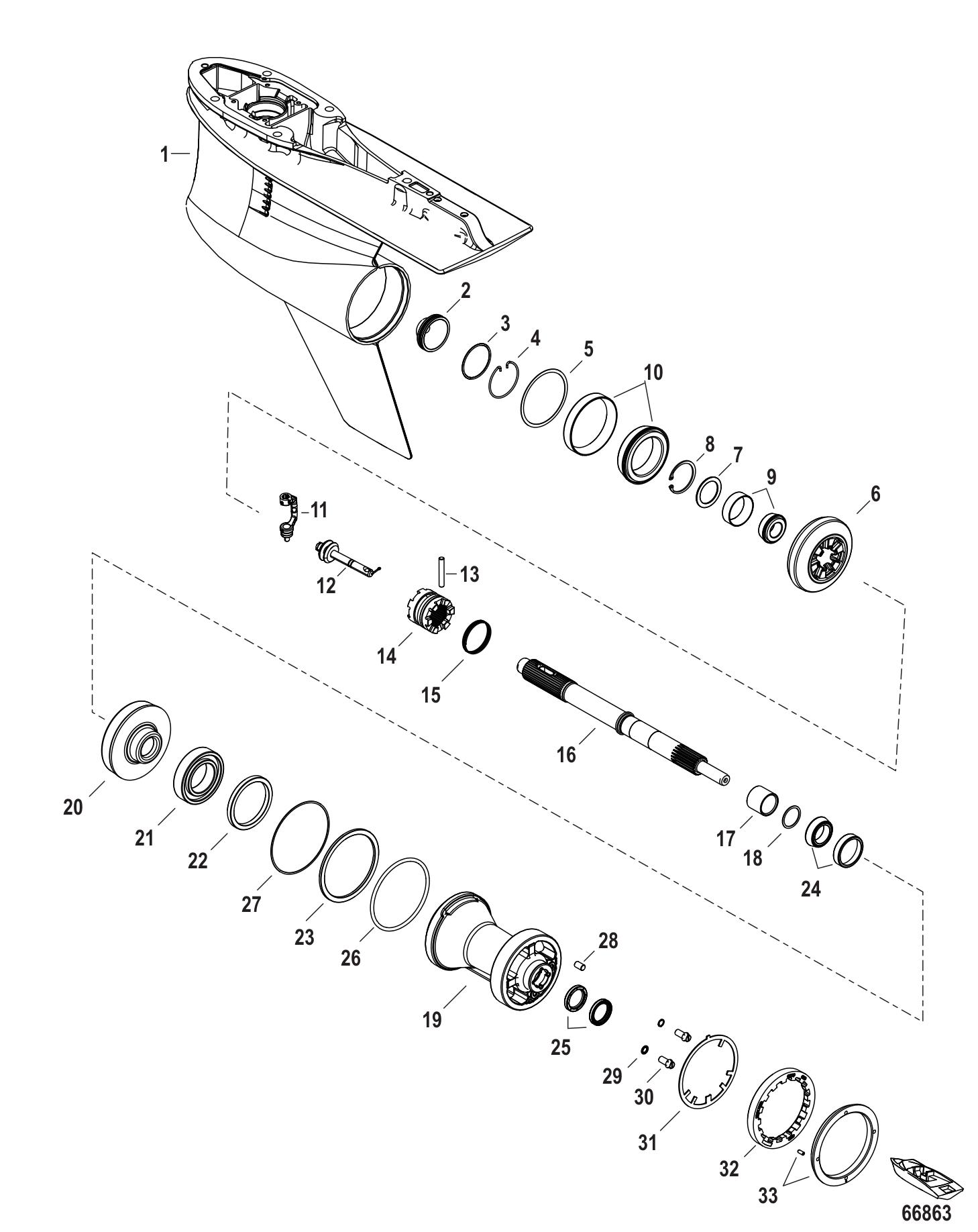

Gear Housing, Prop Shaft - Standard Rotation, 5.44 Torpedo

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0142309	GC XL SILV (1 required per assembly)
		16008M0142309 - GC XL SILV [ More info ] Unavailable
		1600-8M0228016 - 1600-8M0228016 - GC XL SILV [ More info ] Unavailable Replaced by -8M0235820
		1600-8M0235820 - GC XL SILV [ More info ] Unavailable
#-	8M0142311	GC CXL SILV (1 required per assembly)
		16008M0142311 - GC CXL SILV [ More info ] Unavailable
		1600-8M0228017 - 1600-8M0228017 - GC CXL SILV [ More info ] Unavailable Replaced by -8M0235822
		1600-8M0235822 - GC CXL SILV [ More info ] Unavailable
#-	8M0142979	GEARCASE SEAL KIT (1 required per assembly)
		98-8M0142979 - GEARCASE SEAL KIT [ More info ] Unavailable
#1	8M0142888	GEAR HOUSING ASSEMBLY BASIC, SILVER (1 required per assembly)
		16008M0142888 - GC BASIC SILVER [ More info ] Unavailable
		1600-8M0228040 - GC BASIC SILVER [ More info ] Unavailable
#2	8M0157111	PLUG TORPEDO (1 required per assembly) — Replaces: 8M0142853
		198M0157111 - TORPEDO PLUG [ More info ] $69.99 Available to Order: Shipping delay up to 10 days.
#3	8M0142854	O RING (2.175 X .103) (1 required per assembly)
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#4	880719	RING RETAINING (1 required per assembly)
		53-880719 - Ring - Retaining [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#5	8M0063270	SHIM SET (1 required per assembly)
		158M0063270 - Shim Set [ More info ] $113.99 Available to Order: Shipping delay up to 10 days.
#6	8M0146648	GEAR SET FORWARD GEAR PINION 12/21 (1.75:1) (1 required per assembly)
		438M0146648 - Gear Set 12/21 [ More info ] $781.49 Available to Order: Shipping delay up to 10 days.
#7	8M0053823	THRUST WASHER (1 required per assembly)
		128M0053823 - Washer [ More info ] $18.59 1 In Stock.
#8	8M0051043	RETAINING RING (1 required per assembly)
		53-8M0051043 - Retainer Ring [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#9	8M0142835	BEARING ROLLER TAPERED (1 required per assembly)
		318M0142835 - Bearing ROLLER [ More info ] $76.62 2 In Stock.
#10	8M0142836	BEARING ROLLER TAPERED (1 required per assembly)
		318M0142836 - Bearing ROLLER [ More info ] $70.49 Available to Order: Shipping delay up to 10 days.
#11	8M0046215	CRANK, SHIFTER 1/4 PIVOT PIN (1 required per assembly)
		8M0046215 - Crank- Shift Assembly [ More info ] Unavailable
		8M0220880 - CRANK-SHIFT ASSY [ More info ] Unavailable
#12	8M0163111	SPOOL ASSEMBLY (1 required per assembly) — Replaces: 8M0142857
		8M0163111 - SPOOL ASSEMBLY [ More info ] Unavailable
		8M0235942 - 8M0235942 - SPOOL ASSEMBLY [ More info ] Unavailable Replaced by -8M0242491
		8M0242491 - SPOOL ASSEMBLY [ More info ] Unavailable
#13	8M0045493	PIN (1 required per assembly)
		17-8M0045493 - Pin-CROSS [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#14	8M0142871	CLUTCH SLIDING 6 JAW (1 required per assembly)
		528M0142871 - Clutch SLIDING 6 [ More info ] $188.99 Available to Order: Shipping delay up to 10 days.
#15	8M0050575	SPRING (1 required per assembly)
		24-8M0050575 - Spring-Pin RETAIN [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#16	8M0142877	SHAFT PROPELLER (1 required per assembly)
		448M0142877 - Propeller Shaft [ More info ] $392.99 Available to Order: Shipping delay up to 10 days.
#17	8M0064306	SPACER (1 required per assembly)
		238M0064306 - Spacer-Thrust [ More info ] $18.79 Available to Order: Shipping delay up to 10 days.
#18	8M0076745	SHIM SET (1 required per assembly)
		158M0076745 - Washer/Shim Set [ More info ] $394.99 Available to Order: Shipping delay up to 10 days.
#18	8M0050423	WASHER .020 (AR required per assembly)
		12-8M0050423 - Shim-.020 , Priced Individually [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#18	8M0050424	WASHER .022 (AR required per assembly)
		12-8M0050424 - Shim-.022 , Priced Individually [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#18	8M0050425	WASHER .024 (AR required per assembly)
		12-8M0050425 - Shim-.024 , Priced Individually [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#18	8M0050427	WASHER .026 (AR required per assembly)
		12-8M0050427 - Shim-.026 , Priced Individually [ More info ] $30.19 Available to Order: Shipping delay up to 10 days.
#18	8M0050428	WASHER .028 (AR required per assembly)
		12-8M0050428 - Shim-.028 , Priced Individually [ More info ] $31.59 Available to Order: Shipping delay up to 10 days.
#18	8M0050429	WASHER .030 (AR required per assembly)
		12-8M0050429 - Shim-.030 , Priced Individually [ More info ] $19.09 Available to Order: Shipping delay up to 10 days.
#18	8M0050430	WASHER .032 (AR required per assembly)
		12-8M0050430 - Shim-.032 , Priced Individually [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#18	8M0050431	WASHER .034 (AR required per assembly)
		12-8M0050431 - Shim-.034 , Priced Individually [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#18	8M0050432	WASHER .036 (AR required per assembly)
		12-8M0050432 - Shim-.036 , Priced Individually [ More info ] $26.19 Available to Order: Shipping delay up to 10 days.
#18	8M0050433	WASHER .038 (AR required per assembly)
		12-8M0050433 - Shim-.038 , Priced Individually [ More info ] $25.79 Available to Order: Shipping delay up to 10 days.
#18	8M0050434	WASHER .040 (AR required per assembly)
		12-8M0050434 - Shim-.040 , Priced Individually [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#18	8M0050435	WASHER .042 (AR required per assembly)
		12-8M0050435 - Shim-.042 , Priced Individually [ More info ] $30.29 Available to Order: Shipping delay up to 10 days.
#18	8M0050436	WASHER .044 (AR required per assembly)
		12-8M0050436 - Shim-.044 , Priced Individually [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#18	8M0050437	WASHER .046 (AR required per assembly)
		12-8M0050437 - Shim-.046 , Priced Individually [ More info ] $29.99 Available to Order: Shipping delay up to 10 days.
#18	8M0050438	WASHER .048 (AR required per assembly)
		12-8M0050438 - Shim-.048 , Priced Individually [ More info ] $26.79 Available to Order: Shipping delay up to 10 days.
#18	8M0050439	WASHER .050 (AR required per assembly)
		12-8M0050439 - Shim-.050 , Priced Individually [ More info ] $26.89 Available to Order: Shipping delay up to 10 days.
#19	8M0146058	BEARING CARRIER ASSEMBLY RH (1.75) (1 required per assembly)
		8M0146058 - Bearing Carrier [ More info ] $512.49 1 In Stock.
#20	8M0142874	GEAR REVERSE 12/21 (1.75:1) (1 required per assembly)
		438M0142874 - GEAR REVERSE [ More info ] $286.99 Available to Order: Shipping delay up to 10 days.
#21	8M0142873	BEARING (1 required per assembly)
		308M0142873 - Bearing BALL [ More info ] $28.89 Available to Order: Shipping delay up to 10 days.
#22	8M0142875	SPACER (1 required per assembly)
		238M0142875 - Spacer [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#23	8M0161546	THRUST RING (1 required per assembly) — Replaces: 8M0046569
		128M0161546 - RING THRUST [ More info ] $20.69 Available to Order: Shipping delay up to 10 days.
#24	8M0148319	BEARING CUP/CONE (1 required per assembly)
		318M0148319 - Bearing CUPCone [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#25	8M0204700	SEAL-OIL (2 required per assembly) — Replaces: 888483
		268M0204700 - SEAL-OIL [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#26	8M0000190	O-RING (4.475 X .210) (1 required per assembly)
		25-8M0000190 - O-ring, (4.475 X .210) [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#27	8M0146386	SHIM SET (1 required per assembly)
		158M0146386 - Shim Set [ More info ] $52.49 Available to Order: Shipping delay up to 10 days.
#28	8M0109164	PIN (1 required per assembly)
		178M0109164 - PIN [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#29	8M0204693	SEAL @6 (2 required per assembly) — Replaces: 830749
		26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ] $5.19 10+ In Stock.
		10-10100-1 - Drain Screw Washer 830749 [ More info ] $3.79 $2.91 7 In Stock.
#30	8M0071653	SCREW SPECIAL (2 required per assembly)
		108M0071653 - Screw [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#31	8M0108527	WASHER TAB (1 required per assembly)
		148M0108527 - Washer-TAB [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#32	8M0162798	RETAINER BEARING CARRIER (1 required per assembly) — Replaces: 8M0111653
		8M0162798 - RETAINER BEARING [ More info ] Unavailable
#33	8M0180306	COVER TORPEDO (1 required per assembly) — Replaces: 8M0050821
		8M0180306 - COVER TORPEDO [ More info ] $121.49 Available to Order: Shipping delay up to 10 days.
