Parts for 5.7Lx (4 BBL) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Pistons & Connecting Rods

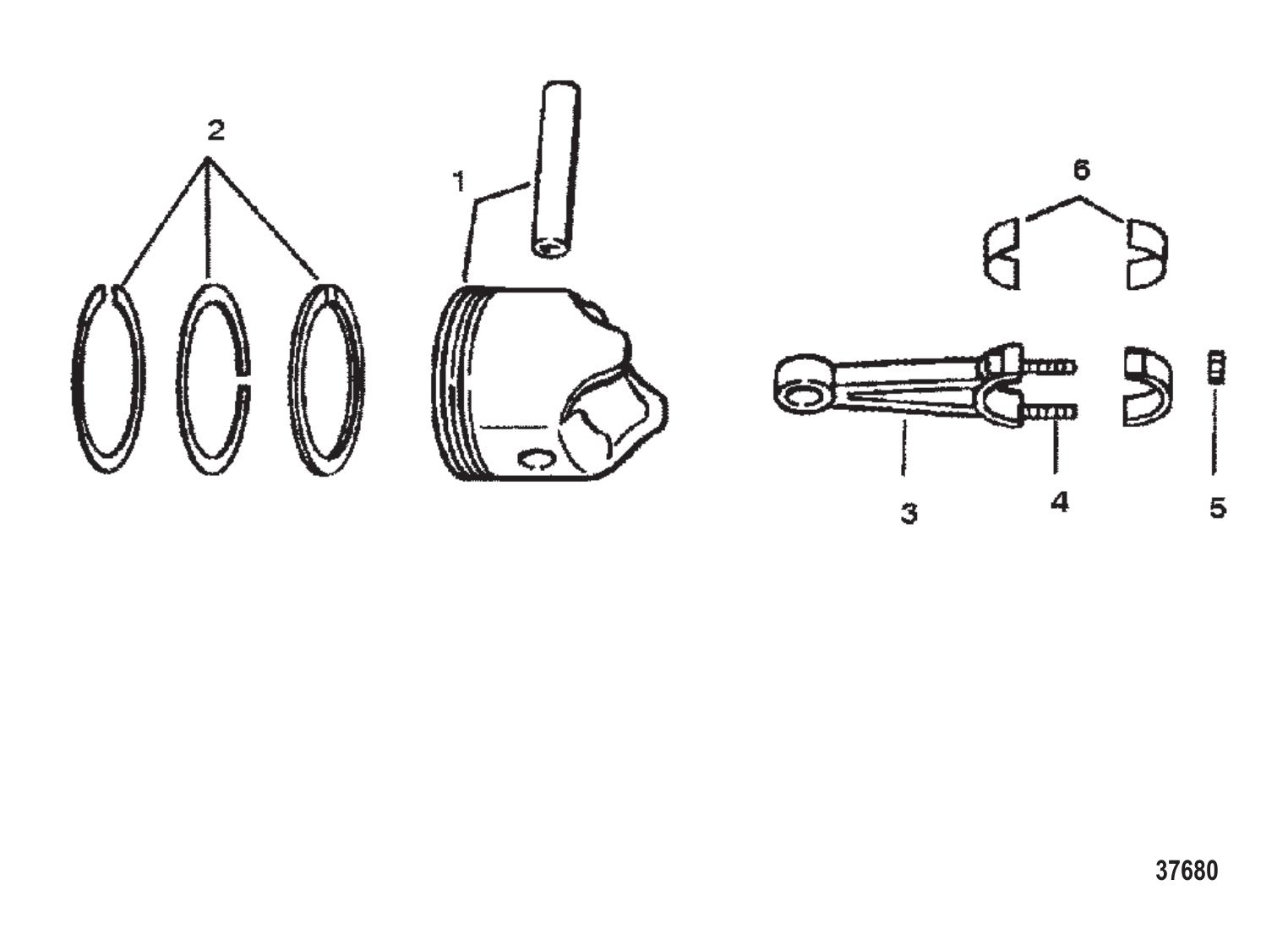

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 850097 | PISTON/RING-STD (STANDARD) (8 required per assembly) |
  |
|
735-850097 - Piston/Ring - Std [ More info ] Unavailable |
| #1 | 850098 | PISTON/RING-.030 (.030 O.S.) (AR required per assembly) |
  |
|
735-850098 - Piston/Ring -.030 [ More info ] Unavailable |
| #2 | 17464 | RING SET PISTON (STANDARD) SEE PARTS BULLETIN 2001-2 FOR PROPER RING SELECTION (8 required per assembly) |
  |
|
39-17464 - Rings - Standard [ More info ]
|
  |
|
18-3937 - Rings 39-17464 Standard Set [ More info ]
|
| #2 | 17465 | RING PISTON SEE PARTS BULLETIN 2001-2 FOR PROPER RING SELECTION (.030 O.S.) (AR required per assembly) |
  |
|
39-17465 - Rings - .030 Oversize [ More info ]
|
| #3 | 8164T | CONN ROD ASSY (8 required per assembly) — Replaces: 8164 |
  |
|
614-8164T - Connecting Rod Assembly [ More info ]
|
| #4 | 85802 | SCREW (.375-24 X SPECIAL) (16 required per assembly) |
  |
|
10-85802 - Screw [ More info ] Unavailable |
| #5 | 37493 | NUT (.375-24) (16 required per assembly) |
  |
|
11-37493 - Nut, (.375-24) [ More info ]
|
| #6 | 85702 | BEARING (PAIR - .001 U.S.) (AR required per assembly) |
  |
|
23-85702 - Bearing - Connecting Rod - .001 US [ More info ]
|
| #6 | 85703 | BEARING (PAIR - .002 U.S.) (AR required per assembly) |
  |
|
23-85703 - Bearing - .002 US [ More info ]
|
| #6 | 85704 | BEARING-.010 US (PAIR - .010 U.S.) (AR required per assembly) |
  |
|
23-85704 - Bearing -.010 Us [ More info ]
|
| #6 | 85705 | BEARING-.020 US (PAIR - .020 U.S.) (AR required per assembly) |
  |
|
23-85705 - Bearing -.020 Us [ More info ]
|
| #6 | 85701 | BEARING-STD (PAIR - STANDARD) (8 required per assembly) |
  |
|
23-85701 - Bearing - Std [ More info ]
|
