Parts for 5.7L EFI (2 BBL.-TBI) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Cylinder Block & Camshaft (Roller Lifters)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 5.7L EFI (2 BBL.-TBI) GM 350 V-8 > 1997 0K001506 - 0K999999 > Cylinder Block & Camshaft (Roller Lifters)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

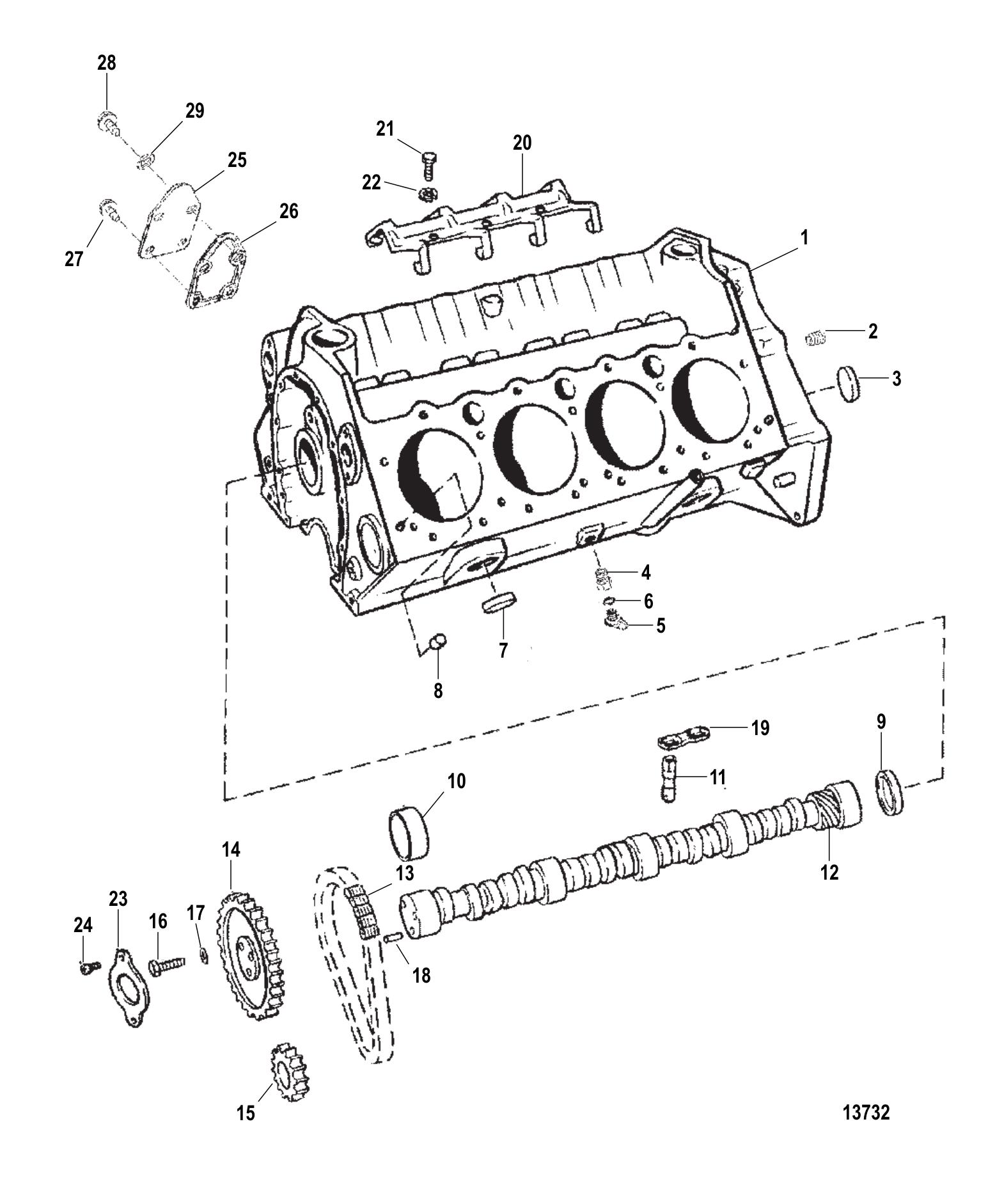

Cylinder Block & Camshaft (Roller Lifters)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	807447R50	LB-RM 5.7 ROLLER (4 BBL. CARBURETOR) (1 required per assembly) — Replaces: 860183A1, 807447R5, 807447A1
		807447R50 - LB-RM 5.7 Roller [ More info ] Unavailable
#-	809825	RTV SILICONE (3 OUNCE TUBE) METALLIC BLUE (WHERE APPLICABLE) (1 required per assembly)
		92-809825 - Rtv Silicone-Blue [ More info ] Unavailable
#-	8M0170149	SEALING COMPOUND (WHERE APPLICABLE) (1 required per assembly) — Replaces: 342271, 34227Q02
		92-8M0170149 - SEALANT-PINT CAN [ More info ] Unavailable
#-	806871A96	GASKET SET (1 required per assembly)
		27-806871A96 - Engine Overhaul Gasket Set [ More info ] $464.29 In Stock
#1	NSS	NOT SOLD SEPARATE CYLINDER BLOCK ASSEMBLY (ORDER LONG BLOCK BELOW) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	8M0204652	PLUG @2 (3 required per assembly) — Replaces: 48340, 32561
		22-8M0204652 - PLUG @2 [ More info ] Unavailable
#3	816565	PLUG CUP (.468) (5 required per assembly)
		19-816565 - Plug [ More info ] $10.69 $8.56 9 In Stock.
#4	860088	BUSHING (1 required per assembly)
		22-860088 - Bushing [ More info ] Unavailable
		22-8M0214973 - Cylinder Block Adaptor Bushing ZZ [ More info ] $12.79 4 In Stock.
#5	8M0119211	PLUG ASSEMBLY (.500-13) BLUE (2 required per assembly) — Replaces: 806608A1, 806608A02
		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $10.19 10+ In Stock.
#6	32509	O-RING (.489 X .070) (2 required per assembly) — Replaces: 806609
		25-32509 - O-ring, (.489 X .070) [ More info ] $2.39 10+ In Stock.
		18-7165-9 - O-Ring (PK5) , 0304174 [ More info ] $10.38 Available to Order: Shipping delay up to 10 days.
#7	34270	EXPANSION PLUG (1.625) (8 required per assembly)
		19-34270 - Freeze Plug, 1-5/8 Inch [ More info ] $9.79 10+ In Stock.
#8	35465	PIN DOWEL (.312) (4 required per assembly)
		17-35465 - Dowel Pin (5/16, Dia.) [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#9	72640	PLUG EXPANSION (REAR CAMSHAFT) (1 required per assembly)
		22-72640 - Plug [ More info ] $14.19 Available to Order: Shipping delay up to 10 days.
#10	85674	BEARING SET (5) (1 required per assembly)
		23-85674 - Bearing Unit - Camshaft [ More info ] $91.49 Available to Order: Shipping delay up to 10 days.
#11	17340T1	LIFTER (16 required per assembly) — Replaces: 173401
		17340T 1 - Lifter [ More info ] $143.49 Available to Order: Shipping delay up to 10 days.
#12	811658	CAMSHAFT (1 required per assembly)
		431-811658 - CamShaft [ More info ] $580.49 Available to Order: Shipping delay up to 10 days.
#13	8M0187687	CHAIN (1 required per assembly) — Replaces: 17161, 17161T
		8M0187687 - CHAIN [ More info ] Unavailable
#14	8116591	SPROCKET CAMSHAFT (1 required per assembly)
		43-811659 1 - Timing Sprocket [ More info ] $171.49 Available to Order: Shipping delay up to 10 days.
#15	8M0184208	SPROCKET CRANKSHAFT (1 required per assembly) — Replaces: 17160
		43-8M0184208 - SPROCKET [ More info ] Unavailable
#16	8M0043993	SCREW (3 required per assembly) — Replaces: 35339, 845942
		10-8M0043993 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#17	848136	WASHER (3 required per assembly)
		12-848136 - Washer, (.328 X .680 X .190) [ More info ] $24.79 Available to Order: Shipping delay up to 10 days.
#18	843378	PIN-DOWEL (1 required per assembly) — Replaces: 35312
		17-843378 - Pin, Dowel (.250) [ More info ] $15.99 1 In Stock.
#19	17341T	GUIDE LIFTER LIFTER (8 required per assembly) — Replaces: 17341
		17341T - Guide [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#20	811662	RETAINER LIFTER GUIDE (1 required per assembly)
		811662 - Retainer [ More info ] $53.49 Available to Order: Shipping delay up to 10 days.
#21	34500	SCREW @5 (3 required per assembly)
		10-34500 - Screw - Priced Individually [ More info ] $18.99 $4.54 10+ In Stock.
#22	811664	WASHER (3 required per assembly)
		12-811664 - Lockwasher (5/16 In.) NLA [ More info ] $1.36 $1.16 10+ In Stock.
#23	845941	RETAINER (1 required per assembly) — Replaces: 811663
		845941 - Retainer [ More info ] $27.59 Available to Order: Shipping delay up to 10 days.
#24	845943	SCREW (2 required per assembly) — Replaces: 17343
		10-845943 - Screw [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#25	807695	PLATE-BLOCK OFF (1 required per assembly) — Replaces: 807695T
		807695 - Block Off Plate [ More info ] $25.09 Available to Order: Shipping delay up to 10 days.
#26	34898	GASKET (1 required per assembly)
		27-34898 - Fuel Pump Mounting Plate Gaket [ More info ] $6.89 2 In Stock.
#27	8M0040582	SCREW @5 (2 required per assembly) — Replaces: 35366
		10-8M0040582 - Dipstick Tube MT Screw - Priced Individually [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#28	98261	SCREW (2 required per assembly)
		10-98261 - Screw [ More info ] $1.20 5 In Stock.
#29	35048	LOCKWASHER @5 (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
