Parts for 5.7L (2 BBL.) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Oil Pan & Oil Pump

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 5.7L (2 BBL.) GM 350 V-8 > 1998-2001 0L010037 - 0M599999 > Oil Pan & Oil Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

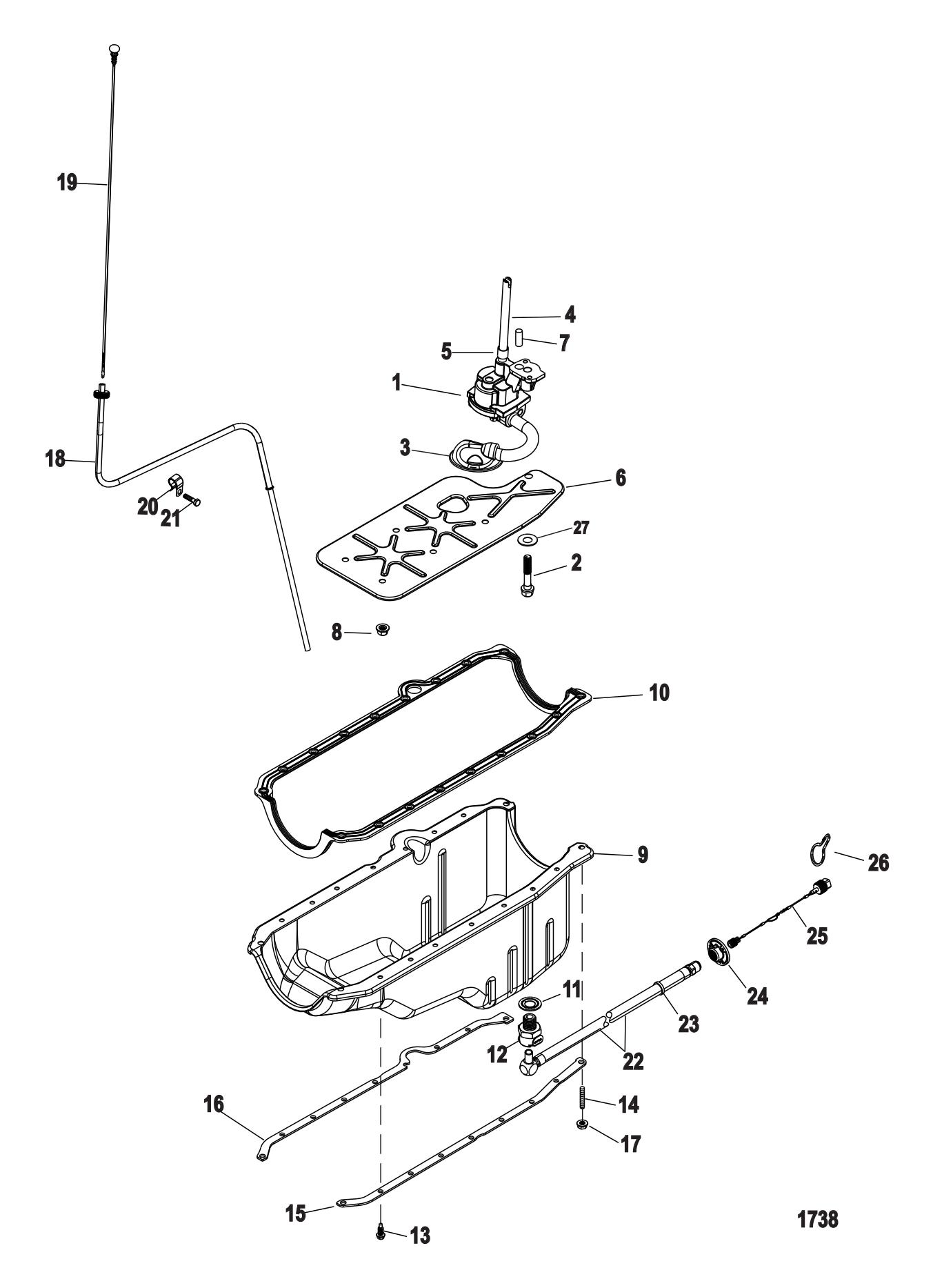

Oil Pan & Oil Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	861246A05	GASKET SET (1 required per assembly) — Replaces: 861246A98
		27-861246A05 - Engine Overhaul Gasket Set [ More info ] $826.99 Available to Order: Shipping delay up to 10 days.
#1	809907002	PUMP ASSY-OIL (1 required per assembly) — Replaces: 8099071
		809907002 - Oil Pump Assembly [ More info ] $469.49 Available to Order: Shipping delay up to 10 days.
#2	17346	SCREW (1 required per assembly)
		10-17346 - Screw, NLA [ More info ] $18.59 $3.73 10+ In Stock.
#3	809909	SCREEN OIL PUMP PICK UP (1 required per assembly)
		809909 - Screen [ More info ] $41.49 Available to Order: Shipping delay up to 10 days.
#4	36184	SHAFT (1 required per assembly)
		36184 - Shaft [ More info ] $27.89 Available to Order: Shipping delay up to 10 days.
#5	36183	RETAINER (1 required per assembly)
		23-36183 - Retainer [ More info ] $5.49 $3.09 1 In Stock.
#6	986021	DEFLECTOR OIL (1 required per assembly)
		98602 1 - Oil Deflector [ More info ] $29.69 Available to Order: Shipping delay up to 10 days.
#7	843378	PIN DOWEL ALIGNMENT (1 required per assembly) — Replaces: 35312
		17-843378 - Pin, Dowel (.250) [ More info ] $15.99 1 In Stock.
#8	845602	NUT (5 required per assembly)
		11-845602 - Nut (3/8-16) [ More info ] $7.09 Available to Order: Shipping delay up to 10 days.
#9	8M0150300	PAN-OIL (1 required per assembly) — Replaces: 809910
		8M0150300 - PAN-OIL [ More info ] $458.99 In Stock
		18-0612 - Oil Pan, 809910 [ More info ] $318.99 $302.87 In Stock
#10	8M0150304	GASKET OIL PAN (1 required per assembly) — Replaces: 138651
		27-8M0150304 - Gasket [ More info ] $196.99 Available to Order: Shipping delay up to 10 days.
#11	8M0077608	GASKET DRAIN (1 required per assembly) — Replaces: 49955
		278M0077608 - Gasket [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#12	809911001	SCREW KIT-DRAIN (1 required per assembly) — Replaces: 809911
		10-809911001 - Drain Screw Kit [ More info ] $19.49 Available to Order: Shipping delay up to 10 days.
#12	862811	FITTING FEMALE QUICK CONNECT (Remote Oil Drain Assembly) (1 required per assembly)
		22-862811 - Ref MCM SB2003-0, NLA [ More info ] Unavailable
#13	14070	SCREW (14 required per assembly)
		10-14070 - Screw [ More info ] $13.19 6 In Stock.
#14	11989	STUD (4 required per assembly)
		16-11989 - Stud [ More info ] $16.09 Available to Order: Shipping delay up to 10 days.
#15	14257	REINFORCEMENT (1 required per assembly)
		14257 - Reinforcement [ More info ] $36.49 In Stock
#16	14256	REINFORCEMENT (1 required per assembly)
		14256 - Reinforcement [ More info ] $34.49 In Stock
#17	8M0148822	NUT (4 required per assembly) — Replaces: 11971
		11-8M0148822 - NUT [ More info ] $17.09 4 In Stock.
#18	860274A2	TUBE ASY-OIL DIP [0L680196] & Below (1 required per assembly) — Replaces: 860143A2
		860274A 2 - Oil Tube Assembly Dip [ More info ] $161.99 Available to Order: Shipping delay up to 10 days.
#18	862704A4	TUBE DIPSTICK [0L680197] & Up (1 required per assembly)
		862704A 4 - Dipstick Tube [ More info ] $124.99 $123.23 In Stock
#19	861942T7	DIPSTICK [0L680196] & Below (1 required per assembly) — Replaces: 15297
		861942T 7 - Dipstick [ More info ] $36.49 In Stock
#19	861942T9	DIPSTICK [0L680197] & Up (1 required per assembly)
		861942T 9 - Dipstick [ More info ] $74.99 $71.99 In Stock
#20	805625	CLIP DIPSTICK TUBE (1 required per assembly)
		54-805625 - Clip [ More info ] $19.03 1 In Stock.
#21	8M0040582	SCREW @5 (1 required per assembly) — Replaces: 35366
		10-8M0040582 - Dipstick Tube MT Screw - Priced Individually [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#22	805505A4	HOSE OIL DRAIN (1 required per assembly)
		32-805505A 4 - SEE SERV BULLETIN 2003-05,N [ More info ] Unavailable
#23	863481	CLAMP TY STRAP (1 required per assembly)
		54-863481 - Clamp [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#24	862777	FLANGE DRAIN (1 required per assembly)
		862777 - Flange - Oil Drain [ More info ] $16.49 Available to Order: Shipping delay up to 10 days.
#25	862827	TETHER ASSY-PLUGS (1 required per assembly)
		862827 - Tether Assembly [ More info ] $100.61 1 In Stock.
#26	805524	CLIP (1 required per assembly)
		54-805524 - Clip [ More info ] $15.49 Available to Order: Shipping delay up to 10 days.
