Parts for 5.7L (2 BBL.) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Flywheel Housing

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 5.7L (2 BBL.) GM 350 V-8 > 1998-2001 0L010037 - 0M599999 > Flywheel Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

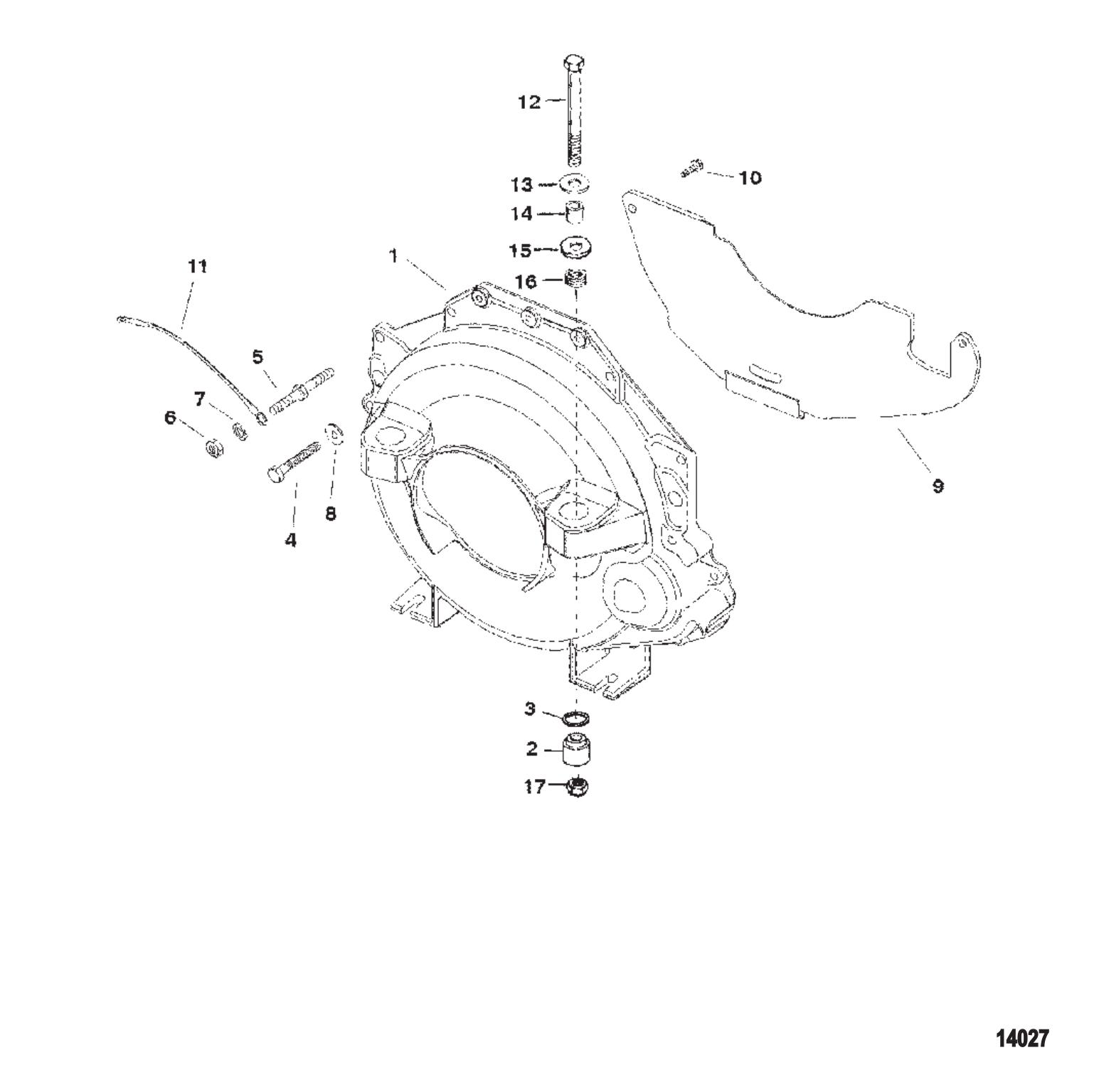

Flywheel Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	865657A03	HOUSING-FLYWHEEL (1 required per assembly) — Replaces: 12675A5
		865657A03 - Flywheel Housing [ More info ] $990.99 Available to Order: Shipping delay up to 10 days.
#2	8M0103028	MOUNT KIT RUBBER (2 required per assembly) — Replaces: 99297A1, 865329A02
		8M0103028 - Mount Kit [ More info ] $118.69 2 In Stock.
		18-2193 - Engine Mount, Single Mount Only, 99297A1 [ More info ] $58.40 2 In Stock.
		99297A 1 - Motor Mount [ More info ] $31.50 1 In Stock.
#3	99322	SPACER (2 required per assembly)
		23-99322 - Spacer - Ruber Mount [ More info ] $6.69 10+ In Stock.
#4	37612	SCREW @5 (3 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#4	32132	SCREW (1 required per assembly)
		10-32132 - Screw [ More info ] $2.99 4 In Stock.
#5	861316	STUD (2 required per assembly) — Replaces: 64066
		16-861316 - Stud [ More info ] $15.09 Available to Order: Shipping delay up to 10 days.
#6	32219	NUT @5 (2 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#7	35048	LOCKWASHER @5 (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#8	20572	WASHER (1 required per assembly)
		12-20572 - Washer, (.390 X .750 X .093) [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#9	807260A2	COVER ASSY (1 required per assembly)
		807260A 2 - Cover Assembly [ More info ] $96.49 In Stock
#10	76596	SCREW (.250-20 X 1.250) (2 required per assembly)
		10-76596 - Screw [ More info ] $2.49 5 In Stock.
#11	62826T06	CABLE ASSY (1 required per assembly) — Replaces: 62826A6
		84-62826T06 - Cable Assembly [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#12	97934	SCREW (2 required per assembly)
		10-97934 - Screw [ More info ] Unavailable
		10-8M0215010 - Screw [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#13	35777	WASHER @2 (2 required per assembly)
		12-35777 - Washer, (.5156 X 1.375 X .125) Aluminum [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#14	99299	SPACER (2 required per assembly)
		23-99299 - Spacer - .52 X .87 X .63 [ More info ] $7.49 1 In Stock.
#15	32834	WASHER @5 (2 required per assembly)
		12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ] $7.09 10+ In Stock.
#16	33734	LOCKWASHER @5 (2 required per assembly)
		13-33734 - LockWasher - Priced Individually [ More info ] $2.69 10+ In Stock.
#17	863332	NUT (2 required per assembly)
		11-863332 - Nut, (.500-20) Aluminum [ More info ] $7.19 Available to Order: Shipping delay up to 10 days.
