Parts for 5.7L (2 BBL.) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Alternator (Mando)

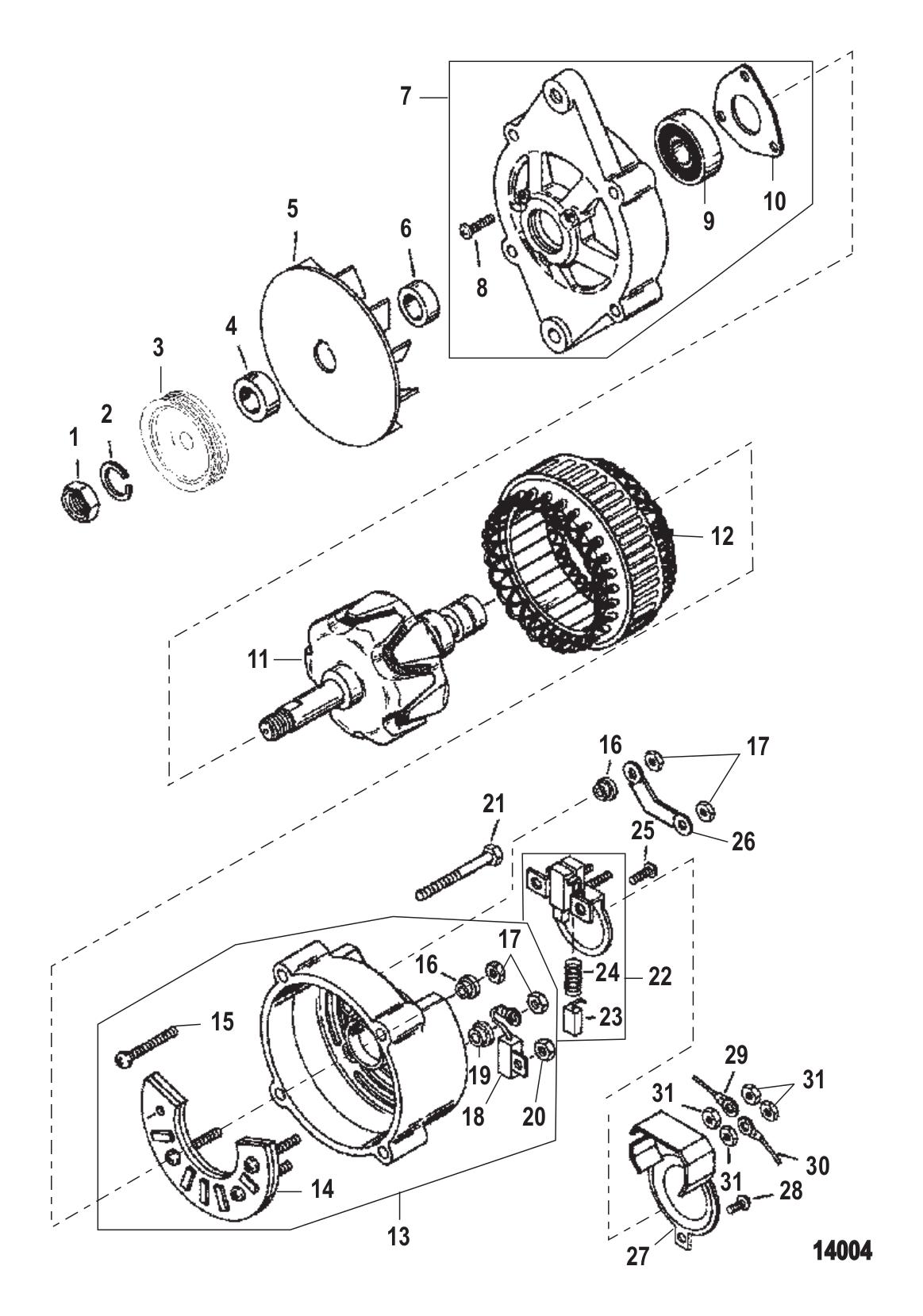

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 807652T | ALTERNATOR (1 required per assembly) |
  |
|
807652T - Alternator, 55 AMP [ More info ]
|
 |
|
18-5967-1 - Alternator 55A - Special Order - No Returns [ More info ]
|
  |
|
18-5967-1 - Alternator 55A [ More info ]
|
  |
|
60055 - Alternator, 55AMP [ More info ]
|
| #1 | 809136 | NUT (1 required per assembly) — Replaces: 42768 |
  |
|
11-809136 - Nut [ More info ] Unavailable |
| #2 | 42769 | LOCKWASHER (1 required per assembly) |
  |
|
13-42769 - LockWasher [ More info ]
|
| #3 | 834990T | PULLEY (1 required per assembly) |
  |
|
834990T - Serpentine Pulley [ More info ]
|
| #4 | 811865 | SPACER (1 required per assembly) |
  |
|
23-811865 - SPACER [ More info ] Unavailable |
| #5 | 811866 | FAN (1 required per assembly) |
  |
|
811866 - FAN,NLA [ More info ] Unavailable |
| #6 | 811867 | SPACER (1 required per assembly) |
  |
|
23-811867 - Spacer, NLA [ More info ] Unavailable |
| #7 | 811868 | BRACKET ASSEMBLY FRONT (1 required per assembly) |
  |
|
811868 - Bracket Assembly [ More info ]
|
| #8 | 811869 | SCREW (3 required per assembly) |
  |
|
10-811869 - Screw, NLA [ More info ]
|
| #9 | 811870 | BEARING BALL (1 required per assembly) |
  |
|
30-811870 - Ball Bearing [ More info ]
|
| #10 | 811871 | RETAINER (1 required per assembly) |
  |
|
811871 - Retainer, NLA [ More info ]
|
| #11 | 811872 | ROTOR ASSEMBLY (1 required per assembly) |
  |
|
811872 - Rotor Assembly, NLA [ More info ]
|
| #12 | 811873T | STATOR ASSEMBLY (1 required per assembly) |
  |
|
811873T - Stator, NLA [ More info ] Unavailable |
| #13 | 811874T | BRACKET ASSEMBLY (1 required per assembly) |
  |
|
811874T - Bracket Assembly [ More info ] Unavailable |
| #14 | 811875T | RECTIFIER ASSEMBLY (1 required per assembly) |
  |
|
811875T - Rectifier Assembly [ More info ]
|
| #15 | 811876 | SCREW (1 required per assembly) |
  |
|
10-811876 - Screw, NLA [ More info ]
|
| #16 | 811877 | HOLD (1 required per assembly) |
  |
|
811877 - Hold, NLA [ More info ] Unavailable |
| #17 | 811878 | NUT (2 required per assembly) |
  |
|
11-811878 - Nut [ More info ] Unavailable |
| #18 | 811879 | CONDENSER ASSEMBLY (1 required per assembly) |
  |
|
811879 - Condenser Assembly [ More info ]
|
| #19 | 811880 | HOLD (1 required per assembly) |
  |
|
811880 - Hold [ More info ] Unavailable |
| #20 | 811881 | NUT (1 required per assembly) |
  |
|
11-811881 - Nut, NLA [ More info ] Unavailable |
| #21 | 42773 | THRU BOLT (4 required per assembly) |
  |
|
10-42773 - Bolt, NLA [ More info ]
|
| #22 | 811883T | REGULATOR ASSEMBLY (1 required per assembly) |
  |
|
811883T - Regulator Assembly [ More info ]
|
| #23 | 811884 | BRUSH (2 required per assembly) |
  |
|
|
| #24 | 811885 | SPRING (2 required per assembly) |
  |
|
24-811885 - Spring, Brush,NLA [ More info ] Unavailable |
| #25 | 811886 | SET SCREW (2 required per assembly) |
  |
|
10-811886 - Screw, NLA [ More info ]
|
| #26 | 811887 | TERMINAL (1 required per assembly) |
  |
|
811887 - Terminal, NLA [ More info ] Unavailable |
| #27 | 811888 | COVER (1 required per assembly) |
  |
|
811888 - Cover [ More info ] Unavailable |
| #28 | 811889 | SET SCREW (1 required per assembly) |
  |
|
10-811889 - Screw -set, NLA [ More info ]
|
| #29 | 811890 | WIRE RED (1 required per assembly) |
  |
|
84-811890 - Wire - Lead, NLA [ More info ]
|
| #30 | 811891 | WIRE PURPLE (1 required per assembly) |
  |
|
84-811891 - Wire - Lead, NLA [ More info ]
|
| #31 | 811878 | NUT (4 required per assembly) |
