Parts for 5.7L (2 BBL.) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Engine Mounting

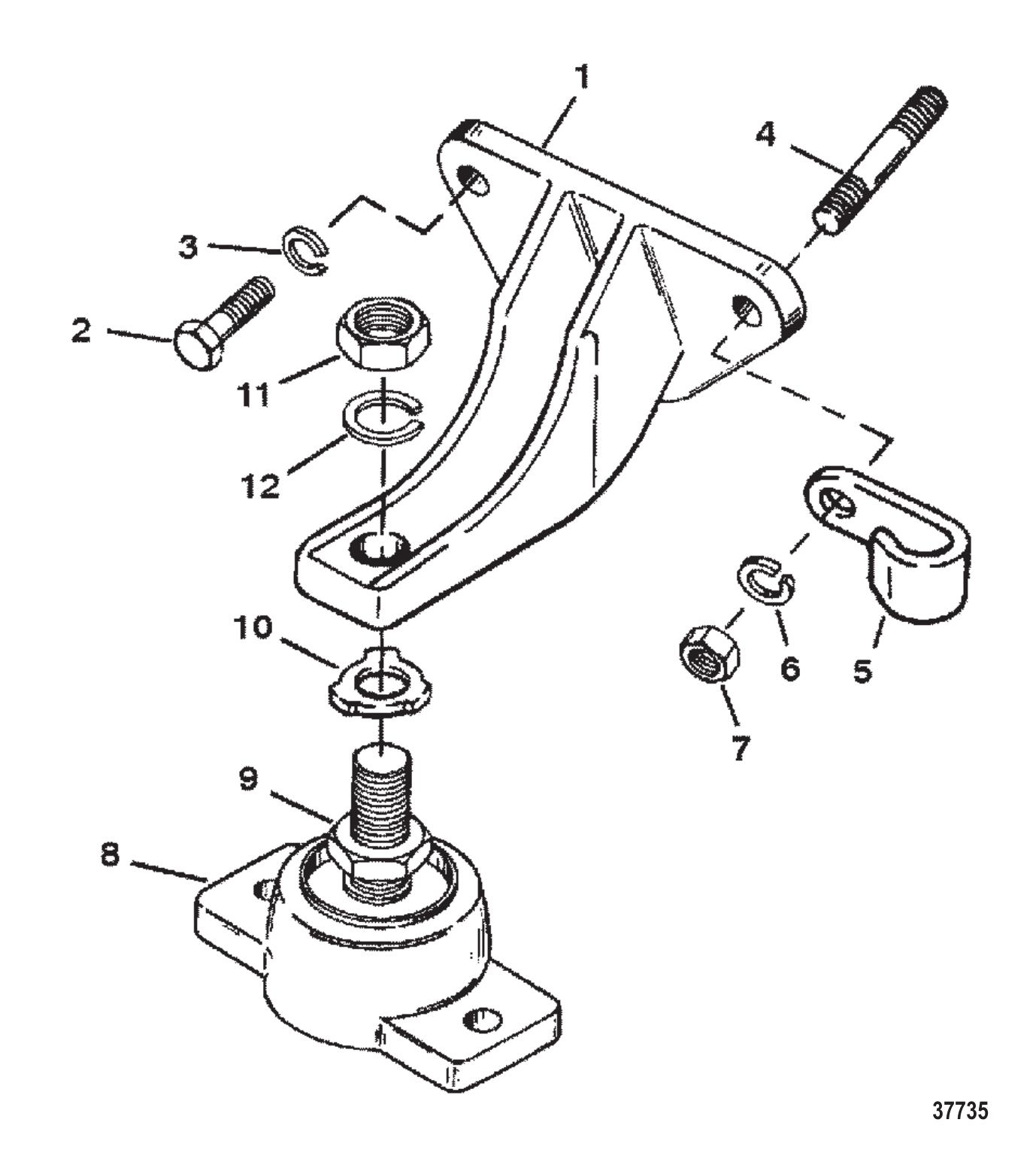

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 79550A1 | BRACKET (FRONT) (2 required per assembly) |
  |
|
79550A 1 - Bracket Assembly [ More info ]
|
| #2 | 68101 | SCREW STARBOARD (2 required per assembly) |
  |
|
10-68101 - Screw [ More info ]
|
| #3 | 35048 | LOCKWASHER @5 STARBOARD (2 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #4 | 861316 | STUD STARBOARD (1 required per assembly) — Replaces: 64066 |
  |
|
16-861316 - Stud [ More info ]
|
| #5 | 78945 | J CLAMP HARNESS SUPPORT STARBOARD (1 required per assembly) |
  |
|
54-78945 - J Clamp [ More info ]
|
| #6 | 35048 | LOCKWASHER @5 STARBOARD (1 required per assembly) |
| #7 | 32219 | NUT @5 STARBOARD (1 required per assembly) |
  |
|
11-32219 - Nut (3/8-16) [ More info ]
|
| #8 | 66284A2 | BASE ASSY-ENG MT (2 required per assembly) |
  |
|
66284A 2 - Engine Mount Base Assembly [ More info ]
|
| #9 | 20739 | NUT (.750-16) (2 required per assembly) |
  |
|
11-20739 - Nut (.750X16) [ More info ]
|
| #10 | 12657 | WASHER-TAB (2 required per assembly) |
  |
|
14-12657 - Tab Washer [ More info ]
|
| #11 | 20739 | NUT @5 (2 required per assembly) |
| #12 | 68102 | LOCKWASHER @2 (2 required per assembly) |
  |
|
13-68102 - LockWasher - Priced Individually [ More info ]
|
