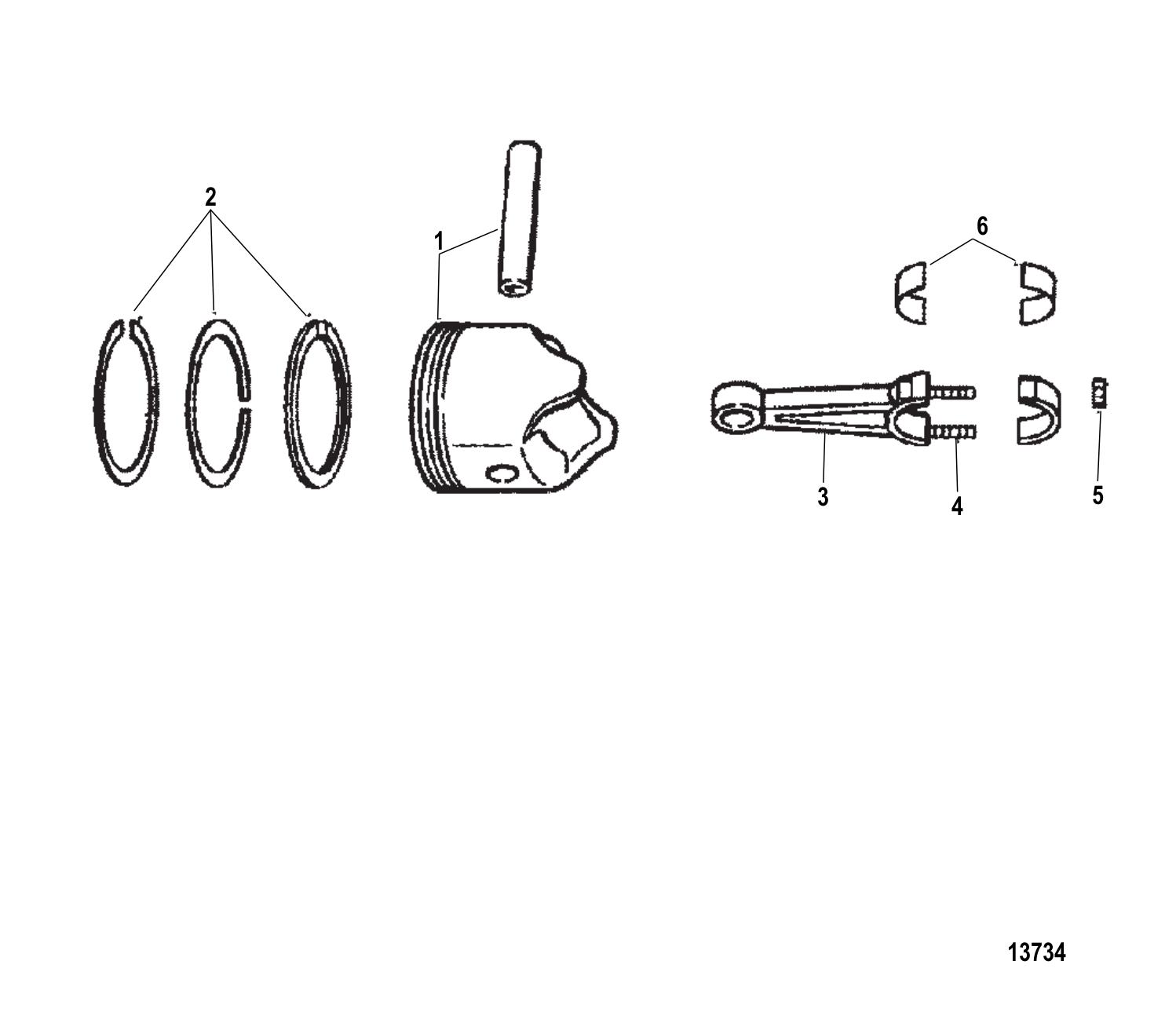

Parts for 350 Mag. Bravo MPI (Gen+) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Pistons & Connecting Rods
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 835001T | PISTON ASSEMBLY (STANDARD) (8 required per assembly) — Replaces: 835001 |
  |
|
735-835001T - Piston & Pin - Std [ More info ]
|
| #1 | 835002T | PISTON ASSEMBLY (.5MM O.S.) (AR required per assembly) — Replaces: 835002 |
  |
|
735-835002T - Piston/Pin -.5MM [ More info ]
|
| #2 | 8018611 | RING SET (STANDARD) (8 required per assembly) |
  |
|
39-801861 1 - Rings - Standard [ More info ]
|
| #2 | 835000 | RING SET PISTON (.5MM O.S.) (AR required per assembly) |
  |
|
39-835000 - Rings - .5MM [ More info ]
|
| #3 | 8164T | CONN ROD ASSY (8 required per assembly) — Replaces: 8164 |
  |
|
614-8164T - Connecting Rod Assembly [ More info ]
|
| #4 | 85802 | SCREW (.375-24 X SPECIAL) (16 required per assembly) |
  |
|
10-85802 - Screw [ More info ] Unavailable |
| #5 | 37493 | NUT (.375-24) (16 required per assembly) |
  |
|
11-37493 - Nut, (.375-24) [ More info ]
|
| #6 | 85701 | BEARING (PAIR - STANDARD) (8 required per assembly) |
  |
|
23-85701 - Bearing - Std [ More info ]
|
| #6 | 85702 | BEARING (PAIR - .001 UNDERSIZE) (AR required per assembly) |
  |
|
23-85702 - Bearing - Connecting Rod - .001 US [ More info ]
|
| #6 | 85703 | BEARING (PAIR - .002 UNDERSIZE) (AR required per assembly) |
  |
|
23-85703 - Bearing - .002 US [ More info ]
|
| #6 | 85704 | BEARING (PAIR - .010 UNDERSIZE) (AR required per assembly) |
  |
|
23-85704 - Bearing -.010 Us [ More info ]
|
| #6 | 85705 | BEARING (PAIR - .020 UNDERSIZE) (AR required per assembly) |
  |
|
23-85705 - Bearing -.020 Us [ More info ]
|
