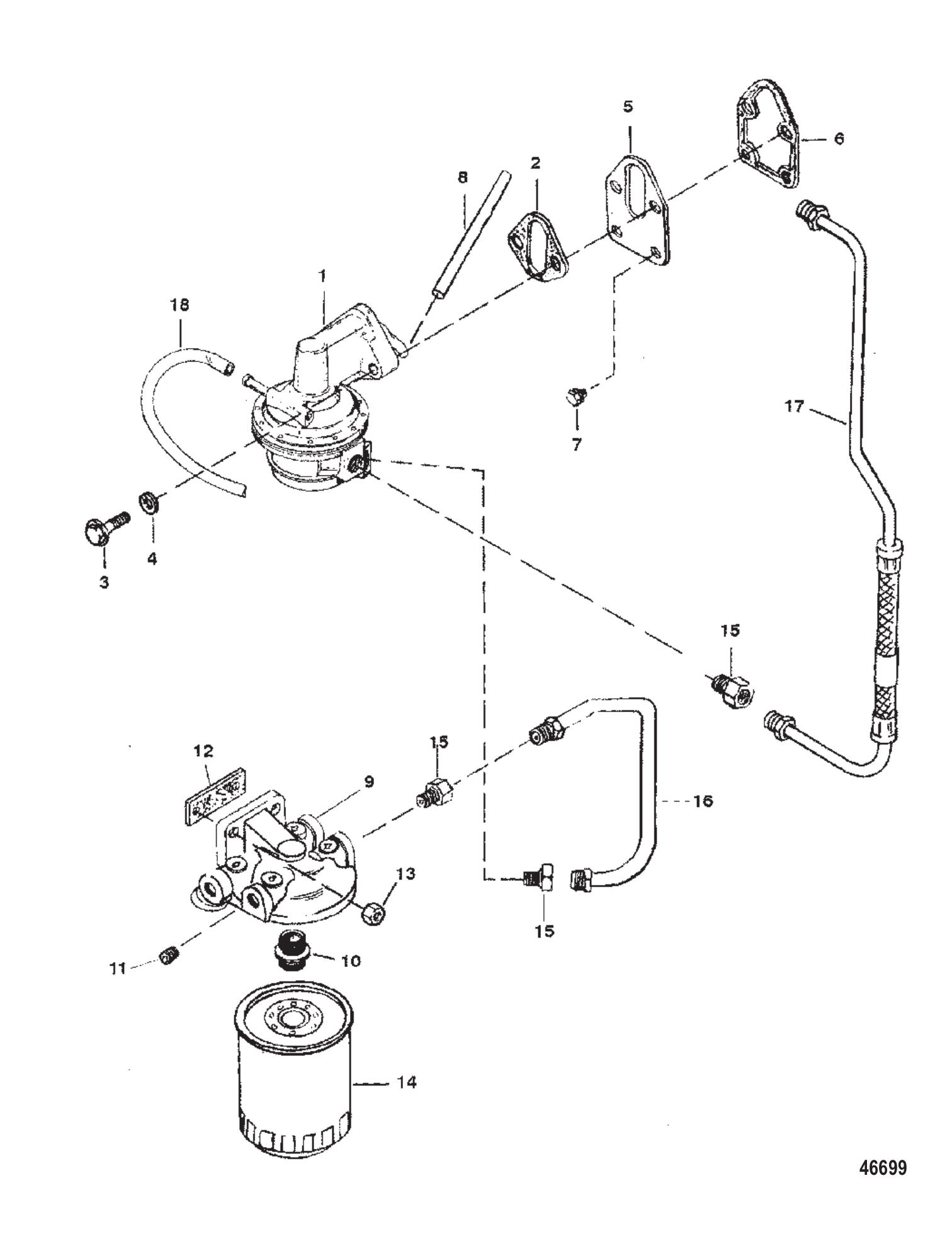

Parts for 350 Mag. Alpha EFI (Gen+) GM 350 V-8 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Fuel Pump & Fuel Filter
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 75611A96 | GASKET SET (1 required per assembly) |
  |
|
27-75611A96 - Engine Overhaul Gasket Set [ More info ]
|
| #1 | 8M0058164 | PUMP ASSY-FUEL (1 required per assembly) — Replaces: 97401A8, 861678A1 |
  |
|
8M0058164 - Fuel Pump Assembly [ More info ]
|
  |
|
18-7283 - Fuel Pump 97401A2 [ More info ]
|
  |
|
35-35283 - Mechanical Fuel Pump, EMP [ More info ]
|
| #2 | 34213 | GASKET @5 (1 required per assembly) |
  |
|
27-34213 - Gasket, Priced Individually [ More info ]
|
  |
|
18-0889-9 - Gasket 27-34213 2-Pack [ More info ]
|
| #3 | 34354 | SCREW (.375-16 X 1.50) (1-1/2") (2 required per assembly) |
  |
|
10-34354 - Screw - Priced Individually [ More info ]
|
| #4 | 35048 | LOCKWASHER @5 (2 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #5 | 35373 | PLATE (1 required per assembly) |
  |
|
35373 - Mounting Plate [ More info ]
|
| #6 | 34898 | GASKET (1 required per assembly) |
  |
|
27-34898 - Fuel Pump Mounting Plate Gaket [ More info ]
|
| #7 | 8M0040582 | SCREW @5 (2 required per assembly) — Replaces: 35366 |
  |
|
10-8M0040582 - Dipstick Tube MT Screw - Priced Individually [ More info ]
|
| #8 | 821150 | PUSHROD (1 required per assembly) |
  |
|
821150 - PUSHROD,NLA [ More info ] Unavailable |
| #9 | 89876A3 | BASE ASSEMBLY FUEL FILTER/WATER SEPERATOR (1 required per assembly) |
  |
|
89876A 3 - Filter Base Assembly [ More info ]
|
  |
|
18-7853-1 - Fuel Water Separator [ More info ]
|
| #10 | 816133 | FITTING (1 required per assembly) — Replaces: 8161331 |
  |
|
22-816133 - Fitting [ More info ]
|
| #11 | 8M0204652 | PLUG @2 (3 required per assembly) — Replaces: 32561 |
  |
|
22-8M0204652 - PLUG @2 [ More info ] Unavailable |
| #12 | 88641 | INSULATOR (1 required per assembly) |
  |
|
88641 - Insulator [ More info ]
|
| #13 | 82670911 | NUT @5 (2 required per assembly) — Replaces: 35814 |
  |
|
11-826709 11 - Nut (5/16-24) [ More info ]
|
| #14 | 802893Q01 | FILTER-FUEL @6 (1 required per assembly) — Replaces: 807172, 802893Q |
  |
|
35-802893Q01 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7945 - Filter, Long Version [ More info ]
|
  |
|
18-7944 - Filter, 35-802893Q [ More info ]
|
  |
|
18-7845 - Filter, 35-60494-1 [ More info ]
|
  |
|
18-7844 - Filter, 35-802893Q [ More info ]
|
  |
|
35-802893T - Fuel Filter [ More info ]
|
  |
|
35-37800 - Fuel Water Separator Filter, Mercury Mercruiser 802893Q01, 10 Micron [ More info ]
|
| #15 | 33821 | CONNECTOR (3 required per assembly) |
  |
|
22-33821 - Connector [ More info ]
|
| #16 | 97326T | LINE-FUEL (1 required per assembly) |
  |
|
32-97326T - Fuel Line [ More info ]
|
| #17 | 806641T | LINE-FUEL (1 required per assembly) |
  |
|
32-806641T - Fuel Line, NLA [ More info ] Unavailable |
| #18 | 7381567 | TUBING-42 INCH (1 required per assembly) |
  |
|
32-73815 67 - Tubing - 42 Inch [ More info ]
|
