Parts for 350 Mag MPI Horizon Alpha / Bravo Ec 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Axius Steering Fluid Filter (Non-hp) 1A347684 & Down, Gen I

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 350 Mag MPI Horizon Alpha / Bravo Ec > 1A300000 - 1A611927 > Axius Steering Fluid Filter (Non-hp) 1A347684 & Down, Gen I

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

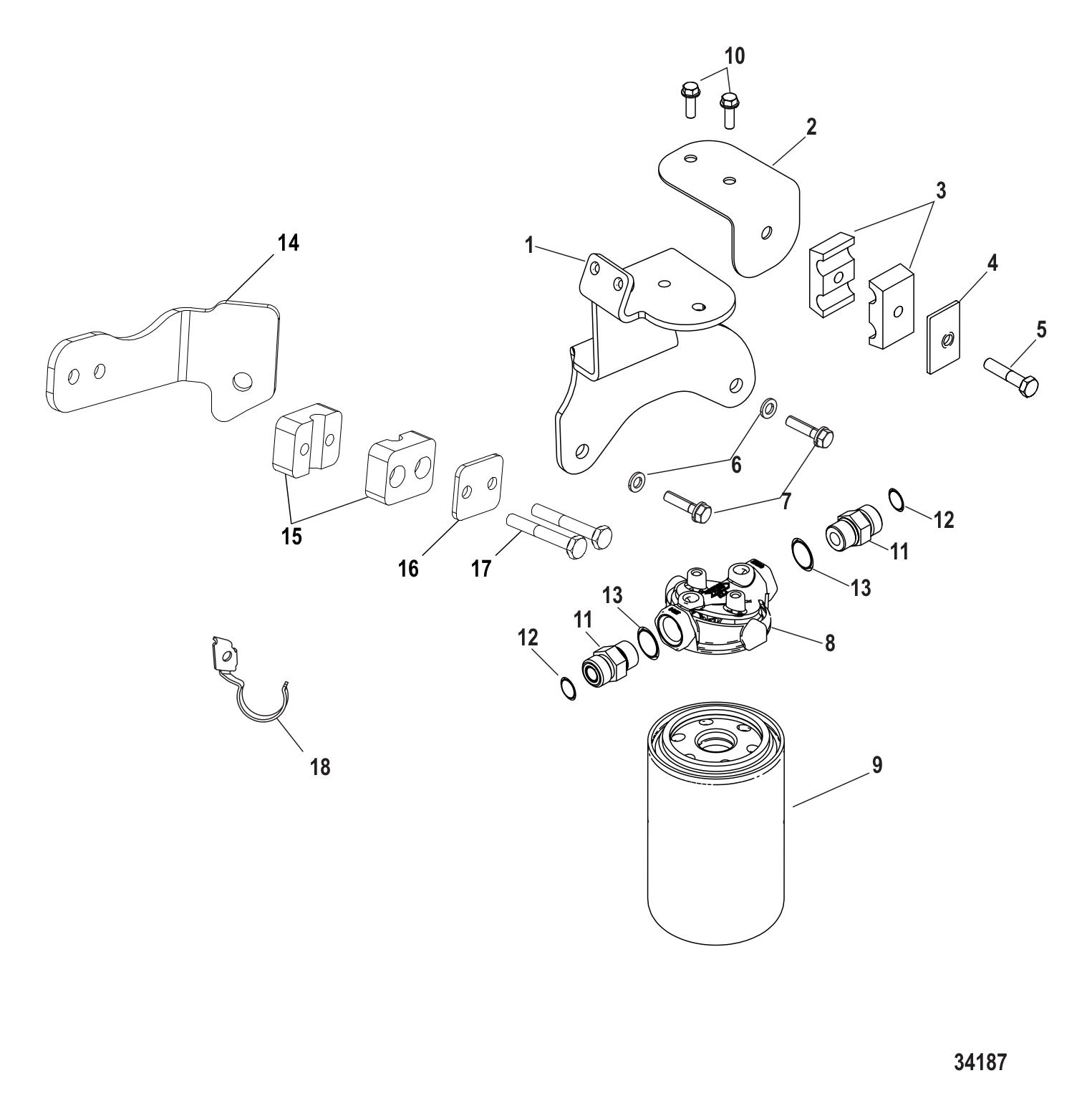

Axius Steering Fluid Filter (Non-hp) 1A347684 & Down, Gen I

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	879172T31	BRACKET OIL FILTER MOUNT (1 required per assembly)
		879172T31 - Bracket [ More info ] $59.49 Available to Order: Shipping delay up to 10 days.
#2	879194T49	BRACKET (1 required per assembly)
		879194T49 - Bracket [ More info ] $32.79 Available to Order: Shipping delay up to 10 days.
#3	8M2009216	CLAMP (2 required per assembly)
		8M2009216 - Clamp [ More info ] $7.59 Available to Order: Shipping delay up to 10 days.
#4	8M2009217	PLATE (1 required per assembly)
		8M2009217 - Plate [ More info ] $18.49 Available to Order: Shipping delay up to 10 days.
#5	69267	SCREW (1 required per assembly)
		10-69267 - Screw [ More info ] $1.90 $0.38 10+ In Stock.
#6	72521	LOCKWASHER (2 required per assembly)
		13-72521 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#7	816585	SCREW (2 required per assembly)
		10-816585 - Screw [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#8	8M8020569	HEAD OIL FILTER (1 required per assembly)
		8M8020569 - Head [ More info ] $78.49 Available to Order: Shipping delay up to 10 days.
#9	8M0138697	FILTER (1 required per assembly) — Replaces: 881132T
		35-8M0138697 - Filter [ More info ] $239.99 Available to Order: Shipping delay up to 10 days.
#10	901921	SCREW (2 required per assembly)
		10-90192 1 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#11	8M2010478	FITTING (2 required per assembly)
		22-8M2010478 - Fitting [ More info ] $26.49 Available to Order: Shipping delay up to 10 days.
#12	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#13	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
#14	8M2006728	BRACKET PRESSURE HOSE MOUNT (1 required per assembly)
		8M2006728 - Bracket [ More info ] $21.99 Available to Order: Shipping delay up to 10 days.
#15	8M2007315	CLAMP TUBE (2 required per assembly)
		54-8M2007315 - Clamp [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#16	8M2007316	PLATE TUBE CLAMP (1 required per assembly)
		8M2007316 - Cover [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#17	78038	SCREW @3 (2 required per assembly)
		10-78038 - Screw - Priced Individually [ More info ] $3.19 1 In Stock.
#18	8M2008285	RETAINER OIL LINE (1 required per assembly)
		8M2008285 - Retainer [ More info ] Unavailable
