Parts for 3.5 HP Carb 4-Stroke Mercury Outboard Motor Fuel Tank All Models-Serial # 0R318095 & Below

Revise Search: Outboard > 4-Stroke Mercury Outboard > 3.5 HP Carb > 0R131842 & Up > Fuel Tank All Models-Serial # 0R318095 & Below

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

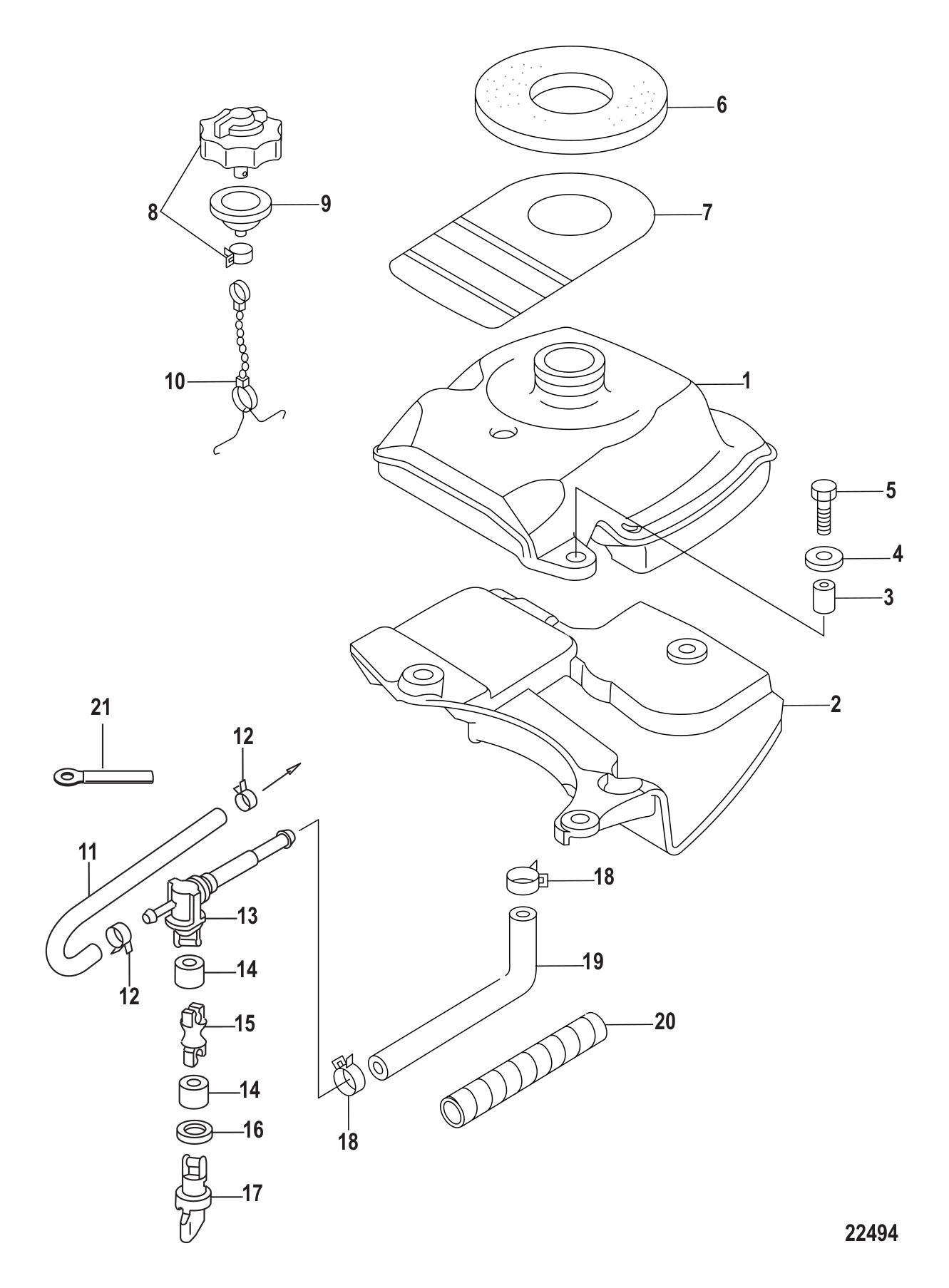

Fuel Tank All Models-Serial # 0R318095 & Below

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0055353	FUEL TANK (1 required per assembly) — Replaces: 889246T43
		1265-8M0055353 - Fuel Tank [ More info ] Unavailable
#2	898103197	COVER (1 required per assembly) — Replaces: 898101339
		898103197 - Cover [ More info ] $19.49 Available to Order: Shipping delay up to 10 days.
#3	853826003	SPACER (3 required per assembly)
		23-853826003 - Spacer [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#4	953921	WASHER (3 required per assembly) — Replaces: 895118002
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#5	16166	BOLT-TH (3 required per assembly) — Replaces: 823042039, 879194250
		10-16166 - BOLT-TH [ More info ] Unavailable
		10-40003 30 - Screw - Priced Individually [ More info ] $2.77 10+ In Stock.
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#6	8M0055355	SEAL (1 required per assembly) — Replaces: 898101349
		268M0055355 - Seal [ More info ] $18.69 Available to Order: Shipping delay up to 10 days.
#7	898101372	DECAL (1 required per assembly)
		37-898101372 - Decal [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#8	8M0126977	CAP-FUEL TANK (1 required per assembly) — Replaces: 878352A2, 8M0058610
		368M0126977 - Fuel Tank Cap [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#9	8M0126977	CAP-FUEL TANK (1 required per assembly) — Replaces: 878353
#10	8M0126977	CAP-FUEL TANK (1 required per assembly) — Replaces: 851845
#11	898101352	HOSE (1 required per assembly)
		32-898101352 - Hose - Fuel [ More info ] $15.79 Available to Order: Shipping delay up to 10 days.
#12	8M0129429	CLIP (2 required per assembly) — Replaces: 851817004, 8M0099020
		54-8M0129429 - Clip [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#13	16240	FUEL COCK ASSY (1 required per assembly)
		22-16240 - Fuel Cock [ More info ] $54.49 Available to Order: Shipping delay up to 10 days.
#14	16242001	HOSE (2 required per assembly) — Replaces: 16242
		32-16242001 - Hose [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#15	898101350	ROD-FUEL COCK (1 required per assembly)
		898101350 - Fuel Cock Rod [ More info ] Unavailable
#16	16244	RUBBER-TH (1 required per assembly)
		16244 - Fuel Cock Rod, Rubber [ More info ] $9.39 1 In Stock.
#17	16243	KNOB-TH (1 required per assembly)
		16243 - Fuel Cock Rod Knob, NLA [ More info ] $17.69 1 In Stock.
#18	803525002	CLIP (2 required per assembly) — Replaces: 898101338
		54803525002 - Clip [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#19	898101351	HOSE (1 required per assembly)
		32-898101351 - Hose - Fuel [ More info ] $20.89 Available to Order: Shipping delay up to 10 days.
#20	895108005	TUBE-SPIRAL (1 required per assembly)
		32-895108005 - Tube - Spiral [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#21	803563005	CLAMP (1 required per assembly) — Replaces: 803563, 8035631
		54-803563005 - Clamp [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
