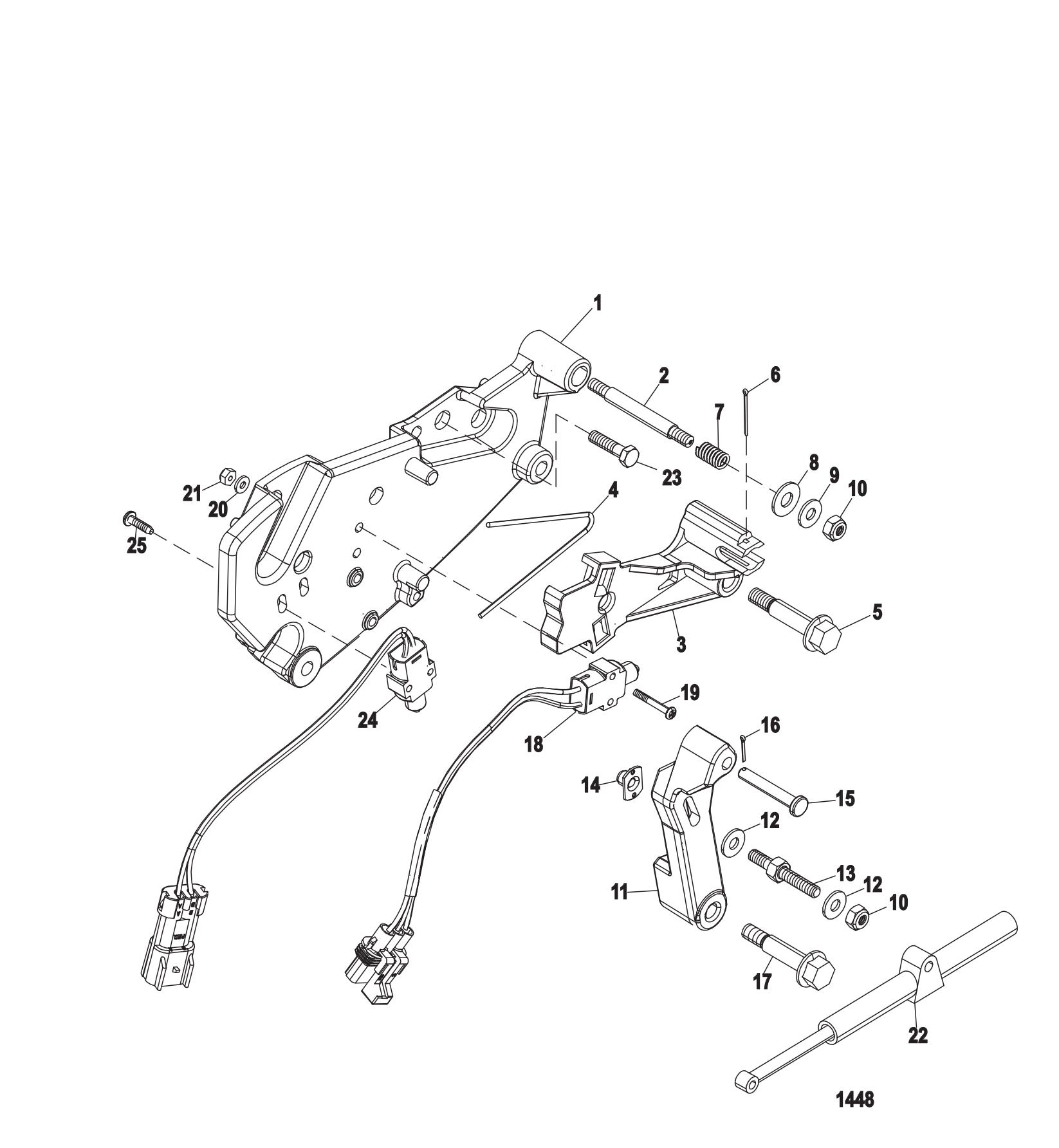

Parts for 350 Mag MPI Horizon Alpha / Bravo 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Shift Bracket (Alpha Engines)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 807962A15 | BRACKET ASSEMBLY SHIFT (1 required per assembly) — Replaces: 807962A10, 807962A14 |
  |
|
807962A15 - Shift Plate Kit [ More info ]
|
| #2 | 865149A02 | STUD (1 required per assembly) — Replaces: 8140021, 865149A01 |
  |
|
865149A02 - Stud [ More info ]
|
| #3 | 865433A02 | LEVER ASSEMBLY ACTUATING (1 required per assembly) — Replaces: 13051A8, 865433A01 |
  |
|
865433A02 - Arm Assembly - Switch [ More info ]
|
| #4 | 862850 | SPRING (1 required per assembly) |
  |
|
24-862850 - Spring [ More info ]
|
| #5 | 8M0207774 | SCREW SHOULDER (1 required per assembly) — Replaces: 13743, 865148 |
  |
|
108M0207774 - SCREW [ More info ]
|
| #6 | 328571 | COTTER PIN COTTER (1 required per assembly) — Replaces: 32857 |
  |
|
[ More info ] Unavailable |
| #7 | 8M0207784 | SPRING (1 required per assembly) — Replaces: 98880 |
  |
|
248M0207784 - SPRING [ More info ]
|
| #8 | 56720 | WASHER (1 required per assembly) |
  |
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
| #9 | 35462 | WASHER @2 (1 required per assembly) |
  |
|
12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ]
|
| #10 | 8267119 | NUT @2 (2 required per assembly) |
  |
|
11-826711 9 - Nut [ More info ]
|
| #11 | 13898A06 | LEVER ASSEMBLY SHIFT (1 required per assembly) — Replaces: 863911A4, 13898A05 |
  |
13898A06 - LEVER ASSY-SHIFT [ More info ] Unavailable |
|
  |
|
13898T06 - Shift Lever Assembly [ More info ]
|
| #12 | 35462 | WASHER (.2656 X .625 X .0625) STAINLESS STEEL (2 required per assembly) |
| #13 | 865393A02 | STUD KIT (.250-28 X 1.90) (1 required per assembly) — Replaces: 961123, 865393A01 |
  |
|
16-865393A02 - Stud Kit [ More info ]
|
| #14 | 63341 | TEE NUT (1 required per assembly) |
  |
|
11-63341 - Nut -tee [ More info ]
|
| #15 | 814001 | PIN CLEVIS (1 required per assembly) |
  |
|
17-814001 - Clevis Pin [ More info ] Unavailable |
| #16 | 210711 | COTTER PIN COTTER (1 required per assembly) — Replaces: 21071 |
  |
|
0210711 [ More info ] Unavailable Replaced by 0210710 |
  |
|
[ More info ] Unavailable |
| #17 | 8M0207774 | SCREW SHOULDER (1 required per assembly) — Replaces: 13743, 865148 |
| #18 | 8M0052935 | SWITCH ASSY SHIFT INTERRUPT (1 required per assembly) — Replaces: 808009A2 |
  |
|
87-8M0052935 - Switch Assembly [ More info ]
|
| #19 | 860077 | SCREW (2 required per assembly) |
  |
|
10-860077 - Screw [ More info ]
|
| #20 | 11303 | WASHER @3 (2 required per assembly) |
  |
|
12-11303 - Washer - Priced Individually [ More info ]
|
| #21 | 8M0207777 | NUT-SS (2 required per assembly) — Replaces: F1669 |
  |
|
11-8M0207777 - NUT-SS [ More info ] Unavailable |
| #22 | 813995A1 | GUIDE ASSEMBLY SPRING (1 required per assembly) |
  |
|
813995A 1 - Spring,Guide Assembly [ More info ]
|
| #23 | 657461 | SCREW @5 (3 required per assembly) |
  |
|
10-65746 1 - Screw [ More info ]
|
| #24 | 8M0052936 | SWITCH ASSEMBLY GEAR INDICATION (1 required per assembly) — Replaces: 808009A3 |
  |
|
87-8M0052936 - Switch Assembly [ More info ]
|
| #25 | 88904 | SCREW (2 required per assembly) |
  |
|
10-88904 - Screw [ More info ]
|
