Parts for 350 Mag MPI Alpha / Bravo Ec 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Water Distribution Housing

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 350 Mag MPI Alpha / Bravo Ec > 1A623185 & Up > Water Distribution Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

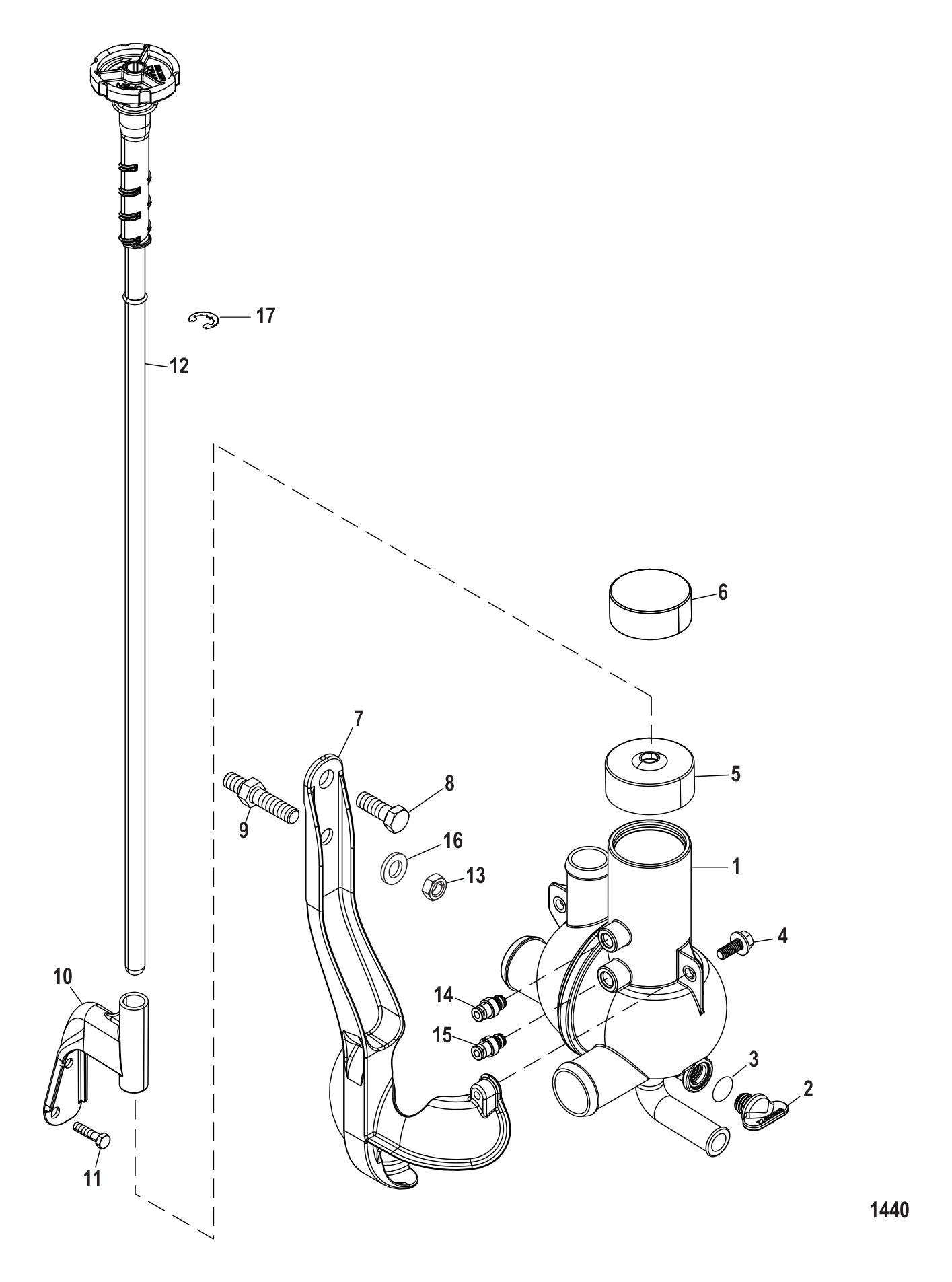

Water Distribution Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	863444T1	HOUSING WATER DISTRIBUTION Single Point Drain (Standard Cooling) (1 required per assembly)
		863444T 1 - Housing Assembly [ More info ] $314.02 2 In Stock.
#1	863444T2	HOUSING WATER DISTRIBUTION Air Actuated Drain (Standard Cooling) (1 required per assembly)
		863444T 2 - Housing Assembly [ More info ] $393.49 Available to Order: Shipping delay up to 10 days.
#1	863631T1	HOUSING WATER DISTRIBUTION 3 Point and 7 Point Drain (Standard Cooling) (1 required per assembly)
		863631T 1 - Housing Assembly [ More info ] $324.49 In Stock
#1	863802T2	HOUSING WATER DISTRIBUTION Air Actuated Drain (Closed Cooling) (1 required per assembly)
		863802T 2 - Housing Assembly [ More info ] $359.49 In Stock
#2	8M0119211	DRAIN PLUG @5 (1 required per assembly) — Replaces: 806608A02
		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $10.19 10+ In Stock.
#3	26802	O-RING (.424 X .103) (1 required per assembly)
		25-26802 - O-ring, (.424 X .103) [ More info ] $2.89 8 In Stock.
#4	8175051	SCREW (3 required per assembly)
		10-817505 1 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#5	863839	COVER Rod Actuated (1 required per assembly)
		863839 - Cover [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#6	863865	COVER-DUST Manual Drain (1 required per assembly)
		863865 - Dust Cover [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#7	863449T	BRACKET WATER DISTRIBUTION HOUSING (1 required per assembly)
		863449T - Bracket [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#8	34353	SCREW @5 (1 required per assembly)
		10-34353 - Screw - Priced Individually [ More info ] $2.59 10+ In Stock.
#9	8M2004610	STUD @5 (1 required per assembly) — Replaces: 805357
		16-8M2004610 - Stud [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#10	863451T	BRACKET WATER DRAIN ACTUATOR (1 required per assembly)
		863451T - Bracket [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#11	34353	SCREW @5 (2 required per assembly)
#12	863381A1	DRAIN ROD ASSY (1 required per assembly)
		863381A 1 - Drain Rod Assembly [ More info ] $45.49 Available to Order: Shipping delay up to 10 days.
#13	32219	NUT @5 (1 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#14	863499	FITTING GRAY AIR VALVE Component of Air Actuated Housing Only (1 required per assembly)
		22-863499 - Fitting - Air [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#15	863467	FITTING ORANGE AIR VALVE Component of Air Actuated Housing Only (1 required per assembly)
		22-863467 - Fitting - Air [ More info ] $15.49 Available to Order: Shipping delay up to 10 days.
#16	35048	LOCKWASHER @5 (1 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#17	863741	E RING (1 required per assembly)
		53-863741 - E Ring [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
