Parts for 350 Mag MPI Alpha / Bravo Ec 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Throttle Body Mechanical

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 350 Mag MPI Alpha / Bravo Ec > 1A623185 & Up > Throttle Body Mechanical

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

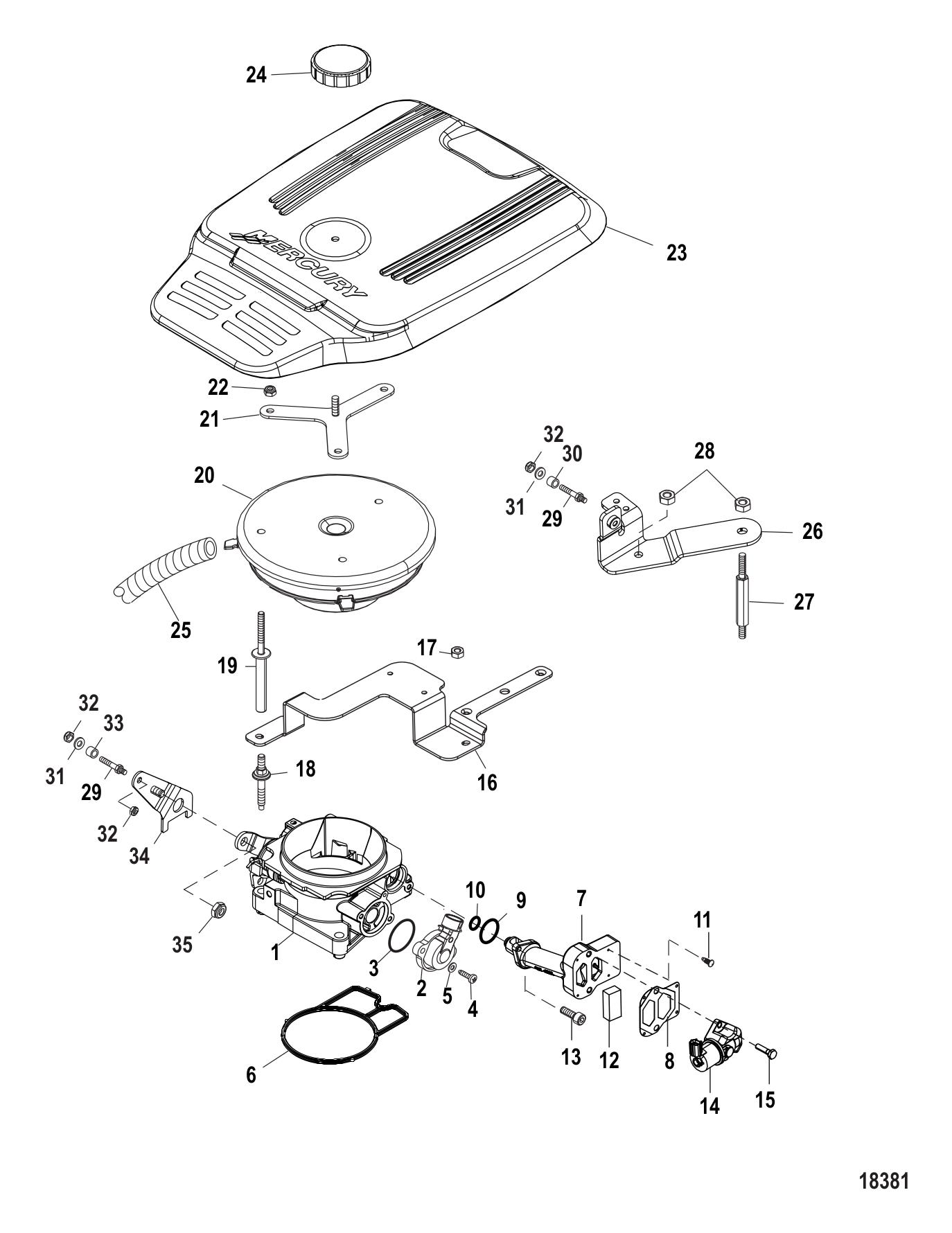

Throttle Body Mechanical

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0096994	THROTTLE BODY (1 required per assembly) — Replaces: 888770T, 8M0069801
		8M0096994 - Throttle Body [ More info ] $460.49 Available to Order: Shipping delay up to 10 days.
#2	8M0097035	SENSOR TPS (1 required per assembly) — Replaces: 853678T
		8M0097035 - Throttle Position Sensor [ More info ] Unavailable
		18-7700 - Throttle Position Sensor, 853678T [ More info ] $143.09 $130.04 1 In Stock.
		8M0221731 - Throttle Position Sensor TPS [ More info ] $128.99 In Stock
#3	NSS	NOT SOLD SEPARATE O-RING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	NSS	NOT SOLD SEPARATE SCREW KIT, TPS (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE O-RING (2 required per assembly)
#6	8M0162949	GASKET THROTTLE BODY (1 required per assembly) — Replaces: 885172, 8M4502066
		27-8M0162949 - Gasket [ More info ] $83.99 Available to Order: Shipping delay up to 10 days.
#7	866295A02	IAC ADAPTOR KIT (1 required per assembly)
		866295A02 - Iac Adaptor Kit [ More info ] $259.99 Available to Order: Shipping delay up to 10 days.
#8	NSS	NOT SOLD SEPARATE GASKET (1 required per assembly)
#9	863006	O-RING (10.82 X 1.78) (1 required per assembly)
		25-863006 - O-ring, Throttle Body [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#10	808547	O-RING (1 required per assembly)
		25-808547 - O-Ring [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#11	NSS	NOT SOLD SEPARATE SCREW-DRIVE (4 required per assembly)
#12	8M2001030	FILTER (1 required per assembly)
		35-8M2001030 - 35-8M2001030 - FILTER [ More info ] Unavailable Replaced by -8M0188226
		35-8M0188226 - FILTER-IAC, Priced Individually [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#13	4008612	SCREW (2 required per assembly)
		10-40086 12 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#14	862998	VALVE-IDLE AIR (1 required per assembly)
		862998 - Idle Air Valve [ More info ] Unavailable
		18-7701 - IAC Idle Air Control Valve, 862998 [ More info ] $147.99 $140.20 3 In Stock.
		1300-36067 - Idle Air Control Valve Sensor [ More info ] $149.99 $114.69 2 In Stock.
		8M0181068 - IAC Idle Air Control Valve [ More info ] $231.49 $222.49 In Stock
#15	4008820	SCREW (2 required per assembly)
		10-40088 20 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#16	863647T	BRACKET (1 required per assembly)
		863647T - Bracket [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#17	401366	NUT @5 (1 required per assembly)
		11-40136 6 - Nut - Priced Individually [ More info ] $3.59 2 In Stock.
#18	8M0088142	STUD (3 required per assembly) — Replaces: 885171
		168M0088142 - Stud [ More info ] $45.99 Available to Order: Shipping delay up to 10 days.
#19	864338	STUD SPECIAL (3 required per assembly)
		16-864338 - Stud -Special [ More info ] $12.69 Available to Order: Shipping delay up to 10 days.
#20	863416T	ARRESTOR-FLAME (1 required per assembly)
		863416T - Flame Arrestor [ More info ] $245.49 In Stock
#21	863423	BRACKET COVER MOUNT (1 required per assembly)
		863423 - Bracket [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#22	401386	NUT @5 (3 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#23	879288T67	COVER-SILVER (1 required per assembly)
		879288T67 - Cover [ More info ] $148.99 Available to Order: Shipping delay up to 10 days.
#24	863701	KNOB ENGINE COVER (1 required per assembly)
		11-863701 - Knob Nut [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#25	8M0086022	HOSE BREATHER (1 required per assembly) — Replaces: 1589424
		32-8M0086022 - Tube-20 Inch [ More info ] $36.49 In Stock
#26	863420T	BRACKET THROTTLE ANCHOR (1 required per assembly)
		863420T - Throttle Bracket [ More info ] $16.39 Available to Order: Shipping delay up to 10 days.
#27	863439	STUD (1 required per assembly)
		16-863439 - Stud [ More info ] $6.59 Available to Order: Shipping delay up to 10 days.
#28	401366	NUT @5 (2 required per assembly)
#29	97477A3	STUD KIT THROTTLE ANCHOR (2 required per assembly)
		16-97477A 3 - Stud Kit [ More info ] $33.19 Available to Order: Shipping delay up to 10 days.
#29	866641A01	STUD KIT THROTTLE ANCHOR (SEACORE) (2 required per assembly)
		16-866641A01 - Stud Kit [ More info ] $15.99 Available to Order: Shipping delay up to 10 days.
#30	31866	SPACER (.256 X .313 X .625) (2 required per assembly)
		23-31866 - Spacer - .26 X .31 X .64 [ More info ] $5.69 10+ In Stock.
#30	11284	SPACER (.62 DIAMETER) (1 required per assembly)
		23-11284 - Spacer - .62 Diameter [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#31	20533	WASHER (2 required per assembly)
		12-20533 - Washer, 9/16 Inch O.D. [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#32	8267139	NUT (.250-28) (3 required per assembly)
		11-826713 9 - Nut [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#32	826709109	NUT (.250-28) STAINLESS STEEL (SEACORE) (3 required per assembly)
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 5 In Stock.
#33	NSS	NOT SOLD SEPARATE SPACER (1 required per assembly)
#34	863417	BRACKET THROTTLE (1 required per assembly)
		863417 - Bracket [ More info ] $23.29 Available to Order: Shipping delay up to 10 days.
#35	8267138	NUT (1 required per assembly)
		11-826713 8 - Nut [ More info ] $2.79 1 In Stock.
#35	826709108	NUT @4 (SEACORE) (1 required per assembly)
		11-826709108 - Nut, (.250-20) Stainless Steel [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
