Parts for 350 Mag MPI Alpha / Bravo Ec 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Closed Cooling System Heat Exchanger

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 350 Mag MPI Alpha / Bravo Ec > 1A623185 & Up > Closed Cooling System Heat Exchanger

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

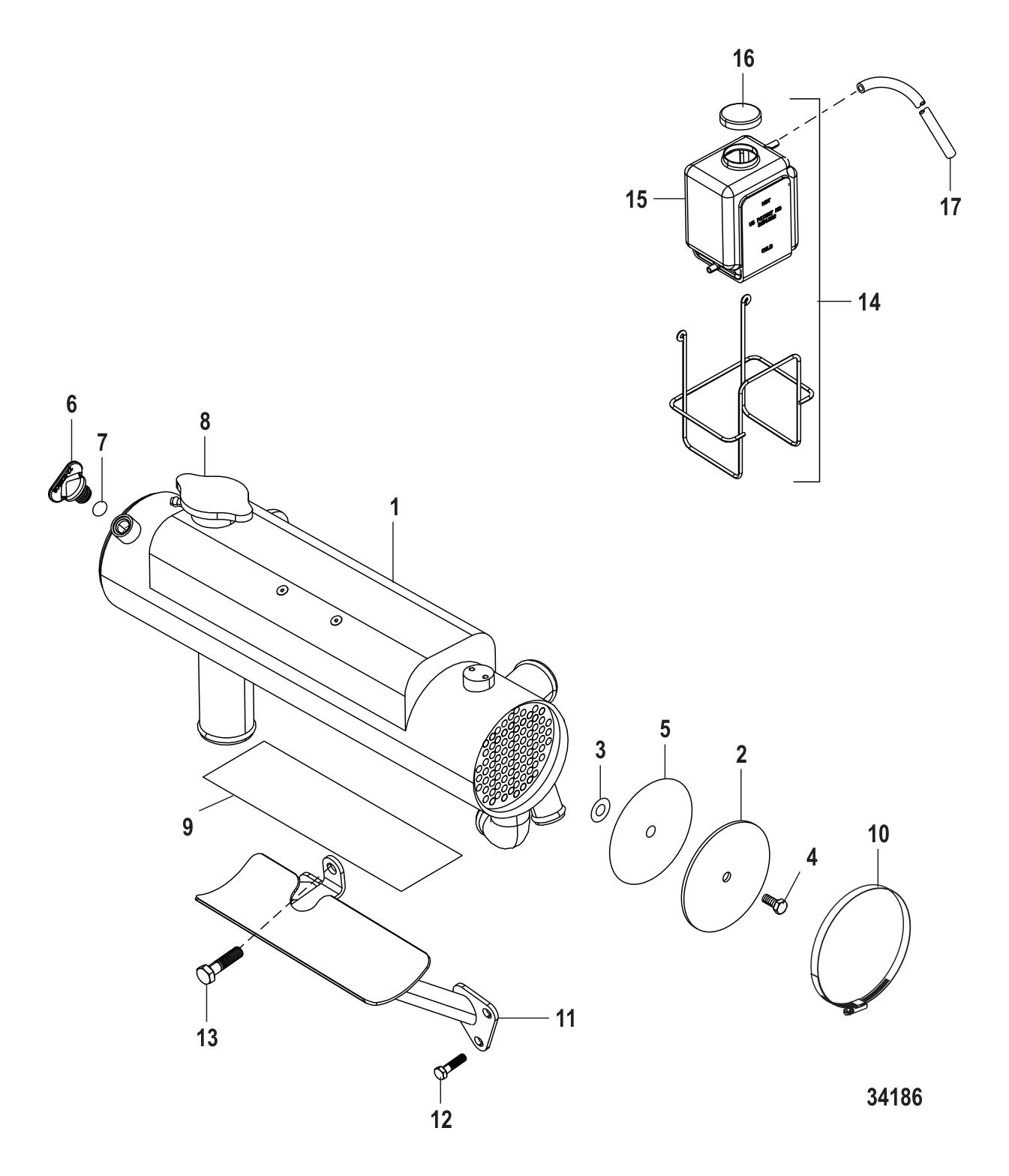

Closed Cooling System Heat Exchanger

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	864395T01	HEAT EXCHANGER CLOSED COOLING (1 required per assembly)
		864395T01 - Heat Exchanger [ More info ] $4,007.99 Available to Order: Shipping delay up to 10 days.
#2	864708	COVER END, HEAT EXCHANGER (2 required per assembly)
		864708 - Heat Exchanger Cover [ More info ] $104.99 Available to Order: Shipping delay up to 10 days.

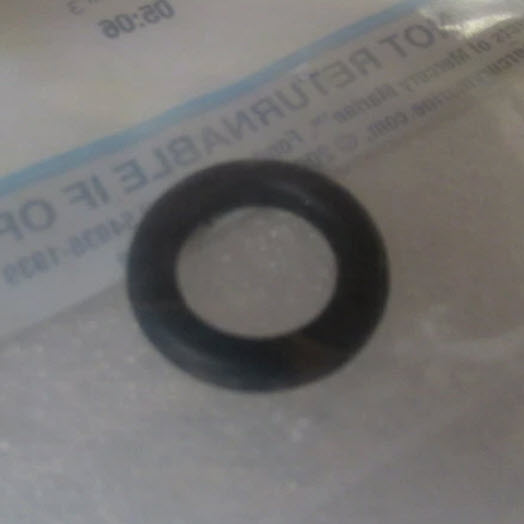

#3	818679	O-RING (4 required per assembly)
		25-818679 - O-Ring - Priced Individually [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#4	94247	SCREW (.375-16 X .750) STAINLESS STEEL (2 required per assembly)
		10-94247 - Screw - Priced Individually [ More info ] $1.50 $0.30 6 In Stock.
#5	8M0084884	SEAL (1 required per assembly) — Replaces: 866152
		25-8M0084884 - Seal [ More info ] $15.89 Available to Order: Shipping delay up to 10 days.
#6	8M0119211	DRAIN PLUG @5 (1 required per assembly) — Replaces: 806608A02
		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $10.19 10+ In Stock.
#7	26802	O-RING (.424 X .103) (1 required per assembly) — Replaces: 8M2000926
		25-26802 - O-ring, (.424 X .103) [ More info ] $2.89 8 In Stock.
#8	8148791	CAP PRESSURE (1 required per assembly)
		36-814879 1 - Pressure Cap [ More info ] $60.49 Available to Order: Shipping delay up to 10 days.
#9	18431	PAD HEAT EXCHANGER (1 required per assembly)
		18431 - Pad [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#10	815504396	CLAMP WORM GEAR HEAT EXCHANGER (1 required per assembly)
		54-815504396 - Clamp [ More info ] $23.79 Available to Order: Shipping delay up to 10 days.
#11	864494T	BRACKET COOLER (1 required per assembly)
		864494T - Heat Exchanger Bracket [ More info ] $471.49 Available to Order: Shipping delay up to 10 days.
#12	34353	SCREW @5 (3 required per assembly)
		10-34353 - Screw - Priced Individually [ More info ] $2.59 10+ In Stock.
#13	805559	SCREW (1 required per assembly)
		10-805559 - Screw [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#14	71587A10	RECOVERY KIT (1 required per assembly)
		71587A10 - Coolant Recovery Kit [ More info ] $97.49 $96.06 In Stock
#15	71587A11	BOTTLE PLASTIC COOLANT RECOVERY KIT (1 required per assembly)
		71587A11 - Coolant Recovery Bottle [ More info ] $74.99 Available to Order: Shipping delay up to 10 days.
#16	72058	CAP COOLANT RECOVERY BOTTLE (1 required per assembly)
		72058 - Bottle Cap [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#17	1983389	HOSE (INCLUDED WITH COOLANT RECOVERY KIT) (1 required per assembly)
		32-19833 89 - Hose [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
