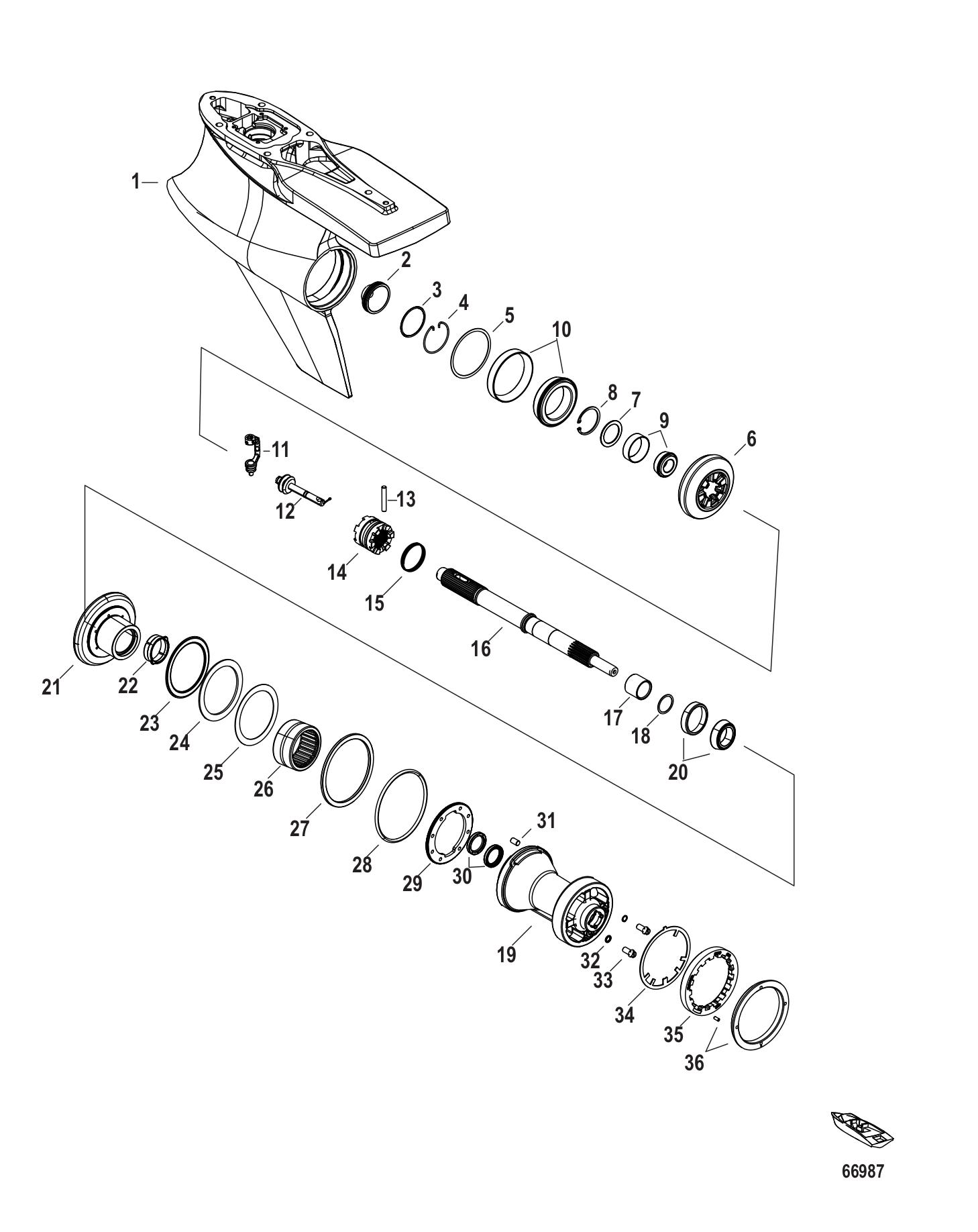

Parts for 250r HP 4.6L V8 Racing 4-Stroke Mercury Outboard Motor Gear Housing, Prop Shaft-Standard Rotation, Sport Master, 1.60
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 8M0142979 | GEARCASE SEAL KIT (1 required per assembly) |
  |
|
98-8M0142979 - GEARCASE SEAL KIT [ More info ] Unavailable |
| #- | 8M0166389 | GC SM 1.60 L CAMB (1 required per assembly) |
  |
|
1600-8M0166389 - 1600-8M0166389 - GC SM 1.60 L CAMB [ More info ] Unavailable Replaced by -8M0236328 |
  |
|
1600-8M0236328 - GC SM 1.60 L CMB [ More info ] Unavailable |
| #- | 8M0166390 | GC SM 1.60 L (1 required per assembly) |
  |
|
1600-8M0166390 - 1600-8M0166390 - GC SM 1.60 L [ More info ] Unavailable Replaced by -8M0236329 |
  |
|
1600-8M0236329 - GC SM 1.60 L [ More info ] Unavailable |
| #1 | 8M0168313 | GEAR HOUSING ASSEMBLY BASIC SPORT MASTER CAMBERED SKEG SILVER (1 required per assembly) |
  |
|
16008M0168313 - GC SM BASIC CAMB [ More info ]
|
| #1 | 8M0168312 | GEAR HOUSING ASSEMBLY BASIC SPORT MASTER SILVER (1 required per assembly) |
  |
|
16008M0168312 - GC SM BASIC SLVR [ More info ]
|
| #2 | 8M0157111 | PLUG TORPEDO (1 required per assembly) |
  |
|
198M0157111 - TORPEDO PLUG [ More info ]
|
| #3 | 8M0046563 | RETAINING RING (1 required per assembly) |
  |
|
53-8M0046563 - Retainer Ring [ More info ]
|
| #4 | 880719 | RING RETAINING (1 required per assembly) |
  |
|
53-880719 - Ring - Retaining [ More info ]
|
| #5 | 8M0063270 | SHIM SET (1 required per assembly) |
  |
|
158M0063270 - Shim Set [ More info ]
|
| #6 | 8M0158926 | GEAR SET 1.60 REV/FWD/PINION (1 required per assembly) |
  |
|
43-8M0158926 - GEAR SET [ More info ] Unavailable |
| #7 | 8M0053823 | THRUST WASHER (1 required per assembly) |
  |
|
128M0053823 - Washer [ More info ]
|
| #8 | 8M0051043 | RETAINING RING (1 required per assembly) |
  |
|
53-8M0051043 - Retainer Ring [ More info ]
|
| #9 | 8M0142835 | BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884325T01 |
  |
|
318M0142835 - Bearing ROLLER [ More info ]
|
| #10 | 8M0142836 | BEARING ROLLER TAPERED (1 required per assembly) — Replaces: 884323T01 |
  |
|
318M0142836 - Bearing ROLLER [ More info ]
|
| #11 | 8M0046215 | CRANK, SHIFTER 1/4 PIVOT PIN (1 required per assembly) |
  |
8M0046215 - Crank- Shift Assembly [ More info ] Unavailable |
|
  |
|
8M0220880 - CRANK-SHIFT ASSY [ More info ] Unavailable |
| #12 | 8M0163111 | SPOOL ASSEMBLY (1 required per assembly) — Replaces: 8M0142857 |
  |
8M0163111 - SPOOL ASSEMBLY [ More info ] Unavailable |
|
  |
|
8M0235942 - 8M0235942 - SPOOL ASSEMBLY [ More info ] Unavailable Replaced by -8M0242491 |
  |
|
8M0242491 - SPOOL ASSEMBLY [ More info ] Unavailable |
| #13 | 8M0045493 | PIN (1 required per assembly) |
  |
|
17-8M0045493 - Pin-CROSS [ More info ]
|
| #14 | 8M0142871 | CLUTCH SLIDING 6 JAW (1 required per assembly) |
  |
|
528M0142871 - Clutch SLIDING 6 [ More info ]
|
| #15 | 8M0050575 | SPRING (1 required per assembly) |
  |
|
24-8M0050575 - Spring-Pin RETAIN [ More info ]
|
| #16 | 8M0156191 | SHAFT PROPELLER (1 required per assembly) |
  |
|
44-8M0156191 - SHAFT PROPELLER [ More info ] Unavailable |
| #17 | 8M0064306 | SPACER (1 required per assembly) |
  |
|
238M0064306 - Spacer-Thrust [ More info ]
|
| #18 | 8M0050434 | WASHER .040 (1 required per assembly) |
  |
|
12-8M0050434 - Shim-.040 , Priced Individually [ More info ]
|
| #19 | 8M0117238 | CARRIER ASSEMBLY BEARING (1 required per assembly) |
  |
|
8M0117238 - Bearing Carrier [ More info ]
|
| #20 | 8M0148319 | BEARING CUP/CONE (1 required per assembly) |
  |
|
318M0148319 - Bearing CUPCone [ More info ]
|
| #21 | 8M0158926 | GEAR SET 1.60 REV/FWD/PINION (1 required per assembly) |
| #22 | 8M0053183 | ADAPTER (1 required per assembly) |
  |
|
8M0053183 - Adaptor [ More info ]
|
| #23 | 8M0050692 | BEARING (1 required per assembly) |
  |
|
31-8M0050692 - Thrust Bearing [ More info ]
|
| #24 | 8M0050688 | WASHER (1 required per assembly) |
  |
|
12-8M0050688 - Thrust Washer [ More info ]
|
| #25 | 8M0053116 | SHIM SET (1 required per assembly) |
  |
|
15-8M0053116 - Shim Set [ More info ]
|
| #26 | 8M0050704 | BEARING NEEDLE (1 required per assembly) |
  |
|
31-8M0050704 - Roller Bearing [ More info ]
|
| #27 | 8M0161546 | THRUST RING (1 required per assembly) — Replaces: 8M0046569 |
  |
|
128M0161546 - RING THRUST [ More info ]
|
| #28 | 8M0000190 | O-RING (4.475 X .210) (1 required per assembly) |
  |
|
25-8M0000190 - O-ring, (4.475 X .210) [ More info ]
|
| #29 | 8M0056639 | RING RETAINER (1 required per assembly) |
  |
|
538M0056639 - Retainer Ring [ More info ]
|
| #30 | 8M0204700 | SEAL-OIL (2 required per assembly) — Replaces: 888483 |
  |
|
268M0204700 - SEAL-OIL [ More info ]
|
| #31 | 8M0109164 | PIN (1 required per assembly) |
  |
|
178M0109164 - PIN [ More info ]
|
| #32 | 8M0204693 | SEAL @6 (2 required per assembly) — Replaces: 830749 |
  |
|
26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ]
|
  |
|
10-10100-1 - Drain Screw Washer 830749 [ More info ]
|
| #33 | 8M0071653 | SCREW SPECIAL (2 required per assembly) |
  |
|
108M0071653 - Screw [ More info ]
|
| #34 | 8M0108527 | WASHER TAB (1 required per assembly) |
  |
|
148M0108527 - Washer-TAB [ More info ]
|
| #35 | 8M0162798 | RETAINER BEARING CARRIER (1 required per assembly) — Replaces: 8M0111653 |
  |
|
8M0162798 - RETAINER BEARING [ More info ] Unavailable |
| #36 | 8M0180306 | COVER TORPEDO (1 required per assembly) — Replaces: 8M0050821 |
  |
|
8M0180306 - COVER TORPEDO [ More info ]
|
