Parts for 350 Mag MPI Alpha / Bravo 5.7L (350 Cu In) V8 GM MerCruiser Engines - Gas Sea Water Pump Assembly

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.7L (350 Cu In) V8 GM > 350 Mag MPI Alpha / Bravo > 0M600000 - 0W059999 > Sea Water Pump Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Sea Water Pump Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0118067	SEA PUMP ASSEMBLY (Without Air Fittings) (1 required per assembly) — Replaces: 862914T3, 862914T10
		46-8M0118067 - Sea Pump Assembly [ More info ] Unavailable
		46-8M0122655 - W Pump SEA W/O AIR 4.3 6.2 MZ [ More info ] Unavailable
		46-8M0137216 - Sea Pump Kit [ More info ] Unavailable
		46-8M0139995 - Sea Water Pump Kit [ More info ] $668.49 Available to Order: Shipping delay up to 10 days.
		46-46302 - Sea Water Pump with Pulley 46-8M0139995 [ More info ] $549.99 $420.53 1 In Stock.
#-	8M0118068	SEA PUMP ASSEMBLY (With Air Fittings) (1 required per assembly) — Replaces: 862914T4, 862914T11
		46-8M0118068 - SEA Water Pump W/AIR FIT MZ [ More info ] Unavailable
		46-8M0122657 - 46-8M0122657 - SEA PUMP KIT [ More info ] Unavailable Replaced by -8M0137217
		46-8M0137217 - Sea Pump [ More info ] Unavailable
		46-8M0139996 - Sea Water Pump Kit [ More info ] $1,072.99 Available to Order: Shipping delay up to 10 days.
		46-46303 - Water Pump Assembley with Pulley [ More info ] $899.99 $802.84 1 In Stock.
#1	8M0139984	HOUSING ASSEMBLY IMPELLER (1 required per assembly) — Replaces: 862914A13, 8M0118062
		8M0139984 - Impeller Housing [ More info ] $542.99 In Stock
		18-32888 - Sea Water Pump Repair Kit [ More info ] $132.09 $130.36 8 In Stock.
		18-3160-1 - Sea Water Pump, 46-862914A13 [ More info ] $376.71 $353.37 Available to Order: Shipping delay up to 10 days.
		46-46301 - Sea Water Pump Assembly [ More info ] $389.99 $298.20 Available to Order: Shipping delay up to 10 days.
#2	8M0104229	IMPELLER KIT (1 required per assembly) — Replaces: 862232A2
		47-8M0104229 - Impeller Kit, Sea Water Pump [ More info ] $52.49 3 In Stock.
		18-3016-1 - Impeller Kit, 47-862232A2 [ More info ] $34.49 $33.66 10+ In Stock.
		47-09201 - Impeller Kit, 8M0104229 [ More info ] $33.99 $31.09 2 In Stock.
#3	841807	O-RING (3.500 X .103) (1 required per assembly)
		25-841807 - O-ring, (3.500 X .103) [ More info ] $5.79 5 In Stock.
#4	8M0146317	SEAL OIL (1 required per assembly) — Replaces: 862037, 8M2001645
		268M0146317 - Seal [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#5	8M0140001	DRIVESHAFT ASSEMBLY KIT (1 required per assembly) — Replaces: 862235A1, 8M0050018
		8M0140001 - Impeller Driveshaft Kit [ More info ] $135.99 $134.27 In Stock
#6	862039	TOLERANCE RING (1 required per assembly)
		862039 - Tolerance Ring [ More info ] $27.13 1 In Stock.
#7	862040	SEAL LIP (1 required per assembly)
		26-862040 - Seal [ More info ] $10.59 Available to Order: Shipping delay up to 10 days.
#8	863674A05	COVER KIT IMPELLER HOUSING (WITH AIR FITTINGS) (1 required per assembly)
		863674A05 - Impeller Housing Cover [ More info ] $519.99 Available to Order: Shipping delay up to 10 days.
#9	862776A01	COVER KIT IMPELLER HOUSING (WITHOUT AIR FITTINGS) (1 required per assembly)
		862776A01 - Impeller Housing Cover [ More info ] $140.49 In Stock
#10	8M0119211	PLUG ASSEMBLY (.500-13) BLUE (2 required per assembly) — Replaces: 806608A1, 806608A02
		22-8M0119211 - Drain Plug, Priced Individually, .5 inch x 13 [ More info ] $10.19 10+ In Stock.
#11	32509	O-RING (.489 X .070) (2 required per assembly)
		25-32509 - O-ring, (.489 X .070) [ More info ] $2.39 10+ In Stock.
		18-7165-9 - O-Ring (PK5) , 0304174 [ More info ] $10.38 Available to Order: Shipping delay up to 10 days.
#12	4000328	SCREW (M6 X 16) (4 required per assembly)
		10-40003 28 - Screw [ More info ] Unavailable
		10-8M0214928 - SCREW [ More info ] $4.09 1 In Stock.

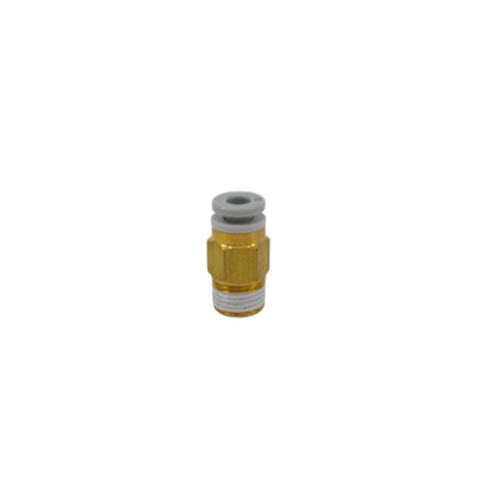

#13	8M0082319	FITTING GRAY - STRAIGHT (5/32) (Component of T-4 Pump) (1 required per assembly) — Replaces: 863718
		228M0082319 - Fitting [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#14	8M0082320	FITTING ORANGE - STRAIGHT (3/16) (Component of T-4 Pump) (1 required per assembly) — Replaces: 863719
		228M0082320 - Fitting [ More info ] $12.99 Available to Order: Shipping delay up to 10 days.
#15	4000331	SCREW (M6 X 30) (2 required per assembly)
		10-40003 31 - Screw [ More info ] $3.79 6 In Stock.
#16	865143T01	BRACKET SEA WATER PUMP (1 required per assembly) — Replaces: 865143T
		865143T01 - Bracket - Sea Pump [ More info ] $91.99 In Stock
#17	4000331	SCREW (M6 X 30) (1 required per assembly)
#18	8M0150724	PULLEY-SEA PUMP (1 required per assembly) — Replaces: 862351T
		8M0150724 - SeaWater Pump Pulley [ More info ] $124.49 $119.99 In Stock
#19	863853	STUD (2 required per assembly)
		16-863853 - Stud [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#20	82671112	NUT @2 (2 required per assembly)
		11-826711 12 - Nut, (.375-16) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#21	32132	SCREW (1 required per assembly)
		10-32132 - Screw [ More info ] $2.99 4 In Stock.
#22	35048	LOCKWASHER @5 (1 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
