Parts for 5.0L MPI Alpha / Bravo 5.0L (305 Cu In) V8 GM MerCruiser Engines - Gas Standard Cooling System - Axius

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.0L (305 Cu In) V8 GM > 5.0L MPI Alpha / Bravo > 1A611928 - 1A623184 > Standard Cooling System - Axius

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

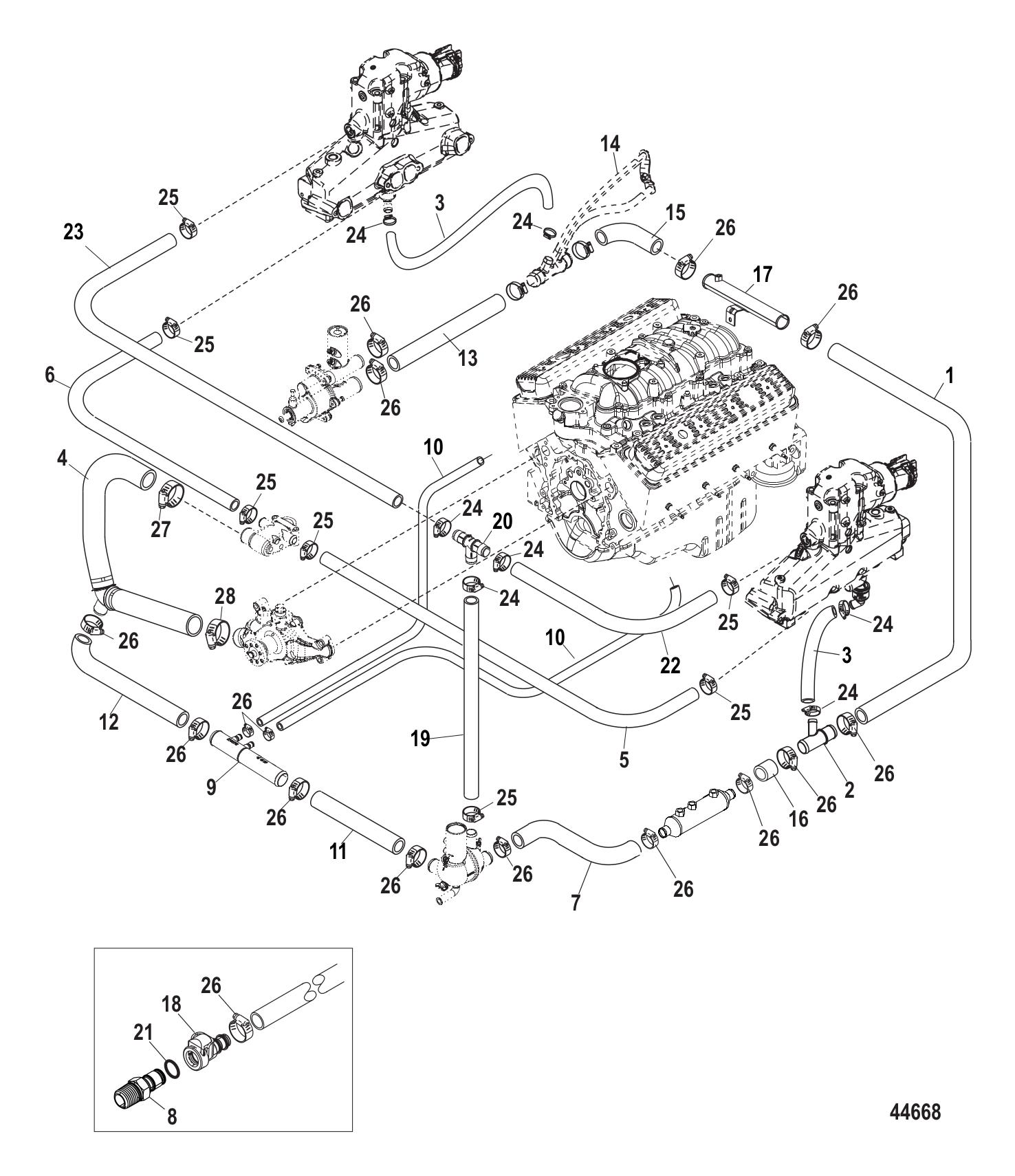

Standard Cooling System - Axius

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M2012039	HOSE COOLING TUBE TO Y-FITTING (1 required per assembly)
		32-8M2012039 - Hose - Cooling Tube To Y Fitting [ More info ] $59.99 Available to Order: Shipping delay up to 10 days.
#2	862993	FITTING-WATER (1 required per assembly)
		22-862993 - Fitting - Water [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#3	8M0062634	HOSE 44.00 INCH BULK EXHAUST MANIFOLD TO ORIFICE FITTING Starboard, Cut to 3.5 Inches (1 required per assembly) — Replaces: 4285069
		32-8M0062634 - Transom to Thermostat Housing Hose -44I [ More info ] $40.99 In Stock
#4	863456A1	HOSE ASSEMBLY THERMOSTAT HOUSING TO CIRCULATING PUMP (1 required per assembly)
		32-863456A 1 - Hose [ More info ] $112.99 $111.22 In Stock
#5	863458	HOSE THERMOSTAT HOUSING TO PORT MANIFOLD (1 required per assembly)
		32-863458 - Hose - Thermostat Housing To Port Manifold [ More info ] $63.49 Available to Order: Shipping delay up to 10 days.
#6	863459	HOSE THERMOSTAT HOUSING TO STARBOARD MANIFOLD (1 required per assembly)
		32-863459 - Hose - Thermostat Housing To Starboard Manifold [ More info ] Unavailable
#7	8M2007277	HOSE COOLER TO ACCUMULATOR (1 required per assembly)
		32-8M2007277 - Hose [ More info ] $10.89 Available to Order: Shipping delay up to 10 days.
#8	8M0180470	ADAPTOR-QUICK CNT MALE QUICK CONNECTOR, THREADED - ENGINE BLOCK (2 required per assembly) — Replaces: 862603
		228M0180470 - Adaptor-QUICK CNT [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#9	864989A01	FITTING ASSEMBLY LOWER DISTRIBUTION (1 required per assembly)
		22-864989A01 - Drain Fitting Assembly [ More info ] Unavailable
		22-8M0219211 - FITTING-DRAIN ASY [ More info ] Unavailable
#10	8M0062590	HOSE (24 INCH) CYLINDER BLOCK DRAIN TO DISTRIBUTION FITTING Port Cut to 23 Inches, Starboard 17 Inches (2 required per assembly) — Replaces: 8623175
		32-8M0062590 - Hose=3/8 Push Lck [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#11	863490	HOSE WATER DRAIN ACCUMULATOR TO DISTRIBUTION FITTING (1 required per assembly)
		32-863490 - Hose - Distribution Fitting To Accumulator Housing [ More info ] $42.99 Available to Order: Shipping delay up to 10 days.
#12	865394	HOSE (1 required per assembly)
		32-865394 - Hose [ More info ] $100.49 Available to Order: Shipping delay up to 10 days.
#13	8M2021656	HOSE SEA PUMP TO WATER ORIFICE 3 Point Manual Drain (1 required per assembly) — Replaces: 865337
		32-8M2021656 - Hose [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#13	865234	HOSE SEA PUMP TO WATER ORIFICE Single Point Air Actuated Drain (1 required per assembly)
		32-865234 - Hose - Sea Water Pump To Water Orifice [ More info ] $30.49 Available to Order: Shipping delay up to 10 days.
#14	NA	NOT AVAILABLE ORIFICE METER (See Cool Fuel System -Bravo page for service part number) (1 required per assembly)
		NA - NOT AVAILABLE [ More info ] Unavailable
#15	8M2021655	HOSE WATER ORIFICE TO POWER STEERING COOLER (1 required per assembly) — Replaces: 865235
		32-8M2021655 - Hose [ More info ] $81.49 Available to Order: Shipping delay up to 10 days.
#16	8M2007277	HOSE Y-FITTING TO COOLER (1 required per assembly)
#17	863841T	TUBE WATER BRASS Compact Hydraulic Steering (1 required per assembly)
		863841T - Tube - Extender [ More info ] $166.49 Available to Order: Shipping delay up to 10 days.
#18	862225	FITTING PUSHLOCK - BLOCK DRIAN HOSE (4 required per assembly)
		22-862225 - Coupling Assembly [ More info ] $19.09 2 In Stock.
#19	863465	HOSE DRAIN ACCUMULATOR TO TEE FITTING (1 required per assembly)
		32-863465 - Hose - Drain Accumulator To Tee Fitting [ More info ] $95.49 Available to Order: Shipping delay up to 10 days.
#20	863464	FITTING TEE Bravo Only (1 required per assembly)
		22-863464 - Fitting-T [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#21	627021	O-RING @2 (2 required per assembly)
		25-62702 1 - O-Ring [ More info ] $1.70 10+ In Stock.
#22	864560	HOSE TEE FITTING TO PORT ELBOW Non Riser, 1.7 Inch and 3 Inch Riser (1 required per assembly)
		32-864560 - Hose - Tee Fitting To Port Elbow [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
#22	864965	HOSE TEE FITTING TO PORT ELBOW 4.7 Inch and 6 Inch Riser (1 required per assembly)
		32-864965 - Hose [ More info ] $44.55 1 In Stock.
#23	864561	HOSE TEE FITTING TO STARBOARD ELBOW Non Riser, 1.7 Inch and 3 Inch Riser (1 required per assembly)
		32-864561 - Hose - Tee Fitting To Starboard Elbow [ More info ] $51.99 Available to Order: Shipping delay up to 10 days.
#23	864966	HOSE TEE FITTING TO STARBOARD ELBOW 4.7 Inch and 6 Inch Riser (1 required per assembly)
		32-864966 - Hose [ More info ] $48.49 Available to Order: Shipping delay up to 10 days.
#24	815504212	CLAMP (2 required per assembly)
		54-815504212 - Clamp [ More info ] Unavailable
#25	815504216	CLAMP (AR required per assembly)
		54-815504216 - Clamp [ More info ] Unavailable
#26	815504228	CLAMP (2 required per assembly)
		54-815504228 - Clamp [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
		54-8M0232395 - CLAMP HOSE [ More info ] Unavailable
#27	815504232	CLAMP (1 required per assembly) — Replaces: 8M2001490
		54-815504232 - Clamp [ More info ] $8.89 10+ In Stock.
#28	815504232	CLAMP (AR required per assembly)
