Parts for 250 HP 4.6L V8 Seapro 4-Stroke Mercury Outboard Motor Power Trim / Transom Assembly

Revise Search: Outboard > 4-Stroke Mercury Outboard > 250 HP 4.6L V8 Seapro > 2B529482 & Up - USA > Power Trim / Transom Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

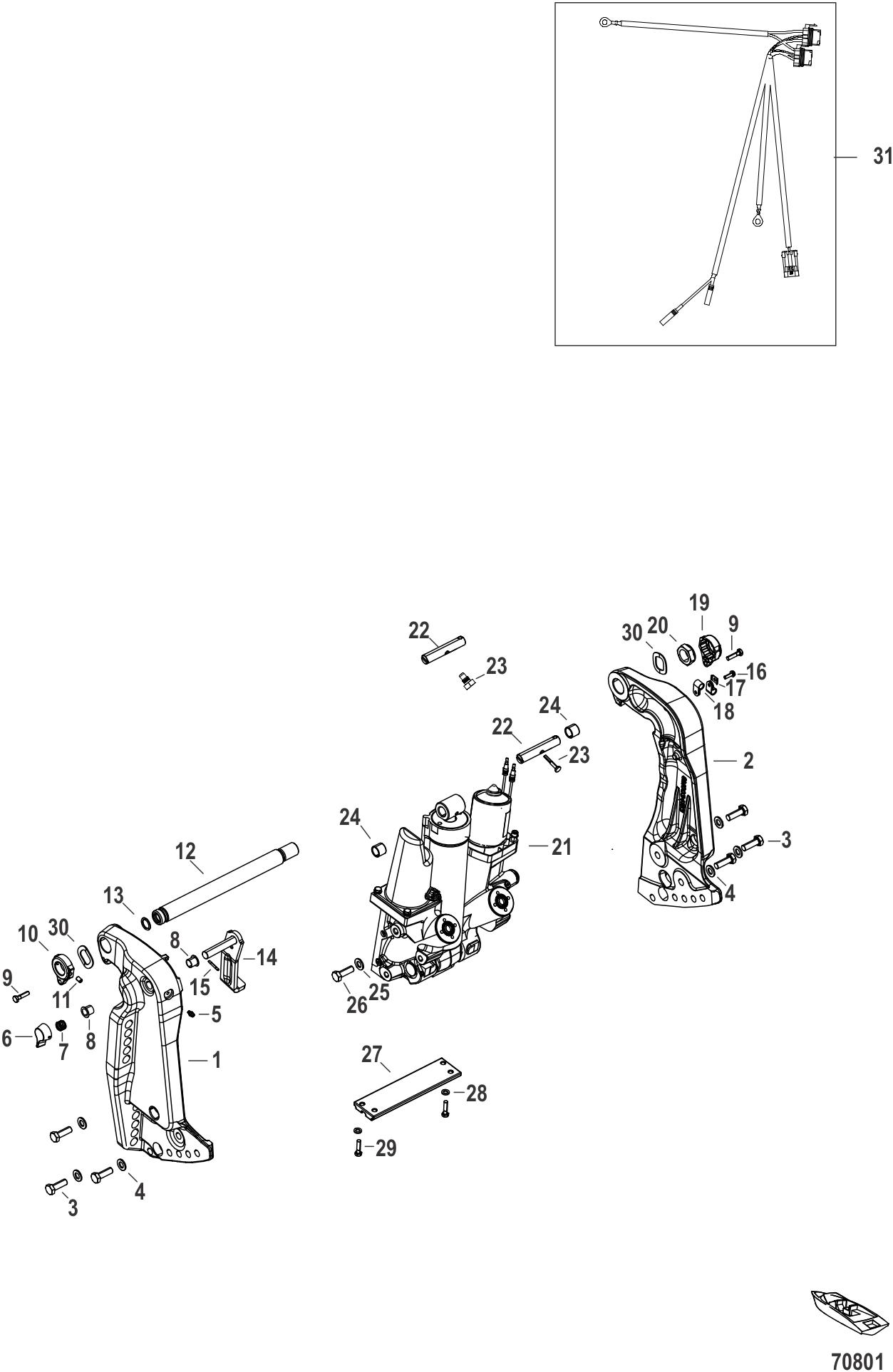

Power Trim / Transom Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0142800	TRANSOM BRACKET P Black (1 required per assembly)
		14008M0142800 - Transom Bracket P [ More info ] $167.49 Available to Order: Shipping delay up to 10 days.
#1	8M0156255	TRANS BRACK PRT S Silver (1 required per assembly)
		1400-8M0156255 - TRANS BRACK PRT S [ More info ] Unavailable
#2	8M0142801	TRANSOM BRACKET S Black (1 required per assembly)
		14008M0142801 - Transom Bracket S [ More info ] $164.49 Available to Order: Shipping delay up to 10 days.
#2	8M0156256	TRANS BRCT STBD S Silver (1 required per assembly)
		1400-8M0156256 - TRANS BRCT STBD S [ More info ] Unavailable
#3	858771	SCREW (6 required per assembly)
		10-858771 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#4	4002319	WASHER @3 (6 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.19 7 In Stock.
#5	8M0169588	FITTING (1 required per assembly) — Replaces: 98727
		22-8M0169588 - FITTING [ More info ] Unavailable
#6	99633	KNOB (1 required per assembly)
		99633 - Tilt Lock Lever Knob [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#7	830900	SPRING (1 required per assembly)
		24-830900 - Spring, Compression [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#8	65830	NYLINER (2 required per assembly)
		23-65830 - NyLiner [ More info ] $5.69 1 In Stock.
#9	8M0204707	SCREW @5 (2 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#10	8M0146189	NUT BLACK (1 required per assembly)
		118M0146189 - NUT BLACK [ More info ] $45.83 1 In Stock.
#10	8M0146190	NUT SILVER (1 required per assembly)
		11-8M0146190 - NUT SILVER [ More info ] Unavailable
#11	8M0142811	SCREW (1 required per assembly)
		108M0142811 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#12	8M0147844	TILT TUBE (1 required per assembly)
		8M0147844 - Tilt Tube [ More info ] $79.99 Available to Order: Shipping delay up to 10 days.
#13	8M0142810	O RING (1 required per assembly)
		258M0142810 - O-Ring [ More info ] $0.40 Available to Order: Shipping delay up to 10 days.
#14	8M0115104	LEVER ASSY (1 required per assembly)
		8M0115104 - Lever [ More info ] $57.99 Available to Order: Shipping delay up to 10 days.
#15	99615	PIN-GROOVE (1 required per assembly)
		17-99615 - Pin, Groove [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#16	878609	SCREW (1 required per assembly)
		10-878609 - Screw [ More info ] $2.59 4 In Stock.
#17	8M0084613	WASHER (1 required per assembly)
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#18	22740	CLIP (2 required per assembly)
		54-22740 - Clip [ More info ] $5.09 2 In Stock.
#19	8M0142809	BRACKET TILT Black (1 required per assembly)
		8M0142809 - Bracket TILT [ More info ] $30.59 Available to Order: Shipping delay up to 10 days.
#19	8M0147678	BRACKET TILT TUBE Silver (1 required per assembly)
		8M0147678 - Bracket Tilt Tube [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
#20	826164	NUT @2 (1 required per assembly)
		11-826164 - Nut (7/8-14) [ More info ] Unavailable
		11-8M0231351 - NUT @2 [ More info ] Unavailable
#21	8M0164977	POWER TRIM ASSY (1 required per assembly) — Replaces: 8M0142341
		8M0164977 - Power Trim Assembly [ More info ] Unavailable
		POWER TRIM ASSY [ More info ] $3,079.99 Available to Order: Shipping delay up to 10 days.
#22	8M0161312	PIN ROD EYE Pin Trilobe Design (1 required per assembly) — Replaces: 8M0094889
		178M0161312 - PIN ROD EYE [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#22	8M0164978	PIN ROD EYE Screw Design (1 required per assembly)
		17-8M0164978 - 17-8M0164978 - PIN ROD EYE [ More info ] Unavailable Replaced by -8M0230946
		8M0230946 - PIN ROD EYE KIT [ More info ] Unavailable
#23	821539	PIN-TRILOBE (1 required per assembly)
		17-821539 - Pin, Trilobe, Groove [ More info ] $6.29 10+ In Stock.
#23	8M0177279	SCREW (1 required per assembly) — Replaces: 8M0050058
		108M0177279 - SCREW [ More info ] $11.39 Available to Order: Shipping delay up to 10 days.
#24	821207	BUSHING (2 required per assembly)
		23-821207 - Bushing [ More info ] $12.79 4 In Stock.
#25	4002319	WASHER @3 (1 required per assembly)
#26	858771	SCREW (1 required per assembly)
#27	818298Q1	ANODE KIT(ALUM) (1 required per assembly)
		97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ] $25.49 4 In Stock.
		18-6249A - Anode, Aluminum, 18-6249A [ More info ] $23.09 $22.96 In Stock
		18-6249 - Zinc Anode, 818298A1 [ More info ] $25.05 1 In Stock.
		97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ] $27.99 $27.92 Available to Order: Shipping delay up to 10 days.
#28	8M0204649	WASHER @10 (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#29	8M0204707	SCREW @5 (2 required per assembly) — Replaces: 4000330
#30	88750	WASHER (2 required per assembly)
		13-88750 - Wave Washer - Priced Individually [ More info ] $6.79 10+ In Stock.
#31	8M0142682	HARNESS TRIM (1 required per assembly)
		848M0142682 - Harness TRIM [ More info ] $53.49 Available to Order: Shipping delay up to 10 days.
