Parts for 5.0L EFI GM 305 V-8 5.0L (305 Cu In) V8 GM MerCruiser Engines - Gas Flywheel Housing (with Blacktrac)

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.0L (305 Cu In) V8 GM > 5.0L EFI GM 305 V-8 > 1998 0L012052 - 0L339999 > Flywheel Housing (with Blacktrac)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

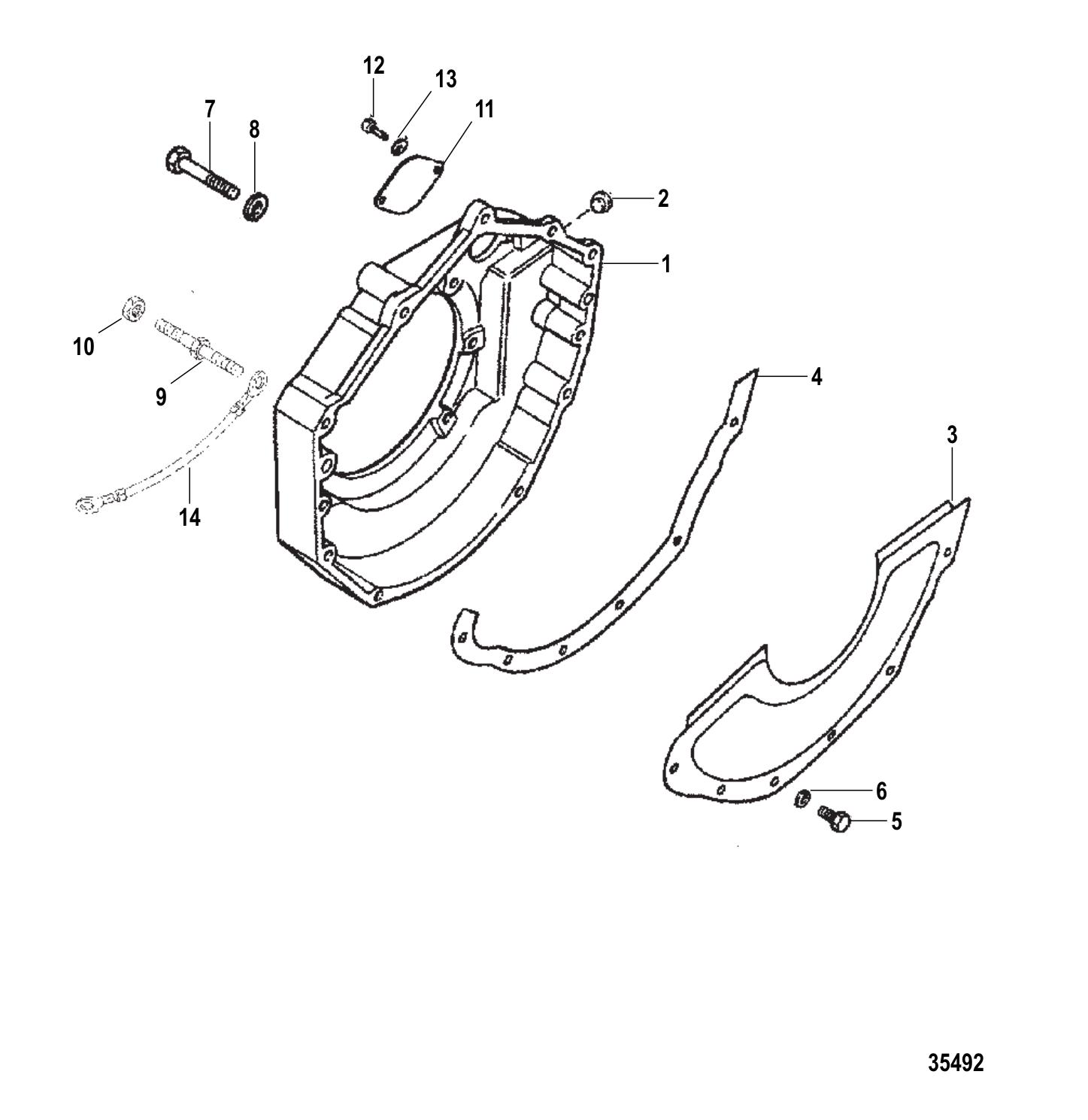

Flywheel Housing (with Blacktrac)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	814309A1	HSG ASSY-FLYWHEEL (1 required per assembly)
		814309A 1 - Flywheel Housing Assembly [ More info ] $533.99 Available to Order: Shipping delay up to 10 days.
		MC-24-44187 - Bellhousing [ More info ] $473.00 $362.70 Available to Order: Shipping delay up to 10 days.
#2	12304	PLUG (1 required per assembly)
		19-12304 - Plug [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#3	818718A3	COVER ASSY (1 required per assembly)
		818718A 3 - Cover Assembly [ More info ] $70.99 Available to Order: Shipping delay up to 10 days.
		MC-24-14043 - Flywheel Housing Dust Cover [ More info ] $52.00 $39.87 Available to Order: Shipping delay up to 10 days.
#4	86015	GASKET (1 required per assembly)
		27-86015 - Flywheel Housing Cover Gasket [ More info ] $11.49 Available to Order: Shipping delay up to 10 days.
#5	98253	SCREW @2 (6 required per assembly)
		10-98253 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#6	26992	LOCKWASHER @5 (6 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#7	34353	SCREW @5 (2 required per assembly)
		10-34353 - Screw - Priced Individually [ More info ] $2.59 10+ In Stock.
#7	37612	SCREW @5 (1 required per assembly)
		10-37612 - Screw - Priced Individually [ More info ] $2.49 3 In Stock.
#7	47688	SCREW (2 required per assembly)
		10-47688 - Screw [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#8	35048	LOCKWASHER @5 (2 required per assembly)
		13-35048 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#9	8M2004610	STUD @5 (2 required per assembly) — Replaces: 805357
		16-8M2004610 - Stud [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#10	32219	NUT @5 (2 required per assembly)
		11-32219 - Nut (3/8-16) [ More info ] $2.79 10+ In Stock.
#11	939201	PLATE-COVER (1 required per assembly)
		93920 1 - Plate - Cover [ More info ] $53.99 Available to Order: Shipping delay up to 10 days.
#12	92913	SCREW (2 required per assembly)
		10-92913 - Screw [ More info ] $15.49 $12.40 3 In Stock.
#13	32993	LOCKWASHER @5 (2 required per assembly)
		13-32993 - LockWasher - Priced Individually [ More info ] $1.70 9 In Stock.
#14	62826A10	CABLE ASSY (1 required per assembly)
		84-62826A10 - Cable Assembly [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#15	806617	CLAMP-HOSE @5 (1 required per assembly)
		54-806617 - Hose Clamp - Priced Individually - NLA [ More info ] $1.50 $1.28 1 In Stock.
