Parts for 5.0L Carb Alpha / Bravo 5.0L (305 Cu In) V8 GM MerCruiser Engines - Gas Distributor & Ignition Components

Revise Search: Sterndrive > MerCruiser Engines - Gas > 5.0L (305 Cu In) V8 GM > 5.0L Carb Alpha / Bravo > 0W310000 - 0W649999 > Distributor & Ignition Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

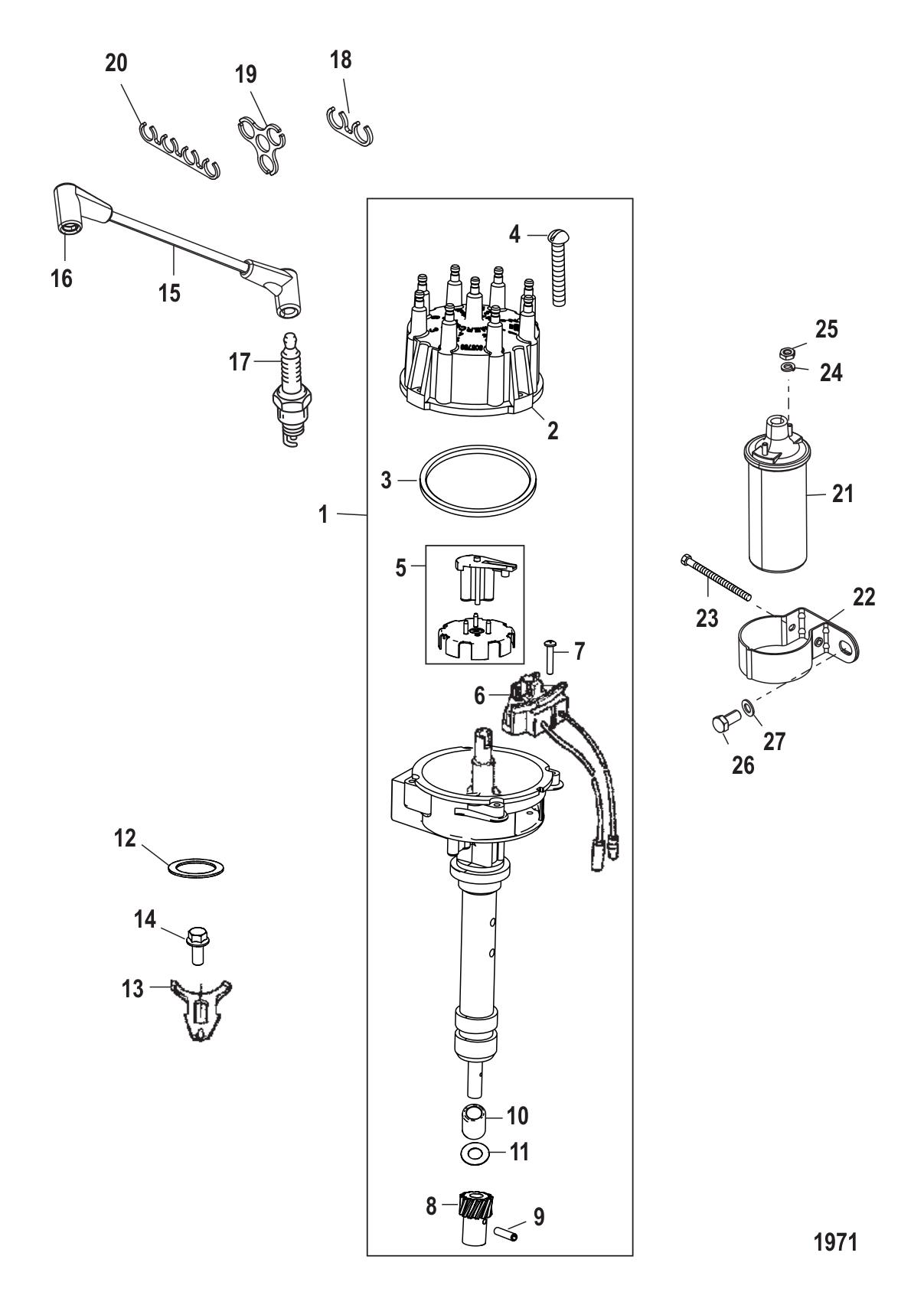

Distributor & Ignition Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	805185A36	DISTRIBUTOR ASSY (1 required per assembly)
		805185A36 - Distributor Assembly [ More info ] $481.49 Available to Order: Shipping delay up to 10 days.
		18-5470 - Distributor, 805185A37 [ More info ] $460.99 $421.59 In Stock
#2	805759T1	CAP DISTRIBUTOR (1 required per assembly)
		805759T 1 - Distributor Cap Assembly [ More info ] $65.49 $62.99 In Stock
		18-5395 - Cap, 805759A2, T2 [ More info ] $52.09 10 In Stock.
		805759T 3 - Cap & Rotor Kit [ More info ] $66.99 3 In Stock.
		805759Q 3 - Cap & Rotor Kit [ More info ] $60.99 2 In Stock.
		805759Q01 - Distributor Cap Assembly [ More info ] $65.49 Available to Order: Shipping delay up to 10 days.
#3	805760	GASKET (1 required per assembly)
		27-805760 - Distributor Cap Gasket [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#4	90926	SCREW (#10-32 X .810) (4 required per assembly)
		10-90926 - Screw - Priced Individually [ More info ] $1.00 10+ In Stock.
#5	13524T1	WHEEL ASSEMBLY (1 required per assembly)
		13524T 1 - Rotor Assembly [ More info ] $18.59 $17.89 In Stock
		18-5431 - Rotor, 13524A1, A5 [ More info ] $13.59 Available to Order: Shipping delay up to 10 days.
#6	892150Q02	SENSOR ASSEMBLY (1 required per assembly) — Replaces: 861780A2, 892150A02
		87-892150Q02 - Ignition Sensor Assembly [ More info ] $111.49 4 In Stock.
		18-5116-1 - Sensor, 87-892150Q02 [ More info ] $93.48 9 In Stock.
		87-892150K02 - Ignition Sensor Assembly [ More info ] $122.99 $122.58 Available to Order: Shipping delay up to 10 days.
		87-08107 - Sensor, 87-892150Q02 [ More info ] $93.99 $71.88 4 In Stock.
#7	66686	SCREW (#10-32 X 1.00) (1 required per assembly)
		10-66686 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#7	72202	SCREW (#10-32 X 1.25) (1 required per assembly)
		10-72202 - Screw [ More info ] $3.39 $1.90 10+ In Stock.
#8	8M0115498	GEAR (1 required per assembly) — Replaces: 818807, 8M0079425
		43-8M0115498 - Gear [ More info ] Unavailable
#9	47617	PIN (1 required per assembly)
		17-47617 - Pin -roll [ More info ] $3.19 $2.56 1 In Stock.
#10	90915	BUSHING (2 required per assembly)
		23-90915 - Bushing [ More info ] $9.89 $7.92 3 In Stock.
#11	90931	THRUST WASHER (1 required per assembly)
		12-90931 - Washer, Thrust [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#12	344863	GASKET (1 required per assembly)
		0344863 - Cylinder Hd175Ffi 20 Inch (344863) [ More info ] $351.48 Available to Order: Shipping delay up to 10 days.
#13	88731	CLAMP (1 required per assembly)
		54-88731 - Clamp [ More info ] $9.99 Available to Order: Shipping delay up to 10 days.
#14	805559	SCREW (1 required per assembly)
		10-805559 - Screw [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#15	863656A05	CABLE KIT IGNITION -PLUG & COIL WIRES (BLUE) (1 required per assembly)
		84-863656A05 - Ignition Wire Kit [ More info ] $132.49 Available to Order: Shipping delay up to 10 days.
#16	63709A1	BOOT/TERMINAL KIT (8 required per assembly)
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $8.19 7 In Stock.
#17	816336Q	NGK BPR6EFS @10 (8 required per assembly) — Replaces: 816336
		33-816336Q - NGK Spark Plug BPR6EFS - Priced Individually [ More info ] Unavailable
		BPR6EFS - NGK Spark Plug, 3623 [ More info ] $7.12 10+ In Stock.
#18	54676	RETAINER (2 required per assembly)
		54676 - Retainer [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#19	32783	RETAINER (2 required per assembly)
		32783 - Retainer [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#20	32784	RETAINER @2 (2 required per assembly)
		32784 - Retainer [ More info ] Unavailable
#21	8M0079202	COIL KIT-IGNITION (1 required per assembly) — Replaces: 805570A2
		300-8M0079202 - Ignition Coil Kit [ More info ] $127.49 In Stock
		18-5438 - Coil 392-7803A4 [ More info ] $69.99 $64.17 8 In Stock.
		300-00879 - HEI Ignition Coil Crusader Mercruiser 392-805570A 2 [ More info ] $64.49 $54.67 Available to Order: Shipping delay up to 10 days.
#22	65970T1	BRACKET (1 required per assembly)
		65970T 1 - Bracket [ More info ] $17.89 Available to Order: Shipping delay up to 10 days.
#23	41408	SCREW (#10-32 X 1.50) (1 required per assembly)
		10-41408 - Screw [ More info ] $3.39 $2.72 1 In Stock.
#24	26996	LOCKWASHER (#10) STAINLESS STEEL (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#25	68219	NUT (#10-32) STAINLESS STEEL (2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#26	98261	SCREW (1 required per assembly)
		10-98261 - Screw [ More info ] $1.20 5 In Stock.
#27	20553	WASHER @5 (1 required per assembly)
		12-20553 - Washer - Priced Individually [ More info ] $1.50 8 In Stock.
