Electrical

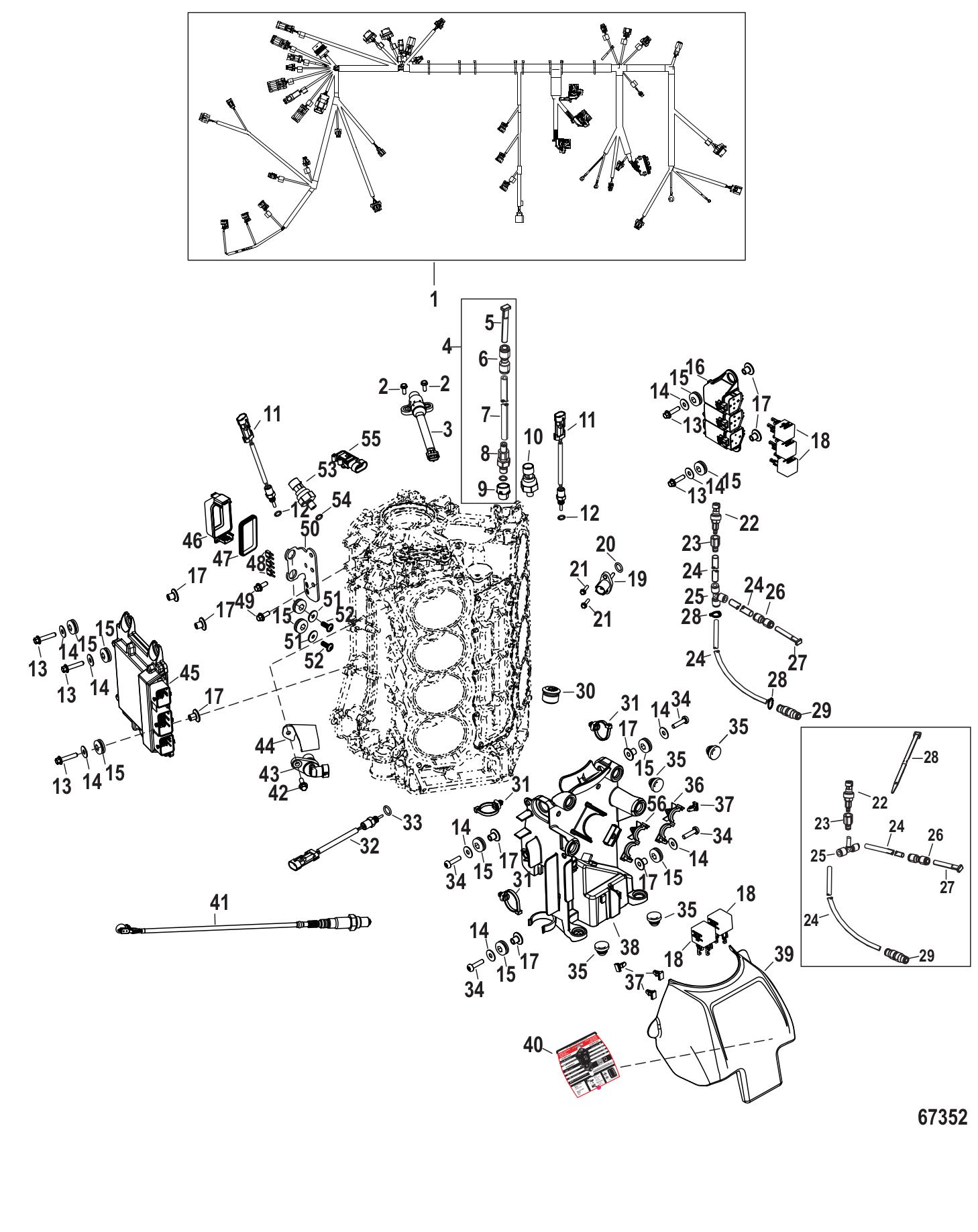

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0142259	HARNESS - ENGINE (1 required per assembly)
		848M0142259 - Engine Harness [ More info ] $936.49 Available to Order: Shipping delay up to 10 days.
#1	8M0142260	HARNESS - ENGINE (1 required per assembly)
		848M0142260 - Engine Harness [ More info ] $936.49 Available to Order: Shipping delay up to 10 days.
		84-8M0245504 - HARNESS V8 DTS [ More info ] Unavailable
#2	40011106	SCREW (2 required per assembly)
		10-40011106 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#3	8M0082988	SENSOR ASSY (1 required per assembly)
		8M0082988 - Sensor Assembly [ More info ] $120.49 $115.99 In Stock
#4	8M0145165	WTR PRESSURE KIT Mechanical (1 required per assembly)
		8M0145165 - WTR PRESSURE KIT [ More info ] Unavailable
#5	859732	PLUG Mechanical (1 required per assembly)
		22-859732 - Fitting [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#6	859747	COUPLER Mechanical (1 required per assembly)
		22-859747 - Fitting [ More info ] $11.20 10+ In Stock.
		228M0214971 - Fitting [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#7	85978571	TUBING (52.00 INCHES BULK) Mechanical (1 required per assembly)
		32-859785 71 - Hose - 52 Inch [ More info ] $50.49 Available to Order: Shipping delay up to 10 days.
#8	896094A01	FITTING ASSEMBLY Mechanical (1 required per assembly)
		22-896094A01 - Fitting Assembly [ More info ] $38.99 $37.20 10+ In Stock.
#9	8M0146147	CONNECTOR CAP 3 PIN Mechanical (1 required per assembly)
		8M0146147 - Connector CAP [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#10	8M0142696	SENSOR-PRESSURE Block Pressure, DTS (1 required per assembly)
		718M0142696 - Sensor-PRESSURE [ More info ] $86.99 Available to Order: Shipping delay up to 10 days.
#11	8M0142542	SENSOR TEMPERATUR (2 required per assembly)
		8M0142542 - Sensor TEMPERATUR [ More info ] Unavailable
		8M0205787 - Temperature Sensor [ More info ] $33.29 Available to Order: Shipping delay up to 10 days.
#12	896699	O-RING (1.78 MM X .08 MM) (2 required per assembly)
		25-896699 - O-ring, (1.78 Mm X .08 Mm) [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#13	8M0103807	SCREW @2 (5 required per assembly)
		108M0103807 - Screw (M6 x 25 MM) Stainless Steel [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#15	834985	GROMMET @5 (11 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
		25-8M0190980 - GROMMET Note: Must be ordered in multiples of 5 [ More info ] $3.89 Available to Order: Shipping delay up to 10 days.
#16	8M0142684	HOUSING RELAY (1 required per assembly)
		8M0142684 - Housing RELAY [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#17	65567	WASHER @2 (9 required per assembly)
		12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#17	856954	BUSHING (9 required per assembly)
		23-856954 - Bushing [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#18	8M0057697	CUBE RELAY (5 required per assembly)
		8M0057697 - CUBE Relay [ More info ] Unavailable
		8M0219829 - RELAY-CUBE [ More info ] Unavailable
#19	891663001	SENSOR ASSY-TEMP Intake Air (1 required per assembly)
		891663001 - Temperature Sensor Assembly [ More info ] $228.49 In Stock
#20	8M0142578	GASKET MAT SENSOR (1 required per assembly)
		278M0142578 - Gasket MAT Sensor [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#21	895054	SCREW @2 (2 required per assembly)
		10-895054 - Screw - Priced Individually [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#22	881879T11	SENSOR-PRESSURE Pitot (1 required per assembly)
		881879T11 - Pressure Sensor [ More info ] $196.99 $189.49 In Stock
#23	8M0207782	SPACER (1 required per assembly) — Replaces: 892403
		22-8M0207782 - SPACER [ More info ] Unavailable
#24	85944975	TUBING-72 INCHES Design II (2 required per assembly)
		32-859449 75 - Tubing - 72 Inches [ More info ] $55.49 Available to Order: Shipping delay up to 10 days.
#25	875207	FITTING Design I (1 required per assembly)
		22-875207 - Fitting [ More info ] $15.19 Available to Order: Shipping delay up to 10 days.
#25	8M0157114	FITTING TEE Design II (1 required per assembly)
		22-8M0157114 - FITTING TEE [ More info ] Unavailable
#26	859747	FITTING (1 required per assembly)
#27	859732	FITTING (1 required per assembly)
#28	816311T	TIE STRAP @100 Design II (1 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#29	859448T	FITTING (1 required per assembly)
		22-859448T - Fitting [ More info ] $21.29 Available to Order: Shipping delay up to 10 days.
#30	8M0087451	PLUG-18MM (1 required per assembly)
		198M0087451 - PLUG-18MM [ More info ] $7.79 Available to Order: Shipping delay up to 10 days.
#31	899145	CLIP (3 required per assembly)
		54-899145 - Clip [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#32	8M0161580	SENSOR EXHAUST Exhaust (1 required per assembly) — Replaces: 8M0142689
		718M0161580 - Sensor EXHAUST [ More info ] $73.49 Available to Order: Shipping delay up to 10 days.
#33	896699	O-RING (1.78 MM X .08 MM) (1 required per assembly)
#34	8M0142686	SCREW (4 required per assembly)
		108M0142686 - Screw [ More info ] $0.90 Available to Order: Shipping delay up to 10 days.
#35	8M0096302	GROMMET (4 required per assembly)
		258M0096302 - Grommet [ More info ] $0.90 $0.72 3 In Stock.
#36	858954	CLIP (1 required per assembly)
		54-858954 - Clip [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#37	879962	CLIP (4 required per assembly)
		54-879962 - Clip [ More info ] $1.99 4 In Stock.
#38	8M0153944	PLATE ELECTRICAL (1 required per assembly) — Replaces: 8M0142685
		8M0153944 - PLATE ELECTRICAL [ More info ] $19.89 Available to Order: Shipping delay up to 10 days.
#39	8M0142479	COVER ELECTRICAL (1 required per assembly)
		8M0142479 - Cover ELECTRICAL [ More info ] $30.99 Available to Order: Shipping delay up to 10 days.
#40	8M0148538	DECAL MAINTENANCE (1 required per assembly)
		378M0148538 - Decal MAINTENANCE [ More info ] $12.79 Available to Order: Shipping delay up to 10 days.
#41	8M0142695	SENSOR O2 (1 required per assembly)
		8M0142695 - Sensor O2 [ More info ] $252.99 Available to Order: Shipping delay up to 10 days.
#42	8M0103806	SCREW @2 (1 required per assembly)
		108M0103806 - Screw - Priced Individually [ More info ] $2.39 1 In Stock.
#43	8M0011987	SENSOR Cam Position (1 required per assembly)
		8M0011987 - Sensor [ More info ] In Stock
		8M0233140 - SENSOR [ More info ] In Stock
#44	8M0142691	BRACKET CAM SENSR (1 required per assembly)
		8M0142691 - Bracket CAM SENSR [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#45	8M0167039	PCM 200 V8 PX MEC (1 required per assembly) — Replaces: 8M0142653
		778M0167039 - PCM 200 V8 PX MEC [ More info ] Unavailable
		77-8M0207585 - PCM 200 V8 PX MEC [ More info ] Unavailable
#45	8M0167038	PCM 200 V8 PX DTS (1 required per assembly) — Replaces: 8M0142652
		778M0167038 - PCM 200 V8 PX DTS [ More info ] Unavailable
		77-8M0207584 - PCM 200 V8 PX DTS [ More info ] Unavailable
#45	8M0167041	PCM 225 V8 PX MEC (1 required per assembly) — Replaces: 8M0142656
		77-8M0167041 - 77-8M0167041 - PCM 225 V8 PX MEC [ More info ] Unavailable Replaced by -8M0207589
		77-8M0207589 - PCM 225 V8 PX MEC [ More info ] Unavailable
#45	8M0167040	PCM 225 V8 PX DTS (1 required per assembly) — Replaces: 8M0142655
		778M0167040 - PCM 225 V8 PX DTS [ More info ] Unavailable
		77-8M0207587 - PCM 225 V8 PX DTS [ More info ] Unavailable
#45	8M0167048	PCM 250 V8 PX MEC (1 required per assembly) — Replaces: 8M0142783
		778M0167048 - PCM 250 V8 PX MEC [ More info ] Unavailable
		77-8M0207596 - PCM 250 V8 PX MEC [ More info ] Unavailable
#45	8M0167047	PCM 250 V8 PX DTS (1 required per assembly) — Replaces: 8M0142756
		778M0167047 - PCM 250 V8 PX DTS [ More info ] Unavailable
		77-8M0207592 - PCM 250 V8 PX DTS [ More info ] Unavailable
#45	8M0167056	PCM 300 V8 PX MEC (1 required per assembly) — Replaces: 8M0142963
		778M0167056 - PCM 300 V8 PX MEC [ More info ] Unavailable
		77-8M0207607 - PCM 300 V8 PX MEC [ More info ] Unavailable
#45	8M0167055	PCM 300 V8 PS DTS (1 required per assembly) — Replaces: 8M0142951
		778M0167055 - PCM 300 V8 PS DTS [ More info ] Unavailable
		77-8M0207600 - PCM 300 V8 PS DTS [ More info ] Unavailable
#46	8M0147858	COVER FUSE DECALD (1 required per assembly)
		8M0147858 - Cover FUSE DecalD [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#47	8M0147903	SEAL FUSE (1 required per assembly)
		8M0147903 - Seal FUSE [ More info ] $6.79 Available to Order: Shipping delay up to 10 days.
#48	8M0207797	FUSE-GRAY-2 AMP (1 required per assembly) — Replaces: 8329692
		888M0207797 - FUSE-GRAY-2 AMP [ More info ] $7.29 Available to Order: Shipping delay up to 10 days.
#48	83296910	FUSE-RED-10 AMP (1 required per assembly)
		88-832969 10 - Fuse - RED-10 Amp [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#48	832969T20	FUSE-20 AMP @5 (4 required per assembly)
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $7.09 10+ In Stock.
#49	8M0103805	SCREW @2 (2 required per assembly)
		108M0103805 - Screw (M6 x 16MM) Stain [ More info ] $2.49 4 In Stock.
#50	8M0142455	BRACKET PCM (1 required per assembly)
		8M0142455 - Bracket PCM [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#51	42118	WASHER (2 required per assembly)
		12-42118 - Washer, Oil Reservoir Screw [ More info ] $3.89 $3.12 8 In Stock.
#52	878609	SCREW (2 required per assembly)
		10-878609 - Screw [ More info ] $2.59 4 In Stock.
#53	8M0142688	PRESSURE SENSOR Oil (1 required per assembly)
		718M0142688 - PRESSURE Sensor [ More info ] $219.49 Available to Order: Shipping delay up to 10 days.
#54	896699	O-RING (1.78 MM X .08 MM) (1 required per assembly)
#55	8M0142690	MAP SENSOR (1 required per assembly)
		8M0142690 - MAP Sensor [ More info ] $43.49 Available to Order: Shipping delay up to 10 days.
#56	883066	CLIP (1 required per assembly)
		54-883066 - Clip [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
